Test Methods for Determining Compressive Stress Relaxation (CSR) Response of Vulcanized Rubber and Thermoplastic Elastomers: A Comprehensive Guide

Abstract

Compressive Stress Relaxation (CSR) testing has emerged as a critical method for evaluating elastomeric seal performance by simulating actual sealing force behavior. This technical guide examines CSR testing principles, SAE J2979 standard methodology, industrial applications, and modern equipment solutions for reliable seal performance assessment.

1. Fundamentals of CSR Testing

1.1 Definition and Mechanism

Compressive Stress Relaxation describes the gradual reduction of compressive force over time under constant strain, expressed as a percentage of initial force. This standardized method evaluates stress decay behavior in rubber and elastomeric materials during prolonged compression.

Key Measurement Parameters:

  • Initial sealing force
  • Stress relaxation rate
  • Long-term stress retention
  • Temperature/medium influence factors

1.2 Comparative Analysis of Test Methods

Test MethodMeasured ParameterApplicable StandardsDurationApplications
CSRStress decay over timeSAE J2979, ISO 3384Hours to monthsLong-term seal performance
Compression SetPermanent deformationASTM D395Typically 22/70 hrsMaterial recovery capacity
Tensile Stress RelaxationTensile stress decayASTM D6147Hours to daysElastomer tensile applications

2. Industrial Applications of CSR Testing

2.1 Material Development & Selection

CSR testing provides quantitative data for:

  • Comparing stress retention across formulations
  • Optimizing polymer matrices and filler systems
  • Predicting service life in specific environments

2.2 Seal Design Optimization

CSR data informs:

  • Geometric parameter design
  • Pre-compression optimization
  • Contact pressure distribution
  • Multi-material system compatibility

2.3 Quality Control & Certification

CSR results serve as industry-accepted metrics for:

  • Incoming material inspection
  • Production process control
  • Product performance validation
  • Service life estimation

3. SAE J2979 Standard Methodology

3.1 Test Protocol

Key procedural stages:

  1. Sample Conditioning: Standard temperature/humidity acclimation
  2. Initial Compression: Controlled-rate compression to target strain
  3. Baseline Measurement: “Initial sealing force” at 60 minutes
  4. Environmental Exposure: Immersion in specified fluid/temperature
  5. Intermittent Measurement: Residual force measurement at intervals
  6. Data Analysis: Stress relaxation rate calculation

3.2 Critical Technical Requirements

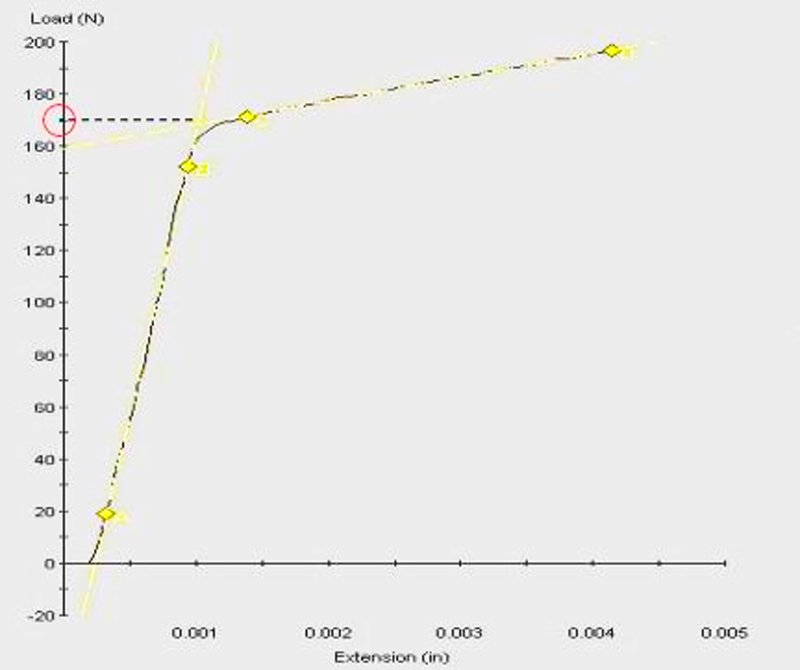

3.2.1 Load-Deflection Curve Analysis

Requirements:

  • Sufficient data points to identify inflection
  • Clear linear response regions
  • Precise sealing force determination

Sealing Force Calculation:

  1. Generate load-deflection plot
  2. Apply overlay lines to linear regions
  3. Project intersection to y-axis
  4. Derive sealing force value

Recommended supplementary calculations:

  • System/sample stiffness ratio
  • Linear region slopes

3.2.2 Equipment Specifications

ParameterTechnical RequirementImportance
Force RangeAppropriate for expected sealing forcesMeasurement accuracy
Resolution≤0.5% full scaleDetecting subtle changes
Temperature Control±1°C stabilityTest consistency
Data AcquisitionContinuous recording capabilityComplete process tracking
Fixture DesignLow-friction, proper alignmentMinimizing system errors

4. Modern CSR Testing Solutions

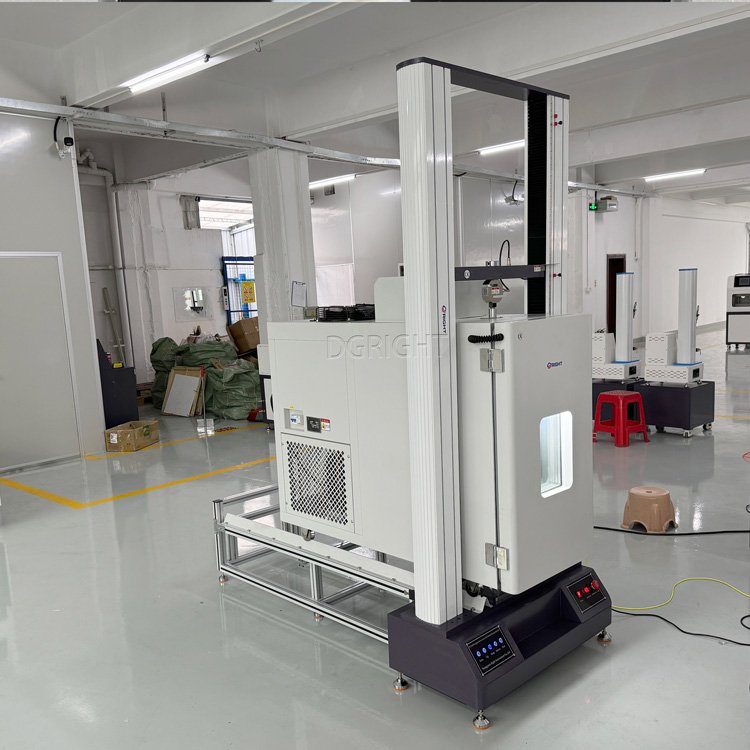

4.1 RT-204 Universal Testing System

High temperature tensile strength machine

Key features for CSR testing:

  • High-precision load cell (±0.5% reading accuracy)
  • Wide speed range (0.001-500mm/min)
  • Integrated environmental chamber (-70°C to 300°C)
  • Synchronized multi-channel data acquisition

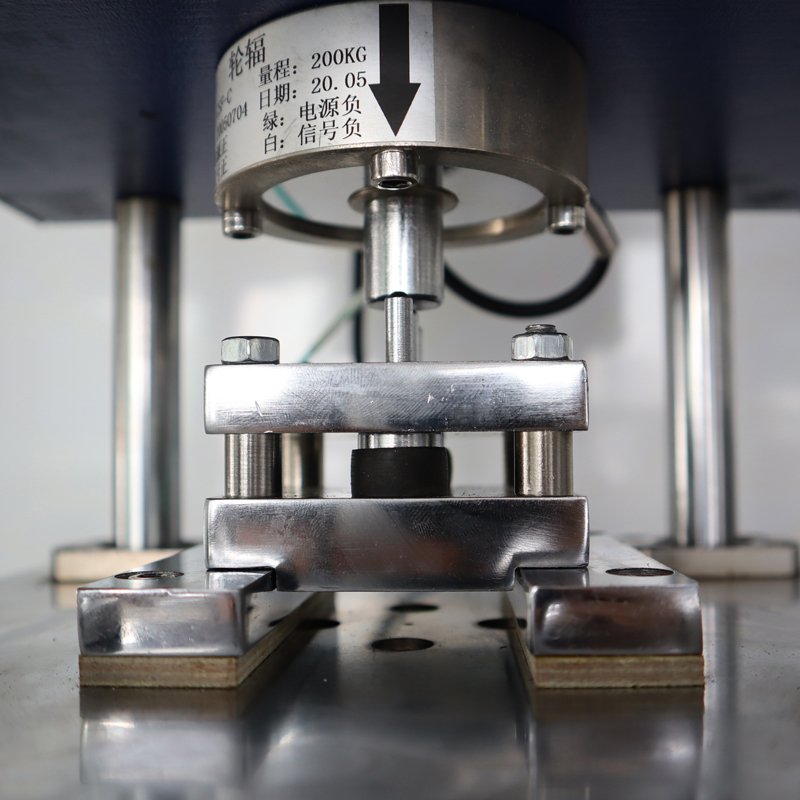

4.2 Specialized CSR Fixtures

Design considerations:

  • Low-friction guidance systems
  • Anti-buckling design
  • Chemical-resistant materials
  • Rapid sample change mechanisms

4.3 Advanced Software Capabilities

Essential features:

  • Automated curve analysis
  • Sealing force calculation
  • Multi-batch data comparison
  • Custom report generation
  • Data export functionality

5. Industry Trends in CSR Testing

Emerging developments:

  • Multi-factor testing: Combined temperature-pressure-medium studies
  • Miniaturization: Solutions for micro-seal applications
  • High-throughput: Parallel sample testing
  • Predictive modeling: Service life forecasting algorithms
  • Standardization: Industry-specific method development

Conclusion

As a critical methodology for evaluating long-term seal performance, CSR testing continues gaining importance across automotive, aerospace, and petrochemical industries. Implementation of SAE J2979 standards with advanced systems like the RT-204 enables reliable CSR data acquisition for R&D and quality assurance. Ongoing methodological advancements promise even greater precision in seal performance evaluation.
