Surprise! Twin-screw co-extrusion with only 15mL of material – leading the industry in technological innovation!

Expensive material, little material? Please leave it to me, 15ml can meet your co-extrusion test needs. In the field of high-end materials research and development, for the small test material is less, expensive, high throughput screening experiments, the technical team of Dongguan Right Instrument Co., Ltd. has spent three years research and development launched RT-739 micro-precision blending and extrusion system, which is reconfiguring the research and development of the economic model:

  • The 15ml Vertical Extrusion Micro Processing Platform saves 95% of R&D consumables cost.
  • Equipped with micro material precision feeding technology.
  • Patented twin-screw isotropic shear system for high dispersion.
  • Modularized precise temperature control supports RT~400℃ full temperature range processing.

Technological breakthroughs:

  • Miniature conical twin-screw powertrain for precise laboratory-grade blending.
  • Special screw linkage structure breaks the tradition of vertical extrusion.
  • Integrated sensors in the circulation circuit for continuous on-line monitoring of rheological properties.
  • Fully enclosed inert environment to meet the needs of special engineering plastics processing.

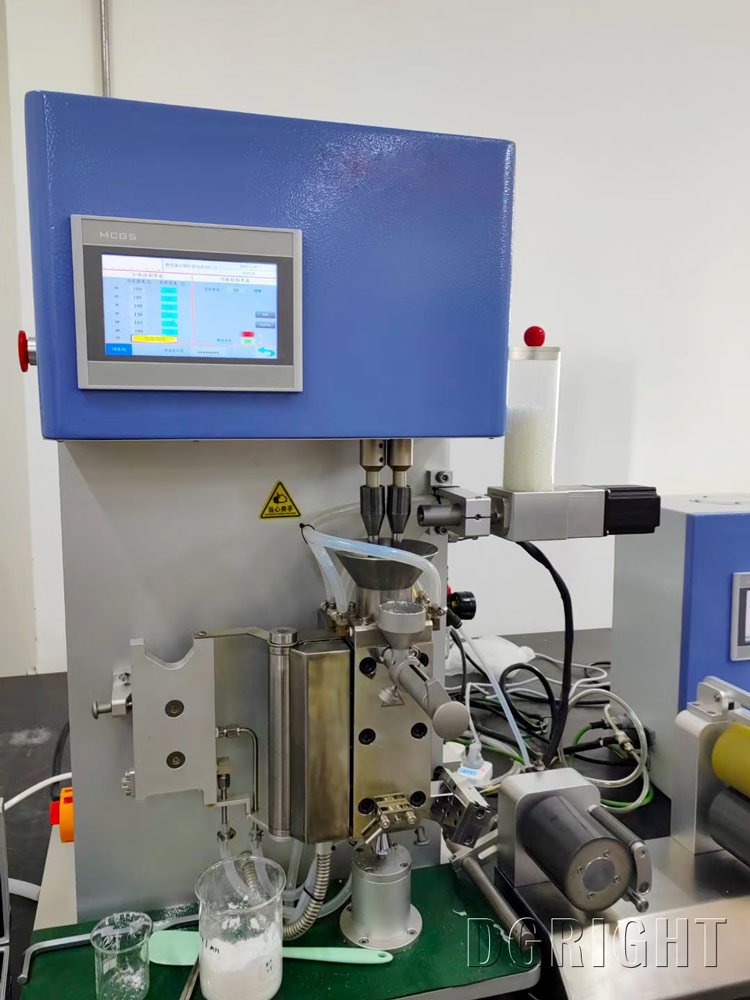

Mini Conical Twin Screw Extruder

Intelligent Vertical Conical Twin Screw Extrusion System vs Common Horizontal Conical Twin Screw Extrusion System

Vertical Conical Twin Screw Extrusion SystemHorizontal Conical Twin Screw Extrusion System
Extrusion directionVertical extrusion, convenient charging, preventing the climbing pole phenomenon, and adding liquid additives and raw materials mixed with good dispersibility.Horizontal extrusion, easy to add material to climb the pole bridge. Poor dispersion of liquid additives and raw materials.
Feeding methodMeasured feeding and side feeding system for smooth and continuous feeding.Difficult to realize measuring feeding, easy to jam, poor continuity
Data collectionReal-time data visualization of torque, pressure and material temperature acquisitionNo data acquisition
Continuous processingWide range of expansion modules, switchable injection molding, wire drawing, extrusion, coating, etc.Few options available

This vertical extrusion micro conical twin-screw mixer has significant advantages over traditional equipment: its low material consumption can quickly complete a variety of extrusion processes such as injection molding, film, filament, pelletizing, etc., and the experimental efficiency and repeatability of the results are simultaneously improved. The system is equipped with a real-time monitoring function of screw torque, six independent temperature control module, so that the processing process is precisely controllable, while reducing the cost of research and development, to provide more efficient experimental solutions for materials science research, and to promote the industry to the direction of high-precision, high-reliability.

Miniaturization:

The size of the equipment is 580x360x780mm, which occupies a small area and can be operated and used in the lab bench and fume hood. The mixing experiment can be carried out by using 5~15g raw materials, which is especially suitable for the processing experiment of micro samples.

Specialization:

The screw is a double helix variable pitch and variable diameter screw with independent intellectual property rights, which effectively prevents highly viscous polymers from climbing; there is an internal circulation channel for blending in the material chamber with independent intellectual property rights, which can simulate the residence time of polymers in the screw.

Functionalization:

Equipped with independently designed rheology control software, it can measure the rheological properties of the mixture, with axial force measurement, and can realize single cycle blending, timed cycle blending, continuous feeding blending, constant speed blending, and constant torque blending processing experimental modes.

Rapid:

The experiment operation is simple and efficient. From melting, polymerization, and extrusion to injection molding samples, maintenance takes just ten minutes.

Simplicity:

The barrel can be opened 180 °, easy to clean and maintain the cavity and screw; screw and cavity are imported mold steel, and the minimum wear and chemical resistance treatment.

Expanded interface:

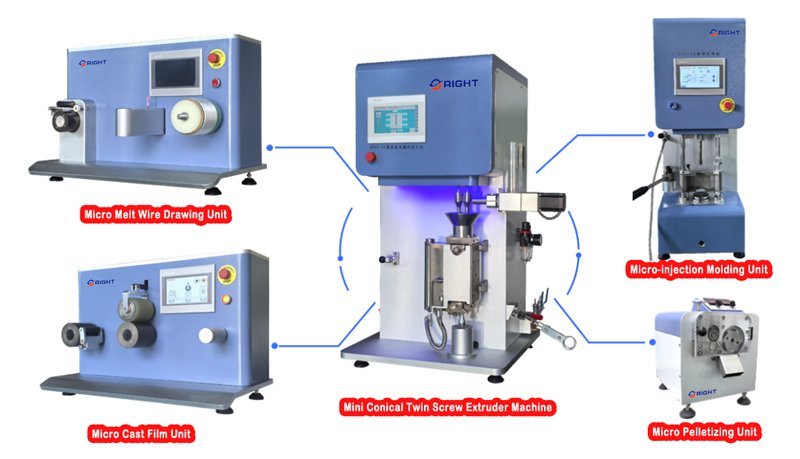

It can be used with a micro-injection molding machine to make injection molding samples. It can be equipped with film-drawing and spinning port molds to carry out simulated spinning, cast film processing, water-cooled granulation and other experiments.

Micro Melt Blown Film Machine

Scope of Application

Thermoplastics: PLA, ABS, PP, PE, etc., for studying the melt behavior, blend modification and reinforcing the processing performance of composite materials;


Rubber Elastomers: such as TPU, SEBS, to explore their dynamic vulcanization under high shear or nano-filling effect;


Polyester Materials: such as PLA, PBS, PHA, to study the effect of processing temperature on molecular weight degradation, or blending with starch/cellulose to enhance the performance;


Drug Carriers: biocompatible polymers (e.g., PLGA) for controlled release systems to achieve uniform coating of active ingredients;


Nanoparticle Dispersion: nanoclay, SiO₂, TiO₂ filled systems, using high shear to achieve homogeneous dispersion and to study the enhancement or functionalization effect;


Medical Consumables: Continuous and rapid melt spinning and film pulling, making the micro-cone double extrusion blending system widely used in the research and development of materials such as surgical sutures, infusion tubes, hemodialysis equipment, pill coating, pharmaceutical packaging materials, and so on;


Conductive materials: carbon nanotubes, graphene and polymer composite, the development of flexible electronic or anti-static materials;


High-performance Plastics: such as PEEK, PI, PPS, optimize the plasticization process at high temperatures to reduce thermal degradation;


Bio-based Materials: bamboo powder, straw fiber and polymer blending, research on the feasibility of processing renewable resources;


3D Printing Wires: preparation of functional wires by blending modification (e.g. addition of magnetic particles, flame retardants), optimization of extrusion uniformity.
