Product Description

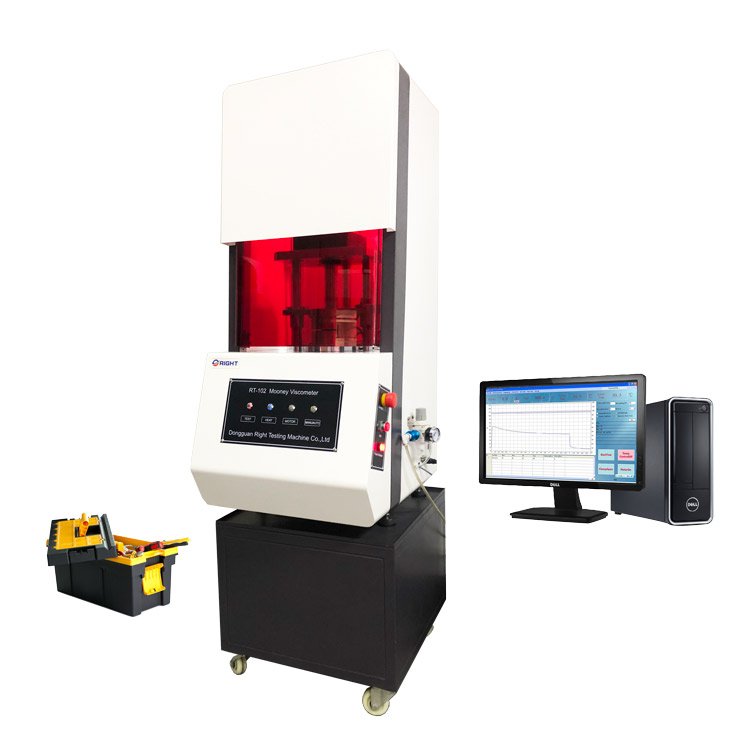

Mooney Viscometer viscosity for rubber vulcanization index determination. Sample in a certain temperature and pressure, the rotor to a certain degree of rotation torque on the sample to a certain degree of shear stress, measure out the rubber anti-shear torque. Is reclaimed rubber, rubber, wire and cable industry indispensable instrument.
| Download information [File size：106.11 KB downloads：] |
 Download:RT-102 Mooney Viscometer.pdf |
Equipment summary:
Mooney Viscometer viscosity for rubber vulcanization index determination. Sample in a certain temperature and pressure, the rotor to a certain degree of rotation torque on the sample to a certain degree of shear stress, measure out the rubber anti-shear torque. Is reclaimed rubber, rubber, wire and cable industry indispensable instrument.
Meet the standards:
Line GB/T1232 "unvulcanized rubber Mooney Viscosity", GB / T 1233 "Rubber, Determination of characteristics of the initial curing Mooney Viscometer" and ISO289, ISO667 ,ASTM D1646 and other standards.
Applicable industry:
Applied to rubber, tires, reclaimed rubber factory.
Technical Parameter:
Model | RT-102 |
Control temperature range | Normal temperature~200℃ |
Temperature display resolution | 0.01℃（0.1 ℃ common type of imported temperature controller temperature） |
Temperature control accuracy | ±0.3℃ |
Calibration accuracy | Mooney value ±0.5 |

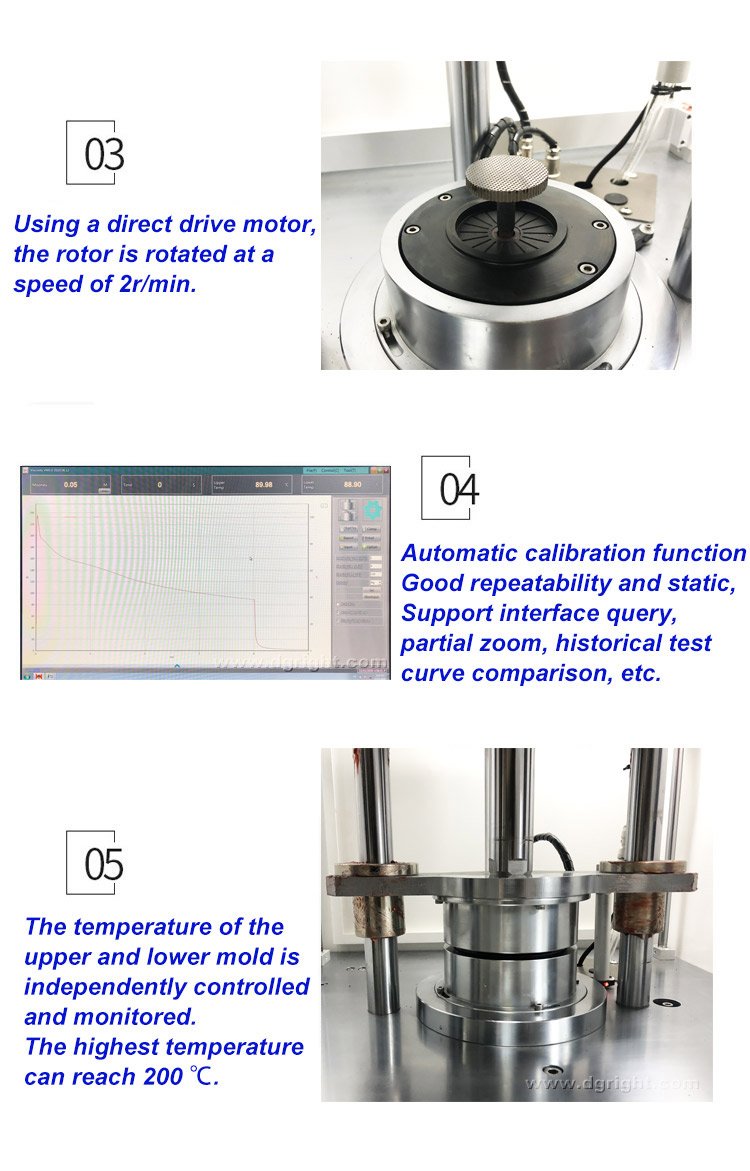

Rotor speed | 2 rotation/ min ±0.02rotation/ min |
Torque range | Mooney value 0～200 |
Torque resolution | Mooney value 0.1 |
Print content | Date, time, temperature, Mooney scorch curve and MV,T5,T35,T3,T18,@15,@30 |
Power | 50HZ, ～220V±10％ |
