RT-204C Rubber Plastic Tensile Strength Test Machine

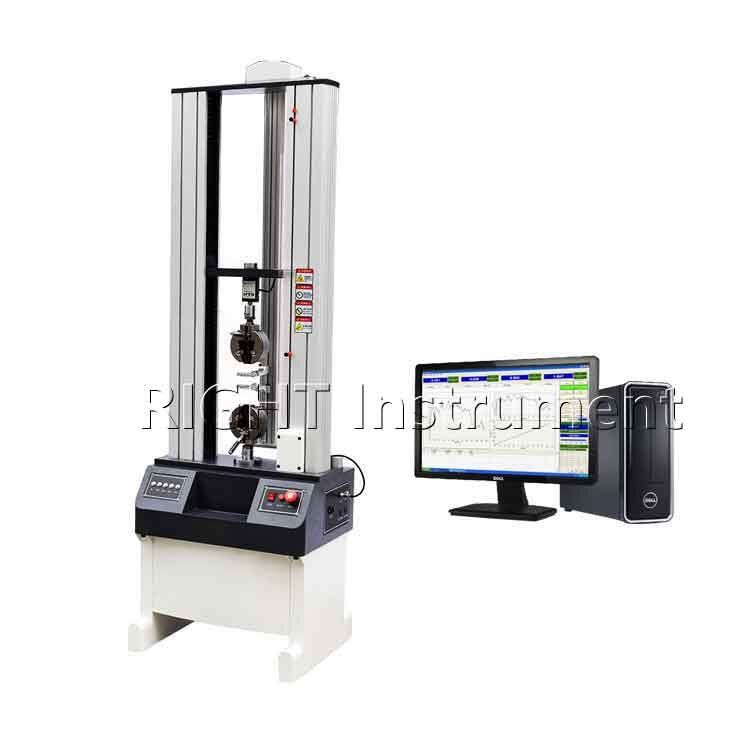

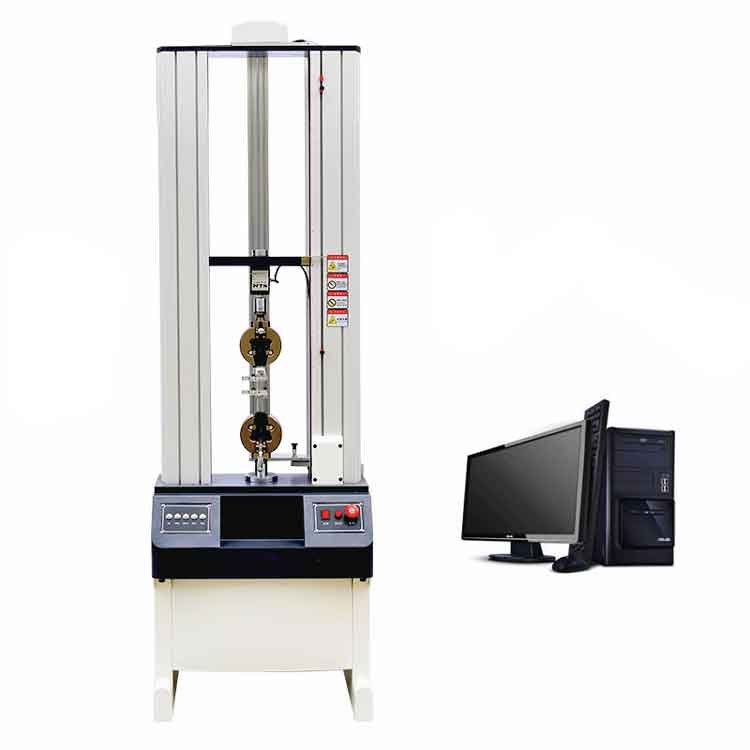

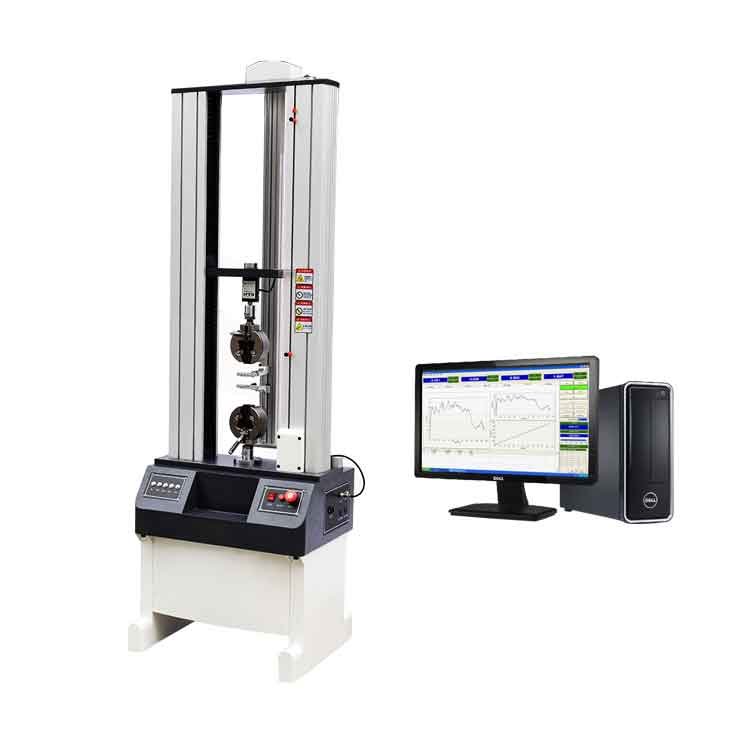

The Universal Material Testing Machine RT-204C features advanced motor control and a dedicated algorithm that delivers servo-like performance, ensuring smooth motion, precise speed correction, and optimal testing stability. With digital speed setting and one-button start, it offers fast, convenient, and highly efficient operation.

This universal testing machine performs tensile, compression, peel, adhesion, and tearing tests, and supports multiple languages plus Imperial/Metric unit switching through PC software. The professional analysis software provides complete test modules, real-time curves, automatic calculations, and customizable reports.

Versatile and reliable, the RT-204C is widely used as textile testing equipment, fabric testing machine, single-yarn tester, tape tensile tester, and general material testing equipment for laboratories and quality control.

Product Details：

Equipment summary:

Universal Tensile Compression Strength Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line.

Specification

ITEM	DESCRIPTION
Brand Name	RIGHT
Model Number	RT-204C
Product name	Universal Tensile Compression Strength Testing Machine
Maximum load	10KN, 20KN, 50KN (is optional)
Accurate grade	1 % /0.5 %
Effective measuring range	0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy	the value ±1% / the value ±0.5%
Tester resolution	Max load 1/200000, regardless of inside and outside, constant the resolution
Load sensor	Basic configuration sensor(max load): 1 piece Extended configuration sensor: 1 piece
Effective tensile stoke	800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement)
Testing speed	0.001~200mm/min, 500mm/min (1000mm/min is option)
Accuracy of displacement measurement	Tolerance:±0.5% / tolerance: ±0.2%

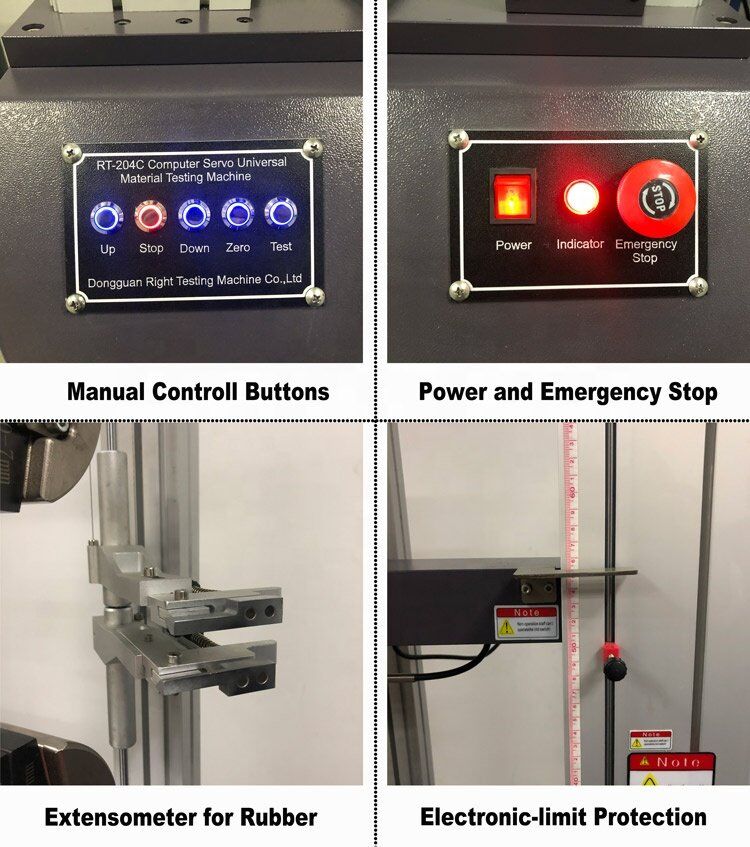

Safety	Electronic-limit protection
Return Back	Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10%, automatic protection
Deformation of measured system(according to the requirements)	Min span :10mm, Max range of deformation :800mm Extended deformation :Min span: 25mm,50mm,100mm, range of deformation:5mm,10mm,25mm
Fixture	A set of tensile clamp
Power system	Panasonic AC Servo Motor + Driver + high-precision ball screw
Unit	KG,N,LB, TON can be exchanged.
Power supply	220V , 50HZ or according to the requirement
Machine size	10756210cm(lengthwidthheight)
Machine weight	（about）320 Kg

Scope of application

RT-204C Universal Tensile Compression Strength Testing Machine

it is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.

Product Features:

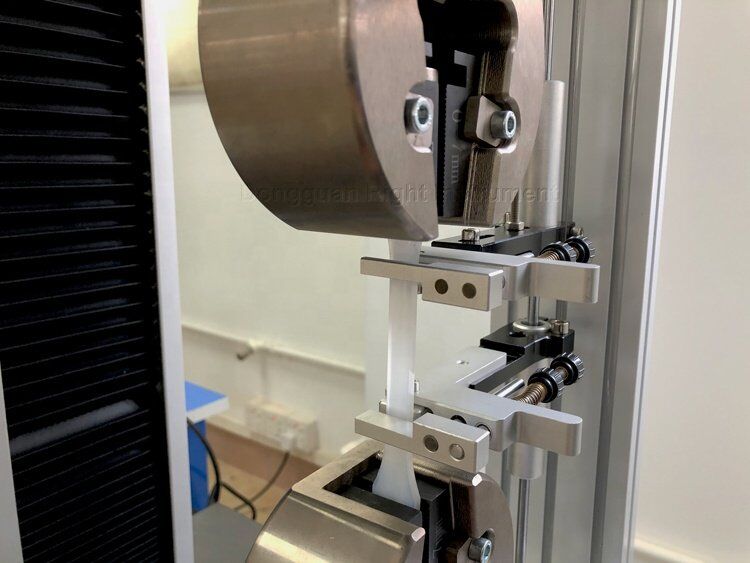

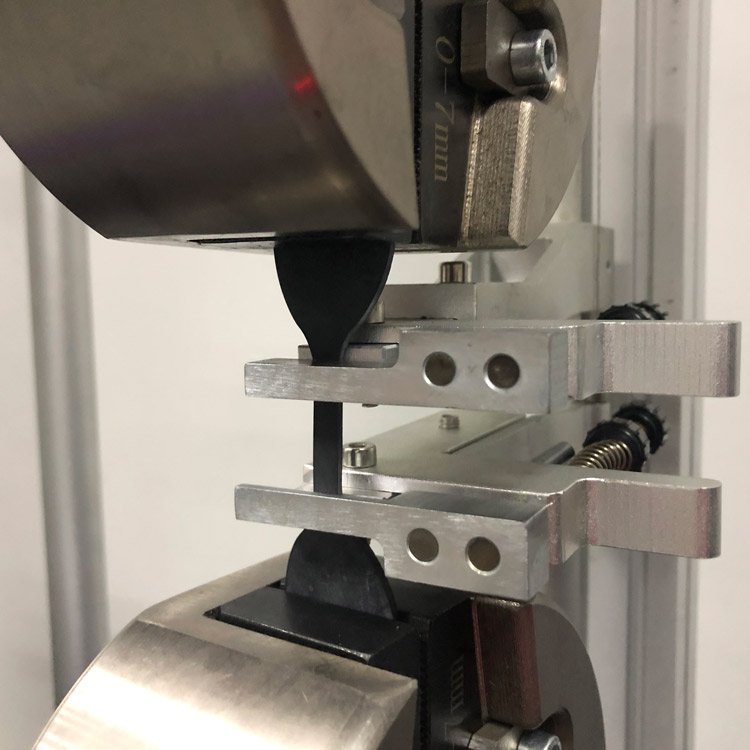

Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
