Model | RT-120 |
---|---|
Capacity | 10L |
Motor power | 15KW |
Flip motor | 0.75KW |
Flip angle | 110-135° |
Production | 8/12KG (per hand) |
Size | 2250*1000*2320(mm)) |
Weight | 2300KG |

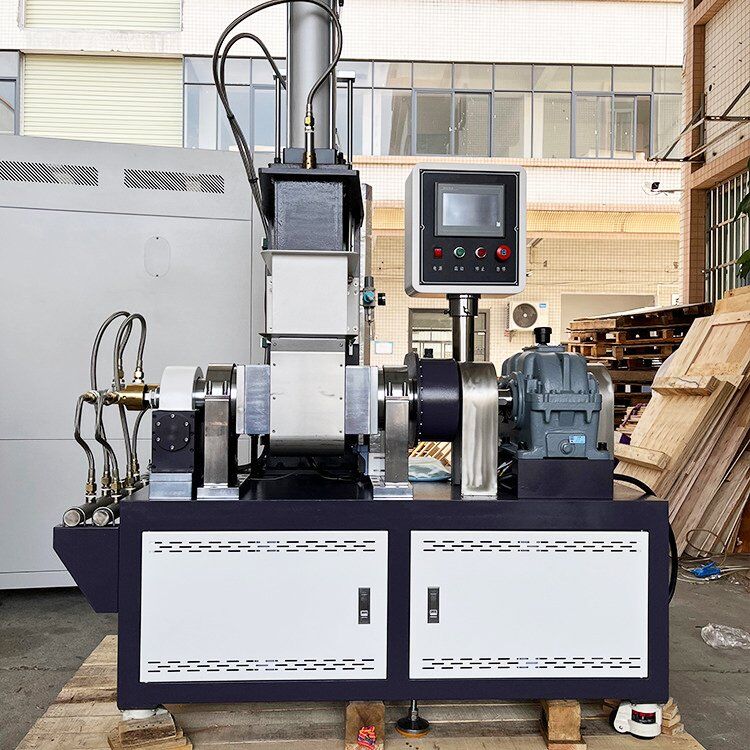

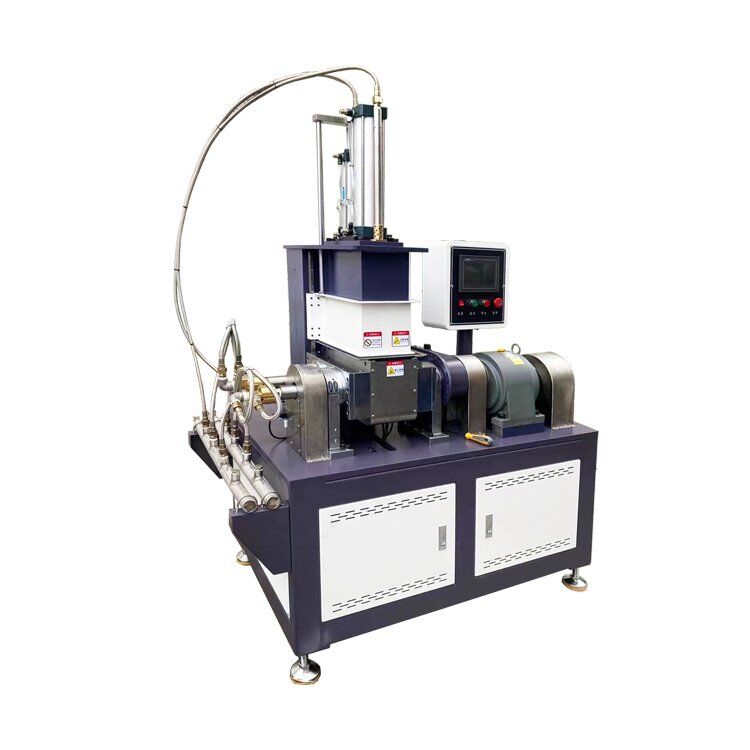

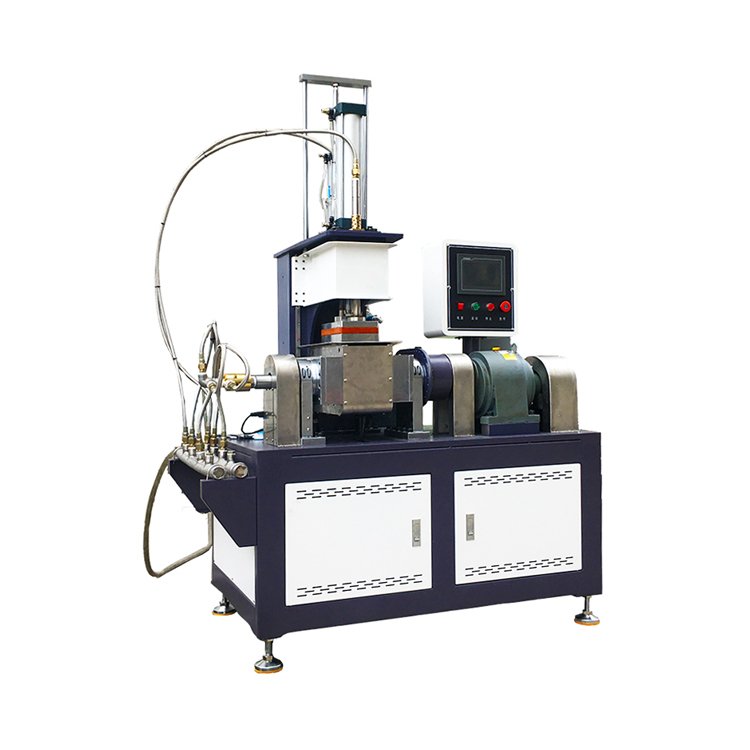

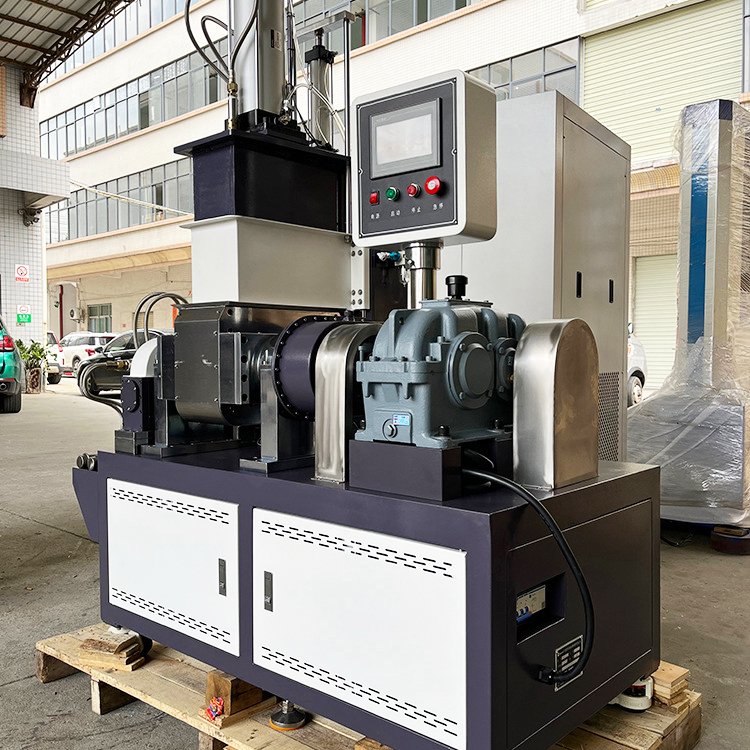

The RT-120 Banbury internal mixer machine is mainly used for mixing and kneading rubber, plastic, and chemical raw materials and is also suitable for mixing various high and low-viscosity materials. The RT-120 lab internal mixer adopts a PLC programmable controller, a 10-inch color touch screen, and a human-machine interface operating system. The mixing process is automatically completed, simple and practical, energy-saving, and efficient.
Take “M-W” pressurized to ensure uniform mixing of materials and changes in physical properties to achieve the best effect of mixing year-on-year, fully formulated material “X” curve movement.
Overall wear-resistant treatment of strong wear resistance is excellent, and more to improve the service life than the traditional type of life is higher than 1-2 times.
RT-120 internal mixer is electrically heated water-cooled, frequency conversion speed control, PLC intelligent control, used for rubber molding and mixing. Mixing of chemical industry raw materials: all kinds of cable masterbatches, EVA, PVC, carbon black, low smoke fontanel-free materials, TPR, cable heat-shrinkable tubes, high filler engineering materials, and other chemical raw materials of the mixing.
Model | RT-120- 05 | RT- 120-1 | RT- 120- 2 | RT- 120- 3 | RT- 120- 5 |
Volume | 0.5L | 1L | 2L | 3L | 5L |
Heating | RT-300℃ | ||||
Accurate | 0.1 ℃ | ||||
Controllers | PLC programmable color touch screen, man-machine operation interface, can set all process parameters | ||||
Pouring method | Motorized Tipping | ||||
Cooling method: | Tap water cooling | ||||
Flip angle | 0-110° | ||||
Max. Pressure | 0.3 Mpa | ||||
Rotor Ratio | 1:1.27 | ||||

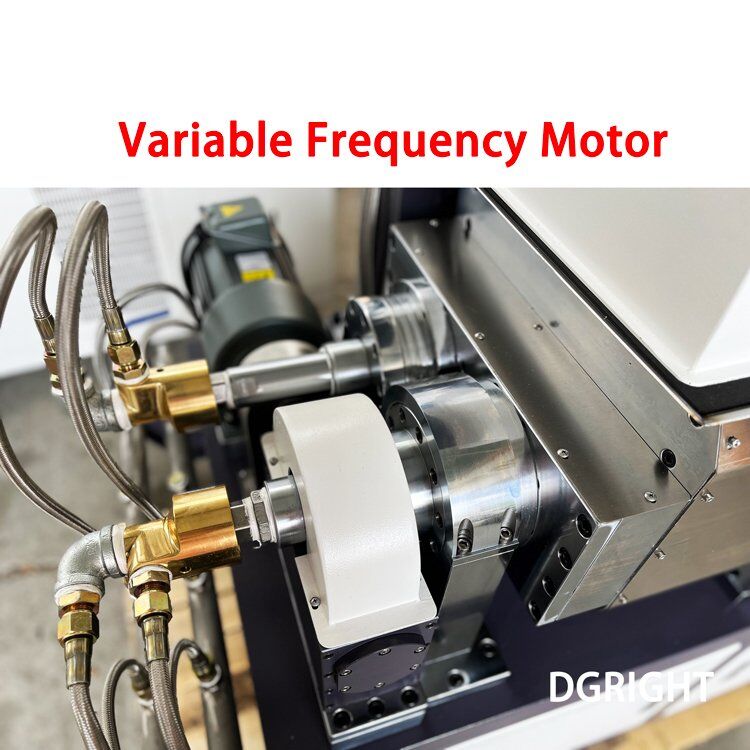

Rotor speed | 0-50 rpm/min Frequency converter speed control | ||||
Feeding method | manually operated | ||||

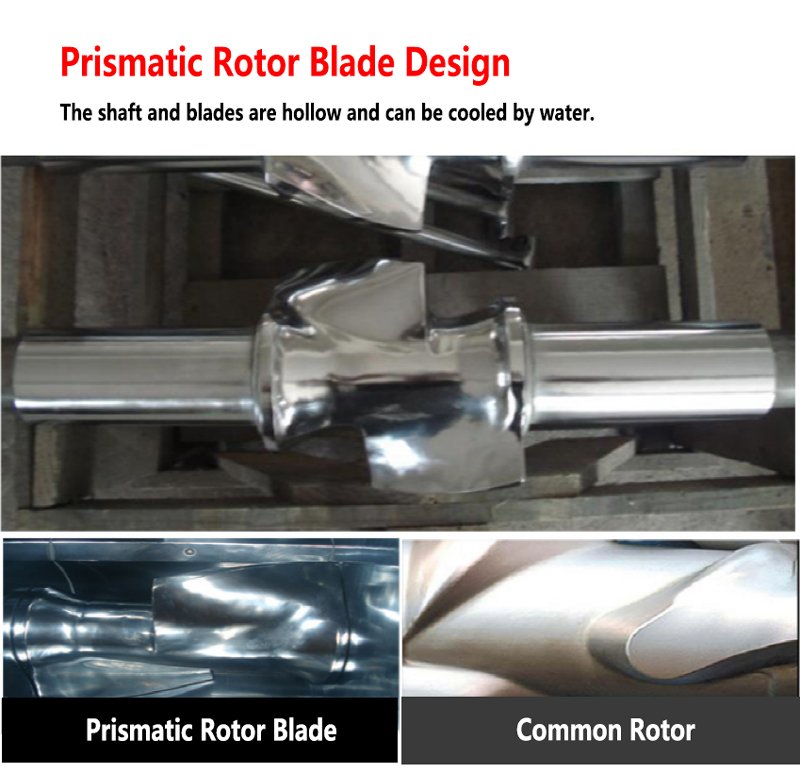

Rotor material | SKD Chromium-Molybdenum | ||||

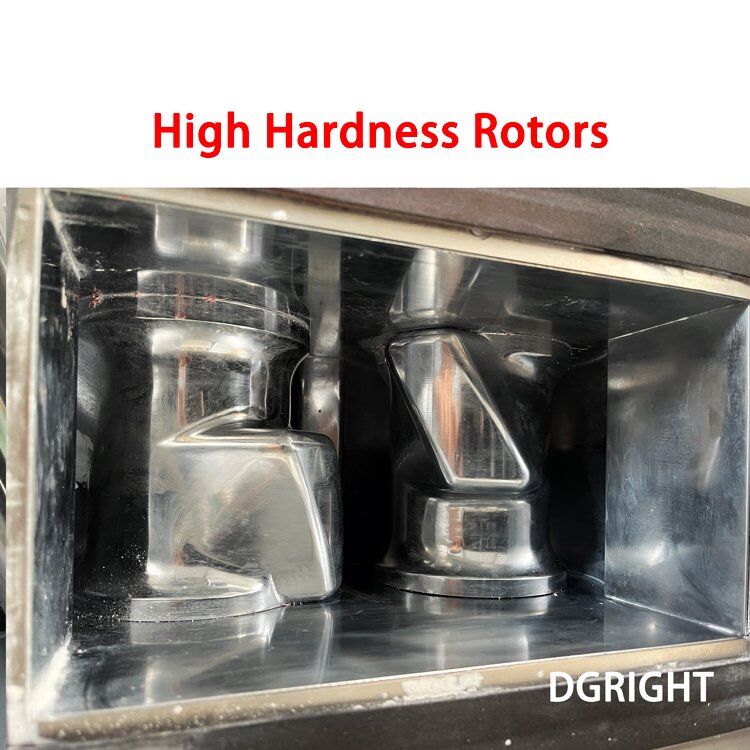

Rotor hardness | HRC60 surface hard chrome | ||||
Mixing room | SKD chromium-molybdenum alloy material, inner cavity surface hardness HRC60 mirror hard chrome |
Steelyard weight | Full-pressure pneumatic, air source pressure 0.5 ~ 0.8Mpa (customers provide their own air source connection port) | ||||
Control system | Advanced RIGHT 17.5 smelting software system, can be multi-stage control of smelting program options | ||||
Main motor | 1.5KW | 2.2KW | 5.5KW | 7.5KW | |
Flip Motor | 450W | 750w | |||
Volume(L*W*H) | 1050* 650*1550mm | 1550*850* 2080mm | |||
Power source | AC380V, 22A, Three-phase five-wire | ||||
Weight | 450 kg | 550k g | 750kg | 950kg |
