RT-128 Plastic Rubber Torque Rheometer



Application:

● Polymer material formulation design

● Raw material performance and quality inspection

● PVC melting characteristics test

● Test for plasticizer absorption performance of PVC dry mix

● Thermal and shear stability testing of thermoplastic materials

● Cross-linking characteristics determination for XLPE cross-linked ethylene

● Studying flow and solidification behavior of cross-linking polymers

● Formulation design of inorganic powder sintering molding materials such as metal and ceramics

Product Details：

Torque Rheometer

Compounding



* Polymer Melting and Degradation Properties Experiments.
* Thermal stability of polymers.
* Flow and curing of cross-linked, thermoplastics.
* Experiments on the influence of fillers and additives (pigments, stabilizers, antioxidants, lubricants, etc.) on material properties;
* The study of the best material formulation by comparing the superimposed rheological curves of different components.
* Experiments on the development and processing performance of high-performance plastics ;
* Experiment on the dispersibility of fillers



Extrusion

* Melt flowability experiments
* Shear stability of polymers.
* Rheology experiments ( apparent viscosity vs. shear rate)
* Extrudability of materials.
* Predict and optimize process parameters in the molding process of blown film, pelletizing, profile extrusion, injection
molding, etc. Through experiments, we can predict the problems that may occur in actual production.



Forming

Pelletizing, Blown film, Cable covering, Spinning, Pipe, Pigment dispersion, Sheet and plate.

Specification

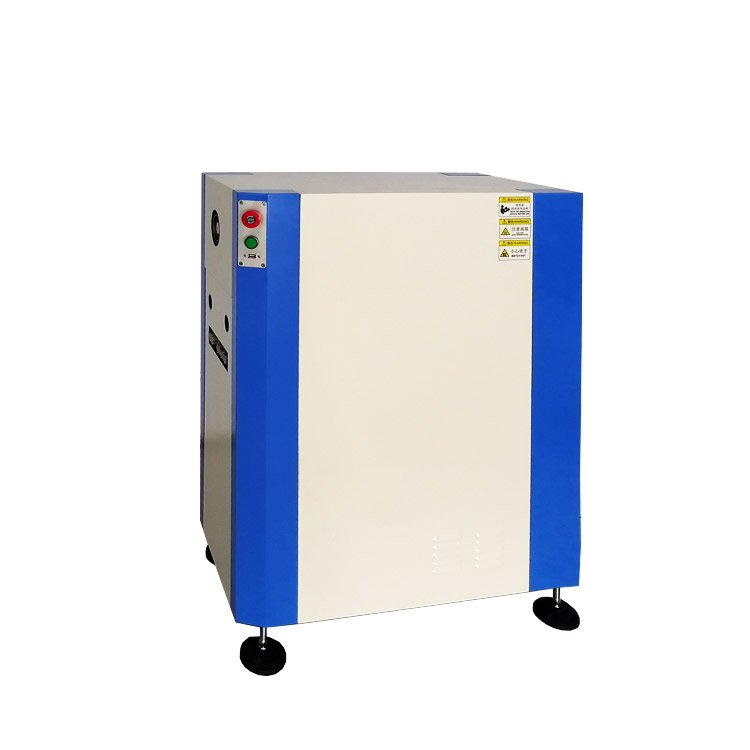

Host Of Torque Rheometer

Torque Rheometer

Model
RT-128
Product name
Host Of Torque Rheometer
Power
4KW/7KW
Temperature Control
RT~350℃/500℃
Temperature Precision
±0.5℃
Speed
2~200rpm (stepless)
Speed Precision
0.1~0.5%F.S
Torque
0~300N.m (400N.m can be customized)
Torque Precision
0.05%F.S
Pressure
0~100Mpa
Display Data
Speed, Temperature, Pressure, Torque, Energy
Software

1. Measurement and Control Software

2. Mixer data processing software
3. Extruder Data Processing Software
4. Polymer melt viscosity measurement data processing software

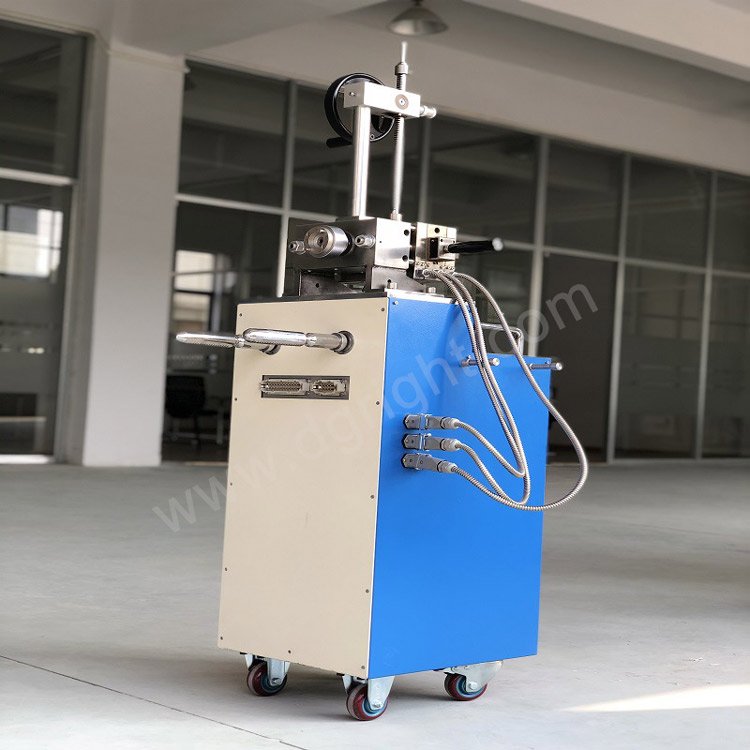

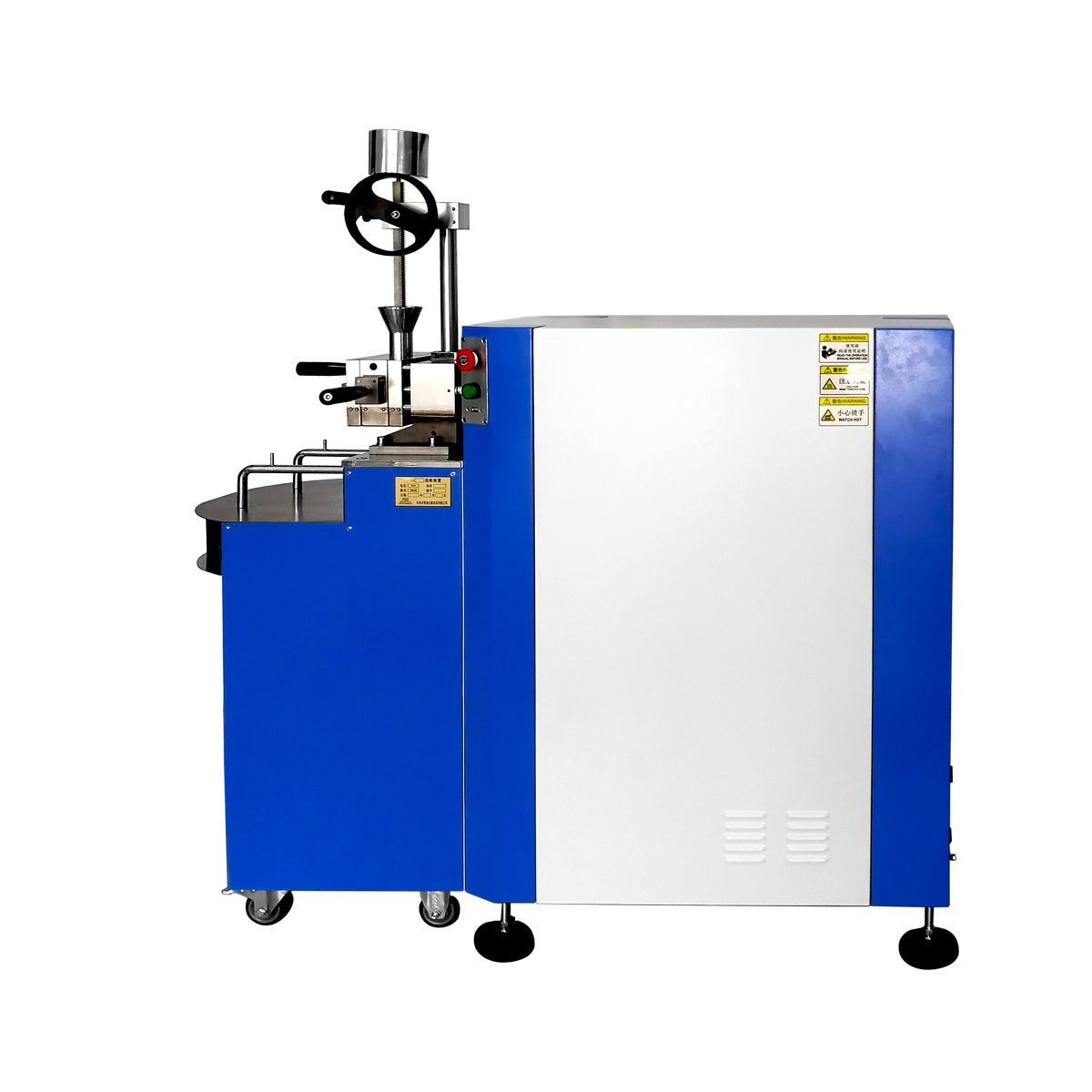

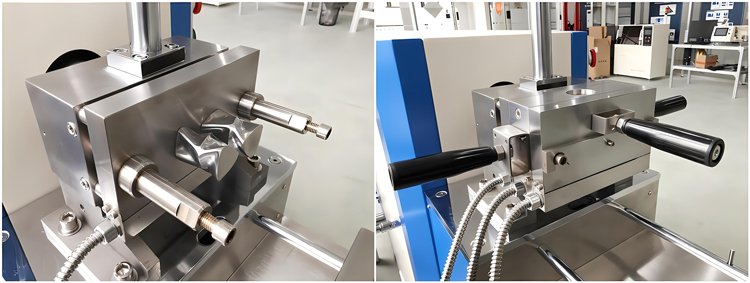

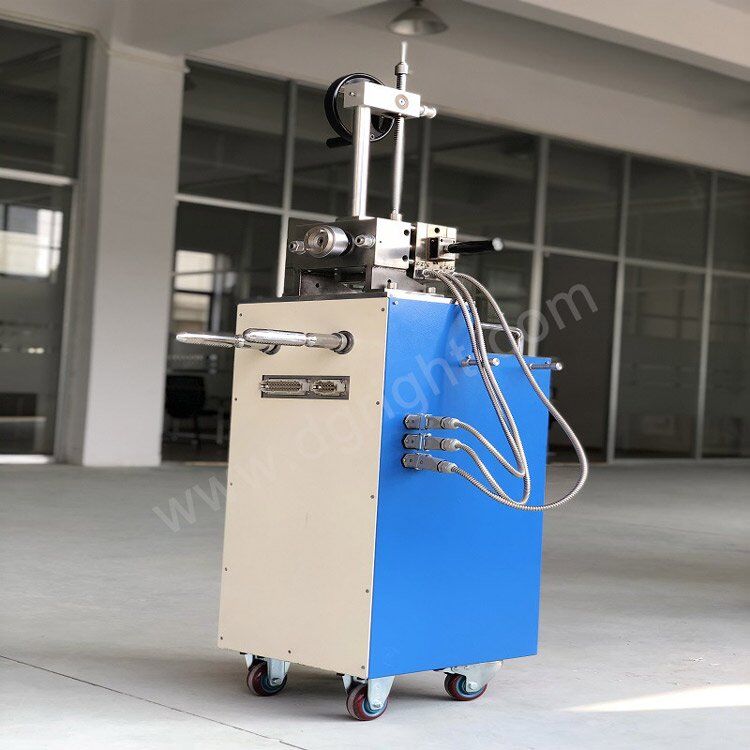

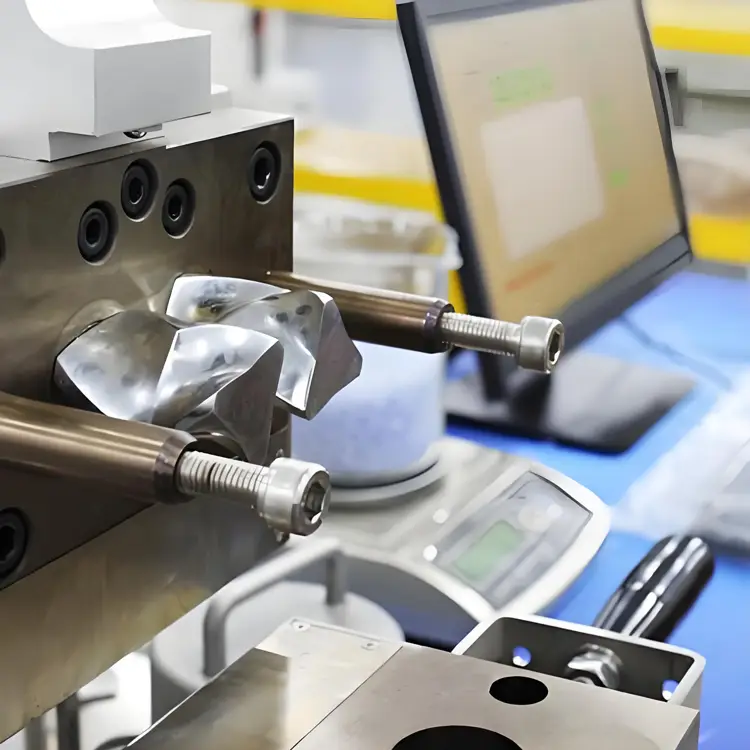

Mixer Of Torque Rheometer

Torque Rheometer

Model
MX30/MX60/MX200/MX300
Product name
Mixer Of Torque Rheometer
Volume
30ml/60ml/200ml/300ml

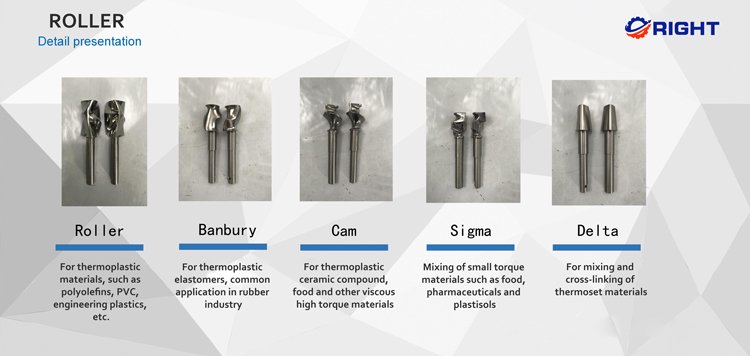

Rotor Type
Roller/Banbery/Delta/Cam/Sigma
Rotor Treatment
Nitriding treatment
Max. Temperature
RT~350℃
Temperature Precision
±0.5℃
Heating rate
200℃/11min
Gear ratio
3:2
Temperature sensor
K thermocouple
Heat method
Electrical heating
Heating segment
3 segments
Power
2.8kw/4.8kw/6.2kw/7kw

RT-128A Desktop Torque Rheometer

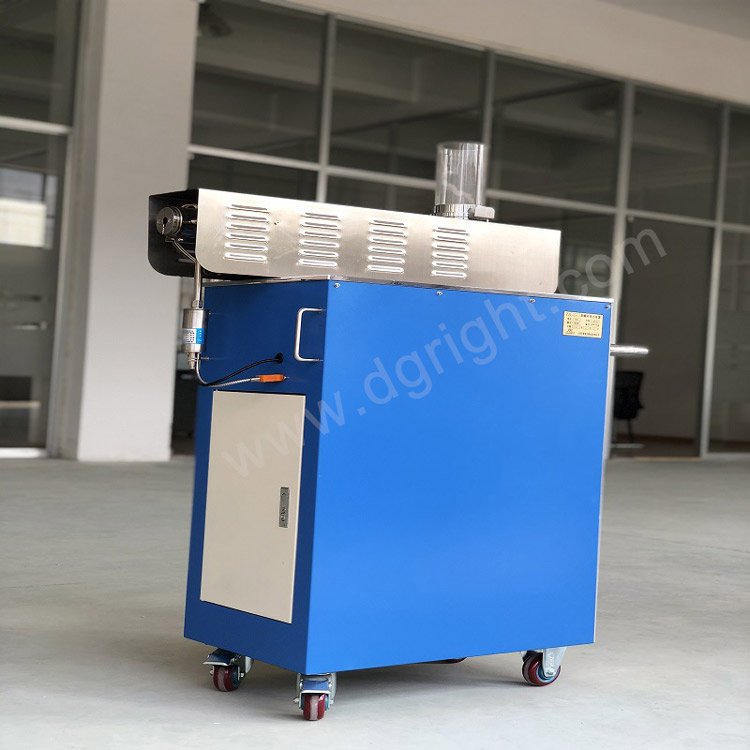

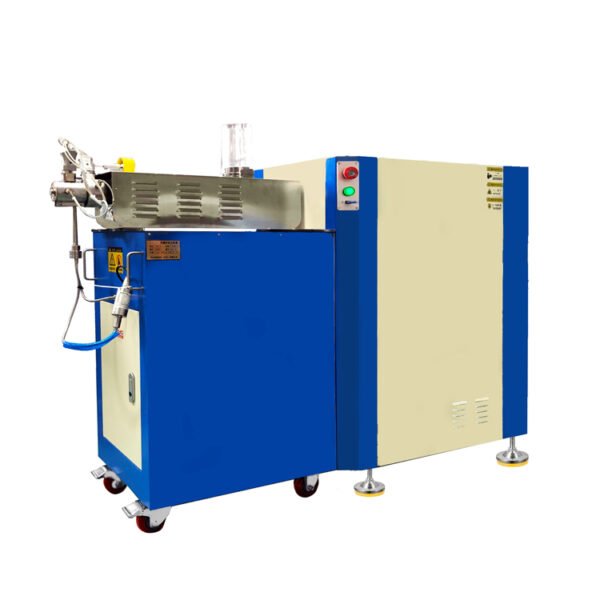

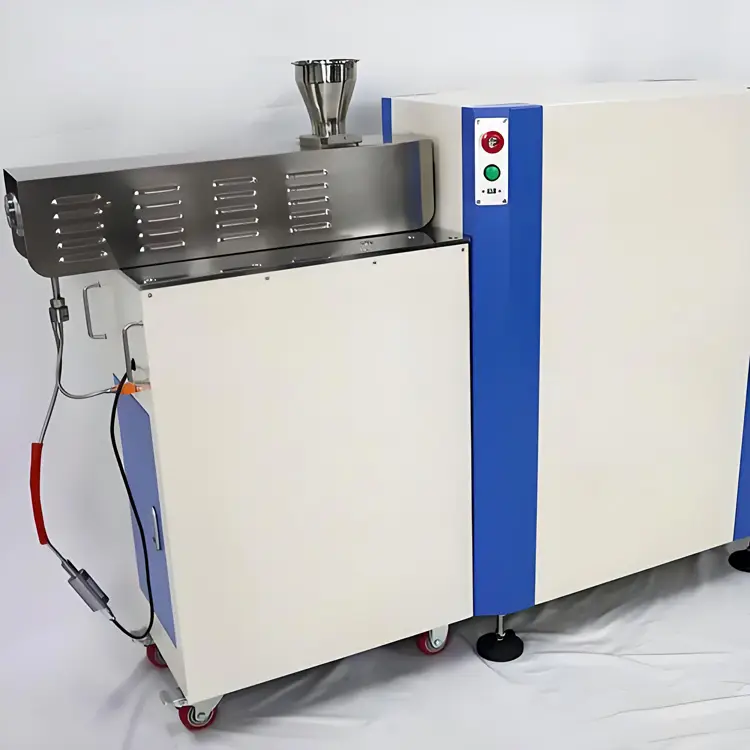

Single Screw Extruder

Model
RT-733
Product name
Single Screw Extruder
L/D
25:1
Screw Dia.
20mm
Screw material
38GrMoAI
Max. Temp.
RT~350℃
Heating Segment
5 segments

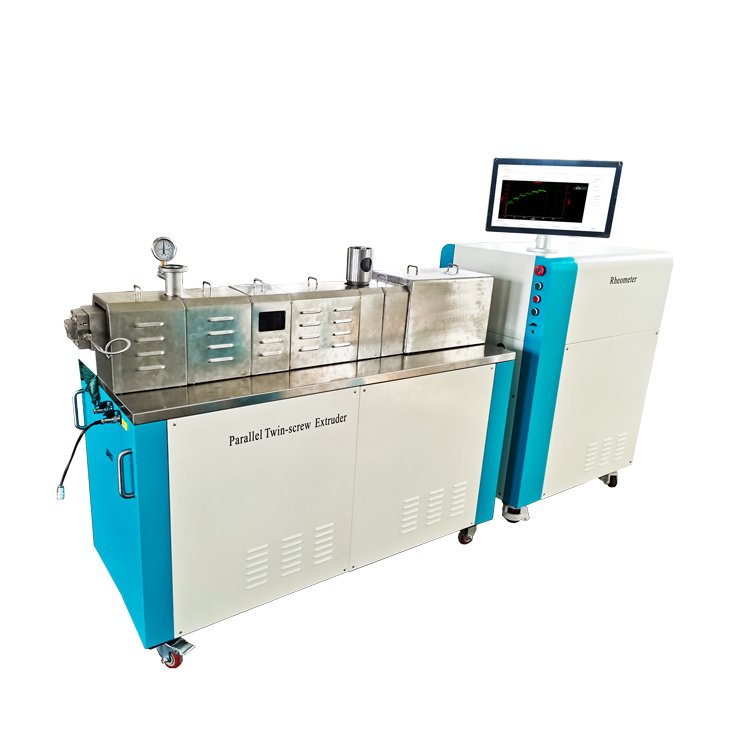

Parallel Twin-screw Extruder

Torque Rheometer

Model
RT-736
Product name
Parallel Twin-screw Extruder
L/D
40:1
Screw Dia.
21.7mm
Screw structure
Building block type
Speed
5~200rpm
Feeding method
Screw metering feeding
Screw material
40CrNiMoA



Product Details

Torque Rheometer

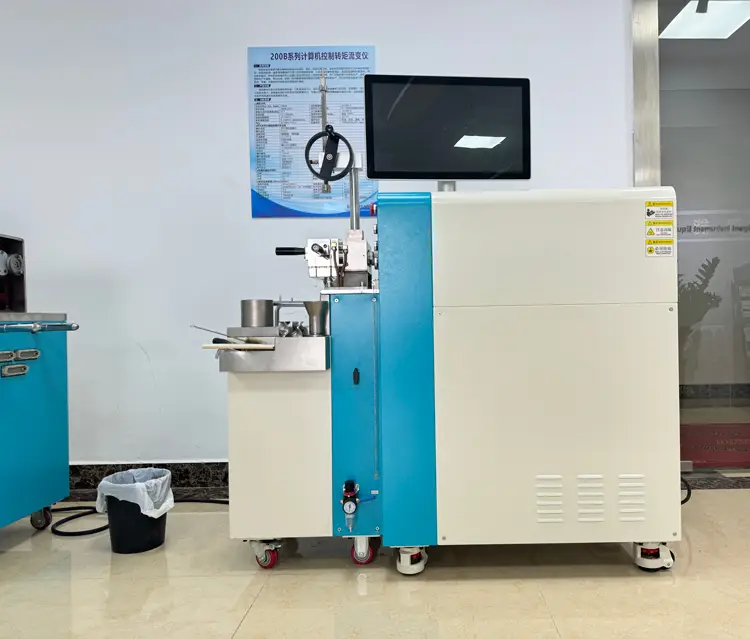

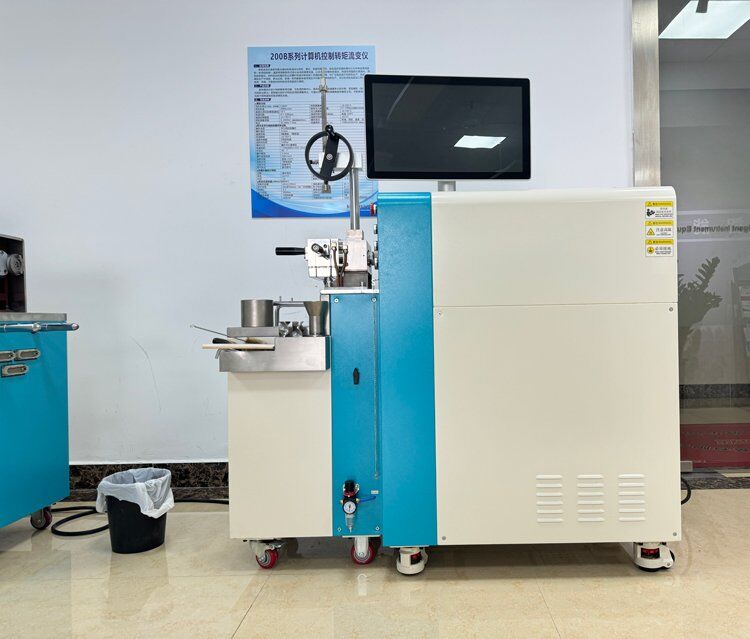

RT-128 plastic and rubber torque rheometer


1. Adopting imported servo motor as the core component of the drive system, which not only ensures the uniform and stable speed of the equipment but also the high precision of the speed. The torque output of the equipment is also guaranteed.
2. Adopting our self-developed cantilever beam torque sensor, the torque measurement is accurate, with large range and fast response.
3. Adopting Taiwan temperature control module with our self-developed three DC analog heating system, the heating speed is fast and stable, reaching the advanced level in the industry.
4. Adopt high precision T-type thermocouple, higher precision than K-type and J-type thermocouple;
5. Adopt high-speed MCU microprocessor with high-precision 24-bit AD, which ensures data processing speed and data accuracy at the same time. Processing speed is more than 10 times faster than PLC.
6. Computer and host computer use wireless transmission, avoiding the communication quality affected by electromagnetic interference.

System Software

RT-128A Desktop Torque Rheometer



RT-128 plastic and rubber torque rheometer

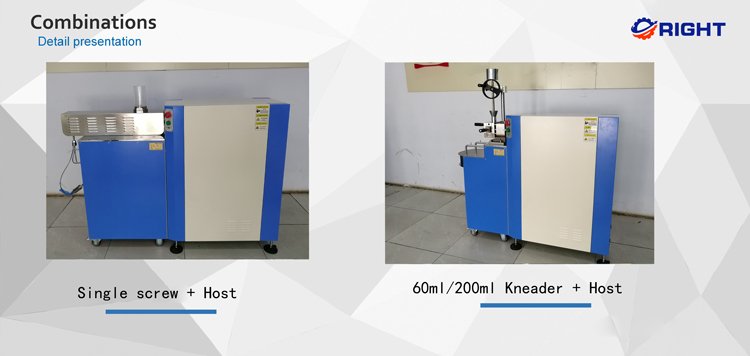

It can also be equipped with automatic weighing unit, diameter measuring unit, three-roll calendering, screw extruder, film blowing machine, strip sample calendering and traction unit, and film quality testing unit as required.
More testing can be done using these units:
1. Automatic weighing unit: It can automatically measure the relationship between material apparent viscosity and shear rate and shear stress.
2. Diameter measuring unit: complete automatic measurement of die expansion.
3. Strip sample calendering and traction unit: it can be made into uniform strip sample for stretching and thermal extension experiments.
4. Film quality test unit: It can complete the test of impurity particle defects and transparency of transparent materials.
The above optional units (the conventional configuration does not include the above units) can be combined with other components with the measurement and control host and computer as the core to form different experimental systems. These functions are in a leading position in the country.
Host: Mainly composed of body, drive motor and driver, reducer, torque sensor, temperature control system, measurement and control system, computer data processing system, etc.
System software: supporting software set consists of Mixer-mixer test and control software, Plastic-extruder test and control software, WinNian-apparent viscosity test data processing software. The interface of Mixer and Plastic software is rich in functions, which can complete measurement, setting and control of speed, torque, temperature and pressure. The curve window can display the curve of the above data against time in real time. These data can be processed and graphed by software. The test report is formed under the test measurement and control software and output by a color printer. It can also complete multiple curve superposition, curve smoothing and other functions.
Because the RT-128 torque rheometer is an automated test instrument with a computer as the core. Data acquisition, control, and processing of experimental data are all completed by the corresponding software, which is not only manifested in the convenient operation of the instrument, precise control, convenient and fast experimental data processing and result output. More importantly, with the support of software, it can perform functions that cannot be done by traditional torque rheometers, such as measuring the shear-sensitive properties of materials with linear acceleration. Die correction during the measurement of the relationship between material apparent viscosity and shear rate.
