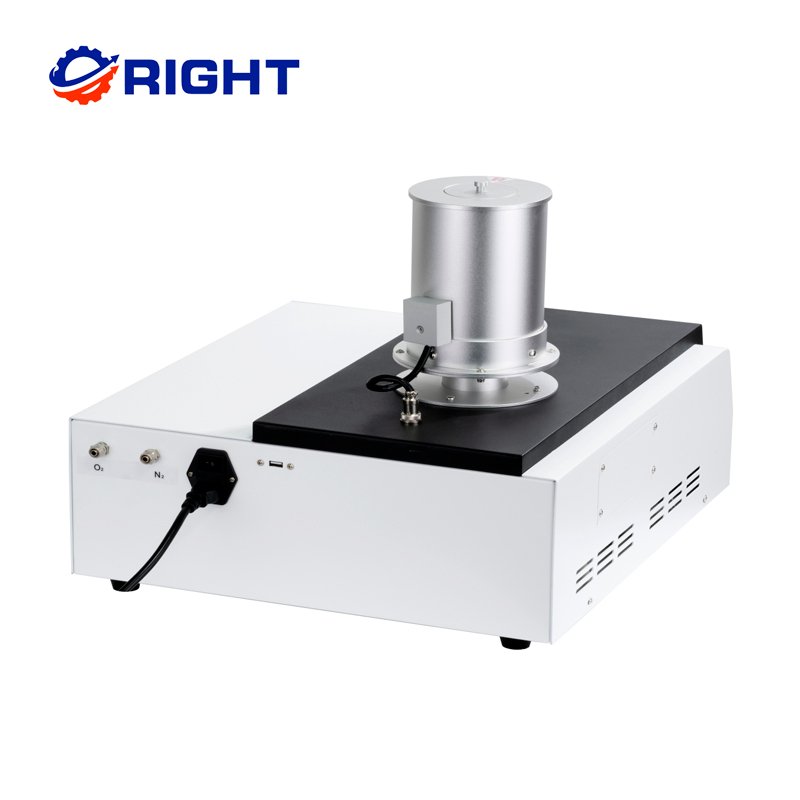

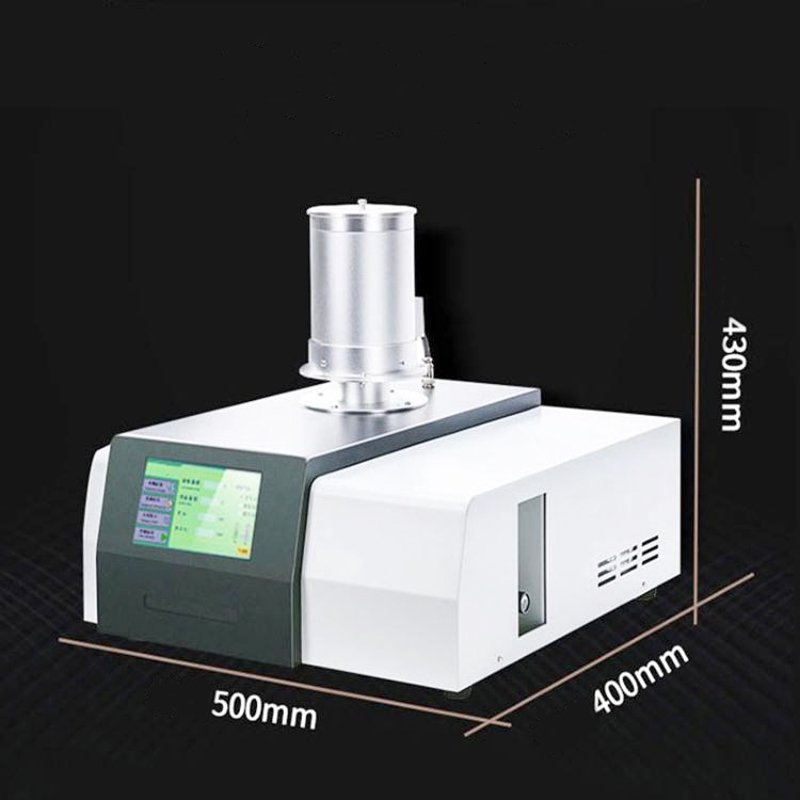

TG TGA Thermogravimetric Analyzer (RT-740)

Plastic Rubber Thermal TGA Thermal Analyzer

Category 2. Plastic Testing Machine

Additional information

Thermogravimetric Analysis Polymers TGA Analyzer (RT-740)

The thermal weight analysis method (TG, TGA) observes the quality of the sample with temperature or time during heating, constant temperature, or cooling. The purpose is to study the thermal stability and components of the material. It is widely used in plastic, rubber, coatings, drugs, catalysts, inorganic materials, process optimization, and quality monitoring.

Product Details：

Scope Of Application

RT-740 Plastic Rubber TGA Thermogravimetric Analyzer With Gas

Thermogravimetric analysis (TG, TGA) is a method of observing the change in mass of a sample with temperature or time during warming, constant temperature, or cooling to study the thermal stability and composition of materials. It is widely used in research and development, process optimization and quality control in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metallic materials and composites.

RT-740 Laboratory TGA Analyzer Characteristics:

* Thermal Stability

* Decomposition Processes

* Adsorption and Desorption

* Oxidation and Reduction

* Quantitative Analysis of Composition

* Additives and Fillers Effects

* Moisture and Volatiles

* Reaction Kinetics

Product Parameters

Model	RT740-TGA101	RT740-TGA103	RT740-TGA105
Temperature Range	RT~1150℃	RT~1400℃	RT~1500℃
Heating Rate	0.1～100℃/min	0.1～100℃/min	0.1～100℃/min
Temperature Resolution	±0.1℃	±0.01℃	±0.001℃
Temperature Control	PID algorithm control, Rising Temperature, Constant Temperature, can be set up to 6 steps of temperature rise
Constant Temperature Time	0~300min arbitrary settings
Balance Measuring Range	0.01 mg~3 g, expandable to 30g
Balance Sensitivity	0.1ug	0.01ug	0.01ug
Atmosphere Device	Built-in gas flow meter, including two-way gas switching and flow size control; Atmosphere: inert, oxidizing, reducing, static, dynamic; Gas flow: 0-100ml/min, adjustable.
Software	Intelligent software can automatically record the TG curve, DTG, DSC / DTA, and other thermal curves. Data can be exported to Excel or PDF format, secondary data can be processed, and experimental reports can be printed.

Product Advantages

Plastic Rubber Thermal TGA Thermal Analyzer

1. Adopting imported ARM processor, sampling speed, and processing speed is faster.

2. Four-way sampling AD on the TG signal and temperature T signal acquisition.

3. heating control, using PID algorithm, precise control. It can be multi-stage heating and constant temperature.

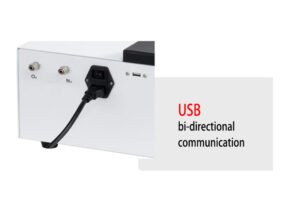

4. USB two-way communication between the software and the instrument fully realizes remote operation. You can set the parameters of the instrument through the computer software, and the instrument’s operation will stop.

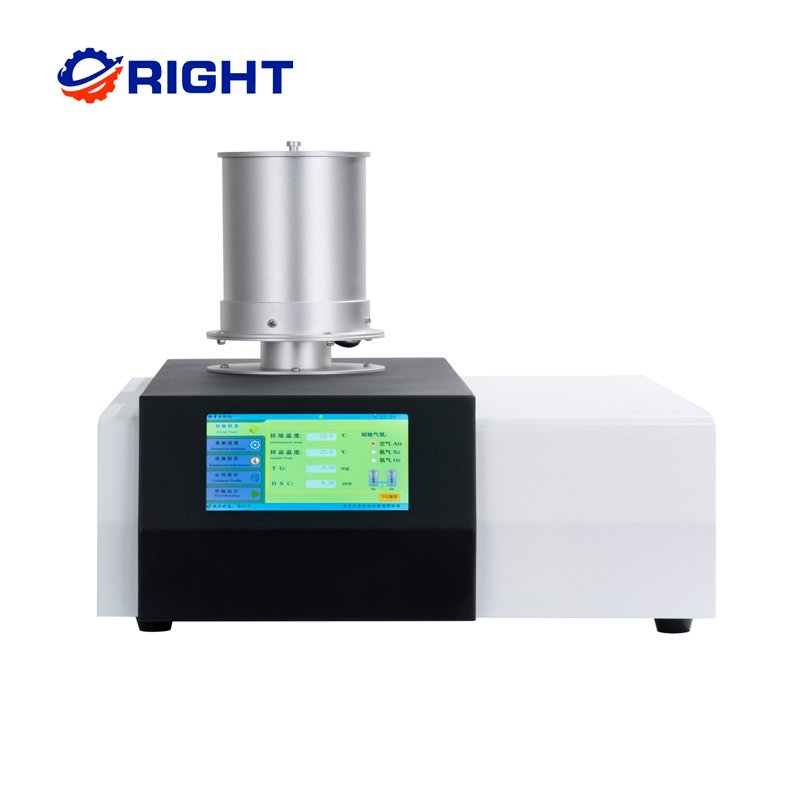

5. 7-inch full-color 24-bit touch screen, better man-machine interface, TG calibration can be realized on the touch screen.

6. Includes three levels of authority management, audit trail, and electronic signature.

7. with certain security diagnostics, leak detection, and alarm functions.

8. can be adjusted in the process of experiments not carried out in the experimental steps and show the interface to modify the experimental steps.
