RT-828 Textile Waterproof Spray Rating Tester

RT-828 Textile Waterproof Spray Rating Tester - Image 5

Category 6. Textile Testing Machine

Additional information

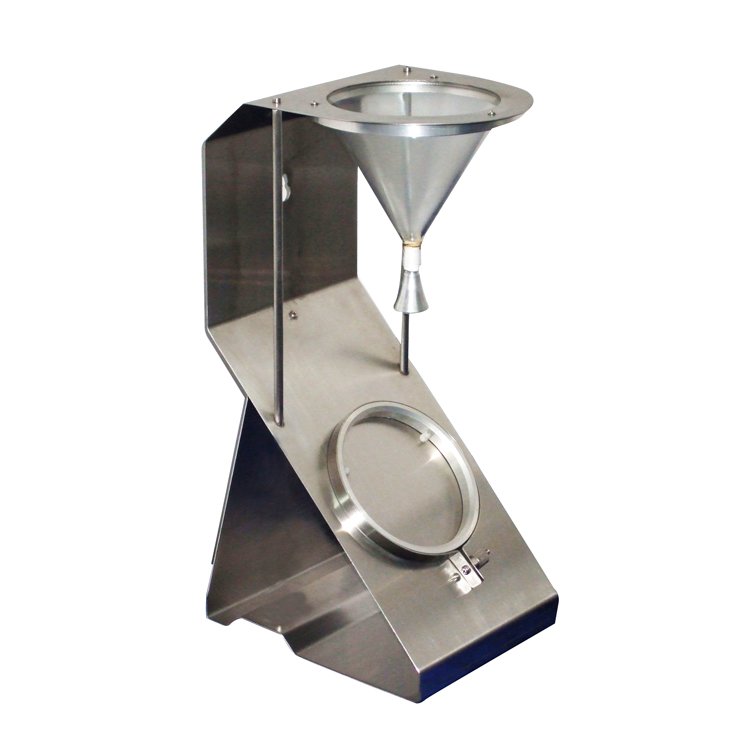

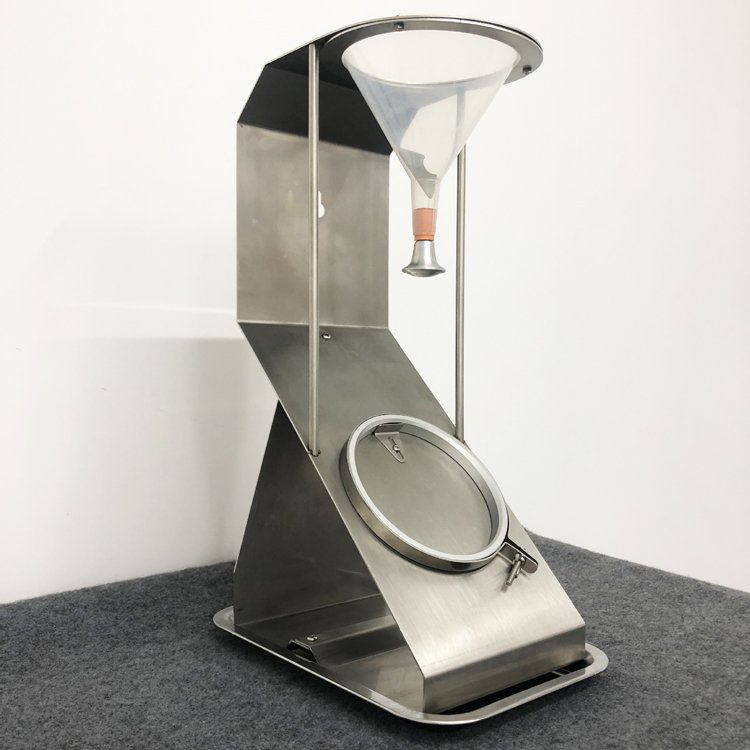

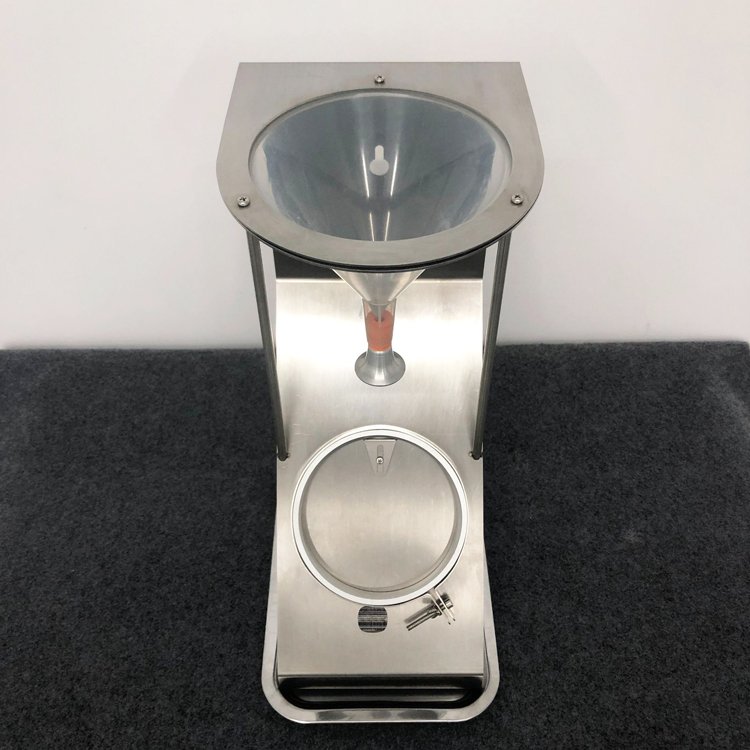

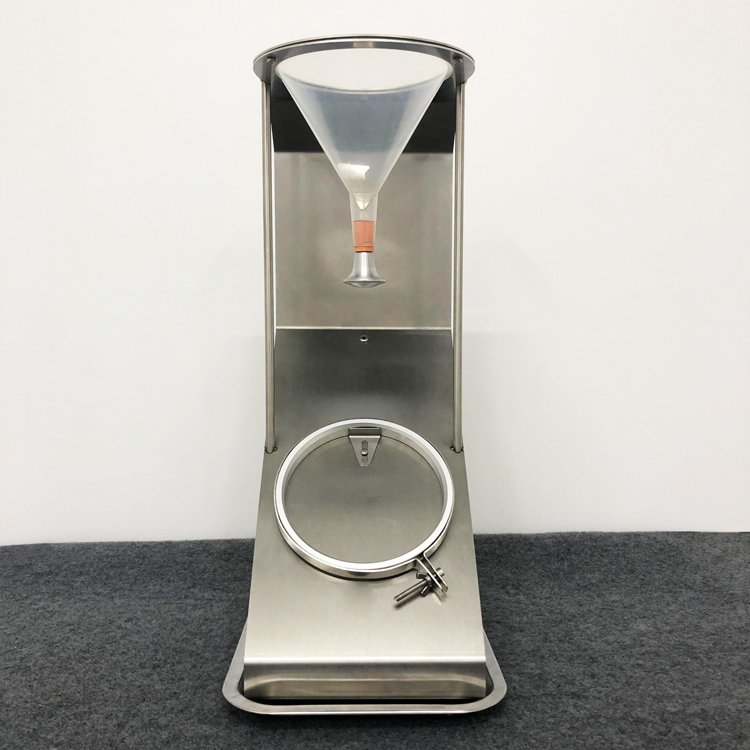

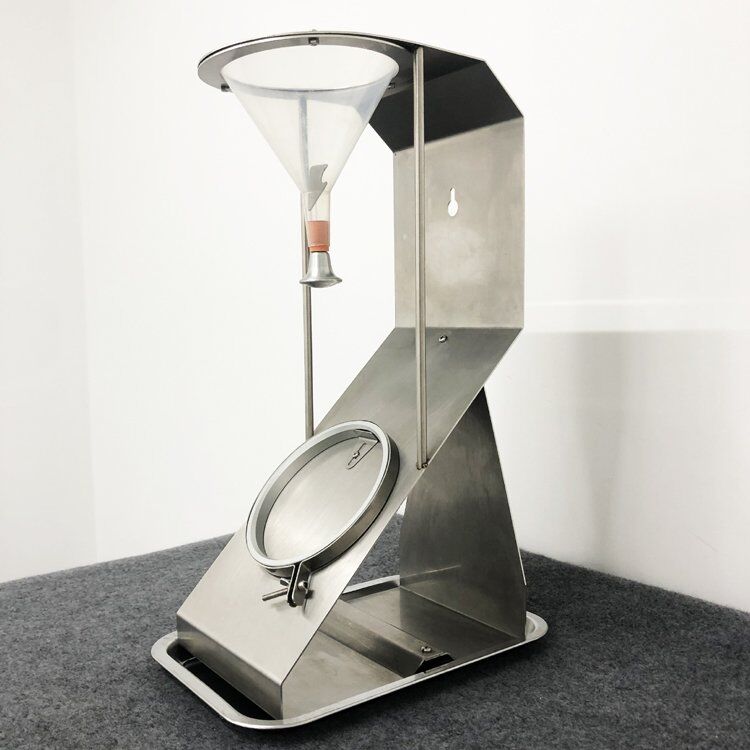

RT-828 Fabric Wettability Tester

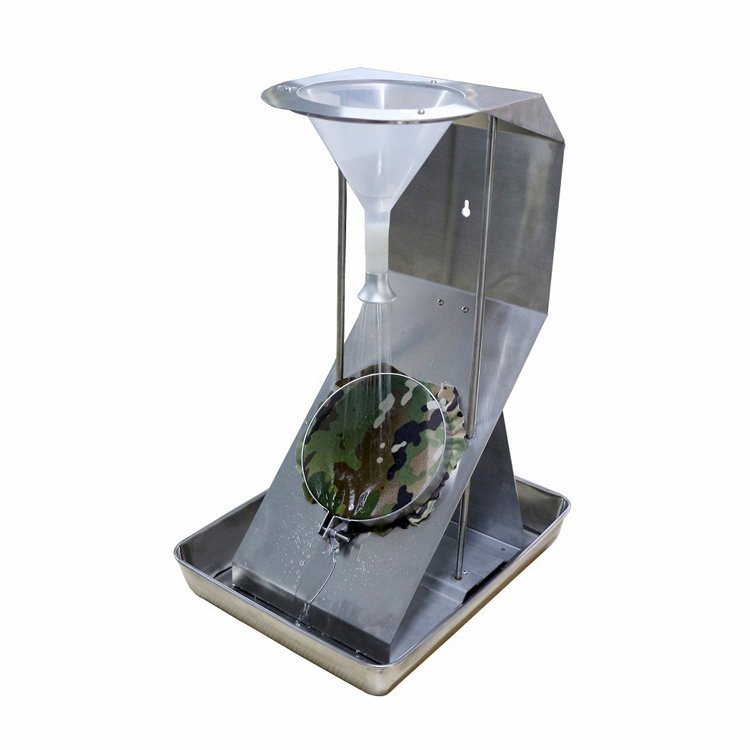

The Spray Tester comprises a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at 45° and 150mm below. The appearance of the specimen is compared against an optional photographic scale to rate.

Product Details：

Scope of application

Used for testing various moisture resistance (water level) of fabric surfaces that have been or have not been resistant to water or water repellent finishing.

Standards compliant

GB/T 4745 Textiles Waterproofing performance testing and evaluation

ISO 4920, AATCC 22, BS 3702, NEXT 23, WSP 080.1.R4 (12), BS EN 24920, M&S P23

Technical Parameters

1	Funnel:	Ф150×150 (capacity 500ml)
2	The sample placement angle:	45 ° with the horizontal
3	Distance from nozzle to sample center:	150mm
4	Sample clip diameter:	Ф 150mm
5	Metal nozzle aperture:	Ф 0.9mm
6	250ml water spray time:	25 ~ 30s
7	Water tray size:	500 × 400 × 30mm
8	Matching measuring cup:	500ml
9	Dimensions:	200 × 250 × 480mm
10	Weight:	5kg

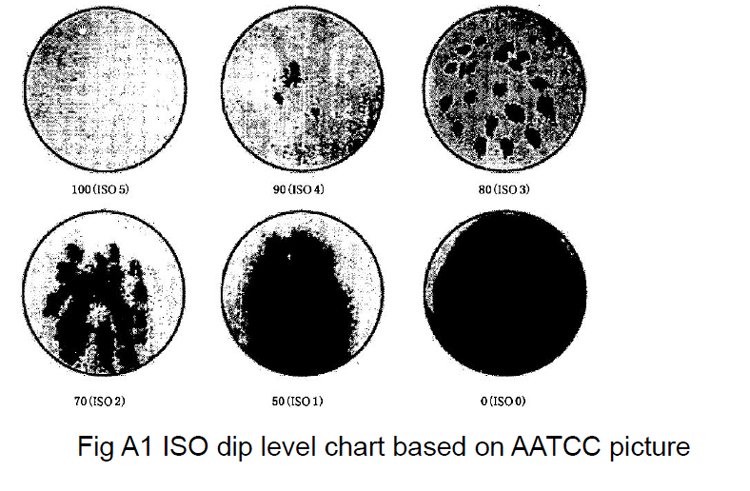

Drinking water level map
