Textile Lab Padder Roll Machine (RT-852)

Additional information

Product Details:

Laboratory Padder

RT-852 Lab Padders are suitable for testing the fabric pressure absorption rate or rolling water, and fabric dyeing can be divided into manual and electric forms of use; electric models are divided into horizontal, vertical type, and table types.



Application:

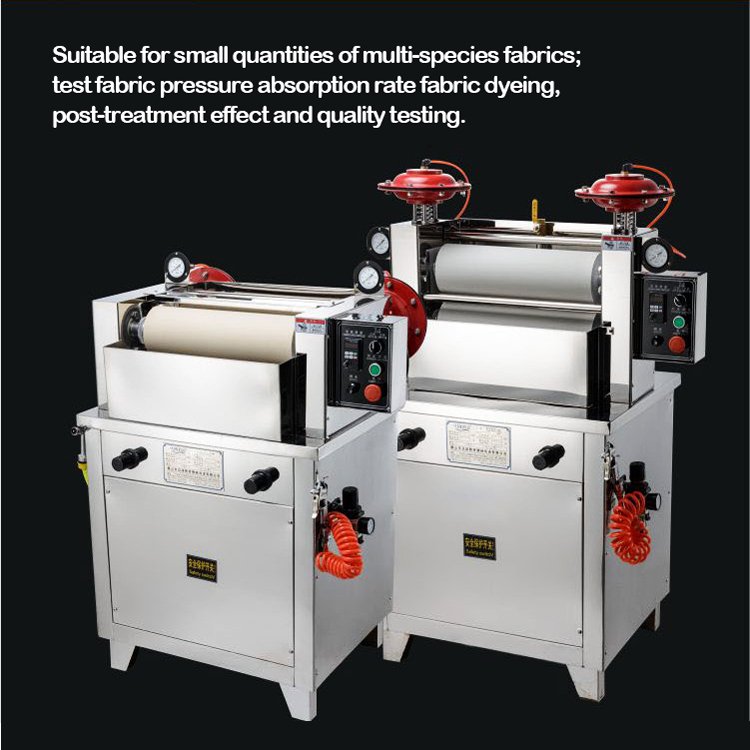

RT-852 small rolling water machine is suitable for testing the fabric pressure absorption rate or rolling water, fabric dyeing, fabric special post-treatment effect and quality testing, as well as the selection of additives to determine the concentration of good and bad, widely used in dyeing and finishing factories, additives, pigment manufacturers; can be used with the RIGHT automatic shaping and drying machine to predict the feel and to provide customers with the correct samples; can be adjusted to match the site of the pressure absorption rate, to provide accurate pressure dyeing and resin formulation. It can simulate the field conditions to predict the degree of finishing discoloration by cooperating with the stamper.

Specification

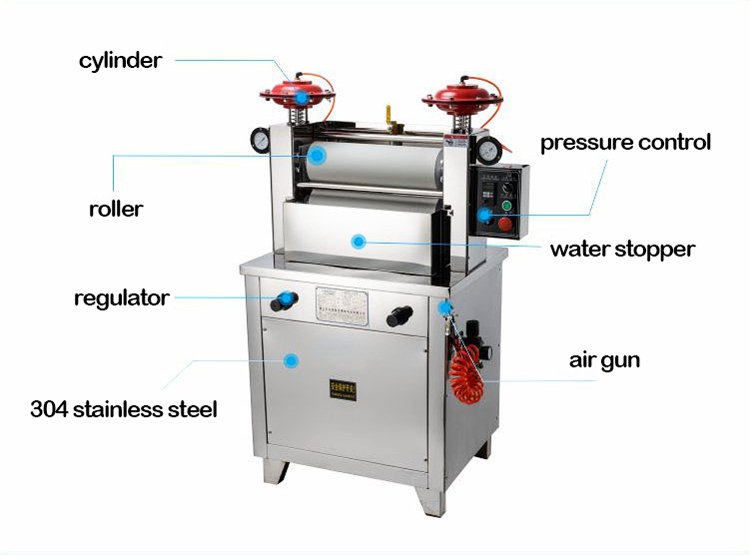

RT-852A Pneumatic Electric Fabric Padder Machine

With the most advanced technology, the RT-852A pneumatic electric small rolling mill is suitable for fabric dyeing and post-treatment effect and quality testing. Its pressure can be in 0.03 ~ 0.8MPa (about 0.3kg/cm2 ~ 8kg/cm2) within the arbitrary adjustment rolling rate according to the process requirements.
Laboratory PadderLaboratory Padder

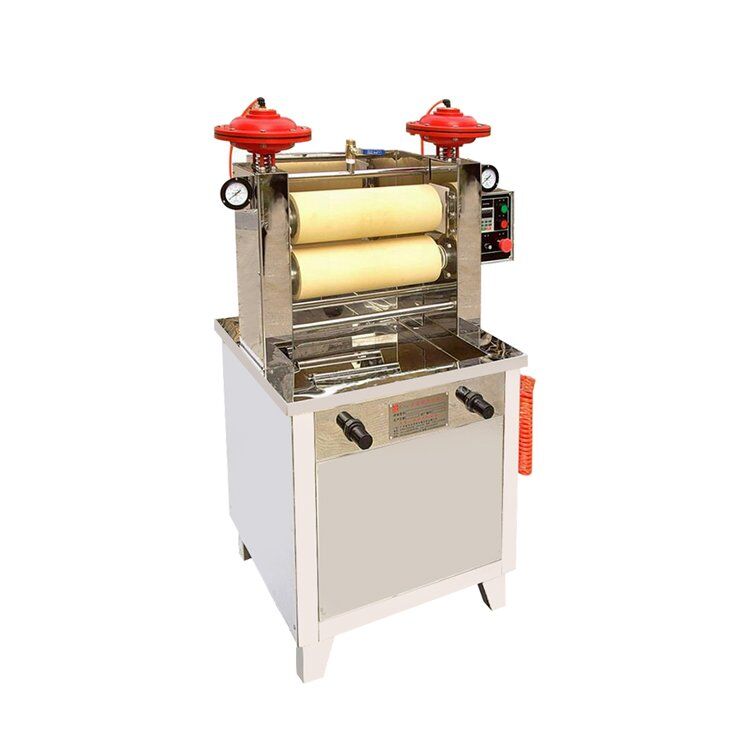

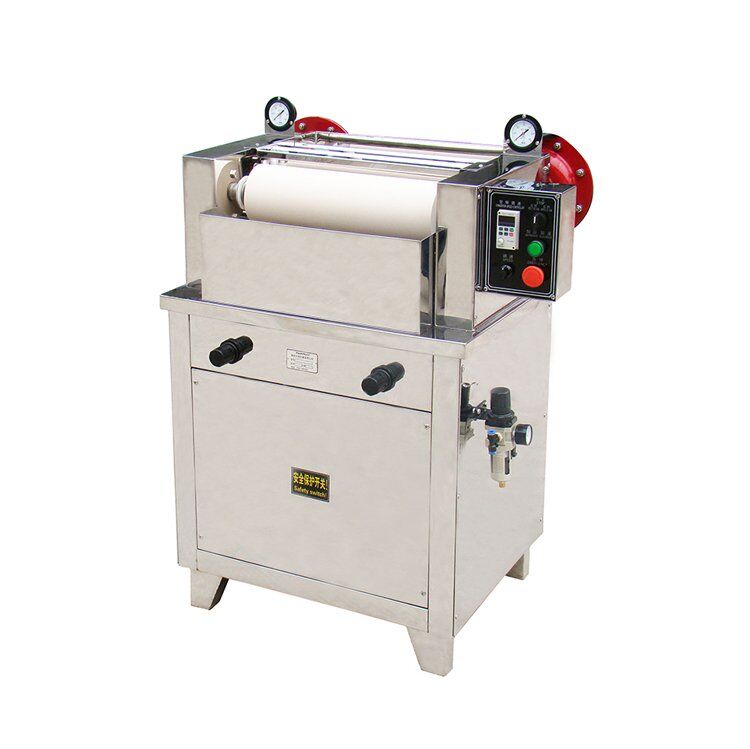

RT-852A-H Horizontal Lab Padder         RT-852A-V Vertical Lab Padder

Model
RT-852A-H
RT-852A-V
Style
Horizontal+Pneumatic+ Electric
Vertical+Pneumatic+ Electric
Material
Mirror stainless steel SUS304 plate
Roller Material
Nitrile Rubber
Roller hardness
Shore 70°C
Roller width
420mm(other sizes can be customized)
Roller diameter
130mm
Roll Absorption Rate
25%~110%
Speed regulation
Frequency conversion speed regulation:0~18 rpm (adjusted). Voltage input 220V, 50HZ
Fix speed
0-10 rpm. Voltage input is 380V, 50HZ.
Cylinder
Large cross-section film cylinders on both sides, anti-guide friction,
automatic reset when power fails, no left-right air pressure deviation.
Pressure
0.03~0.8MPa
Power
220V/50HZ with 370W three-phase motor with gearbox one set
Machine size
L 850mm x W 680mm x H 1100mm
L 890mm x W 630mm x H 1300mm
Weight
Approx. 90kg

RT-852B Desktop Pneumatic Electric Lab Padder

The RT-852B Benchtop Pneumatic Electric Padder can be placed on a table that fits the operator’s height for use, making it smaller and easier to use.
Laboratory PadderLaboratory Padder

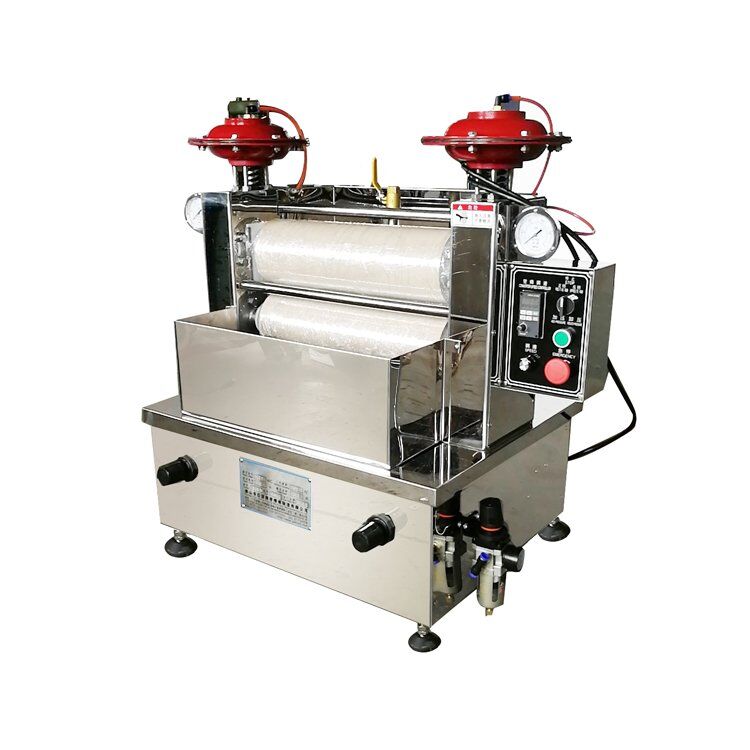

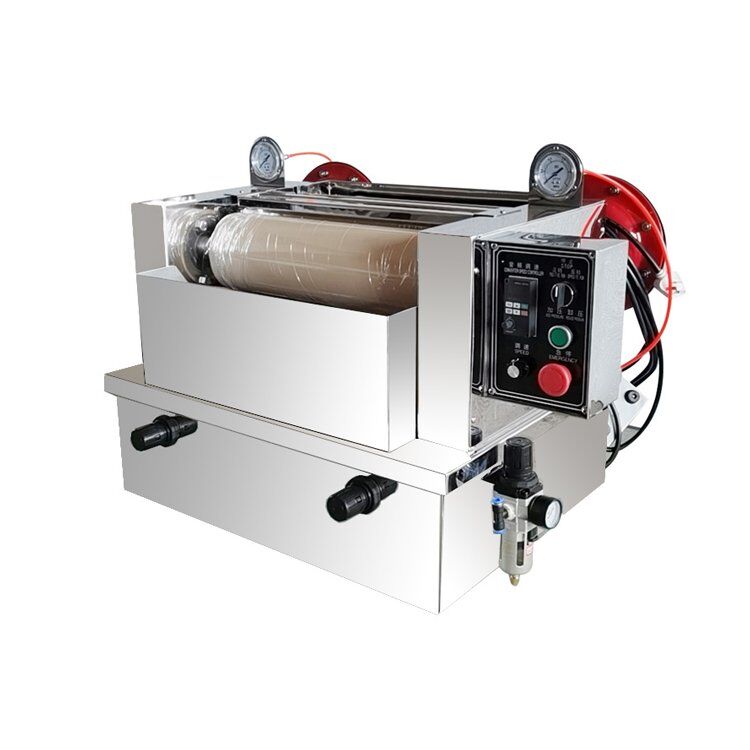

RT-852B-H Desktop Horizontal Lab Padder         RT-852B-V Desktop Vertical Lab Padder

Model
RT-852B-H
RT-852B-V
Style
Horizontal+Pneumatic+ Electric
Vertical+Pneumatic+ Electric
Material
Mirror stainless steel SUS304 plate
Roller Material
Nitrile Rubber
Roller hardness
Shore 70°C
Roller width
420mm(other sizes can be customized)
Roller diameter
130mm
Roll Absorption Rate
25%~110%
Speed regulation
Frequency conversion speed regulation: 0~18 rpm (adjusted). Voltage input 220V, 50HZ
Fix speed
0-10 rpm. Voltage input is 380V, 50Hz.
Cylinder
Large cross-section film cylinders on both sides, anti-guide friction,
automatic reset when power failure,
no left-right deviation in air pressure.
Pressure
0.03~0.6MPa
Power
220V/50Hz with a 370W three-phase motor with gearbox one set
Machine size
L 840mm x W 660mm x H 800mm
L 840 x W 680 x H 800mm
Weight
Approx. 80kg

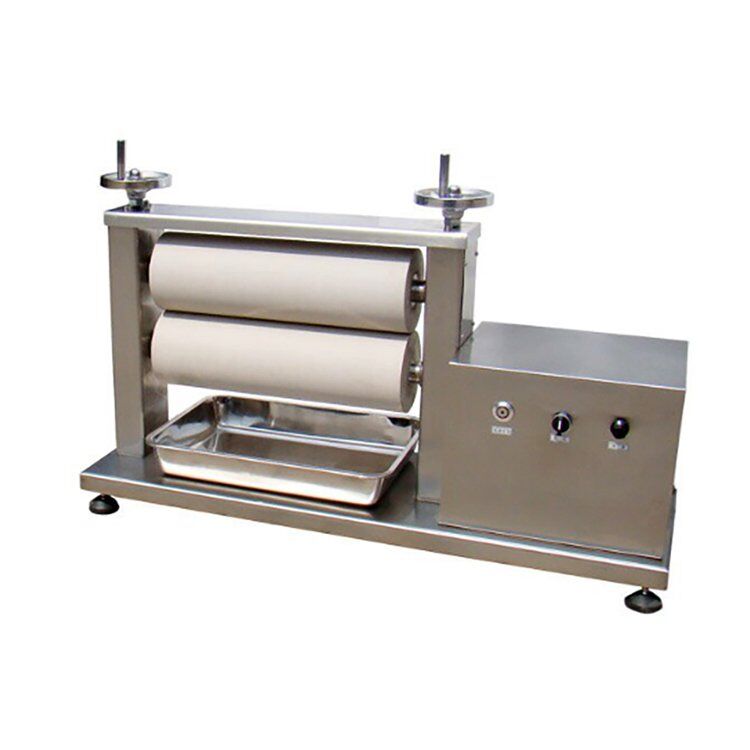

RT-852C Mini Electric Lab Padder

RT-852C Electric small rolling padder made of stainless steel, easy to move, especially suitable for small laboratory tests.
Laboratory Padder
Product name
Mini Electric Padder
Model
RT-852C
Material
SUS304 plate
Roller Material
Nitrile Rubber
Roller hardness
Shore 70°C
Roller width
420mm
Roller diameter
130mm
Speed
0~60r/min
Power
220V/50HZ
Machine size
L950mm x W 300mmxH 560mm
Weight
45KG

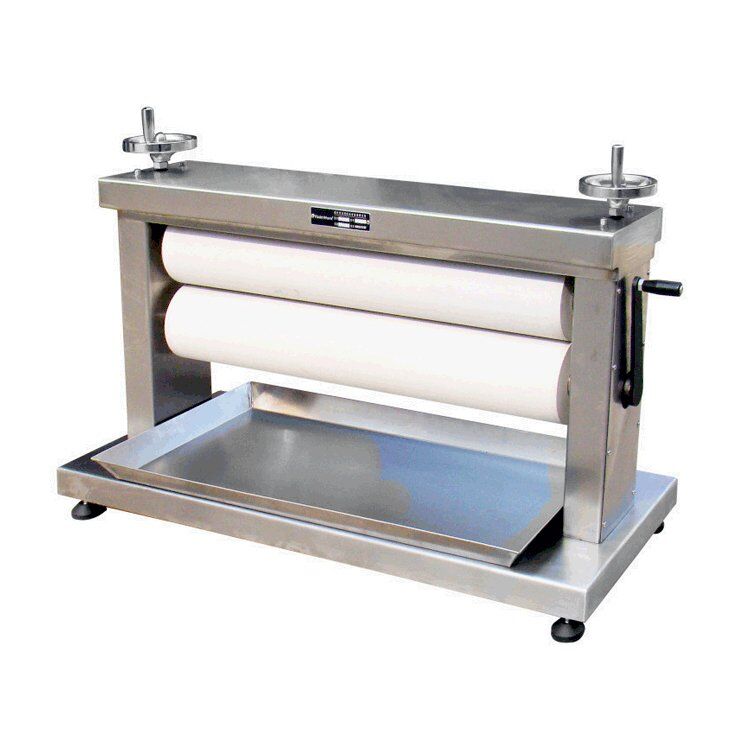

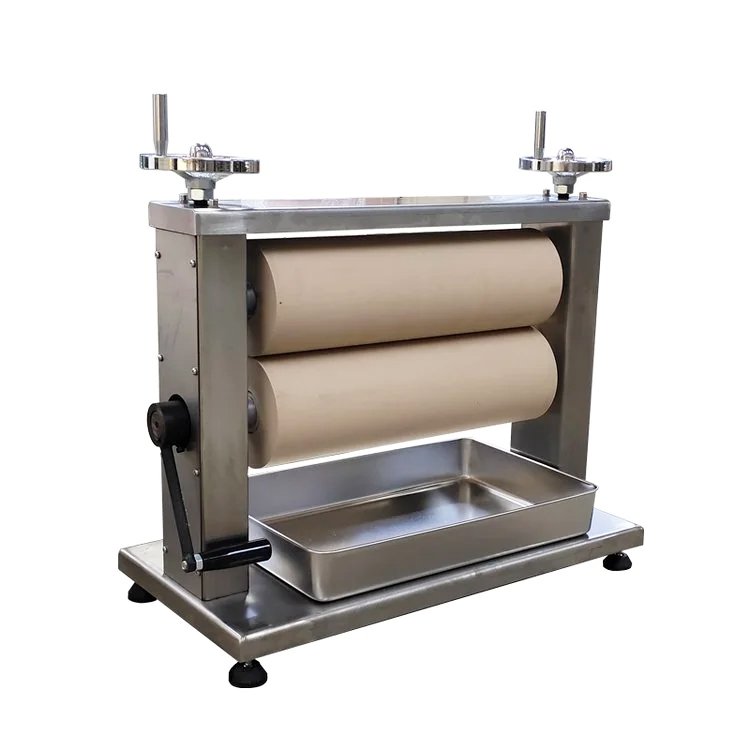

RT-852D Handle Padder

This is a practical, cost-effective, high-quality manual padder.
Laboratory PadderLaboratory Padder
Model
RT-852D-08
RT-852D-30
RT-852D-42
RT-852D-80
Style
Handle
Handle
Handle
Handle
Roller width
80mm
300mm
420mm
800mm
Roller diameter
2.8cm
60mm
130mm
130mm
Material
Mirror stainless steel SUS304 plate
Roller Material
Nitrile Rubber
Roller hardness
Shore 70°C
Machine size
150x50x100mm
480×220×480mm
645×305×560mm
1060×400×700mm
Weight
5KG
16KG
28KG
32KG

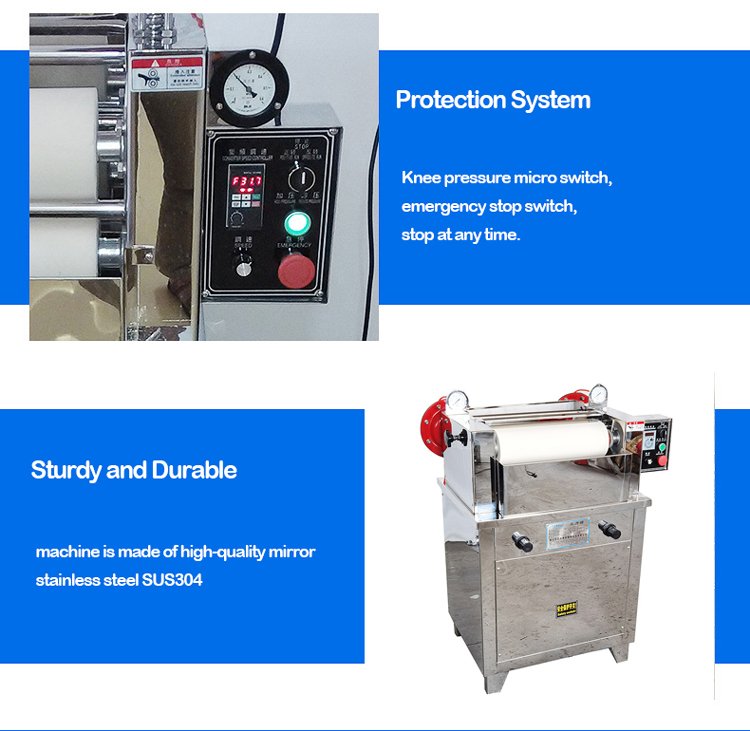

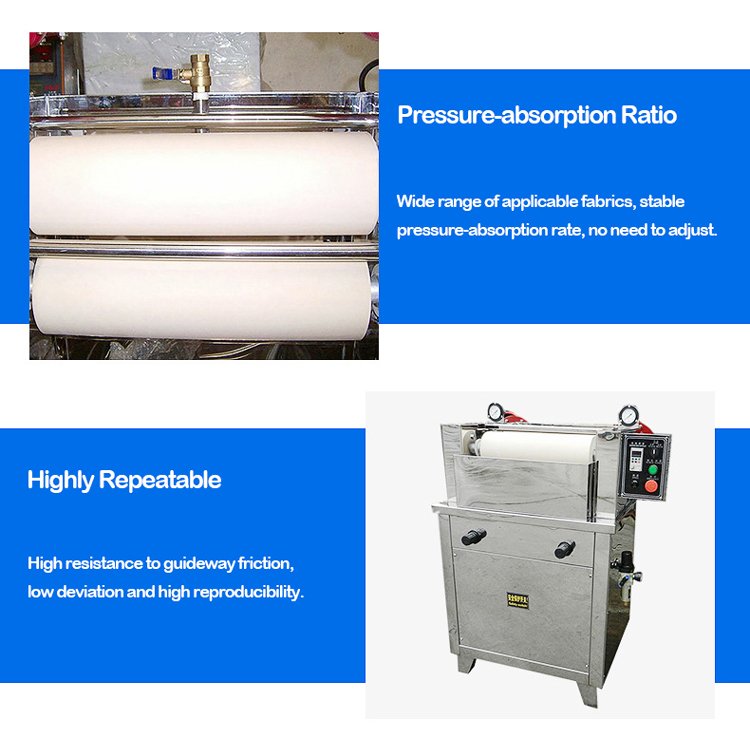

Product Advantages

Laboratory Padder Laboratory Padder

What are the advantages of our fabric laboratory padder?

1. Absorbing the same foreign small rolling padder based on the combination of domestic rolling and dyeing post-processing technology status of digestion and transformation into the most advanced prototype.

2. Strong resistance to guide rail friction.

3. Automatic reset in case of power failure.

4. No left-right deviation.


5. High reproducibility.
Lab Padder Operation Steps
Laboratory Padder

Lab Padder Operation Instructions

Step 1: Turn on the power and compressed air first.
Step 2: Adjust the left and right pressure regulators of the pressure roller to make the left and right pressure consistent and meet the process requirements. Note: After each adjustment of the pressure, please press the pressurizing (unloading) button more than three times to confirm that the pressure gauge indicates the correct pressure.
Step 3: Use the hand touch switch to rotate the roll; blow dry the surface of the roll with a vapor gun.
Step 4: Feed the dyed color samples into the roll surface.
Step 5: Following the requirements of the roll rotating finger to remove the sample.
Step 6: After each roll, rinse the surface of the roll.
