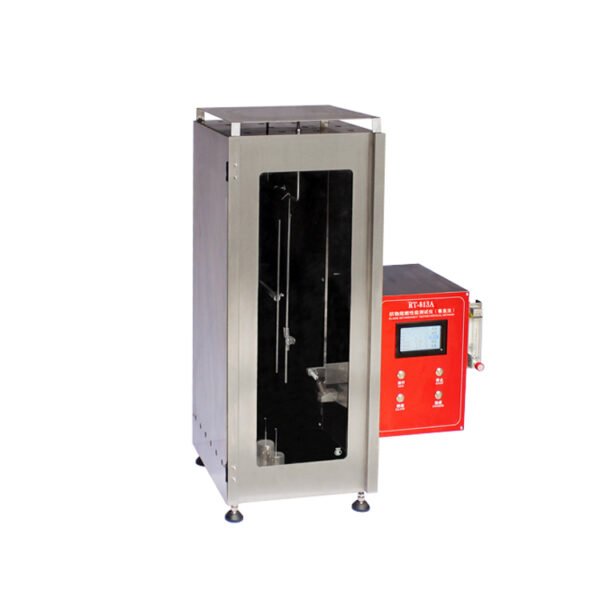

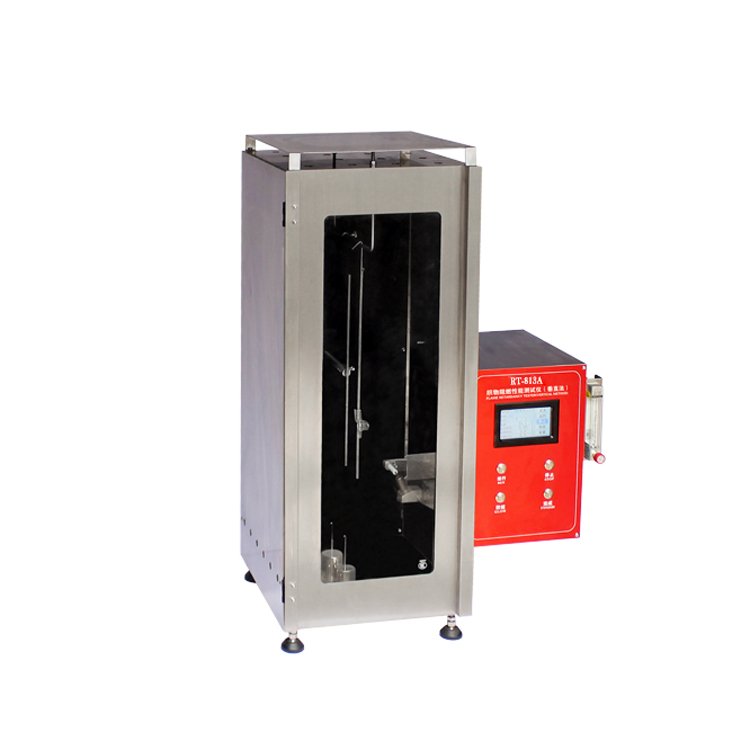

Textile Fabrics Vertical Fire Flammability Testing Chamber (RT-813A)

Vertical Textile Fabric Flammability Tester

The fabric flame retardant performance tester is suitable for the determination of the vertical combustion performance of woven fabrics, knitted fabrics, coated products, laminated products, etc.

Product Details:

Vertical Textile Flammability Test Chamber

Feature:

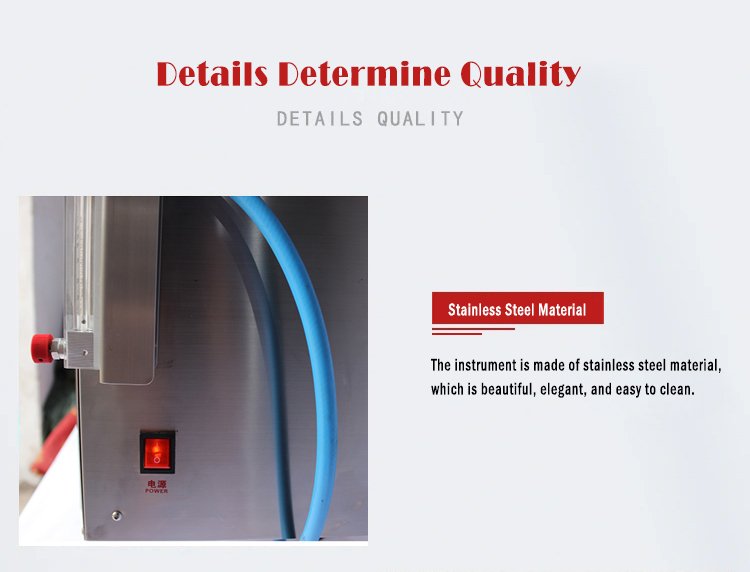

1. Use all stainless steel material to prevent smoke.

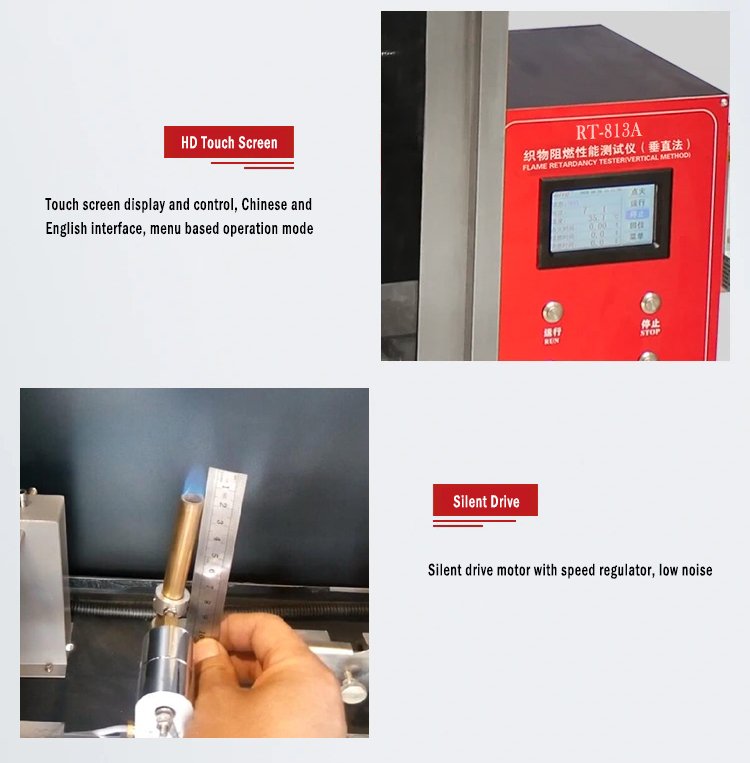

2. Adopt industrial color touch screen display control, durable, convenient and simple to operate.
3. The motor drives the ignition mechanism, and the automatic ignition operation is convenient.

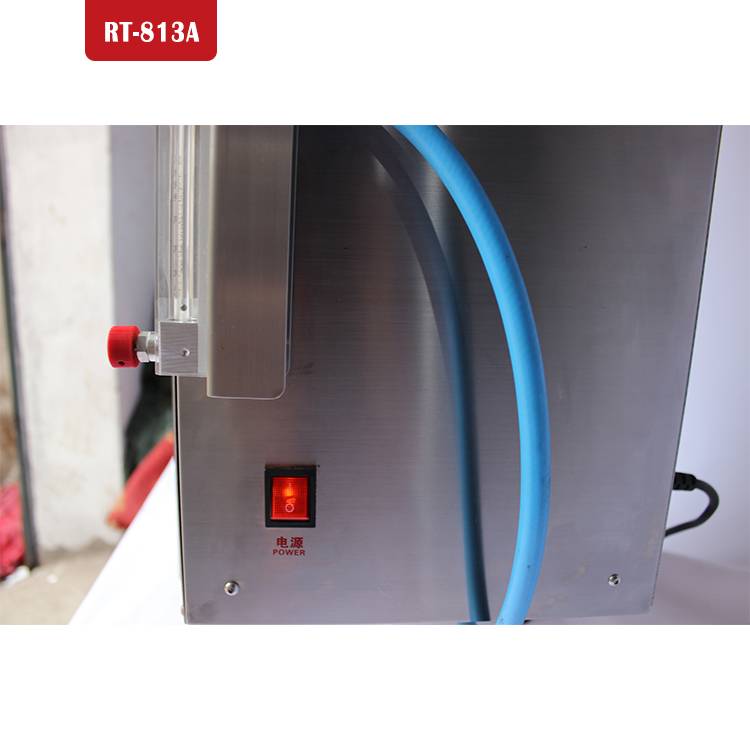

4. The flow meter adjusts the flame height without the need for constant gas pressure.
5. The ignition time of the resistance wire of the instrument can be adjusted to ensure ignition under different environments.

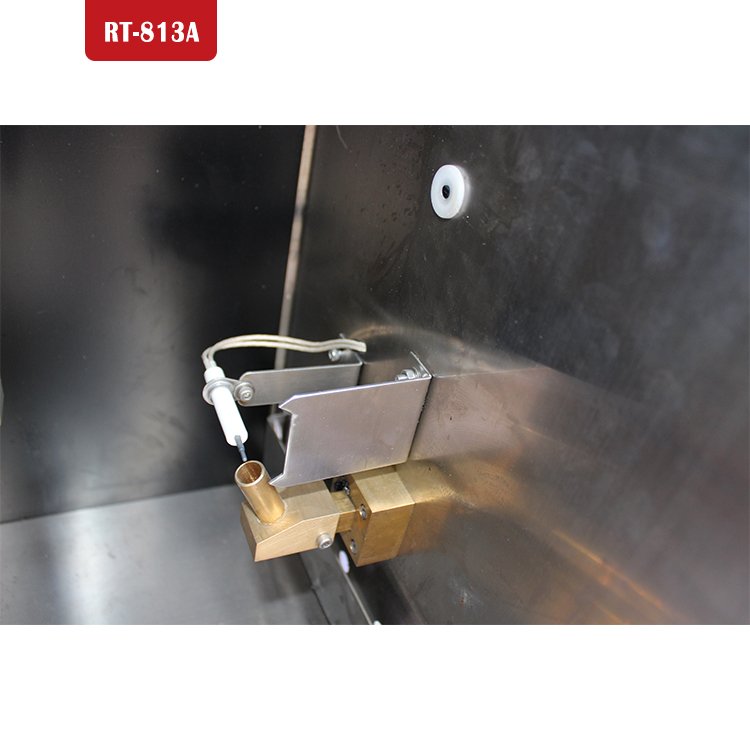

6. The instrument has a replaceable igniter to measure thick textiles

Vertical Textile Flammability Test Chamber

Vertical Textile Flammability Test Chamber

RT-813A Textile Flammability Tester Fabric Vertical Combustion Test Chamber

Scope of application: Used to determine the flame retardancy of textiles in the vertical direction.

Structural principle: Place a sample of a certain size vertically on a designated burner and ignite it. After igniting for the specified time, measure the duration of continuous combustion, smoldering, and damage length of the sample. The timing and ignition system of this instrument is automatically controlled by a microcomputer, which is accurate, stable, and reliable.



Vertical Textile Flammability Test Chamber

ISO 6941:2003 EN Textile fabrics – Burning behaviour – Measurement of flame spread properties of vertically oriented specimens;

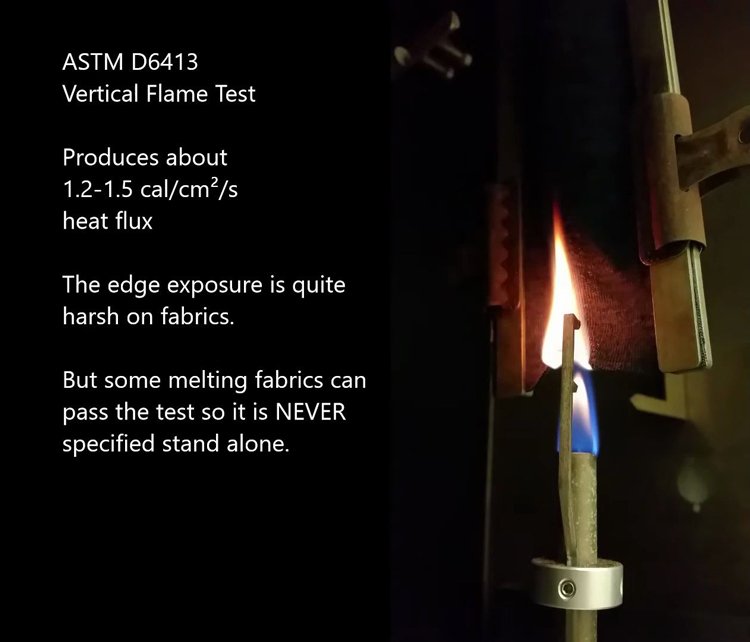

ASTM D6413-08 Standard Test Method for Flame Resistance of Textiles (Vertical Test);
GB/T 5455-2014 Textiles―Burning behaviour―Determination of damaged Length, afterglow time and afterflame time of vertically oriented specimens;

Technical parameter

Textile Flammability Test Chamber (vertical)
Model
RT-813A
Combustion box size
329mm×329mm×767mm (L*W*H)
Flame height
40mm (15mm~175mm adjustable)
Sample frame size
356mm×51mm

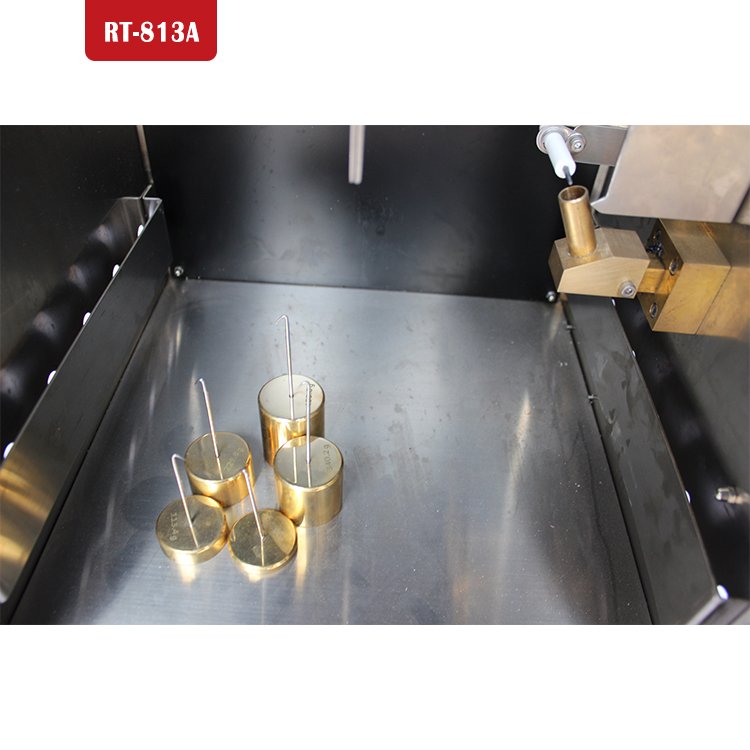

Weights
54.5g, 113.4g, 226.8g, 340.2g, 453.6g
Ignition timing
0~999s±0.05s
Continuation timing range
0~999.9s
Smoldering timing range
0~999.9s
Inner diameter of igniter nozzle
11mm (The pipe mouth forms a 25 degree angle with the vertical line)
Machine size
390mm x 620mm x 860mm
Weight
28kg
Power Supply
AC 220V,50Hz



Textile Flammability Test Chamber
