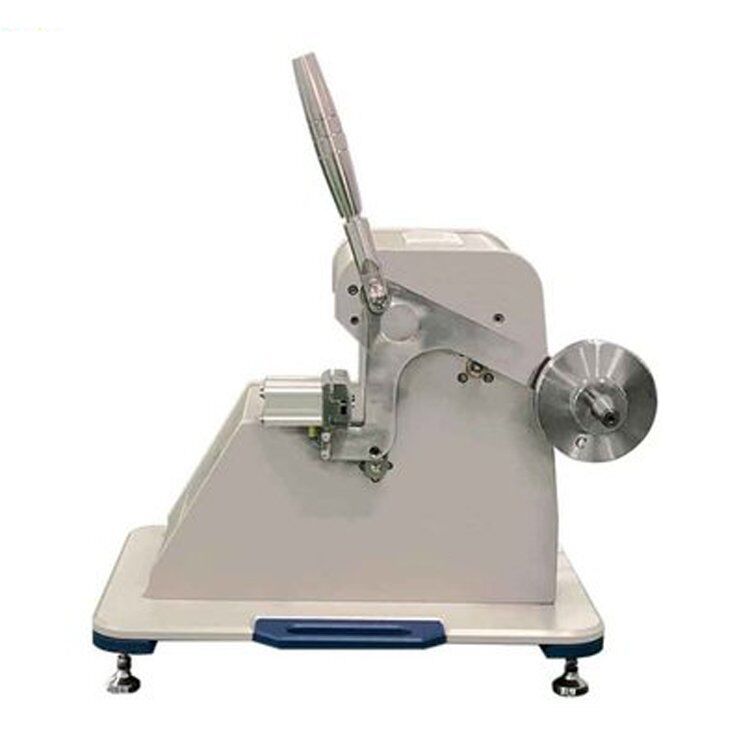

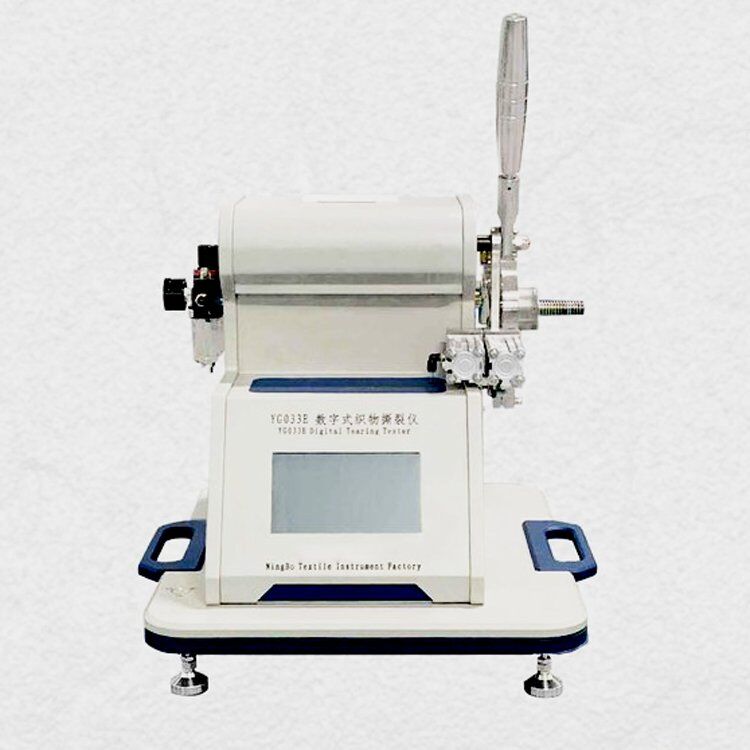

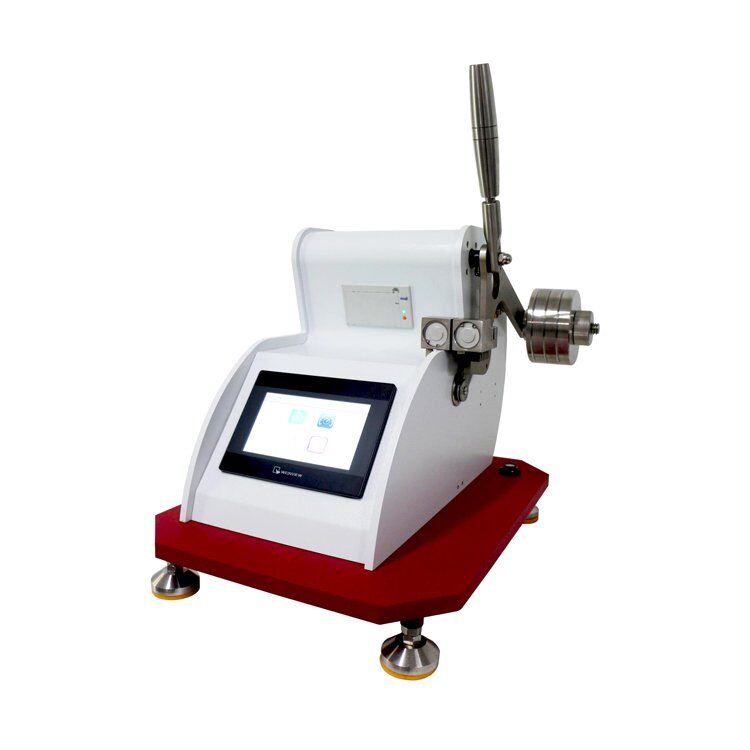

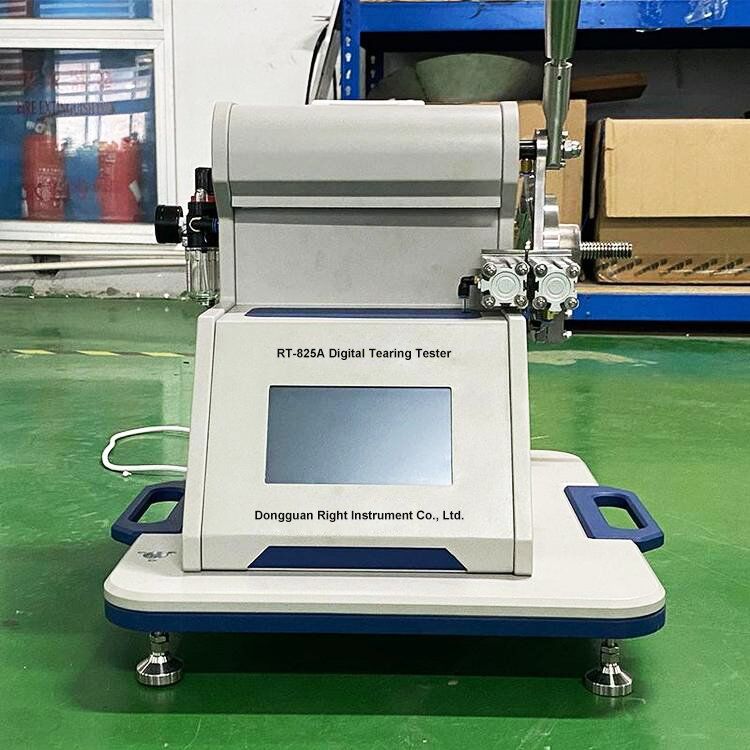

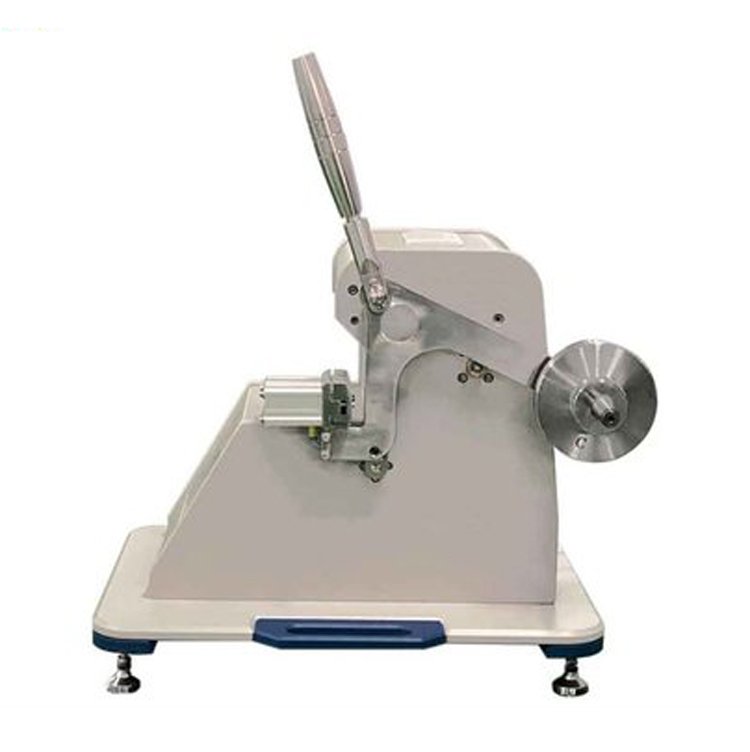

RT-825A 128N 64N Touch Screen Textile Elmendorf Tearing Tester

RT-825A 128N 64N Touch Screen Textile Elmendorf Tearing Tester - Image 4

RT-825A 128N 64N Touch Screen Textile Elmendorf Tearing Tester - Image 5

Category 6. Textile Testing Machine

Additional information

ASTM D1424 Digital Elmendorf Tearing Tester

Digital Fabric Elmendorf Tearing Strength Tester is designed for tearing resistance of textile, non-woven fabrics, paper, paper board, thin film, ventilation tape, metal sheet materials and etc.

Product Details：

Application

The measurement of the tearing strength of various woven fabrics can also be used to determine the tearing strength of materials such as paper, plastic cloth, film, electrical tape, and metal foil.

Technical Parameters

1	Range:	0~16N, 32N, 64N, 128N
2	Measurement accuracy:	≤ ± 0.2% F · S
3	Unit of measurement:	N, cN, gf, lbf
4	Clamping method:	pneumatic
5	The length of the incision:	20mm ± 0.1mm
6	Clamp mouth distance:	2.8mm ± 0.3mm
7	Dimensions:	500×400×620mm
8	Weight:	40kg
9	Power:	AC220V 50Hz 100W

Comply Standards

Textiles: GB/T 3917.1 Textiles Fabric tearing performance Part 1 Determination of tearing strength by impact pendulum

ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149

Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974,

ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, TAPPI T414, UNI 6444

Plastics: GB/T 11999, ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141

Non-woven fabric: ASTM D5734, WSP 100.1

Instrument Characteristics

1, Advanced calculation method (potential energy calculation) to ensure accurate testing and good repeatability.

2, Micro control system, automatic test, calculation, analysis results, print test reports, upload test data.

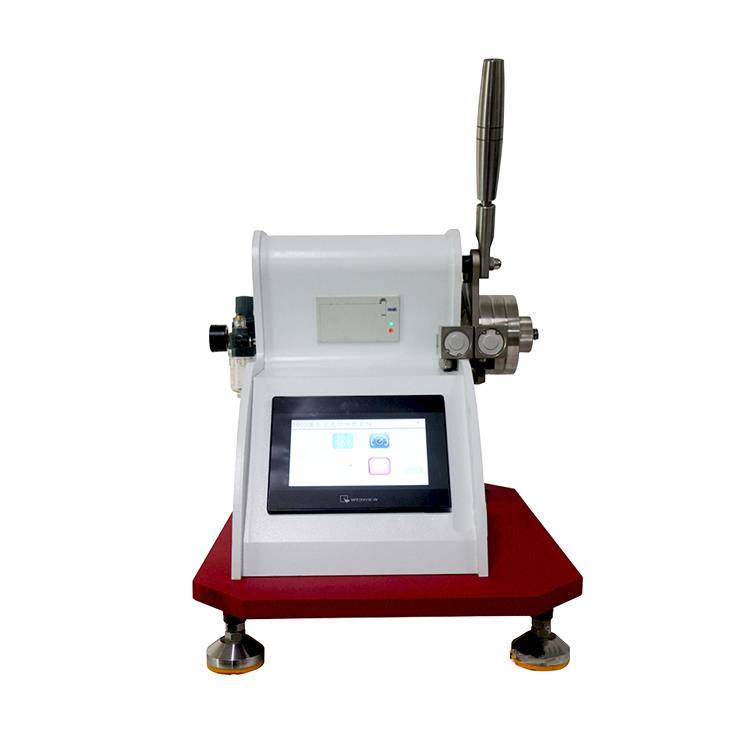

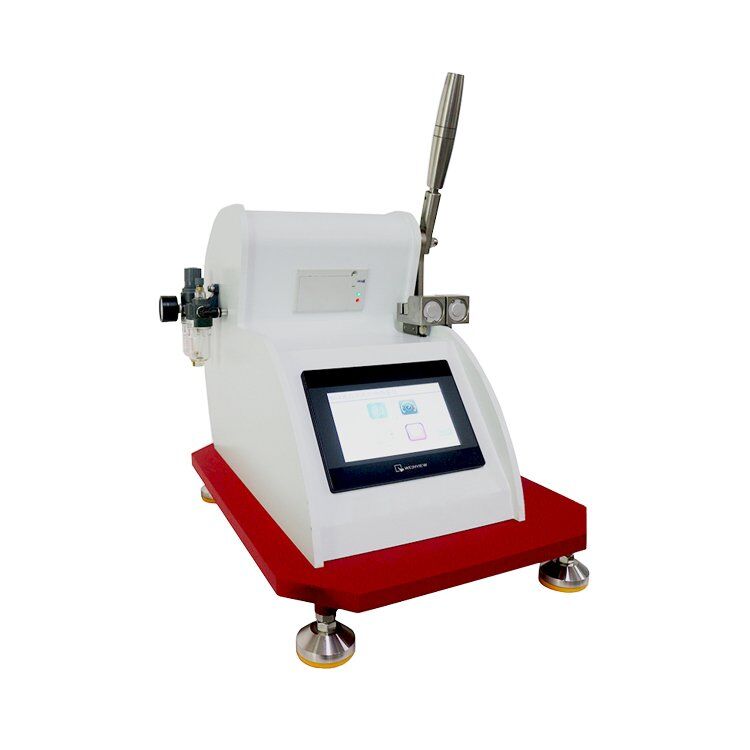

3, Touch screen control panel, clear image interface provides more convenient and quick operation for testers.

4, All data and statistical results can be freely checked in the host.

5, The test unit can choose between N, gf, cN and cP and automatically convert to meet different standard requirements.

6, Pneumatic sample clamping and pendulum release ensure consistent clamping force and reduce operating intensity.

7, Automatically cut the sample to ensure that the shape of the cut is consistent and the operation intensity can be reduced.

8, Provide multi-language user interface, including Chinese and English.
