1. Stainless steel plate material.
2. Automatic temperature control.
3. The timer automatically retains the test time.
This machine is designed for a static load test of the adhesive force of adhesive tape. Under a certain load and temperature, it will automatically time the time that the tape can keep. If it falls down in the middle, it will record the time to confirm the time limit of adhesive tape adhesion and test the time of adhesive retention.
Technical parameter:

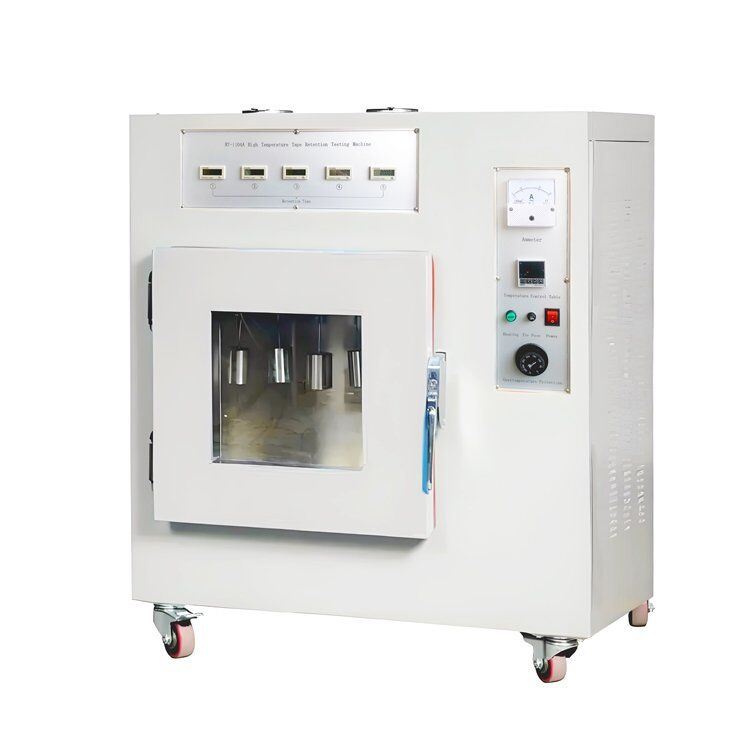

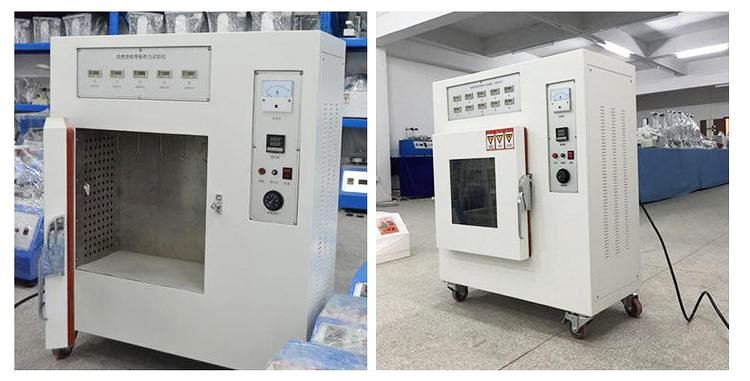

Model | RT-1104A |
Load | 1kg (or specified) |
Determination group number | 5 groups can test separately |

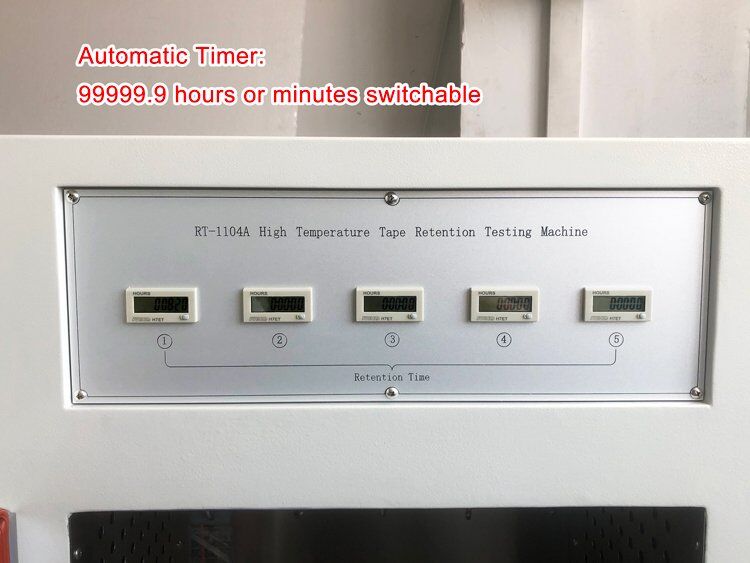

Automatic timer | 1-999,999min (min. or sec settable) |
Temperature controller | Room temperature-200 Centigrade degrees, PID control or customize |
Temperature display | 0.1 centigrade degree |
Heating mode | Hot air Circulation |
Safety devices | With over-temperature and electric overload protection, the Automatic power-off facility |
Machine material | Interior SUS # 304 stainless steel; external high steel paint handling |
Inside size | 85x45x100cm |
Weight | 80kg |
Power | AC220V 19.5A |
Technical parameter:

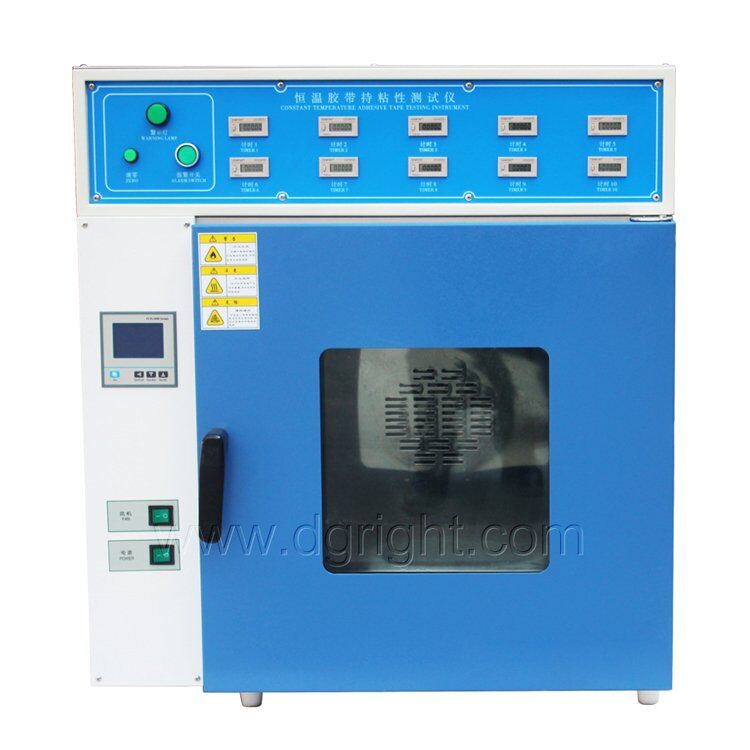

Model | RT-1104B |
Load | 1kg (or specified) |
Determination group number | 10 group, can test separately |
Automatic timer | 1-999,999min (min. or sec settable) |
Temperature controller | Room temperature-200 Centigrade degree, PID control |
Temperature display | 0.1 centigrade degree |
Heating mode | Hot air Circulation |
Safety devices | With over-temperature and electric overload protection, the Automatic power-off facility |
Machine material | Interior SUS # 304 stainless steel; external high steel paint handling |
Inside size | 85*35*45cm |
Size | 137*41*86cm |
Weight | 143kg |
Power | AC220V 19.5A |
Technical parameter:

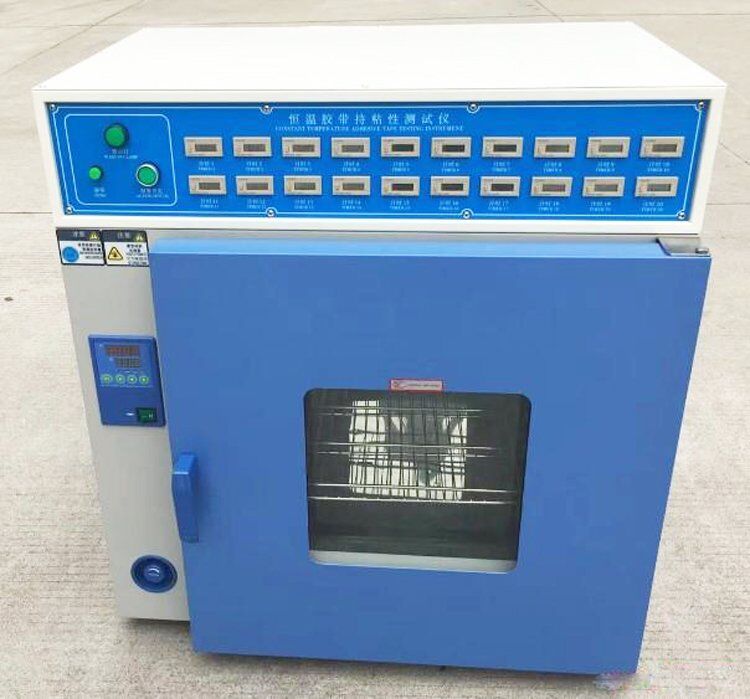

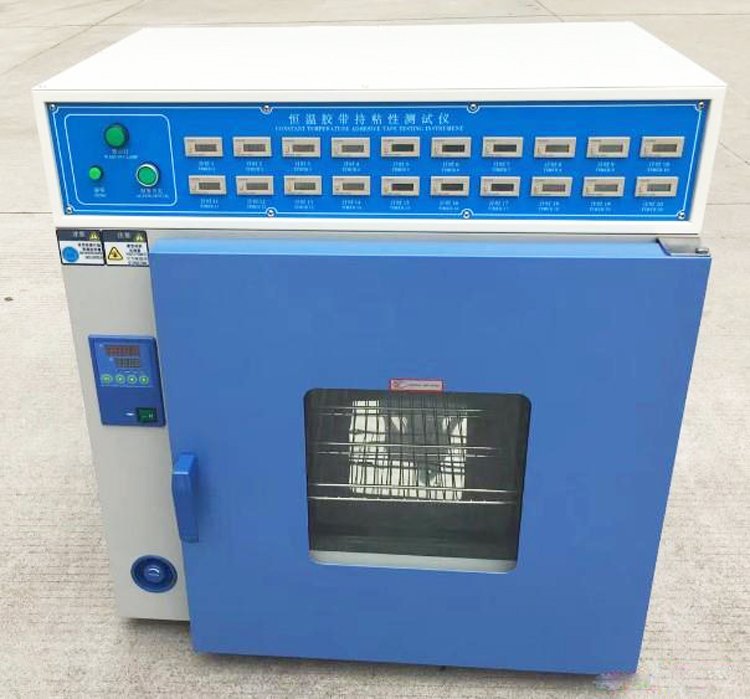

Model | RT-1104C |
Load | 1kg, 20wh(or specified) |
Determination Group number | 20 groups, can test separately |
Automatic timer | 1-999,999min (min. or sec settable) |
Temperature Controller | Room temperature-200 centigrade degree, PID control |
Temperature display | 0.1 degree centigrade |
Heating mode | Hot air Circulation |
Safety devices | With over-temperature and electric overload protection, the Automatic power-off facility |
Machine Material | Interior SUS # 304 stainless steel; external high steel paint handling |
Inside dimension | 85*35*45cm |
Size | 137*41*86cm |
Weight | 143kg |
Power | AC220V 19.5A |
Cut 1 inch width strip of adhesive tape on stainless steel plate, roll back and forth three times by 2KG standard roller at a speed of 300MM per minute, hang the steel plate on the tester, plus the specified weights, when the tape falls from the steel plate, the timer automatically retains the test time, which is used to evaluate the durability of the adhesive tape.
(1). Place the machine on a sturdy desktop and keep the machine level.
(2). Take a certain length of the tape to be tested, and place it on the attached test piece, which is made of #304 mirror steel plate, and then wipe it with steel plate cleaner. Use the roller (sold separately) to roll back and forth once so that the tape is uniformly adhered to the test piece. This method is used to prepare the test piece. 3.

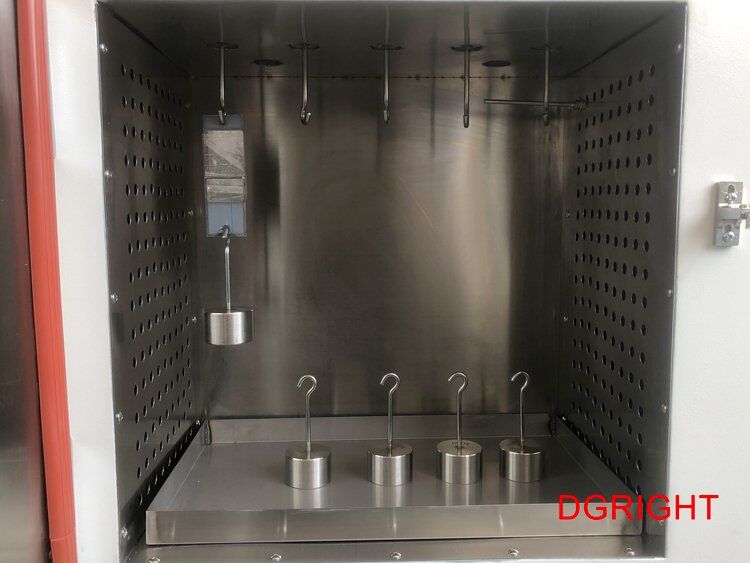

(3). Hang the adhesive tape on the hook in the tester. 4.

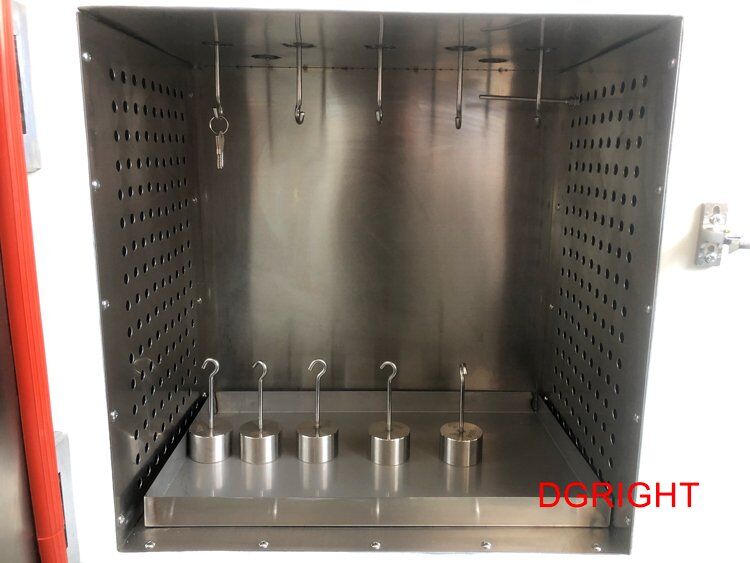

(4). Take 1kg of weight and hang it on the connecting piece under the test piece. The timer switch will start automatically while hanging the test piece, and the power supply of each timer is independent, and the timer is 99 hours, 59 minutes and 59 seconds.
(5). When the tape comes off, the timer will stop automatically and keep the test time, and read the time the tape stays on.
(6). Be sure to reset the timer to zero before each test. 7.
(7). Replace all timer batteries with new ones after 3 years of use or not.
(8). Setting Temperature: The upper row of the temperature controller displays the actual temperature value inside the box, and the lower row displays the set value.
Press SET key once, at this time the lower display appears flashing phenomenon, press the key the lower display will be from the decimal point, single digit, pick up the number of digits, the number of hundred digits cycle, and then with the increase key ▲, decrease key ▼, set the required test temperature, set the completion of the key and then press the SET key again can be.
