Equipment summary:

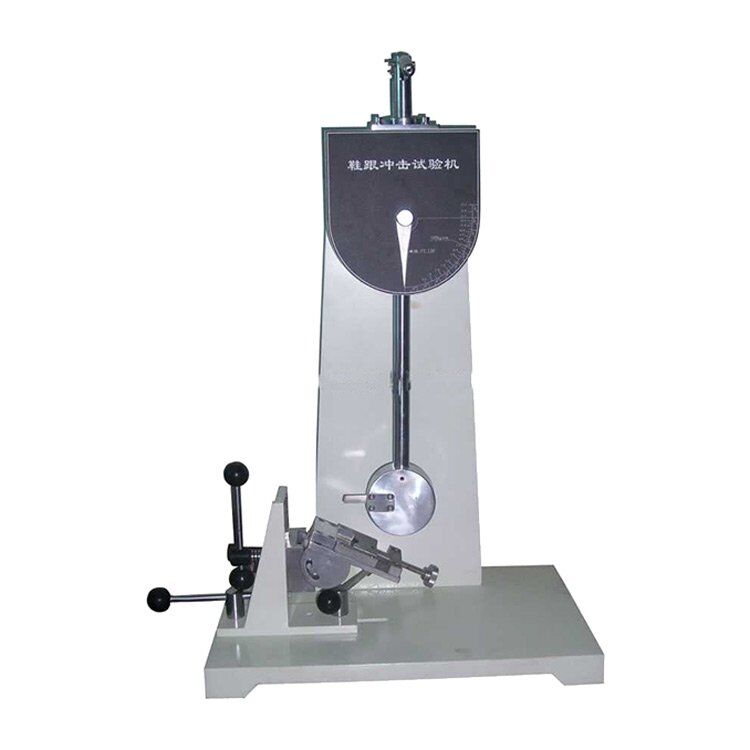

RT-609A Shoes heel impact tester simulate female wearing high heels on walking and then to test the resistance of sudden shocks, it also can test heel toughness made of plastic of casting material. Specimen clamped by fixture fixed in the specimen pedestal, of which height and slope can be adjusted, the energy of testing impact, successive increases, until the heel broken, read the impact index.
Corresponding standard
BS-51314.8 SATRA TM-21
Applicable industry:
Women shoes
Technical parameters:
Model | RT-601A Shoes Heel impact tester |
Capacity | 0~18.3J(13.5ft-1b),least count 0.68J(0.50ft-1b) |
Arm | Ø25mm |
the hammer energy at level of arm | 17.3N-m (12.7ft-1b) |
Impact hammer | Ø108mm, thickness 46.2mm |
distance between impact hammer center to axis center | 432mm |
Impact edge | 25×6×35mm, fillet radius 3mm |
Specimen adjustable range | height~25mm(H), angle 0º~45º |
Volume | 63×40×105cm |
Weight | 101KG |
