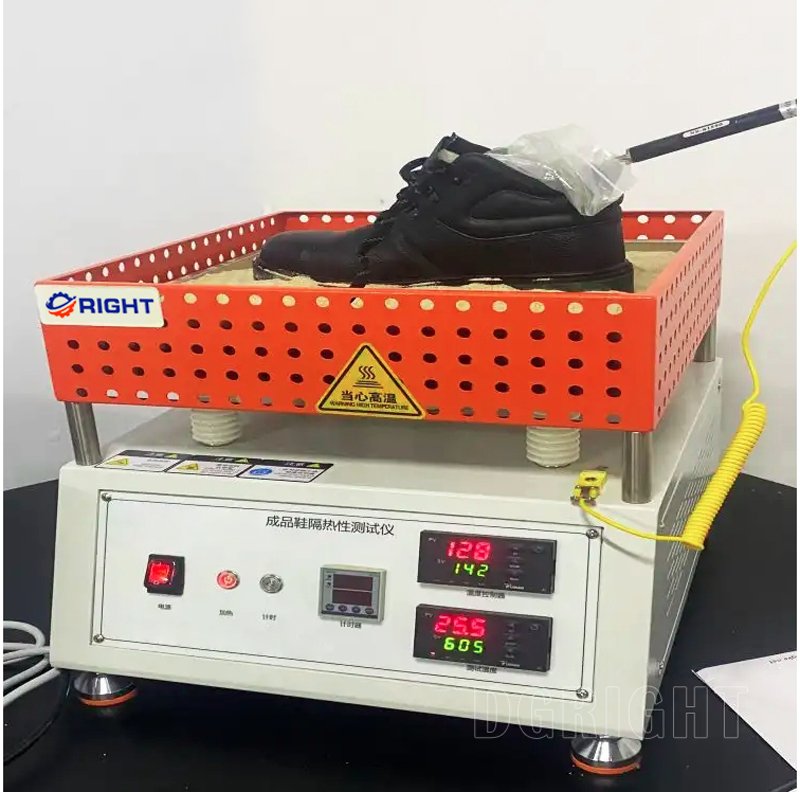

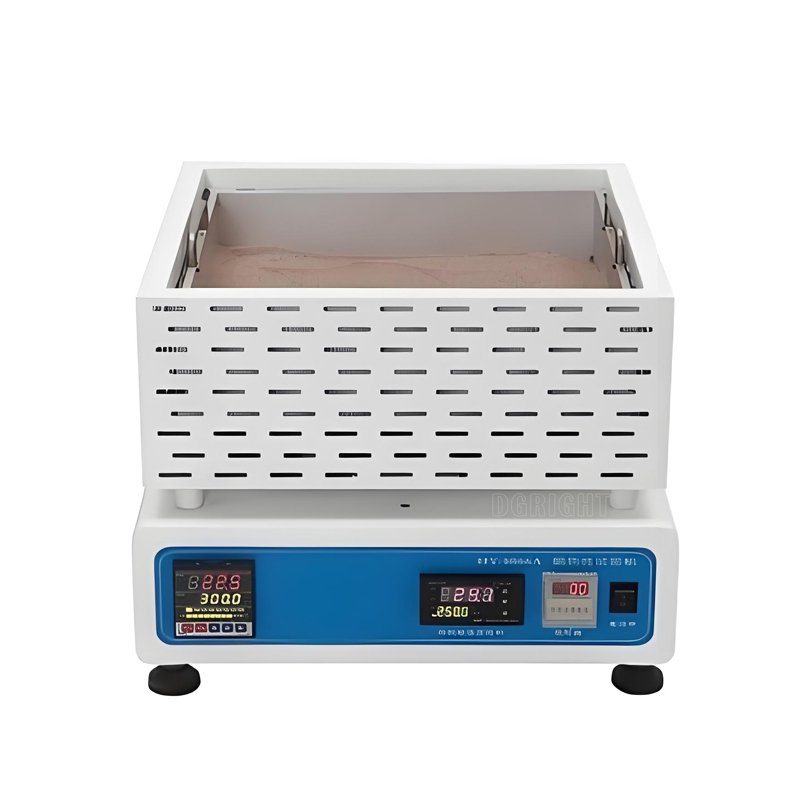

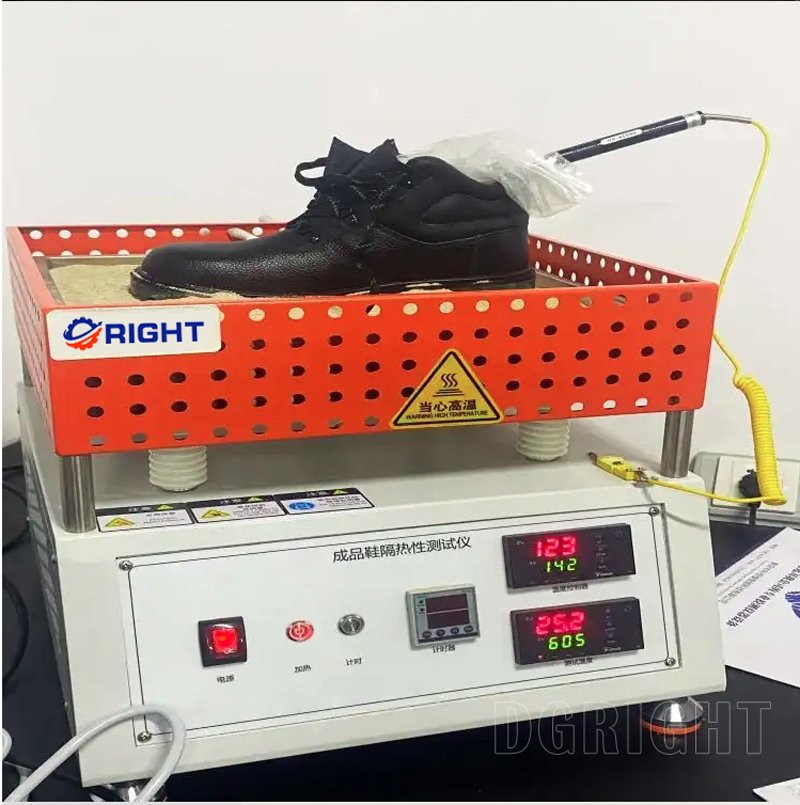

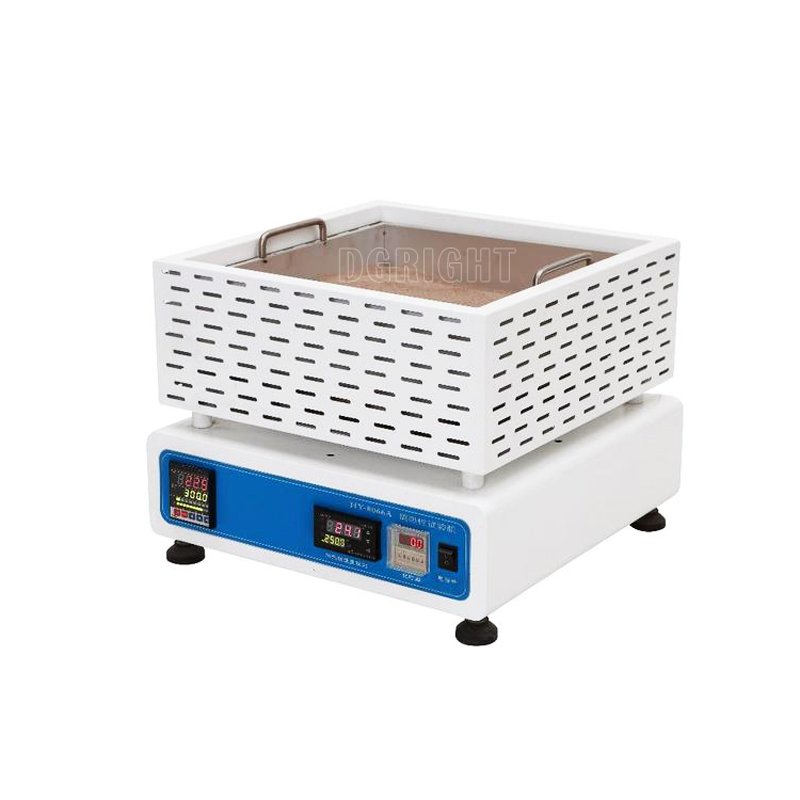

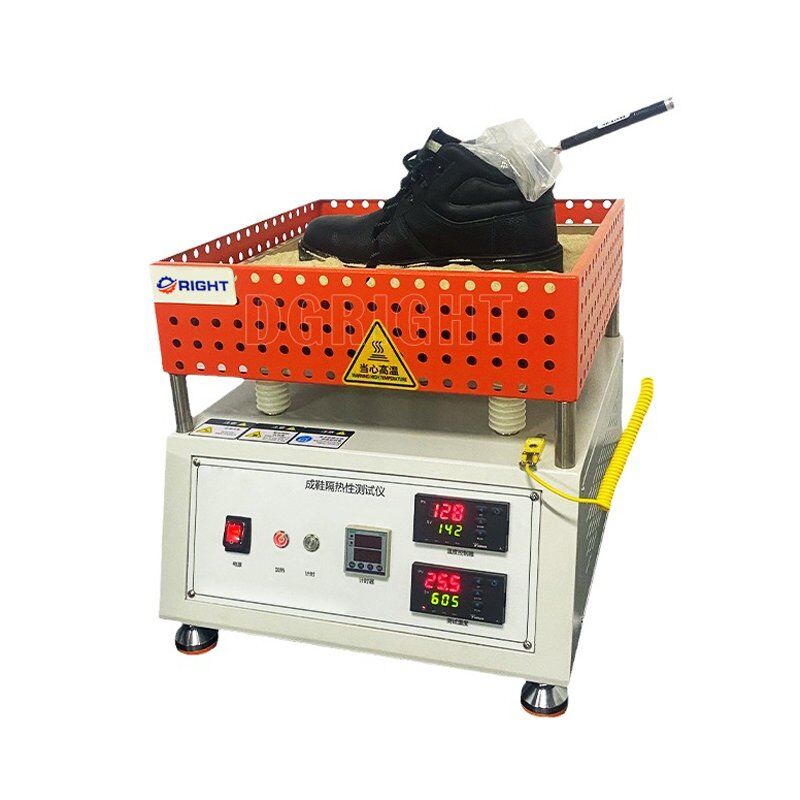

ISO 20344 Finished Shoes Heat Thermal Insulation Tester (RT-624)

Category 9. Shoes Testing Machine

Additional information

Product Details：

Introduction Of Instrument:

Mainly used for insulation and high temperature resistance testing of finished shoes such as occupational shoes, protective shoes, safety shoes, etc. Widely used in special labor protection equipment supervision and inspection stations, safety production science research institutes, product quality inspection institutes, safety shoes and protective shoe production enterprises.

Corresponding standard:

GB 21148-2020、GB/T2099、ENS020344/20345/20346/20347

Specification

Product Name	Shoes Heat Insulation Tester
Model	RT-624

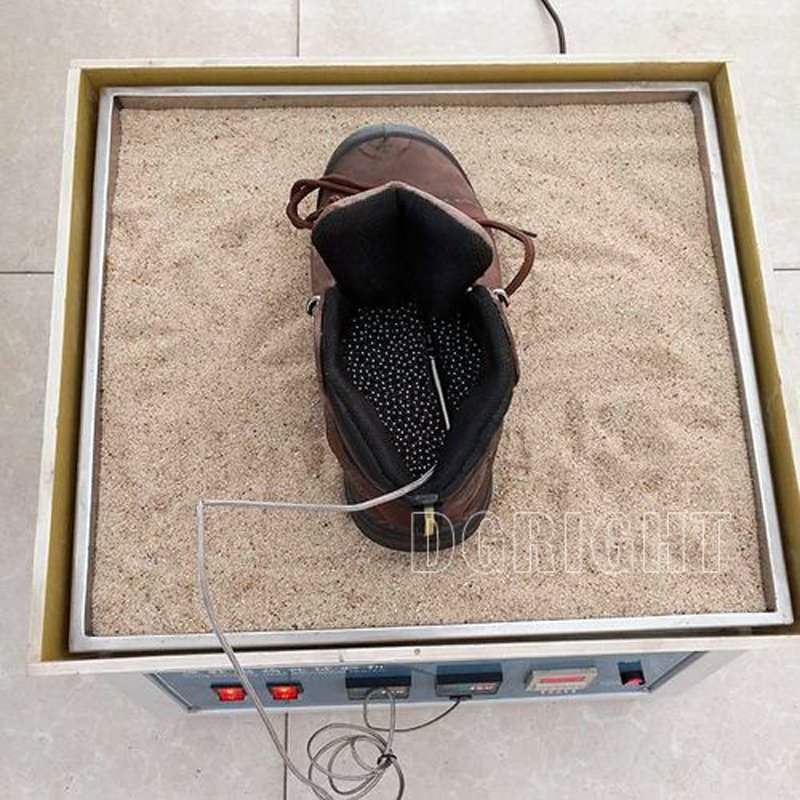

Sand bath size	400 × 400 × 80 mm
Sand height	≥ 5 cm
Sand particle size	0.3~1.0 mm

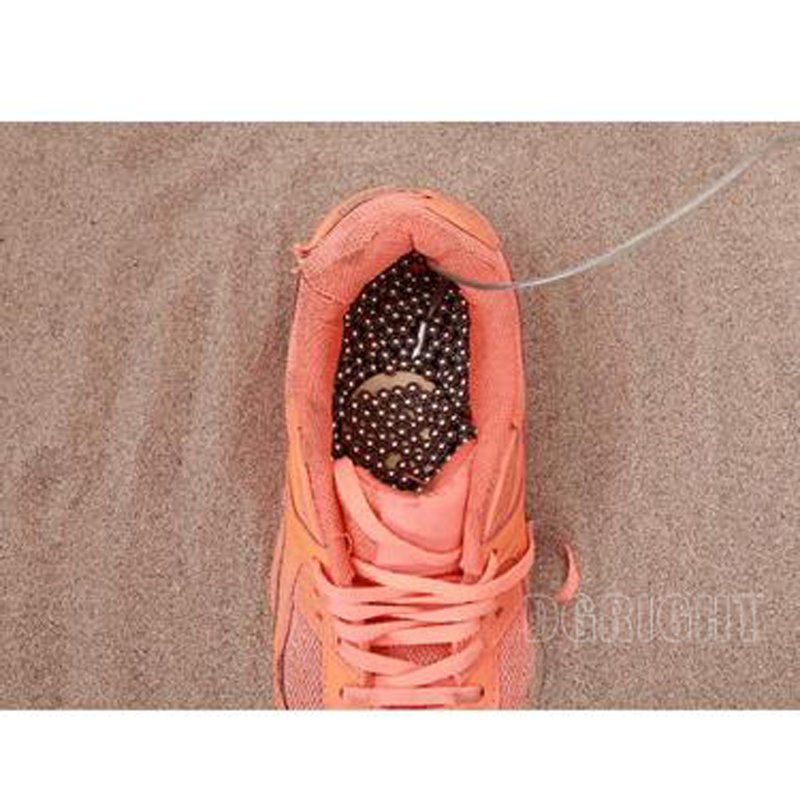

Heat transfer medium	φ5mm steel ball, weight 4kg
Temperature range	RT-300 ℃, standard use is 150 ℃ or 250 ℃.
Temperature accuracy	± 2 ℃
Test time	0-99H
Machine size	50510340（mm）

Product Advantages

1. Using copper heating plate, with good thermal conductivity and fast heating speed.

2. Equipped with a time counter, the test time can be set by oneself.

3. Adopting PT100 high-precision sensor and displaying the test temperature in real-time.

4. Equipped with a temperature compensation system to more accurately control the test temperature.
