ASTM D2632 Rubber Impact Rebound Resilience Elasticity Tester (RT-132)

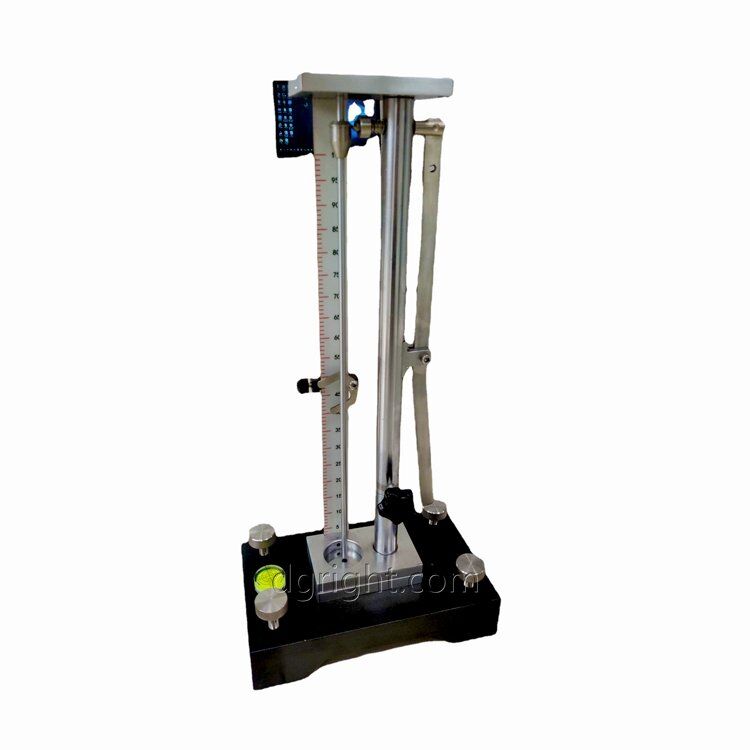

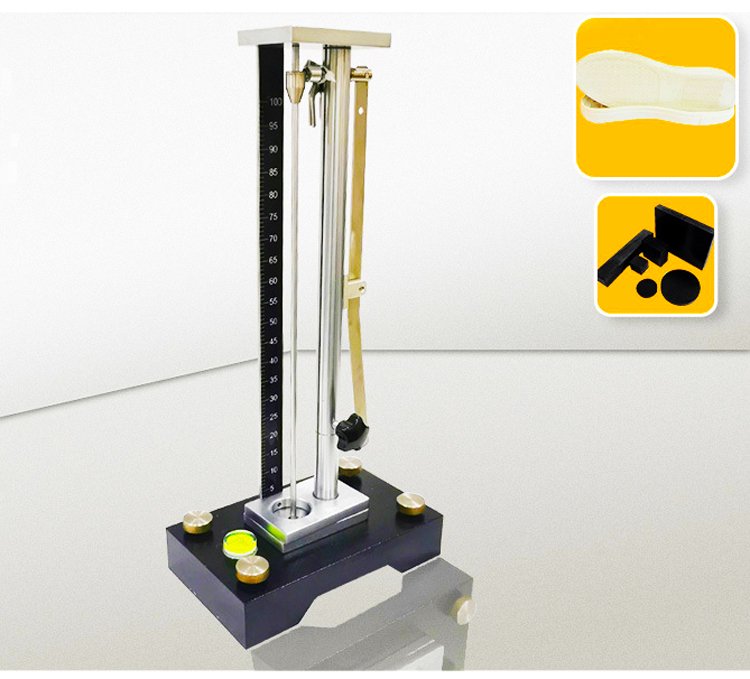

RT-134 Rubber Rebound Elasticity Tester
This machine is used to test the elasticity of rubber materials using a free-fall weight.
Product Details：
Main Functions:
1. The body is painted with metal.
2. Special fixtures, high-precision processing, beautiful appearance, and durability.

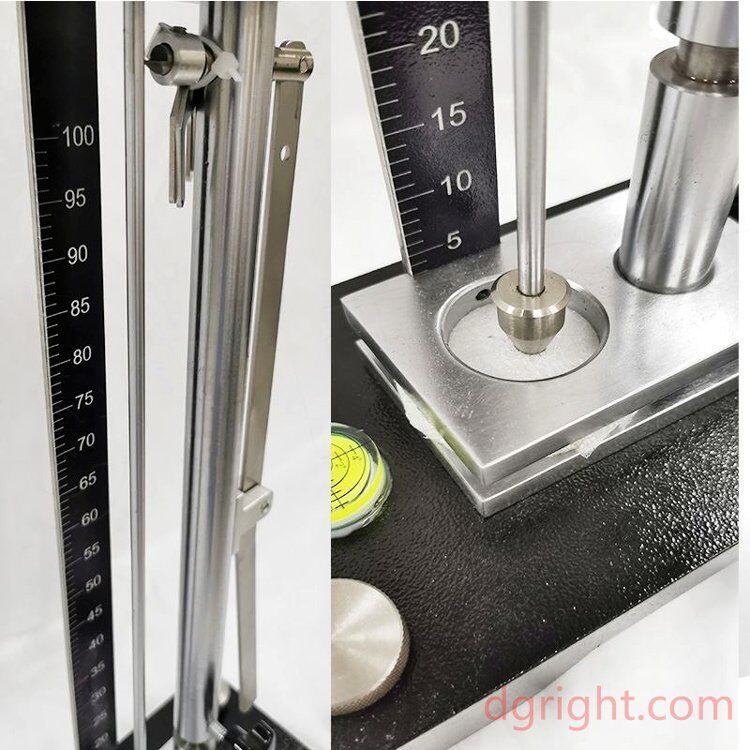

3. Custom engraved ruler, more straightforward to observe.
4. Straight guide bar, zero contact with falling friction
Specification:
| Drop height: | 400mm |
| Falling weight: | 28g |
| Test thickness: | 12.5mm |
| Test Dimension: | 〉30mm |
| Volume(W*D*H): | 250*150*520.5mm |
| Weight: | 9kg |
Use Method:
Adjust the instrument’s level first, and then lift the drop weight to a certain height. When placing the test piece, pay attention to making the drop point 14mm away from the edge of the test piece. The first three tests were not used, and the average of the rebound heights of the fourth, fifth, and sixth times was recorded.
Comply Standard: ASTM D2632
