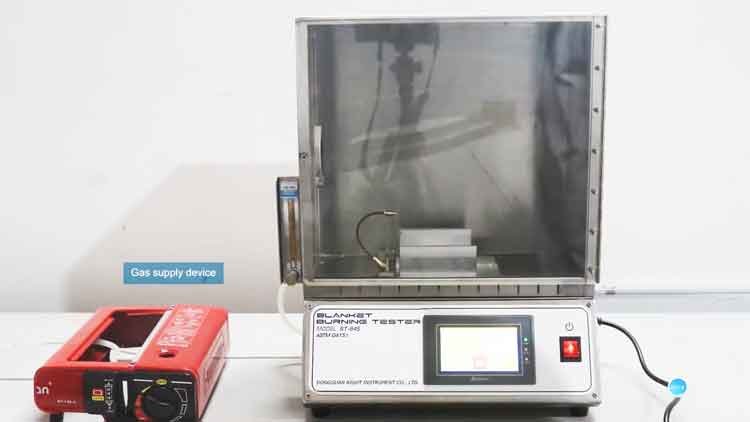

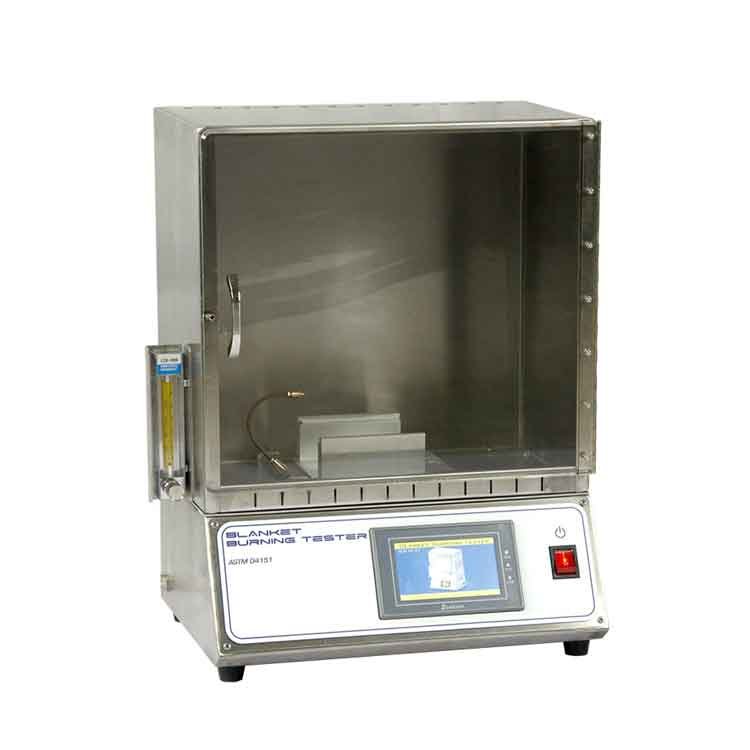

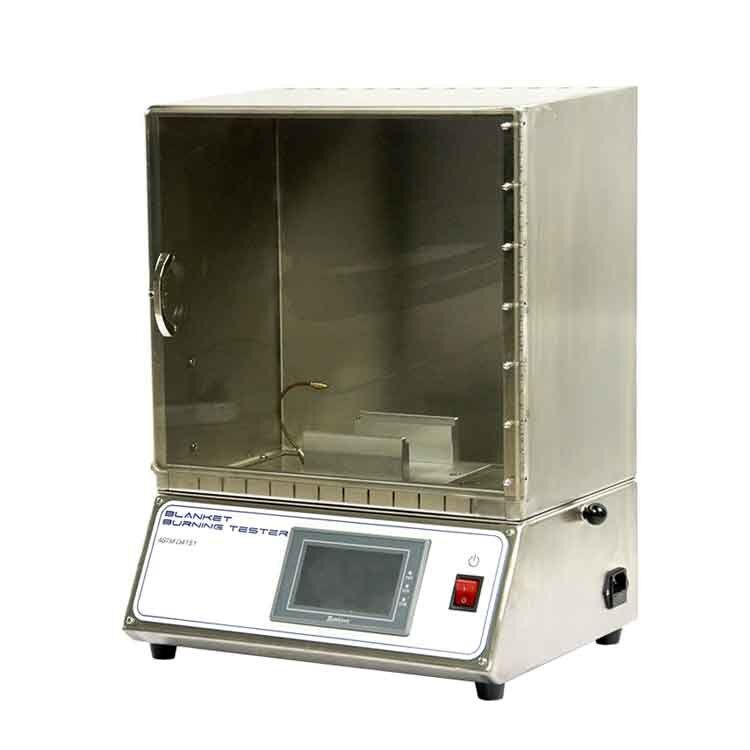

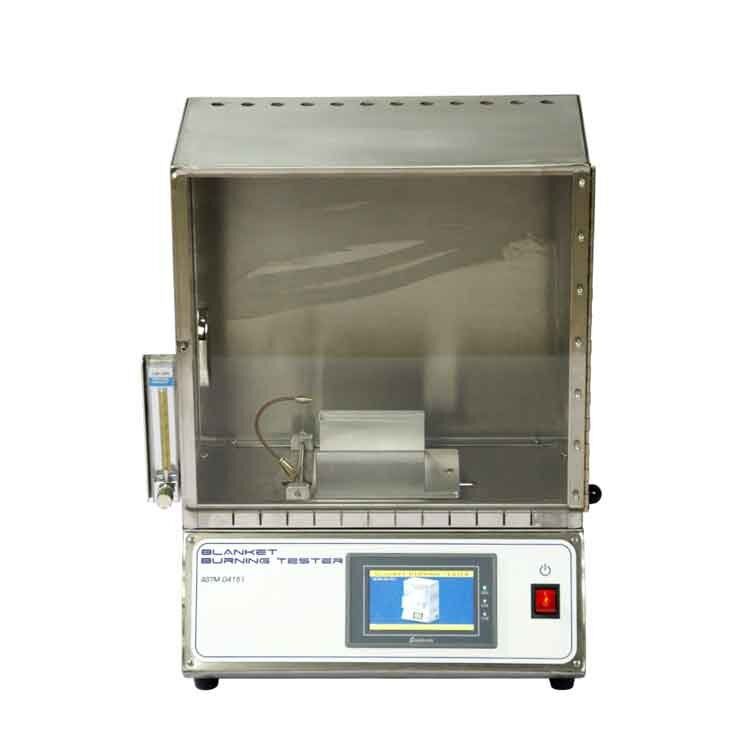

RT-844 Blanket Flammability Tester

Category 6. Textile Testing Machine

Additional information

ASTM D4151 Blanket Flammability Testing Equipment Fabric Blanket Burning Flammability Tester

The test method is to burn the surface of the sample with a standardized flame within a specified time, so as to observe the burning, damage or discoloration of the standard test paper, and then to grade and evaluate the test fabric.

Product Details：

Application

It is used to detect the flame-retardant performance of bed blanket fabric and the flame spread performance of the fabric surface. It is suitable for bedding (including bed sheets, blankets, mattress pads, pillows, eiderdowns) and similar products used to cover the bed.

Standards compliant

ASTM D4151

Product Features

Equipped with a transparent observation window.

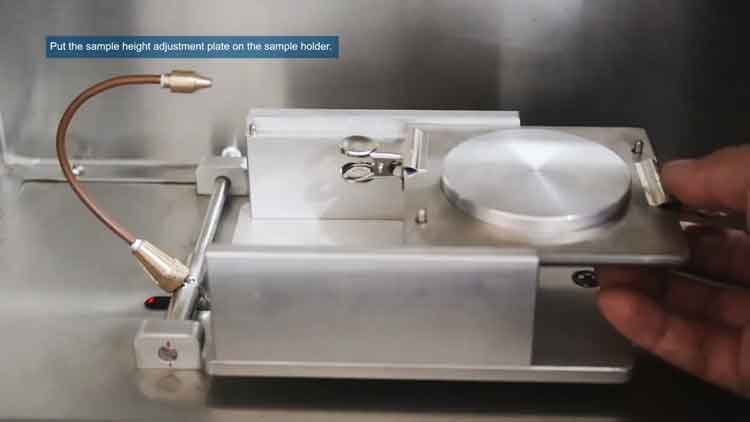

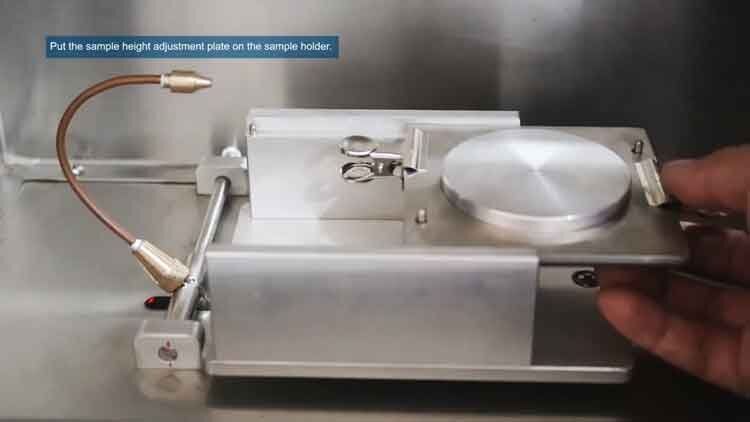

All stainless steel standard sample holder.

TOMY high-precision needle valve accurately controls gas flow and flame height.

Automatic control, high degree of automation.

Technical Parameters

Test box size: 37×22×35 cm, with 12 vent holes with a diameter of 12.7 mm on the top

Standard flame length: 16 mm, 18 gauge needle flame, flame height adjustable

Ignition time: the ignition time can be set freely, the standard requires 30 s

Tongming timing accuracy: 0.1 s

Flow meter range: 0~60 cc/min

Specimen specification: 70×70 mm

Dimensions: 42×26×52 cm(L×W×H)

Weight: 20 kg

Power supply: AC 220V, 50 Hz, 3 A
