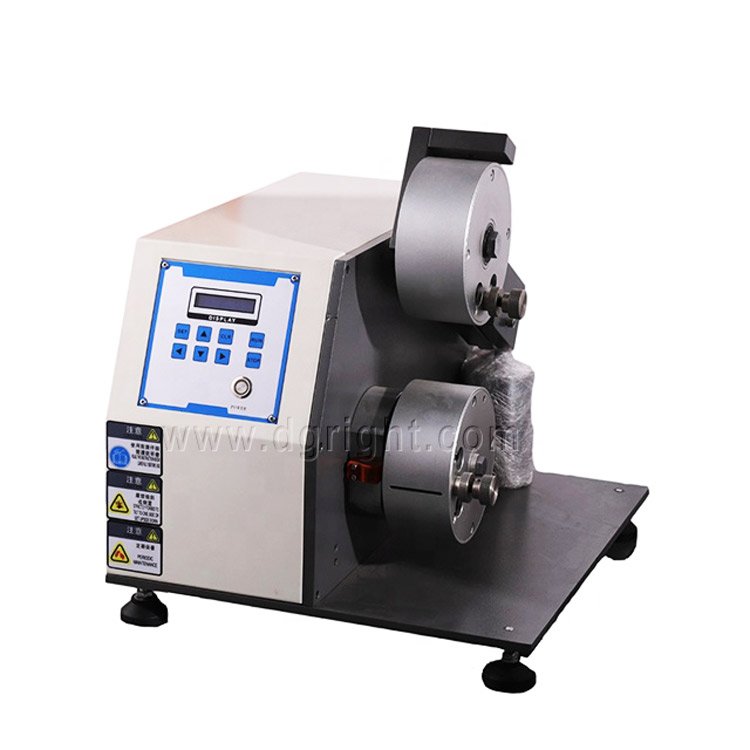

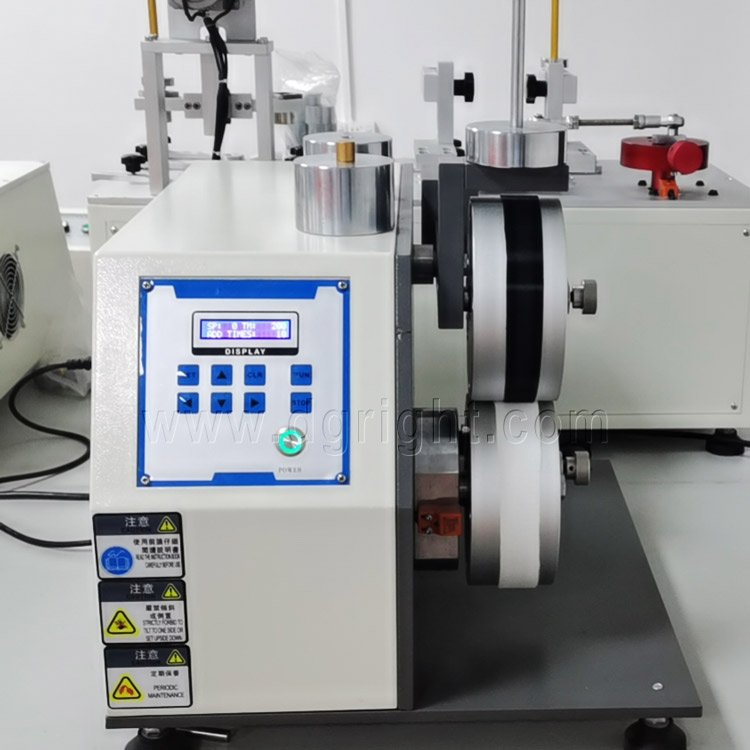

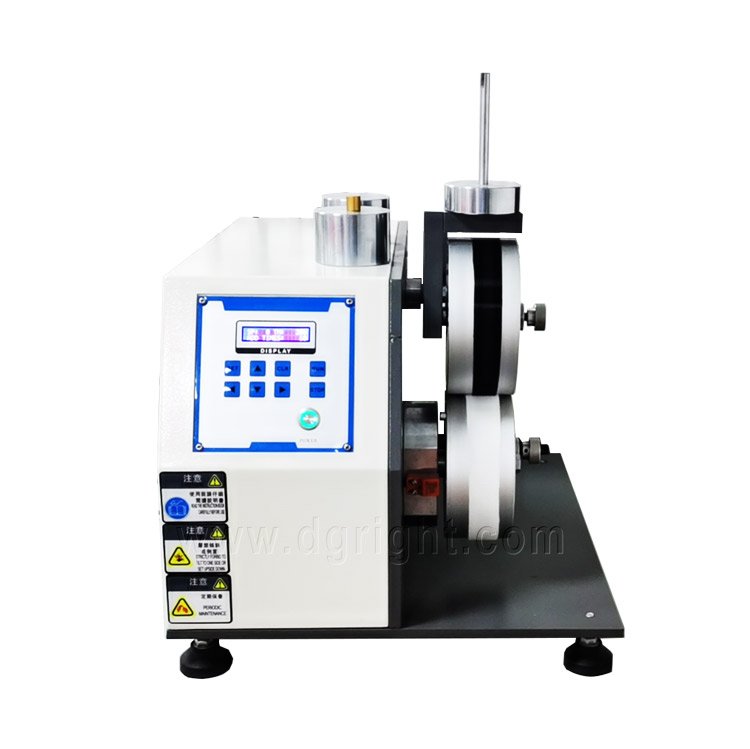

RT-842 Hook and Loop Fasteners Fatigue Testing Machine

RT-842 Hook and Loop Fasteners Fatigue Testing Machine - Image 6

Category 6. Textile Testing Machine

Additional information

DIN 3415 Shoes HOOK & LOOP Squeak Endurance Tester

This machine in the use of adhesive belt (Velcro tape) repeatedly peeling and bonding action, after a certain number of times, and then by tensile testing machine (purchased separately) to determine the adhesive strength of the adhesive force.

Product Details：

Application:

This machine is suitable for the opening and closing test between the two layers of all kinds of hook and loop fasteners. Make the hook and loop strips repeatedly perform peeling and bonding actions. After a certain number of times, roll the test roller with the weight of the roller itself to make it fit evenly, and measure its bonding strength and partial bonding strength. It has a memory function; it can adjust the pressure between the test pieces by adjusting the balance adjustment block and weight.

Standards compliant:

DIN-3415, SATRA TM123, ISO 22776, GB/T 3903.20, GB/T 3903.21, GB/T 23315-2009

Main features:

Automatic shutdown times can be set;
Stepper motor with high precision and durability;
Quick replacement of weight;

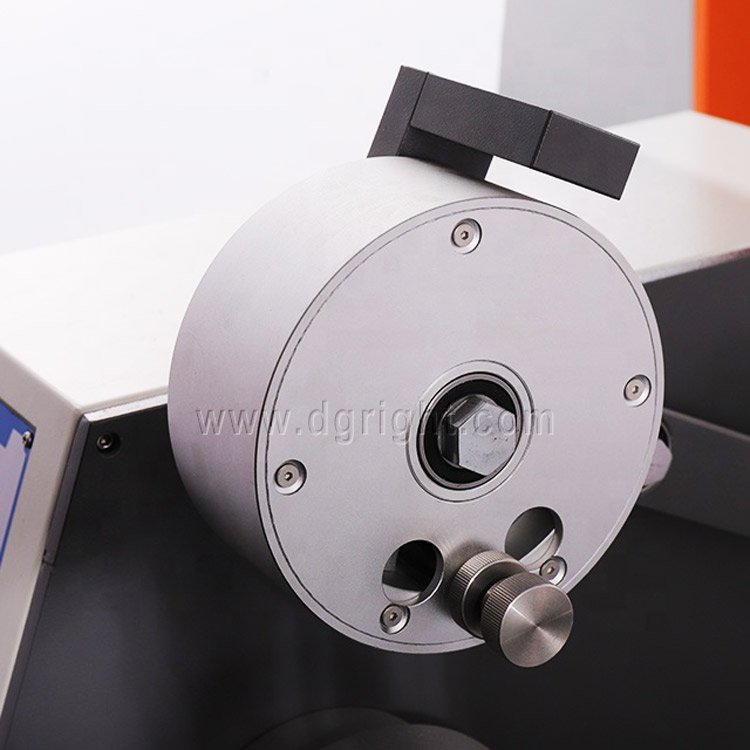

Stainless steel roller;

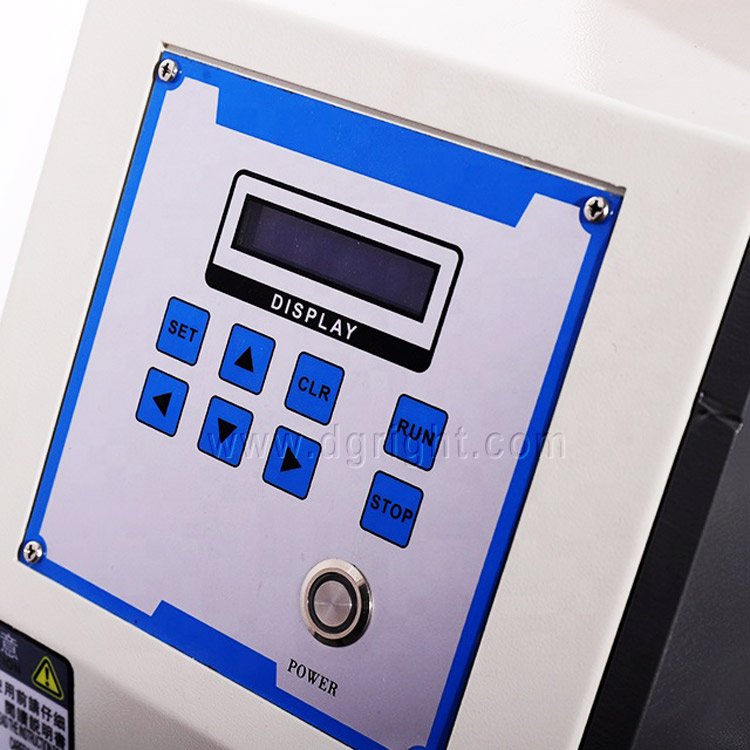

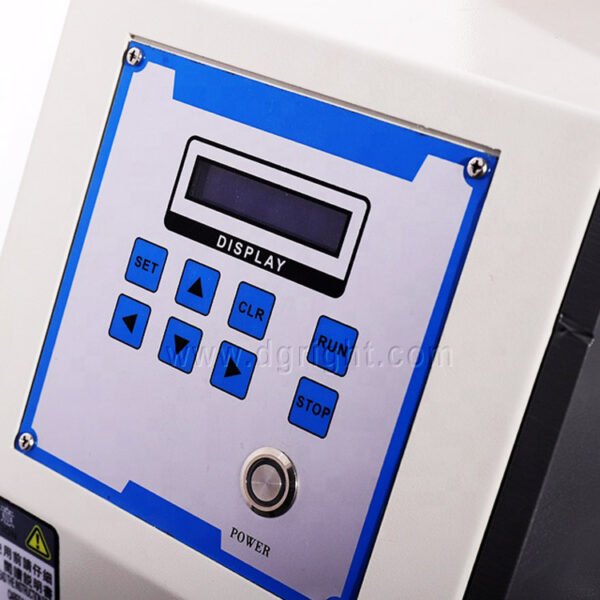

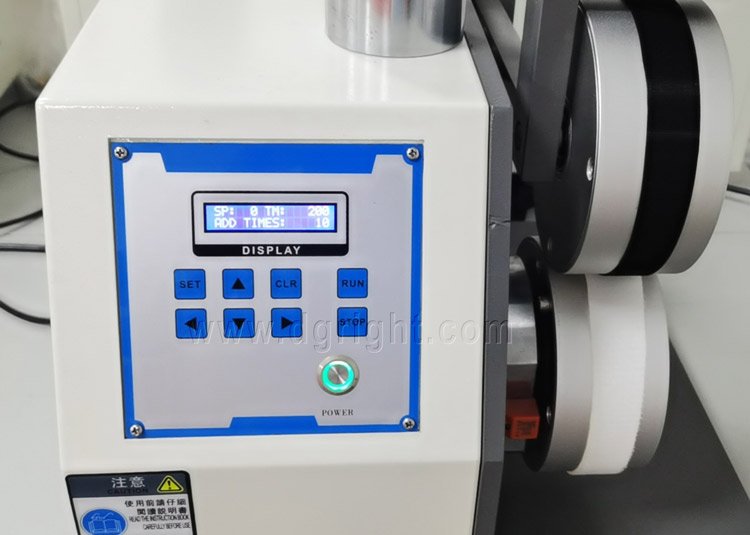

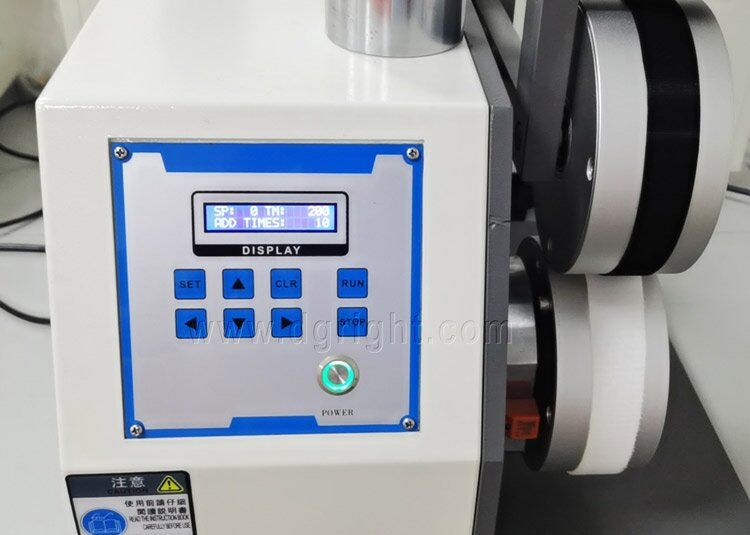

Numbers directly display the value, high precision, rapid display, good stability, easy reading.

Technical Parameters:

ITEM	DESCRIPTION
Brand Name	RIGHT
Model Number	RT-842
Product name	Shoes Velcro Squeak Fatigue Testing Machine

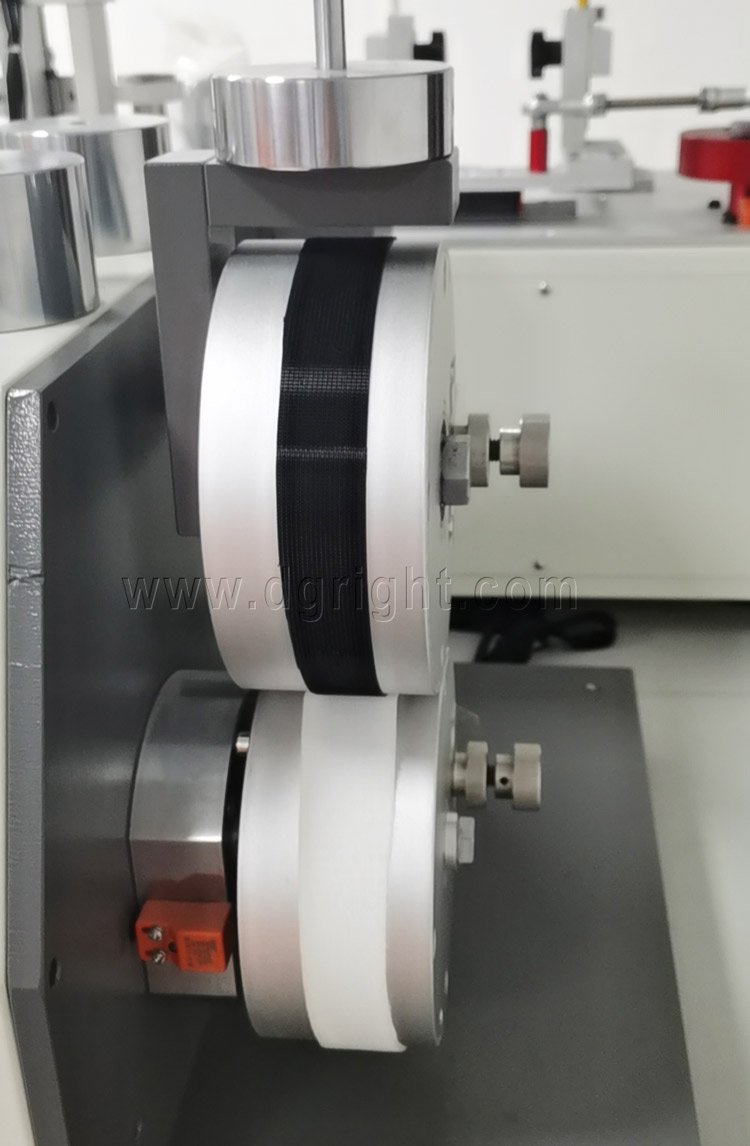

Roller diameter	upper wheel diameter 162.5mm, lower wheel diameter 160mm
Roller width	70mm
Rolling speed	60rpm
Load	5kg
Counter	LCD,0~999,999
Product size	704760 cm
Power	AC220V, 3A
Weight	50kg
