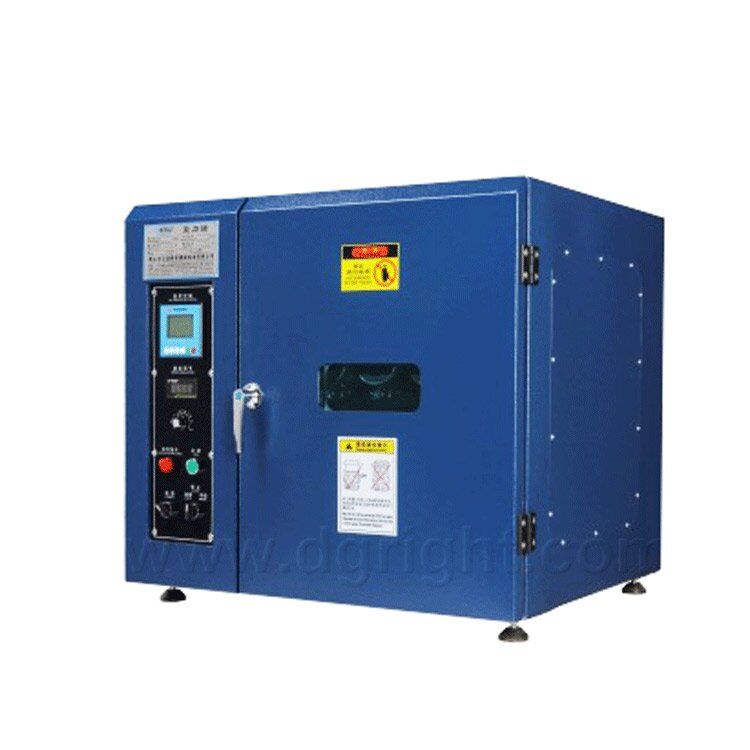

Lab infrared dyeing machine also named IR dyeing machine, lab infrared dyeing machine is a art dyeing instrument with IR heating technology.
Infrared Lab Dyeing System is Suitable for all fibers and substrates dyeing. The infrared dyeing system produces accurate laboratory sample dyeings with level and reproducible results and accommodates up to 24 positions with a low liquor ratio for synthetic and natural fibers. This infrared dyeing system moves the beakers in a circular rotation with advanced infrared heating technology eliminating glycol contamination and cumbersome beaker cleaning.

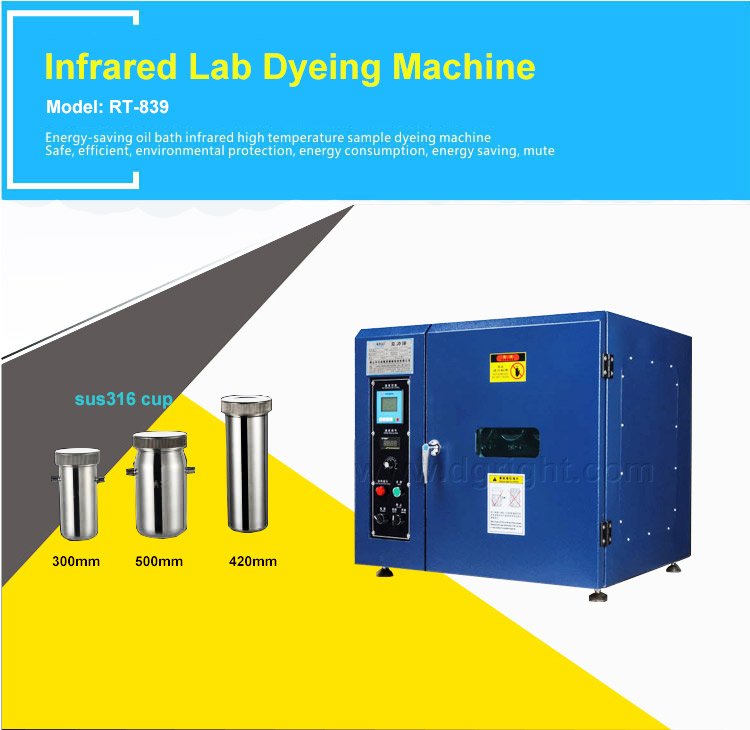

Model | RT-839 Infrared lab dyeing machine |
Dyeing pot numbers | 12, 24 selectable |
Dyeing pot volume | 300ml,420ml,500ml selectable |
Temperature range | RT.~ 140C |
Max. heating rate | 5C/min |
Temperature accuracy | ±0.5 |
Keeping temperature | 0 ~ 99 mins |
Liquor ratio | 1:5 ~ 1:100 |
Rotation speed | 0 ~ 60 rpm |
Heating system | Infrared |

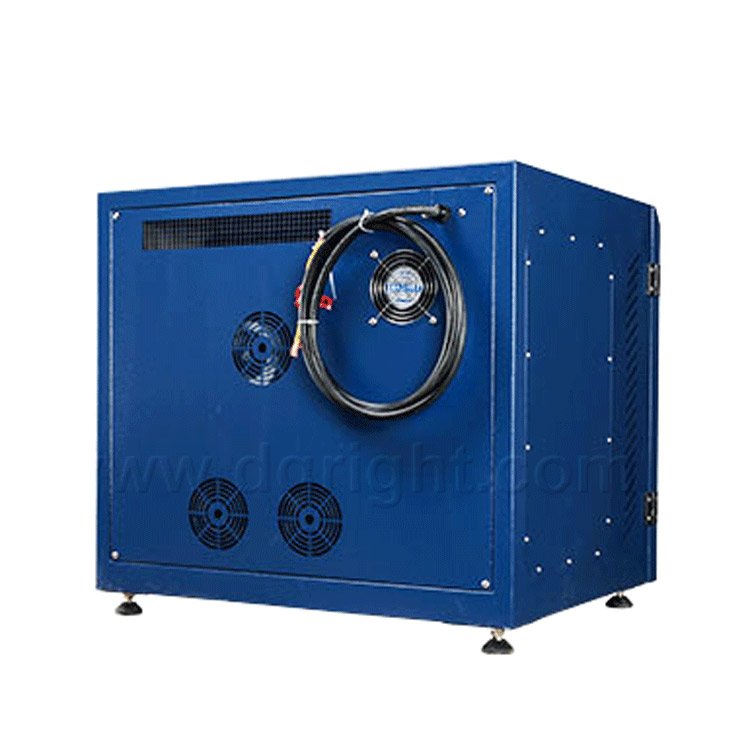

Cooling system | Air |
Power supply | 220V, 50Hz, |
Dimensions | 700*750*750mm |
Weight | 120kg |

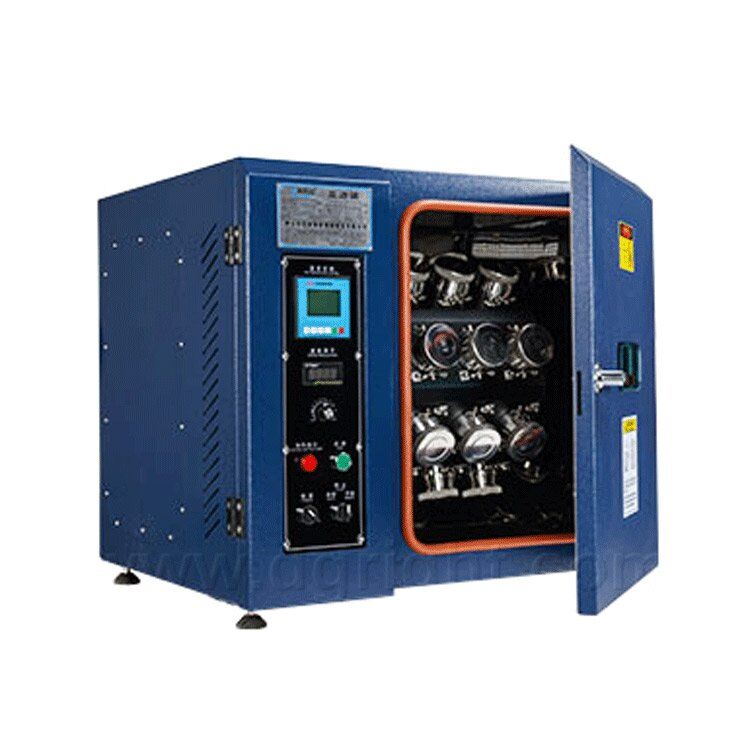

1. Three-dimensional turning,clockwise and anti-clockwise running makes level dyeing results;

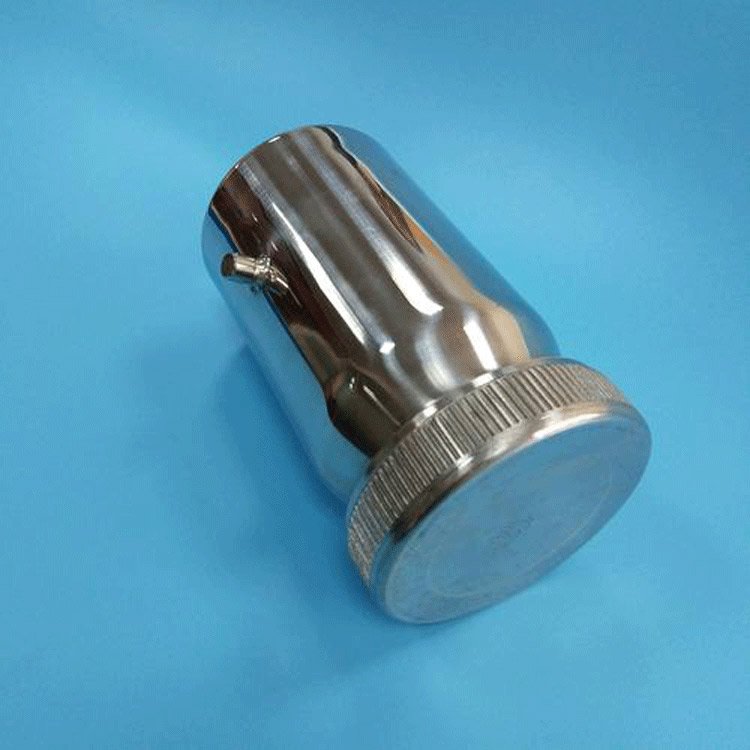

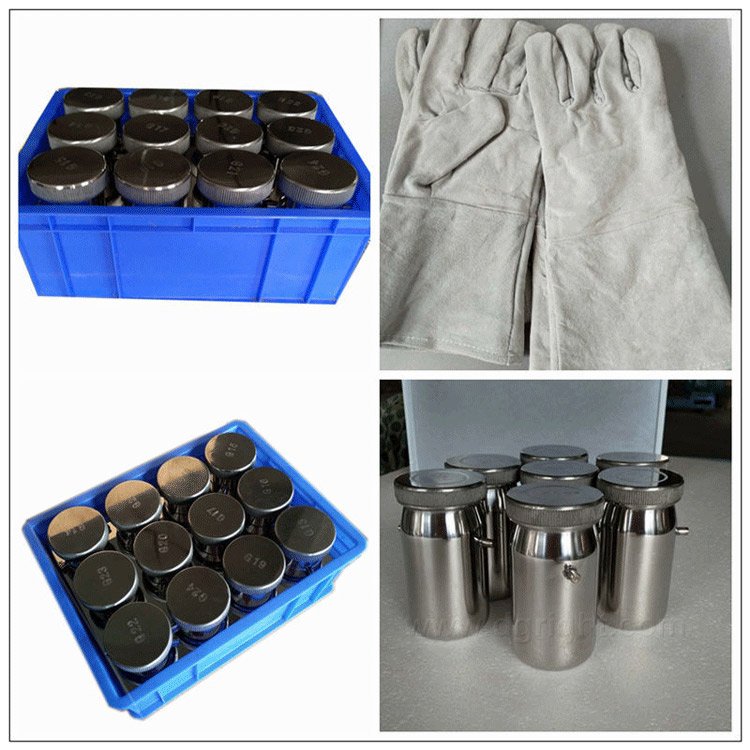

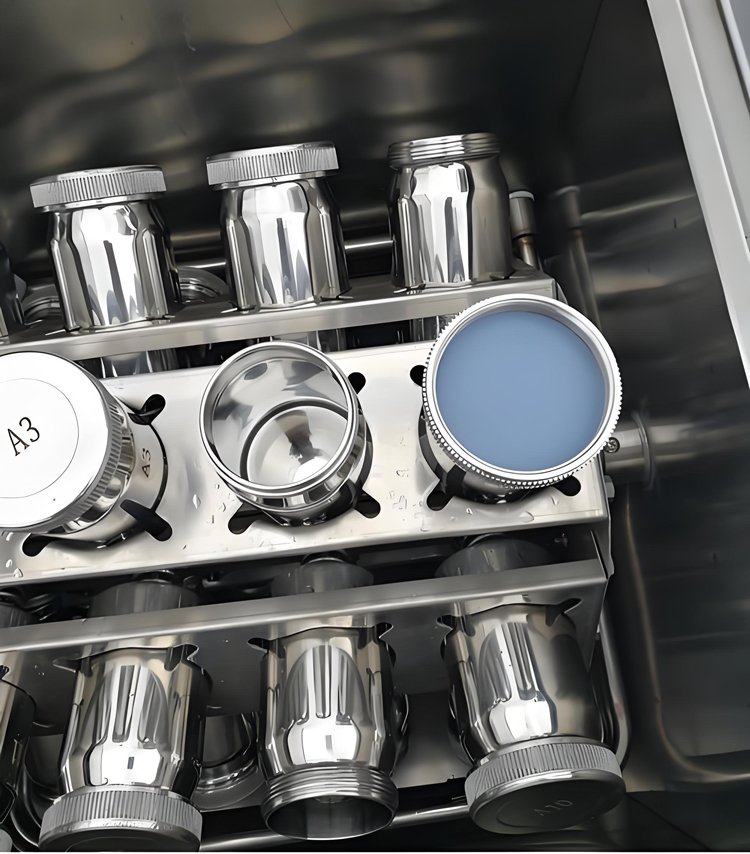

2. Beakers are made of quality SUS316 stainless steel,heating fast and level,specially pressure-tested beakers offer maximum safety for atmospheric and high-temperature dyeing;
3. Infrared heating continuously(non-off-type) by hign life infrared heaters which 360-degree ring-shape, direct heating of steel cup , to let dyeing equably and saving 50% elctricity;

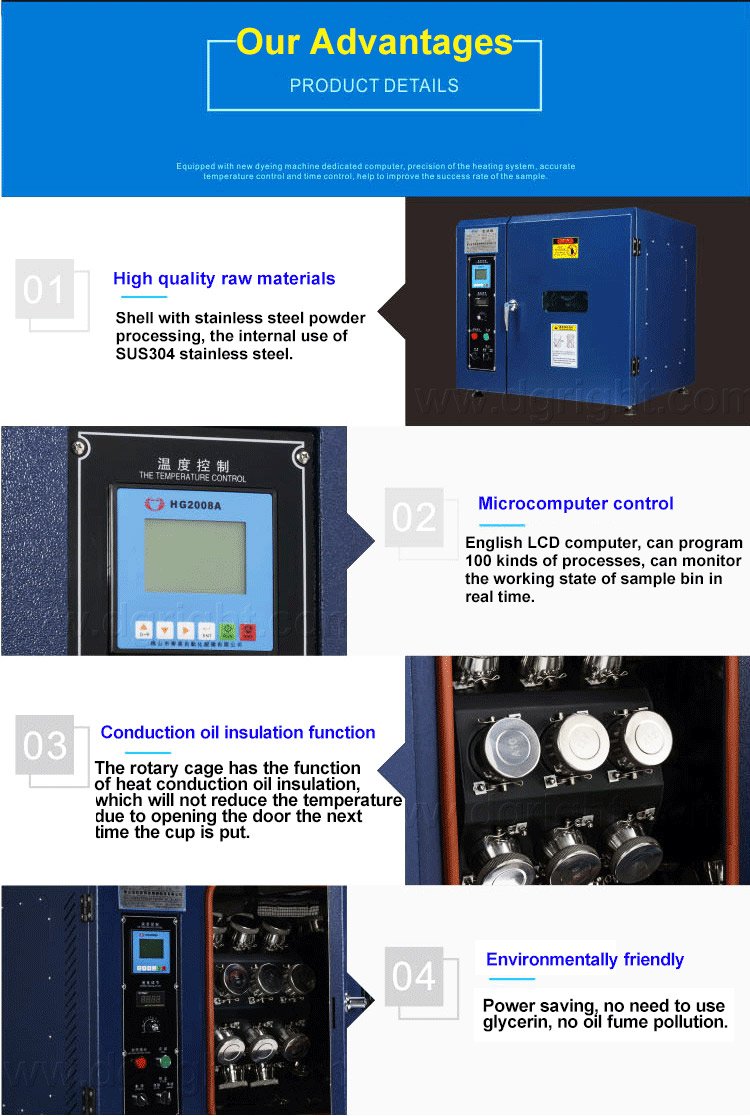

4. Programmable computer system controlls process , can save up to 99 kind of process , LCD displays temperature , time, process No. and temperature curve , imported high-precision PT-100 temperature probe monitoring the actual temperature of dyeing liquor directly , to let heating and cooling automaticlly.
