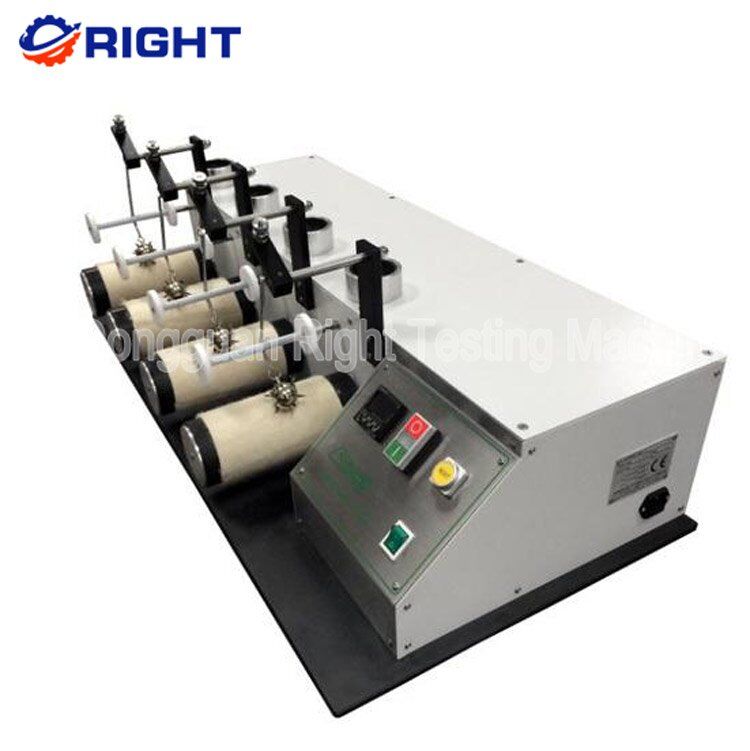

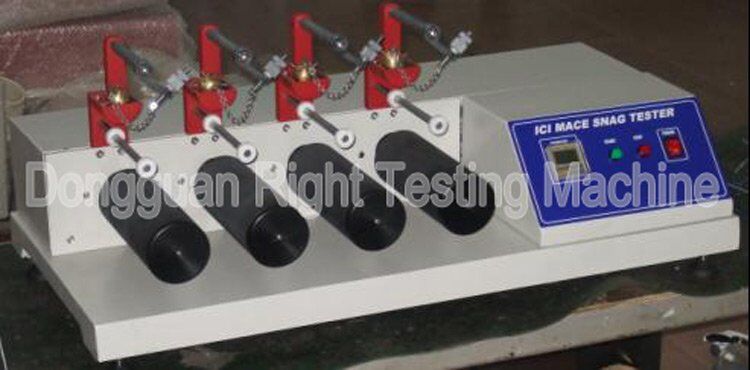

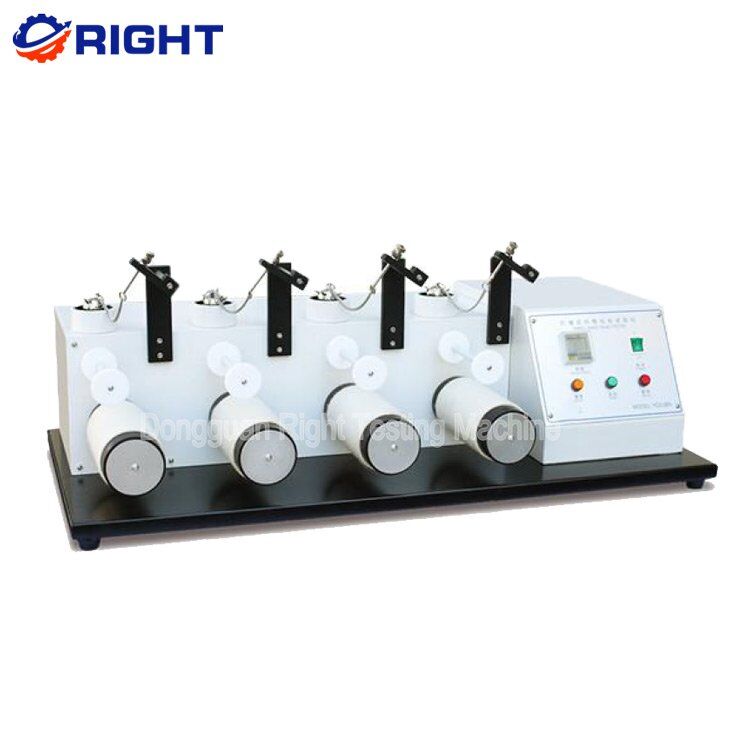

RT-837 ASTM D3939 Laboratory Fabric Textile ICI Mace Snag Tester

Category 6. Textile Testing Machine

Additional information

ASTM D3939 Laboratory Fabric Textile ICI Mace Snag Tester

used to evaluate the degree of snagging of outerwear fabrics and other easy-snagging fabrics. Especially suitable for chemical fiber filament and its textured yarn fabric.

Product Details：

Instrument characteristics

1. The surface of the instrument adopts high temperature spraying technology, which is durable.

2. Adopting color touch screen display control, convenient and simple operation

3. It adopts acrylic transparent test station with beautiful appearance, and the station is layered up and down, which saves the installation space of the instrument.

4. The work station is illuminated for direct observation of the test sample.

5. It stops automatically when the test is completed, and the speed can be set and automatically adjusted within the adjustment range.

Technical Parameters

1	Number of stations	4
2	Rotating speed of drum	60r/min, (40~80) r/min±2r/min adjustable
3	Counting range	0~99999
4	Drum diameter	Φ82mm; width 210mm
5	Mace mass	160±10g
6	Number of needles for nail hammer planting	11
7	The exposed length of the crochet hook	10mm; the tip radius: R0.13mm
8	Felt thickness	3~3.2mm; width: 165mm
9	Working width of guide rod	125mm, diameter 10mm
10	The distance between the hammer and the guide rod	45mm
11	Dimensions	500×490×860mm
12	Weight	75kg
13	Power source	AC220V 50Hz/ AC 110V 60Hz

Standards compliant

GB/T 11047 Textiles, evaluation of fabric snagging properties, mace method

ASTM D3939 Test Method for Anti-hooking Performance of Fabrics
