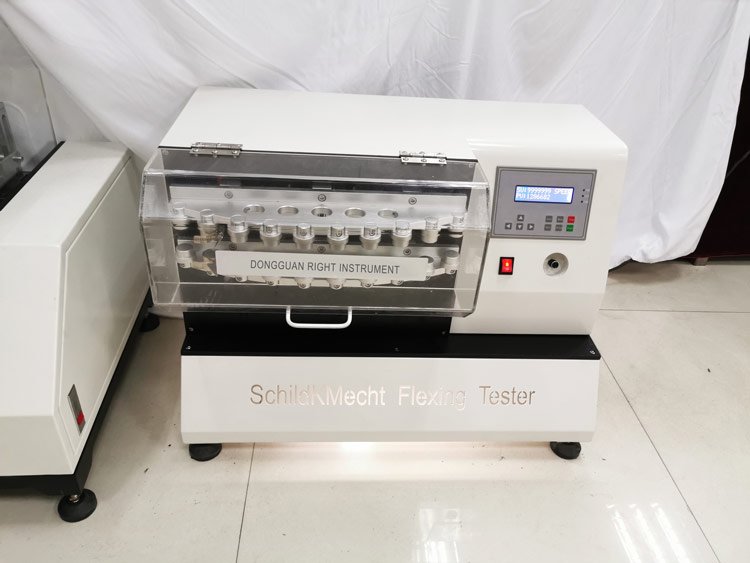

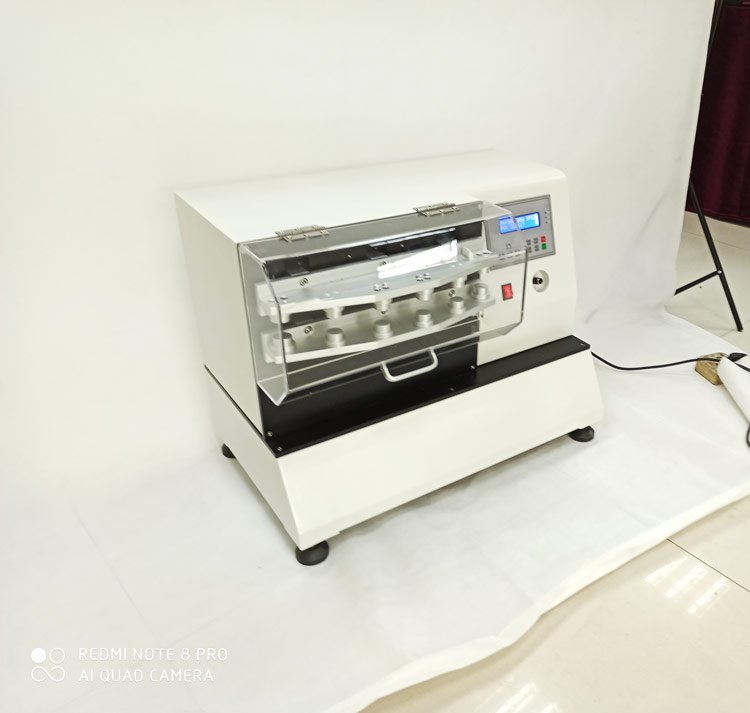

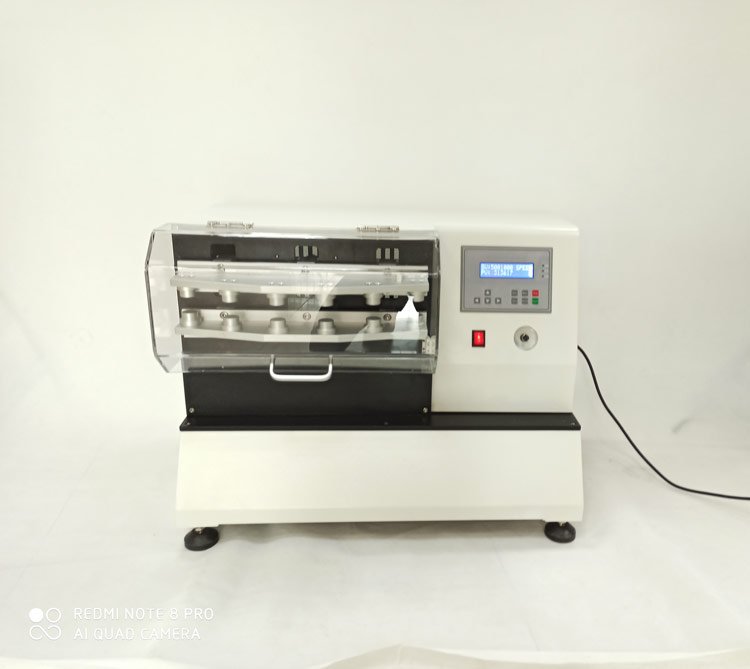

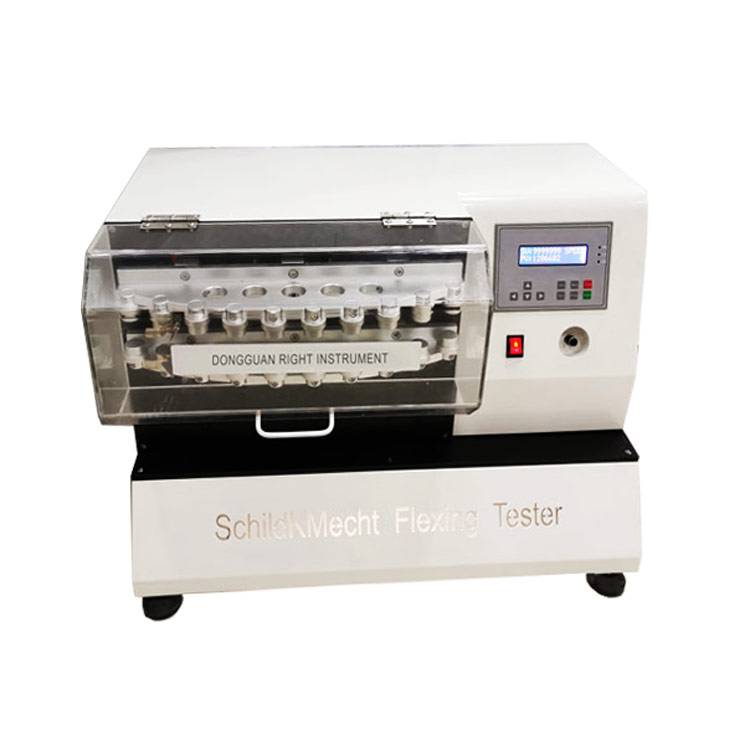

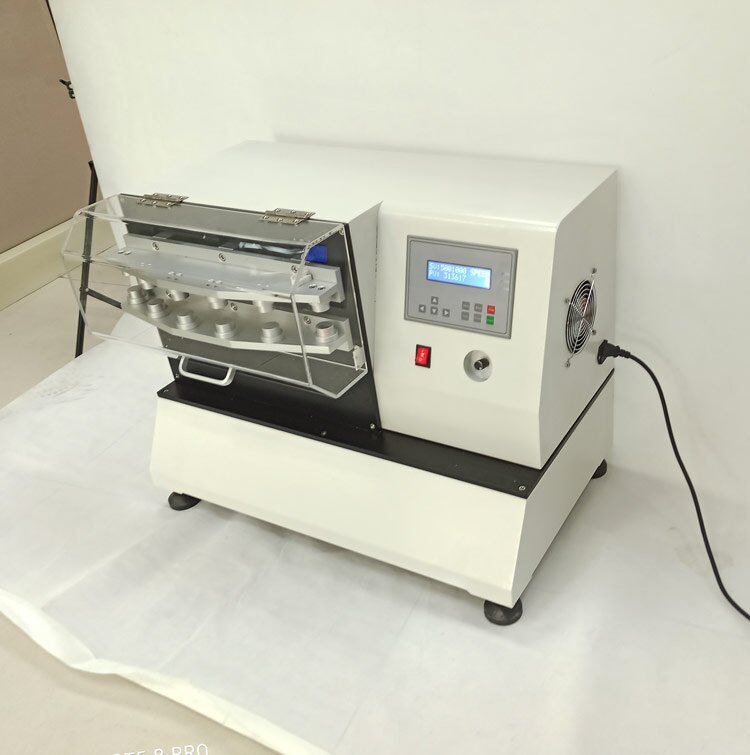

RT-836B SchildKMecht Flexing Tester

Additional information

Flexural Damage Tester

Product Details:

Introduction:

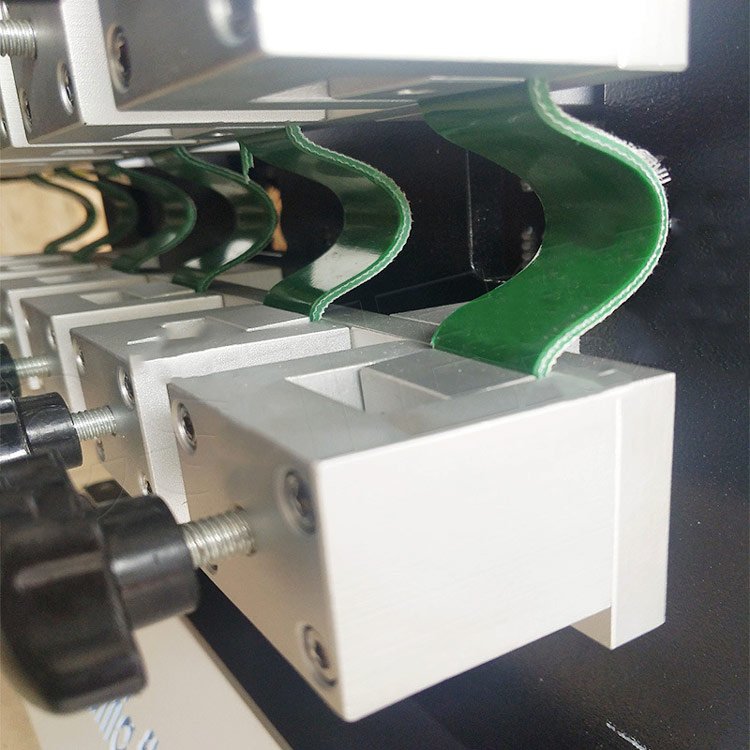

A rectangular strip of coated fabric is wrapped around two opposite cylindrical positions, so that the sample is cylindrical. One of the cylinders reciprocates along its axis. The coated fabric tube is alternately compressed and relaxed, thereby causing folds on the specimen. This folding of the coated fabric tube continues until a predetermined number of cycles or significant failure of the sample occurs.

Standards:



Comply with ISO7854,GB/T12586-B method, BS3424:9





Technical specifications:

1  Fixture  6 groups
2  Speed  8.3Hz±0.4Hz(498±24r/min)
3  Cylinder  outer diameter 25.4±0.1mm
4  Test trajectory  arc R460mm
5  test stroke  11.7±0.35mm
6  Clamp  width 10±1mm
7  Inner distance of clamp  36±1mm
8  sample size  50×105mm
9 Volume 40×55×35cm
10 Weight about 35kg
11 Power supply 220V 50Hz





Accessories List:



Die  Cutter: 1 piece



Power cable:  1 piece
