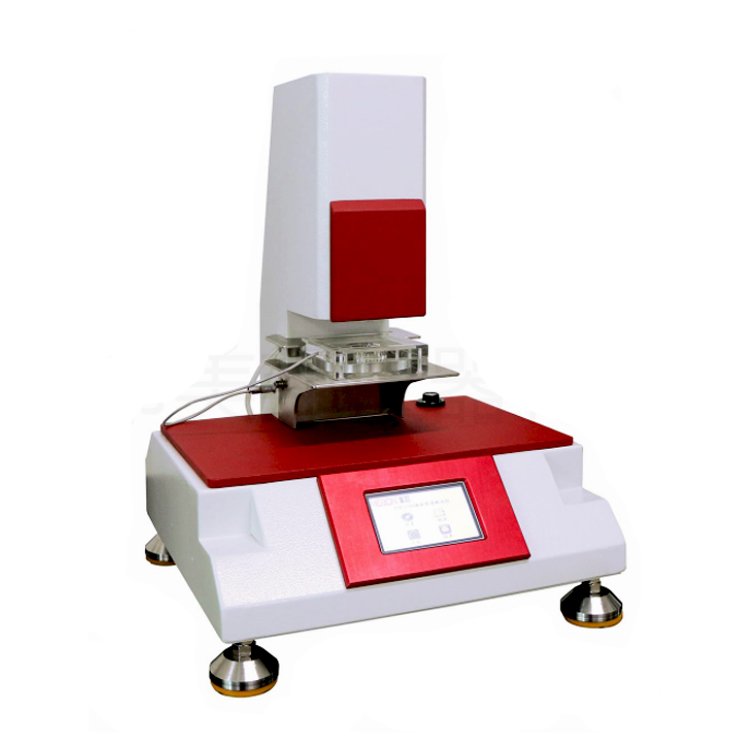

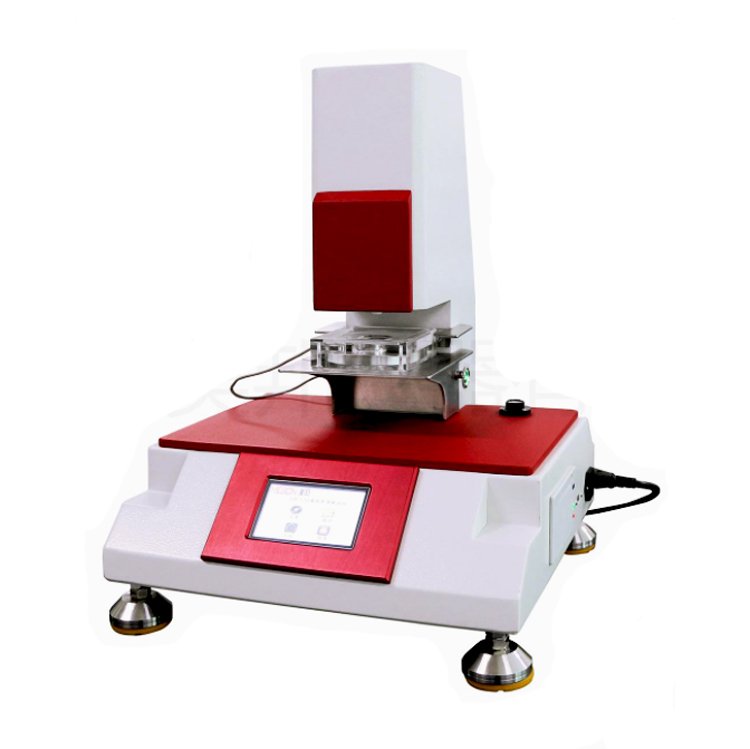

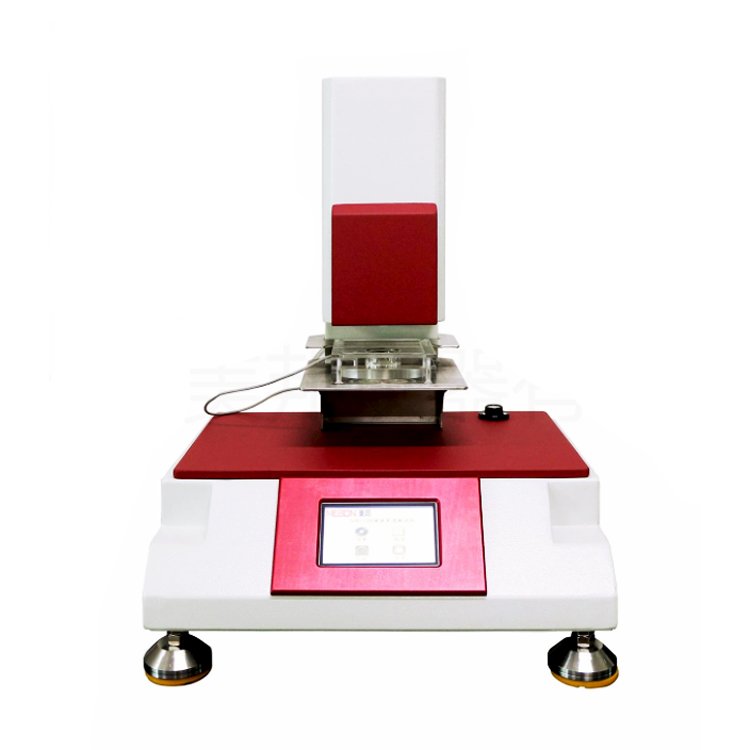

RT-832 Nonwoven Fabrics Liquid Penetration Tester

Category 6. Textile Testing Machine

Additional information

RT-832 Hygienic Thin Non-woven Fabric Liquid Penetration Tester

Measure the liquid penetration time of breathable nonwovens for health care.
A known amount of solution (e.g., artificial urine with a surface tension of 70dyn/cm) is placed into the instrument’s teflon-lined container. A solenoid valve is used to discharge the liquid at a constant rate through the middle hole of the nonwovens upper plate (through the electrode plate). Both electrodes rely on a conductive liquid to start the timer. The non-woven sample is placed on a set of 5/10 pieces of filter paper that acts as a suction liquid. When all the conductive liquid has entered the suction layer, the circuit current will interrupt and stop the timer. EDANA requires the configuration of artificial urine at a rate of 25ml/3.5±0.25s.

Product Details：

Application:

It is used to determine the liquid penetration properties of various sanitary thin nonwoven fabrics.

Standards compliant:

GB/T 24218.8 Determination of liquid penetration time

GB/T 24218.13 Determination of multiple penetration times of liquids

GB/T 24218.14 Determination of the moisture content of coated materials

FZ/T 60017 Hygienic thin non-woven fabric liquid penetration test method

Features:

High-precision peristaltic pump ensures the accuracy of the liquid penetration capacity.
automatic liquid addition function, automatic test throughout, no need to artificially add liquid.

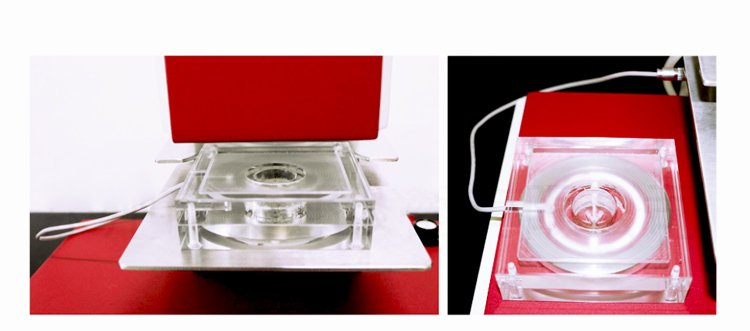

The penetrating plate is made of special organic glass after special processing, and the weight is guaranteed to be 500g±5g.
the test is completed to automatically save the data, and can view the report calculation, analysis results, print test reports.
touch screen control panel, clear image interface provides more convenient and quick operation for testers.
free access to all data and statistical results in the host.
The penetrating plate is equipped with a precision positioning device to avoid damage.
The penetrating disc electrode is processed by special materials, and the induction is good.
The instrument liquid release is equipped with an automatic release device, which can realize automatic control and stable flow rate.

Technical Parameters:

1, Flow rate with solenoid valve funnel: flow through 25ml at (3.5±0.25) s

2, funnel tip mouth distance from the sample: adjustable

3, substrate material: transparent material plexiglass

4, penetration plate size: 100 × 100 × 25mm

5, sample size: 125 × 125mm

6, timing range: 0 ~ 99.99s ± 0.01s

7, interval time range: 20 ~ 99s

8, dimensions: 400 × 375 × 520mm

9, weight: 30kg

10, power: AC220V 50Hz 100W
