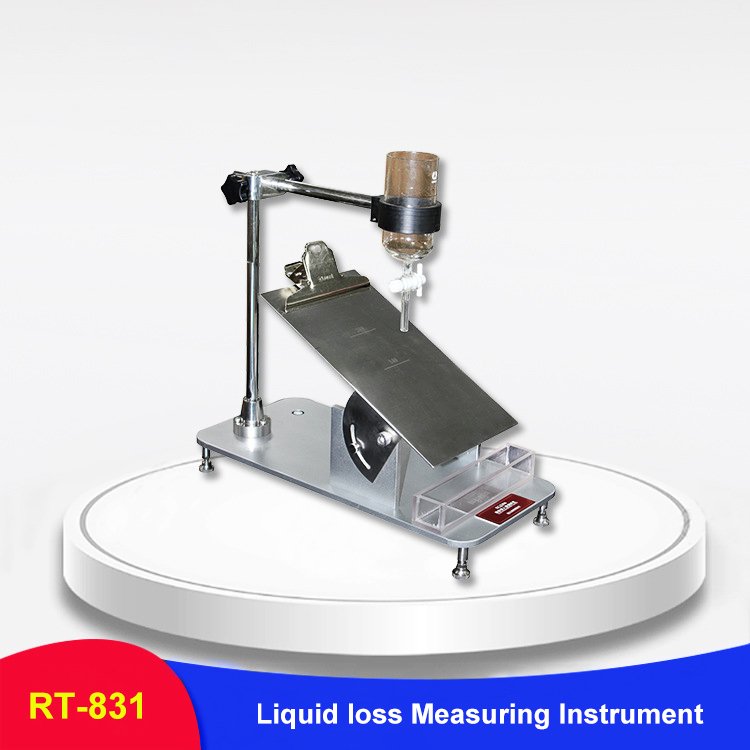

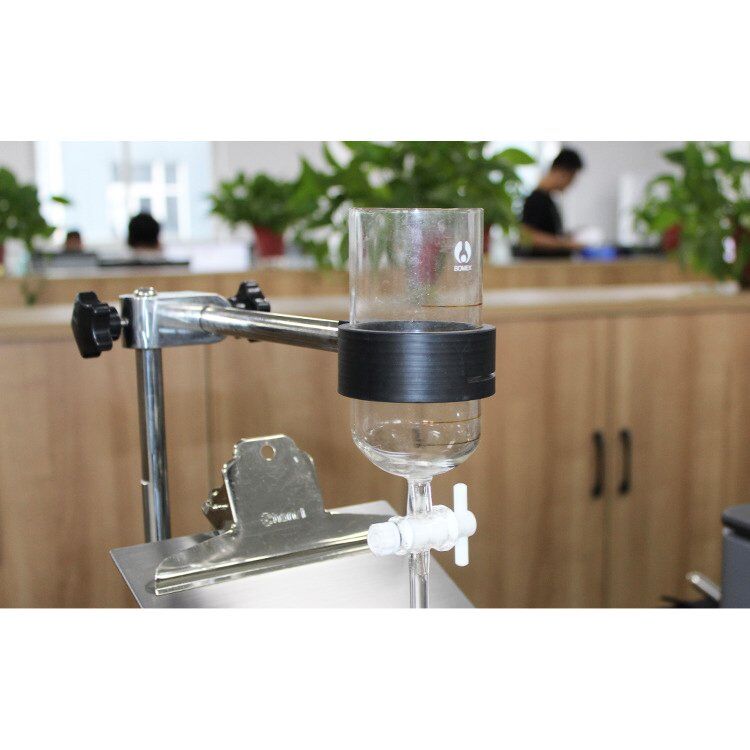

RT-831 Liquid Loss Measuring Instrument

RT-831 Liquid Loss Measuring Instrument - Image 4

Category 6. Textile Testing Machine

Additional information

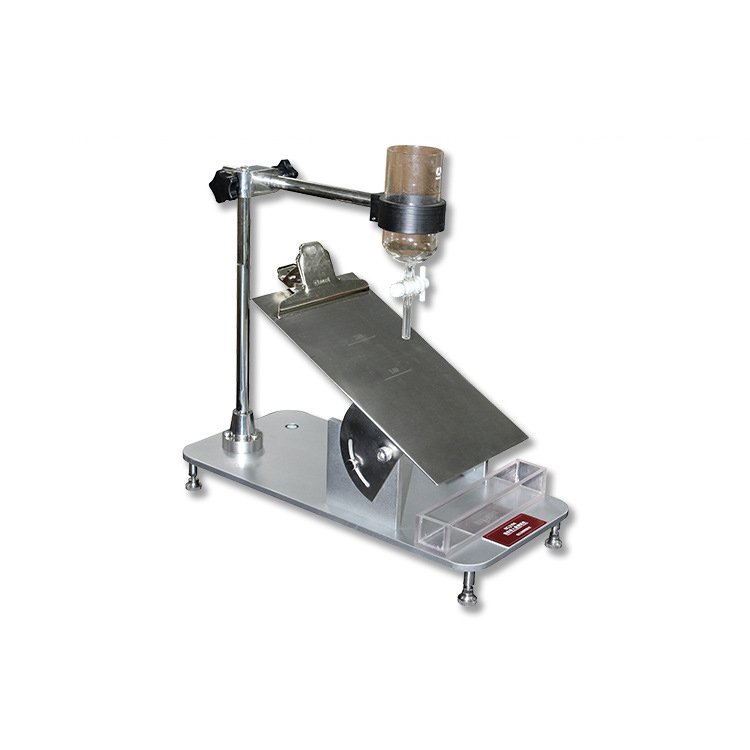

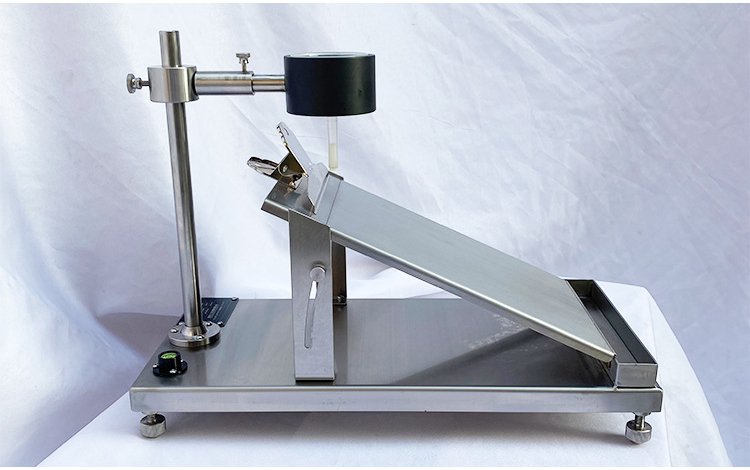

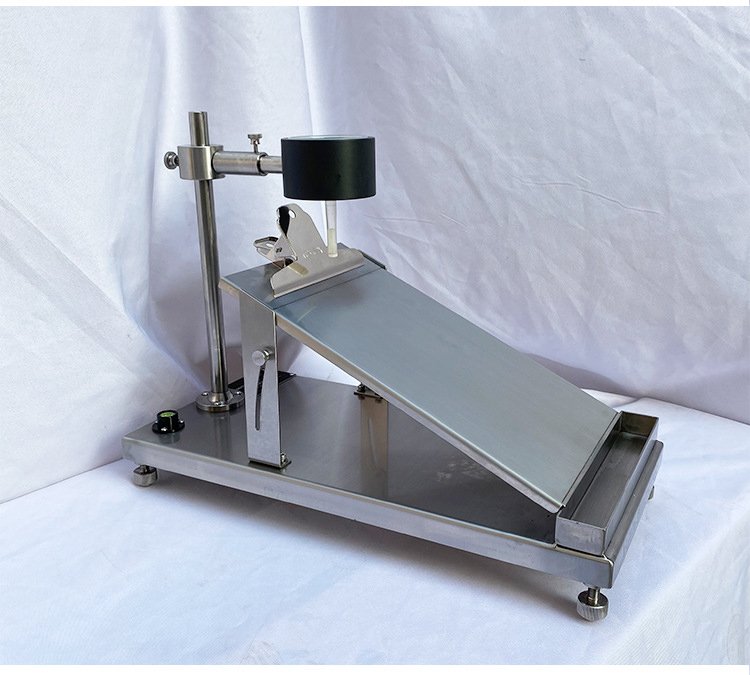

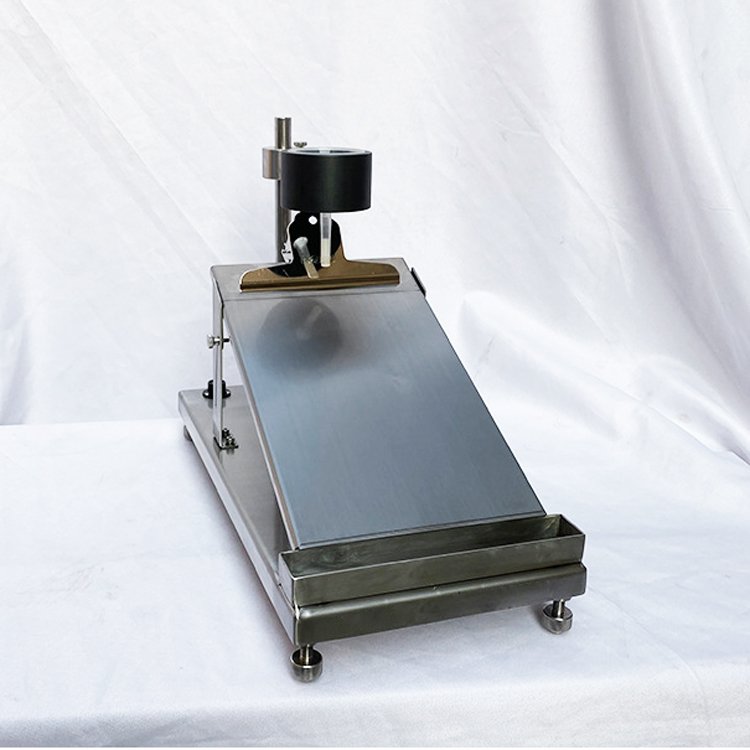

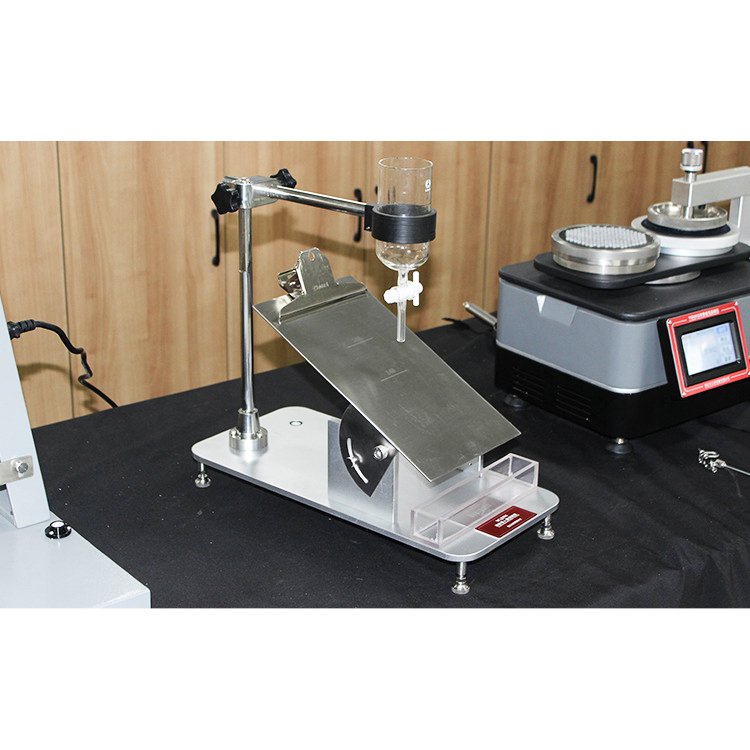

RT-831 Non-woven Fabric, Diapers Liquid Loss Tester

Liquid leakage and loss tester is mainly used to detect the non-woven material for the specific test fluid leakage and loss of the test.

Product Details：

Application:

It is used to determine the quality of the non-woven fabric for the specific test liquid (simulated urine) after absorption.

Standards compliant:

GB/T 24218.11 Textiles – Test methods – Part 11: Determination of overflow

ISO 9037-11 Textiles – Test methods for nonwovens – Part 11: Loss

YY/T0506.3 Surgical, surgical and cleansing suits for patients, medical staff and equipment – Part 3: Test methods

Features:

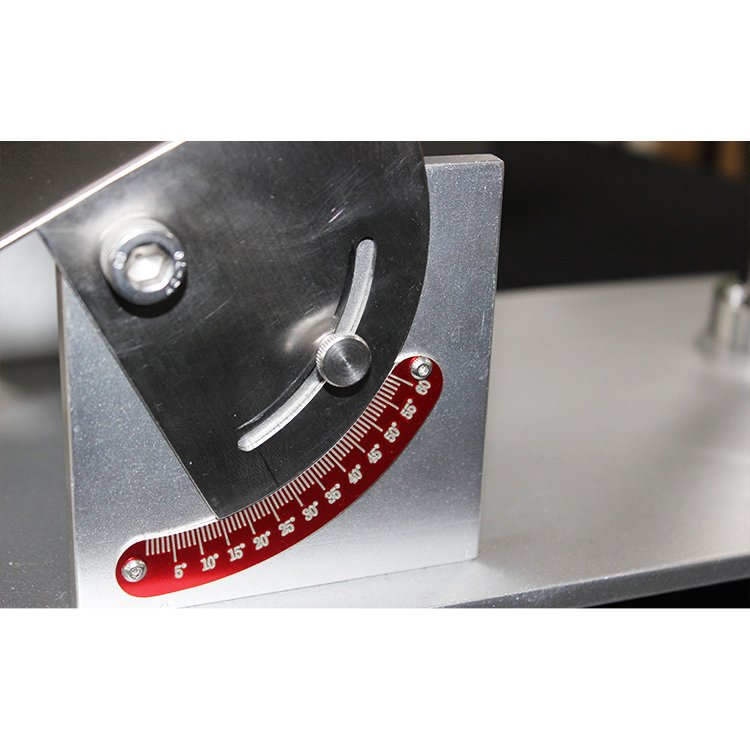

The inclination angle of the lost platform can be adjusted to meet different test requirements.
The drain pipe can discharge 25g of test liquid within 4s.

Technical Parameters:

1.	Lost table inclination:	20°, 30° and 45°
2.	The length of the loss:	250mm
3.	Loss weight:	25g
4.	Sample size:	140 × 280mm
5.	Timing range:	0 ~ 60s ± 0.01s
6.	Dimensions:	250 × 500 × 450mm
7.	Weight:	5kg
