RT-824 Knitted / Nonwoven / Stretch Woven Fabric Diaphragm Mullen Bursting Strength Tester

RT-824 Knitted / Nonwoven / Stretch Woven Fabric Diaphragm Mullen Bursting Strength Tester - Image 5

RT-824 Knitted / Nonwoven / Stretch Woven Fabric Diaphragm Mullen Bursting Strength Tester - Image 6

Category 6. Textile Testing Machine

Additional information

RT-824 Fabric Mullen Burst Tester

Used for testing the expanded force and expanded degree of fabrics, non-woven fabrics, leather,ect. When these materials are under force in all directions at the same time(elastic diaphragm method).

Product Details：

Product Description

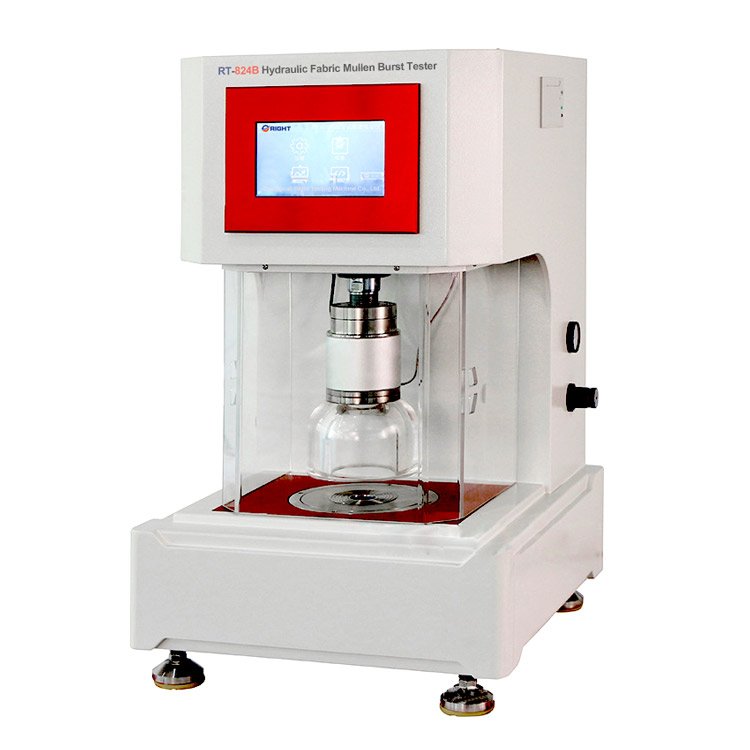

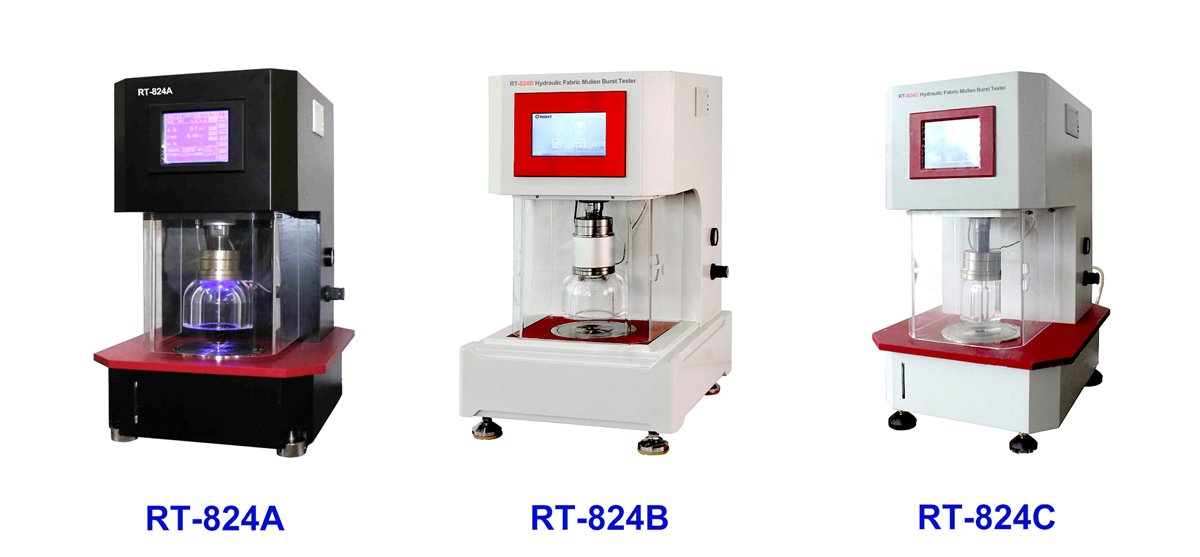

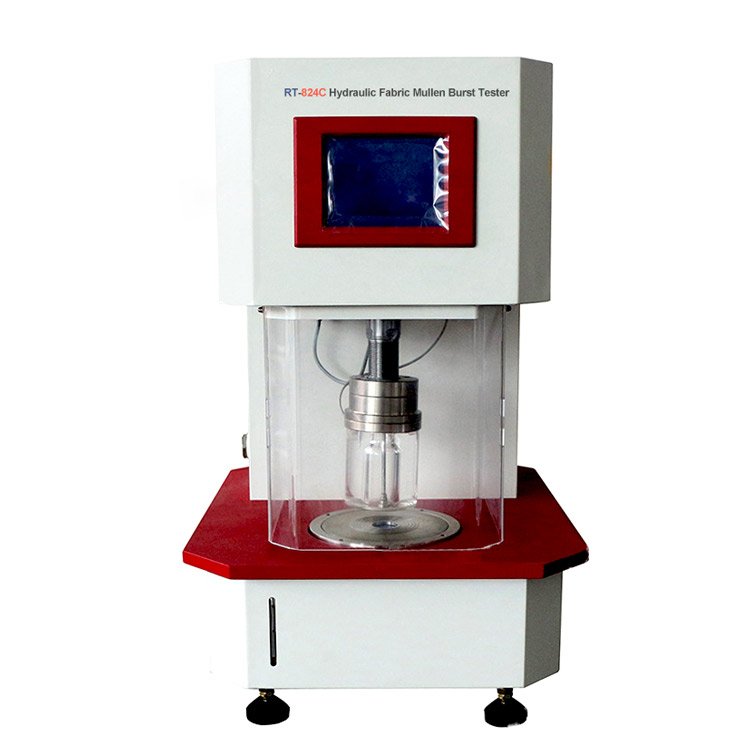

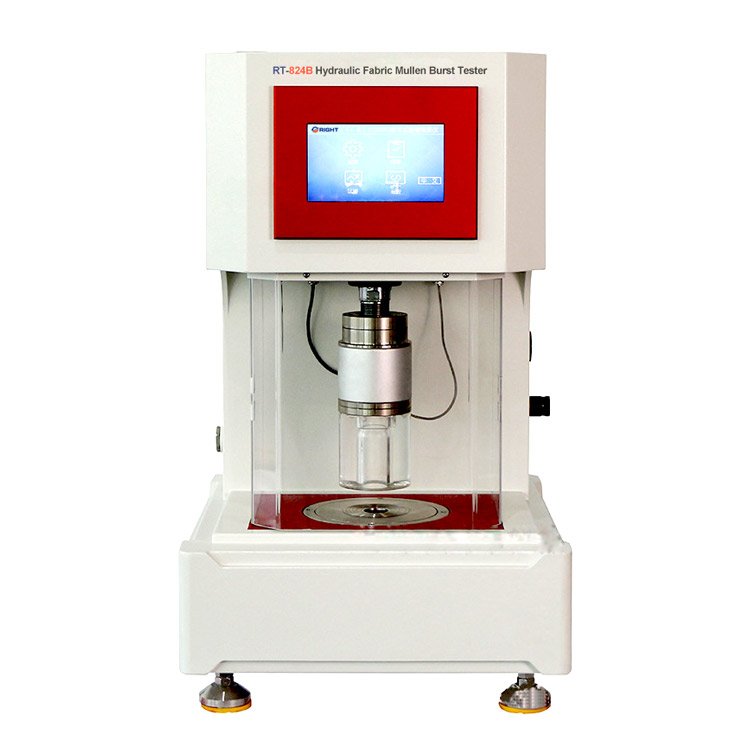

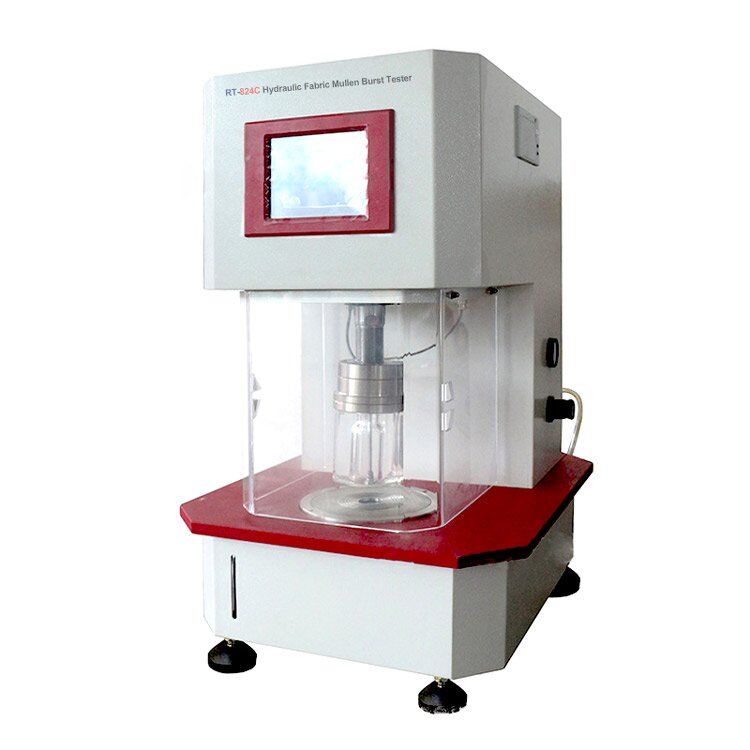

The RT-824 electronic bursting strength tester has been extensively redesigned, and the new RT-824B and RT-824C have been introduced. It has a more modern appearance and more new functions, and can test a wide range of material categories, including textiles and nonwovens. Cloth, paper, cardboard, plastic and medical products.

Product Parameter

Product Style	RT-824A		RT-824B		RT-824C
Type	-2	-10	-2	-10	-2	-10
Test Range (full range1%-100%)	2.00MPa	10.00MPa	2.00MPa	10.00MPa	2.00MPa	10.00MPa
Min Division Value	0.1kPa	0.1kPa	0.1kPa	0.1kPa	0.001MPa	0.003MPa
Test Method	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Pneumatic	Pneumatic

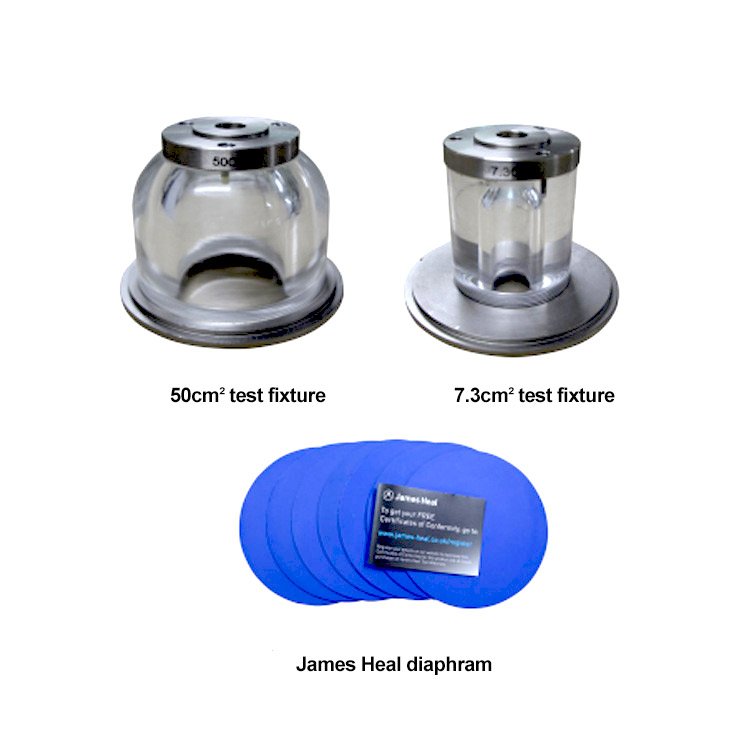

Test Area	Standard：7.3cm²（φ30.5mm）、50cm²（φ79.8mm） Optional：10cm²（φ35.7mm）、100cm²（φ112.8mm）		Standard：7.3cm²（φ30.5mm）、50cm²（φ79.8mm）Optional：10cm²（φ35.7mm）、100cm²（φ112.8mm）		Standard：7.3cm²（φ30.5mm）、10cm²（φ35.7mm） Optional：50cm²（φ79.8mm）、100cm²（φ112.8mm）
Max Expansion Strength	70±0.02mm		70±0.02mm		70mm(Expanded height accuracy：≤0.2%FS)
Rate of Pressurization	50～500mL/min		50～500mL/min		10～500mL/min(Pressure accuracy：≤0.2%FS)
Test Method	constant speed burst,constant pressure,constant expansion ratio,timing
Pressure unit	kPa、kg/cm2、bar、lb/in2
Compressed air	600～800kPa
Machine Size	550×450×780mm		550×450×780mm		450×590×770mm
Weight	120kg		120kg		150kg
Power	AC220V 50Hz 800W		AC220V 50Hz 800W		AC220V 50Hz 200W

Our Advantages

Standard
1	GB/T 7742
2	ISO 13938.1
3	FZ/T 60019
4	FZ/T 01030
5	ASTM D3786
6	BS 4768
7	WOOLMARK TM 29 WSP 30.1
8	JIS L 1018.6.17

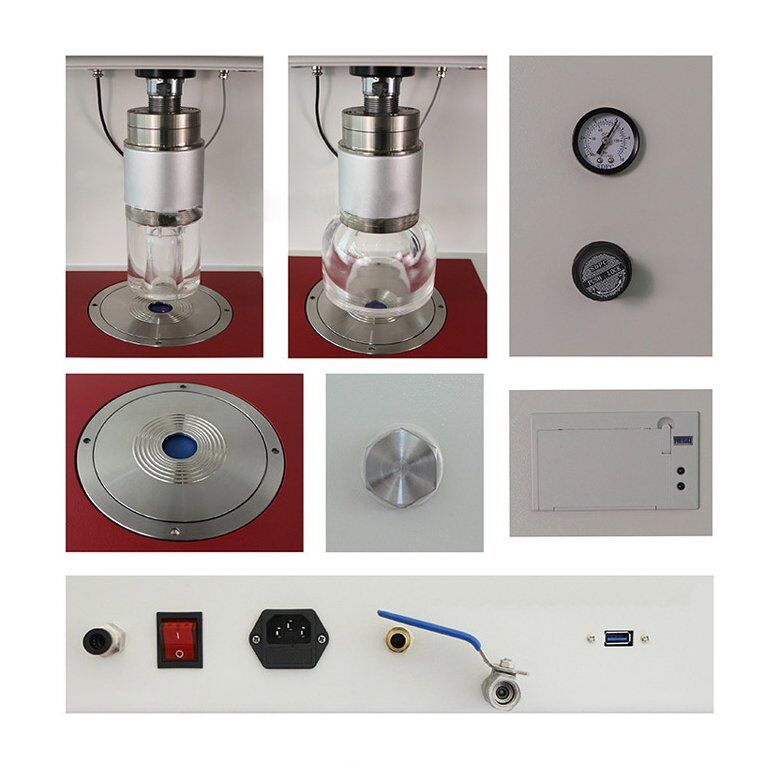

Feature:

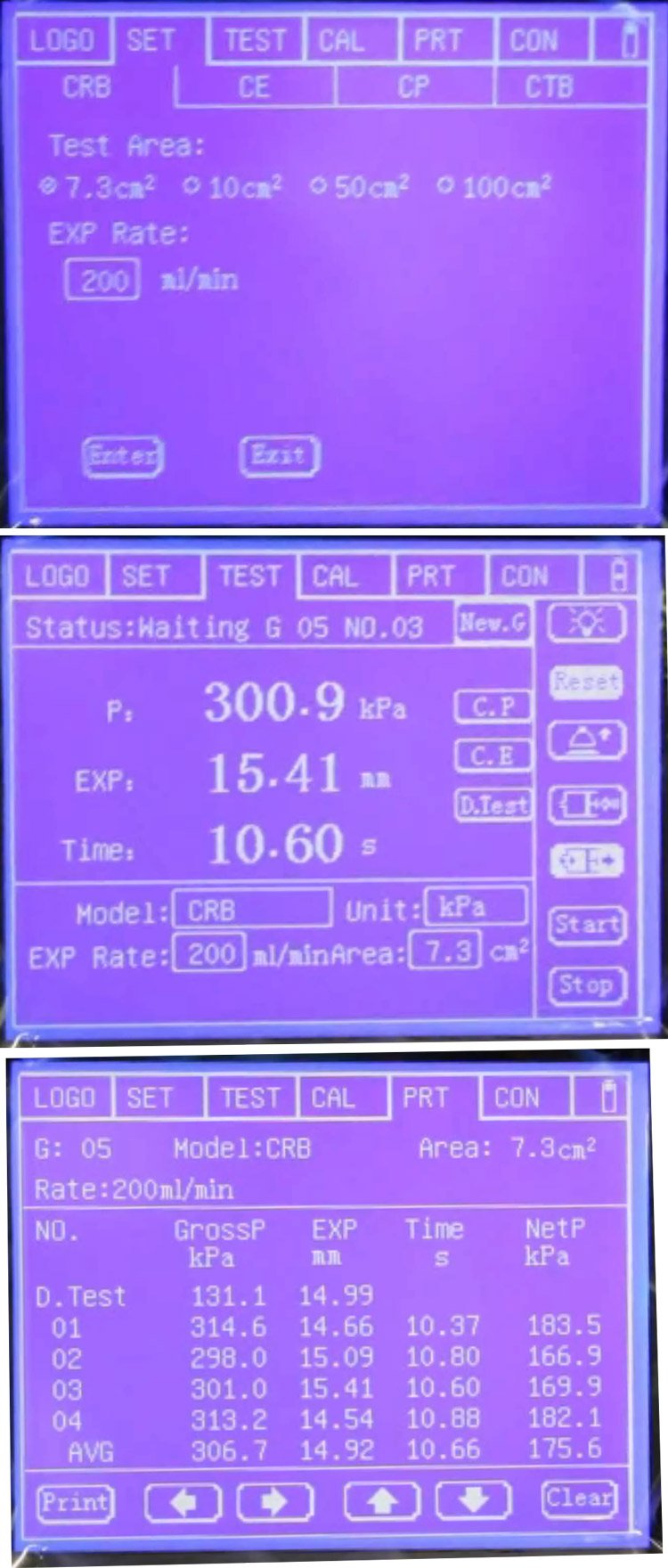

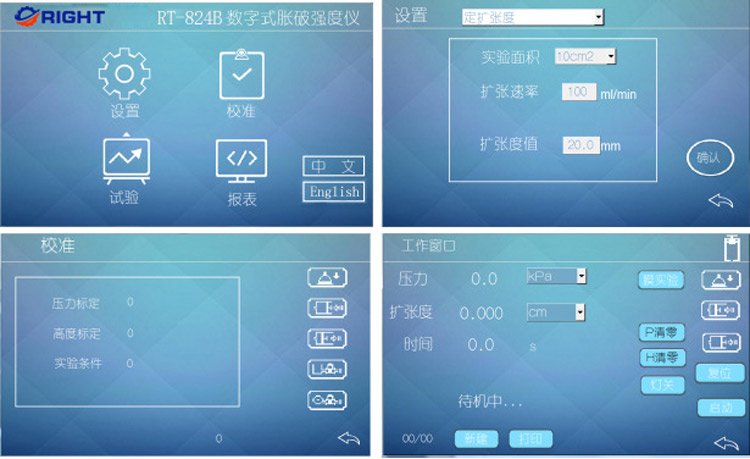

1. Color touch screen control, simple and easy to understand interface, simple and intuitive operation, and sensitive touch.

2. High-precision non-contact laser ranging to ensure accurate displacement measurement and extend the life of the eardrum.

3. Pneumatic clamping, uniform clamping, adjustable clamp pressure to avoid sample slippage or damage, easy to use.

4. The test cover is made of highly transparent plexiglass, with built-in LED lighting, which can clearly observe the experiment process of the sample; it is installed by magnet attraction, easy to replace and disassemble.

5. Automatic induction blasting system, sensitive and reliable, the instrument has over-range, over-expansion protection.

6. The external plexiglass cover is installed to prevent people from being hurt and safer to use.

7. Adopt AC servo drive system, synchronous belt drive, the instrument has low noise, wide speed range and high precision.

8. Using high-speed AD sampling and 32-bit ARM processor, high sampling frequency and high test accuracy.

9. Four test methods: constant speed burst, constant pressure, constant expansion, and regular burst.

10. Sample clamp and clamping method The sample clamping surface is a special toothed clamping surface, which is automatically pneumatically clamped. The sample clamping force and the bursting force are on the same axis.

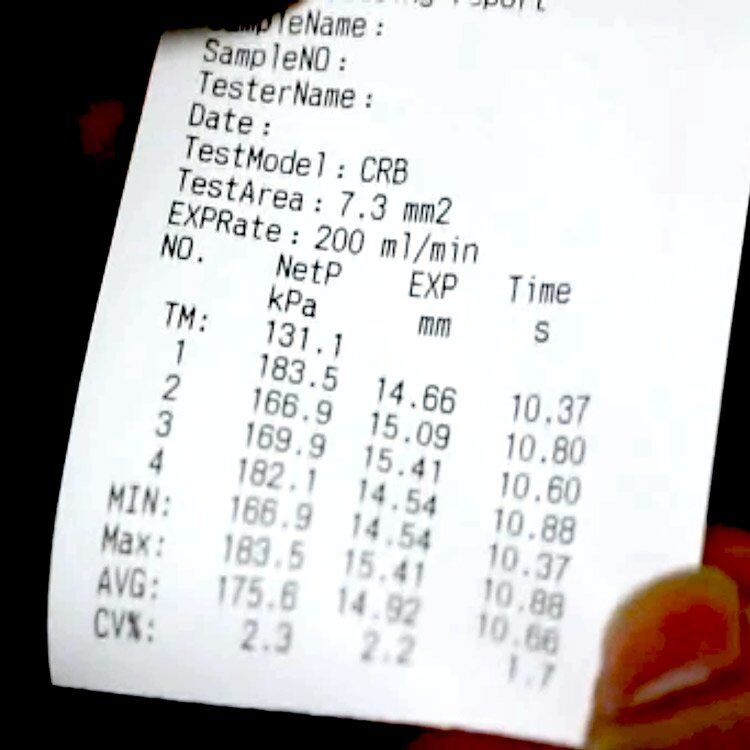

11. The instrument comes with a thermal printer that can directly print reports, and professional computer analysis software can realize two-way operation with the computer (obtained the national software copyright registration certificate).
