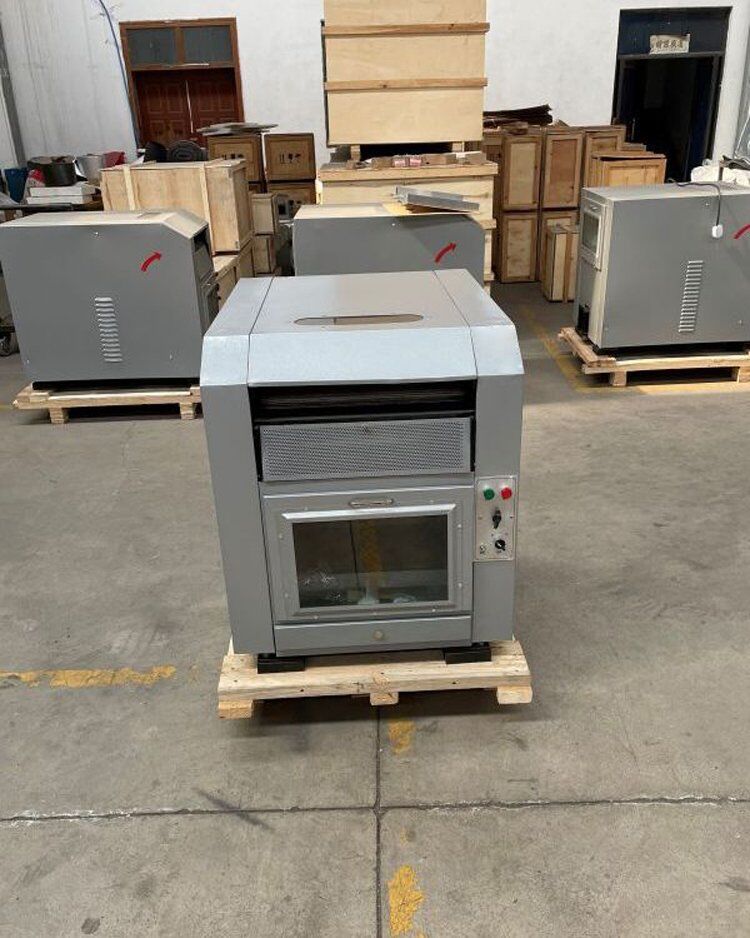

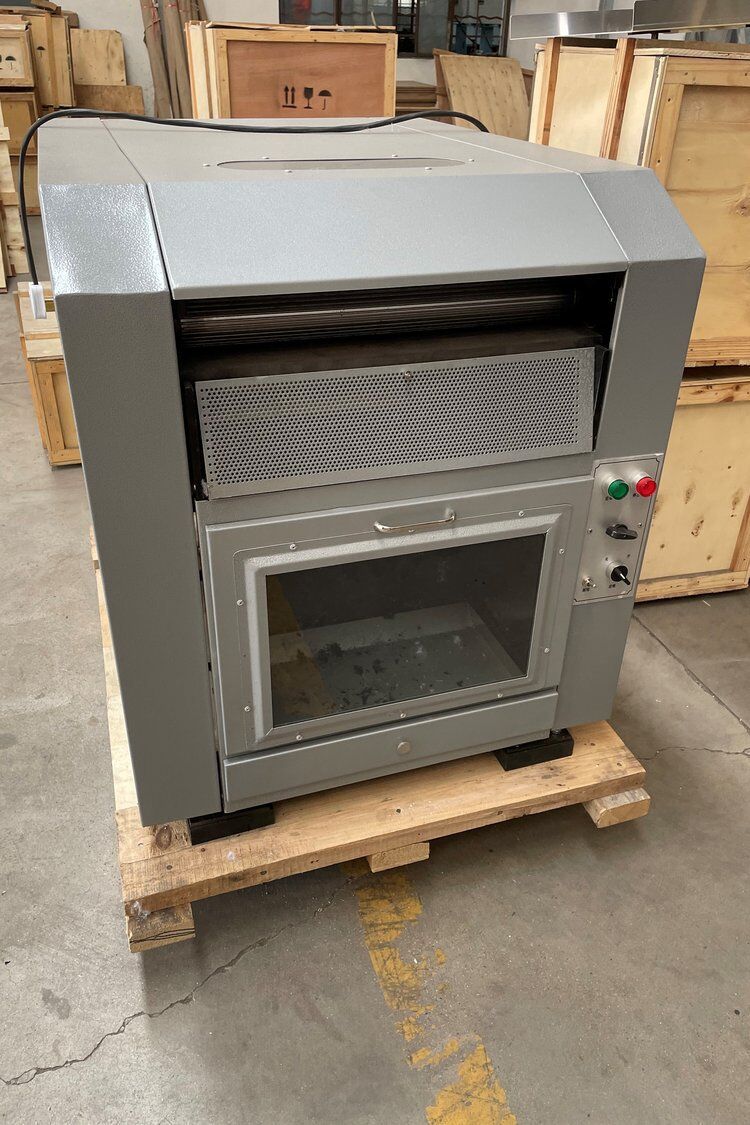

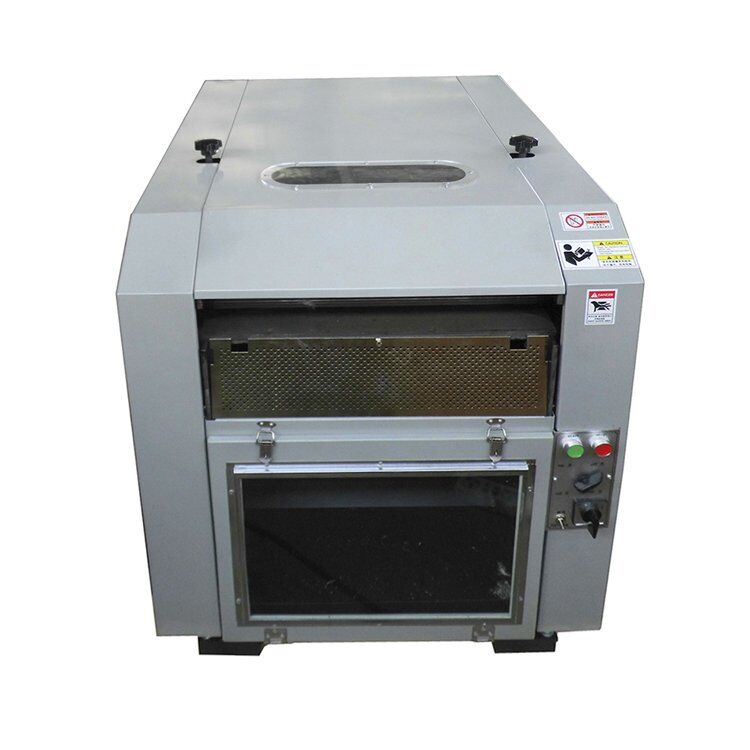

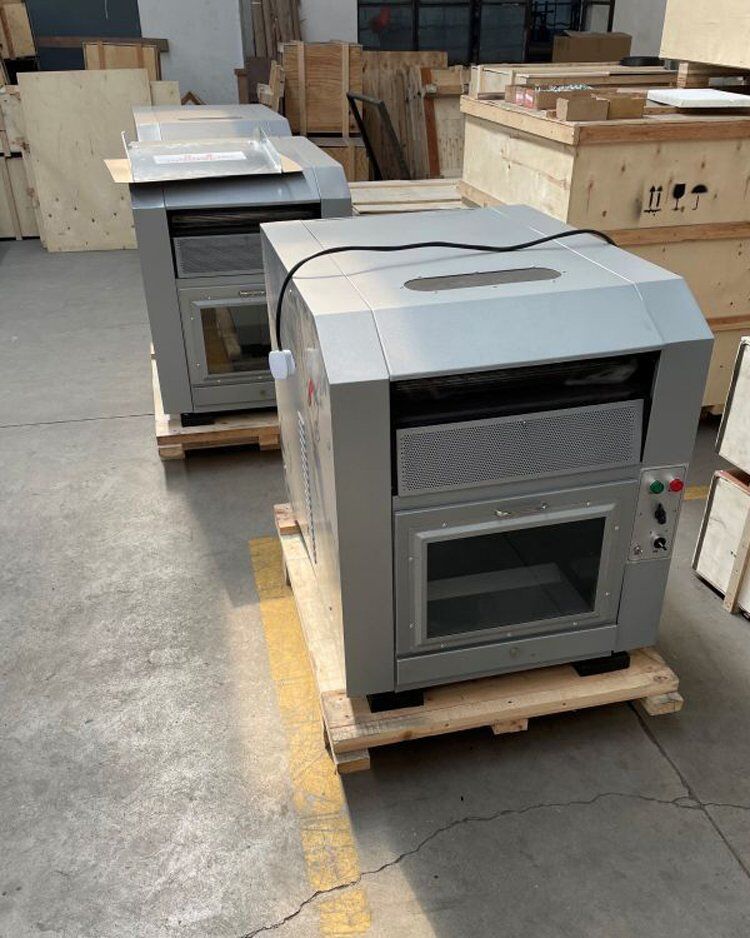

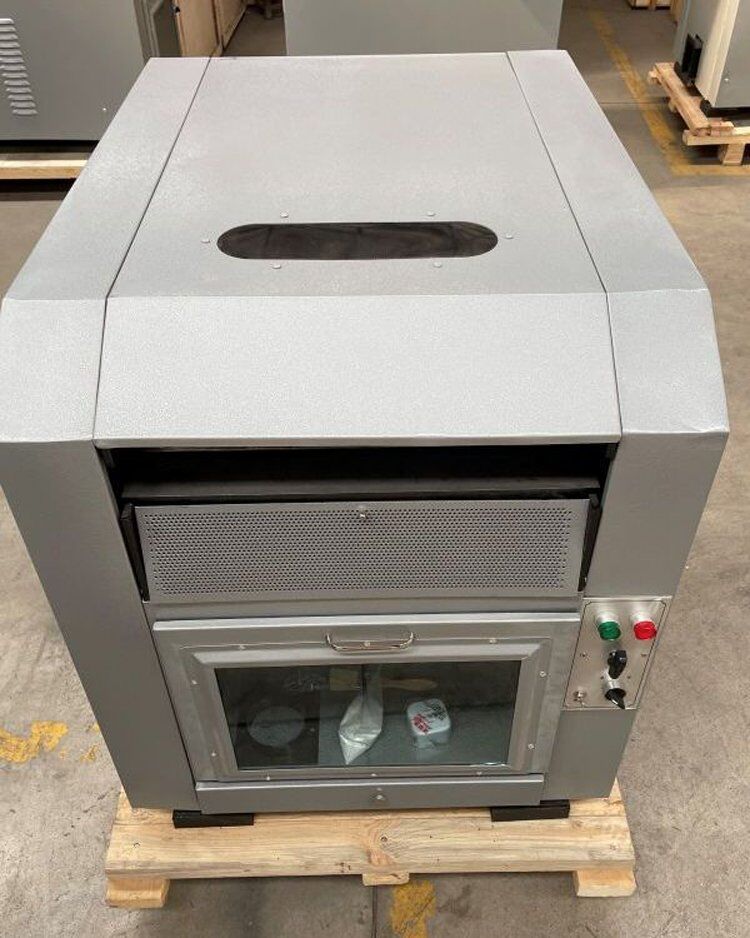

RT-822 Raw Cotton Analyzer Testing Machine
RT-822 Raw Cotton Trash Analyzer
This analyser for determining the trash percentages of material such as raw cotton, laps, slivers, flat strips, and comber waste, and the lint and trash percentages of wastes such as opener dropping and card taker-in droppings. Cross References:BS 1051BS 1425
Product Details：
Application
Cotton Trash Analyzer, to analyses lint, trash and dust content within a sample of raw cotton fiber up to 100 grams. Also used to determine non-fiber content of synthetic fibers and to open and clean fibers for further testing. The analyzer uses the carding principle with air separation of lint and non lint content.
Specifications
| Working width | 490mm |
| Size of feeding roller: Dia | 57.15 |
| Size of Licker-in: Dia | 238mm |
| Rotation speed | 900 r/min |
| Power | 220 V 50 Hz 0.8W |
| Weight | 280 Kg |
| Dimensions | 860*1100*1100mm(L*W*H) |
Standards ITMF
Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.
