Fiber Fineness Analysis Tester For Animal Chemical Cotton Hemp Fiber, this Fibre Fineness Analysis System applies to determine fiber diameter or cross sectional area and fibre content through software analysis system.

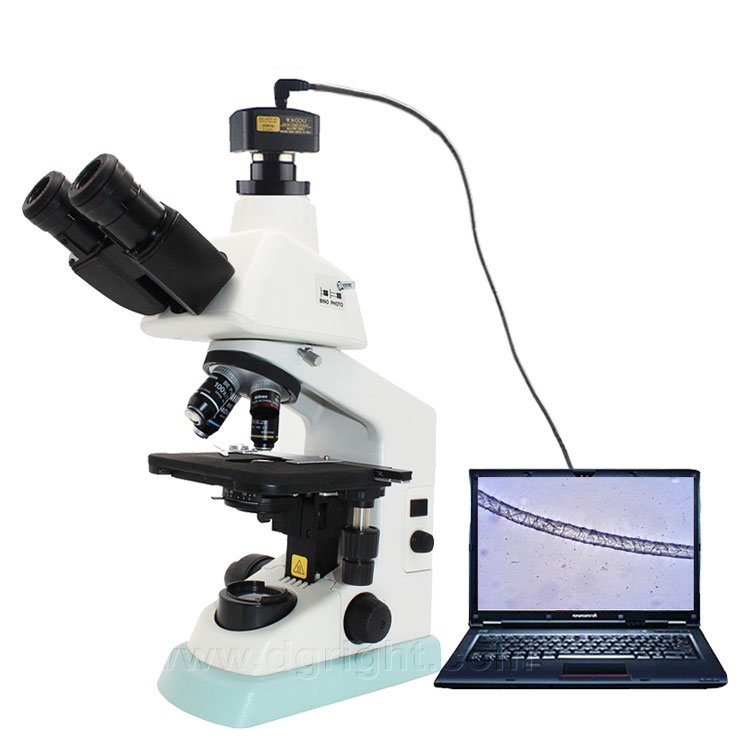

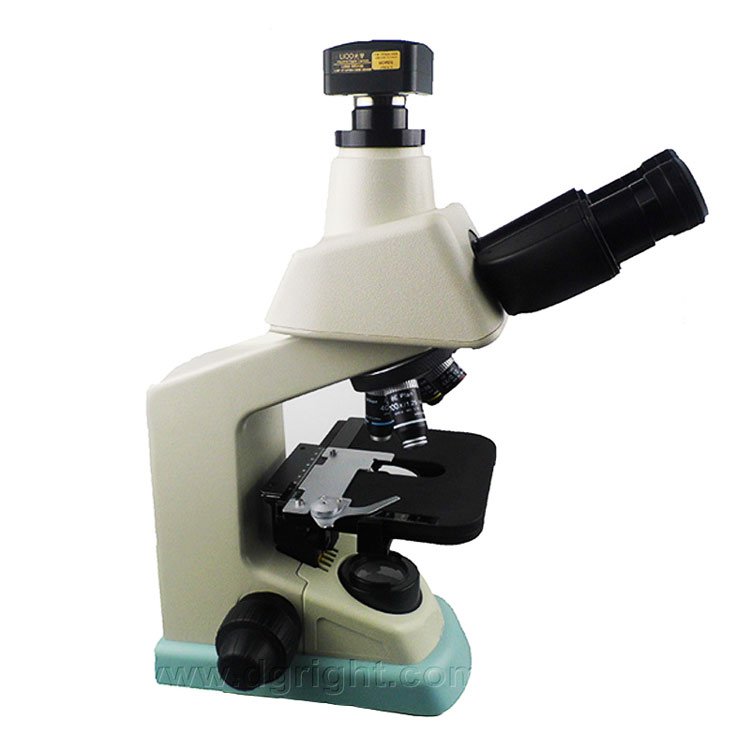

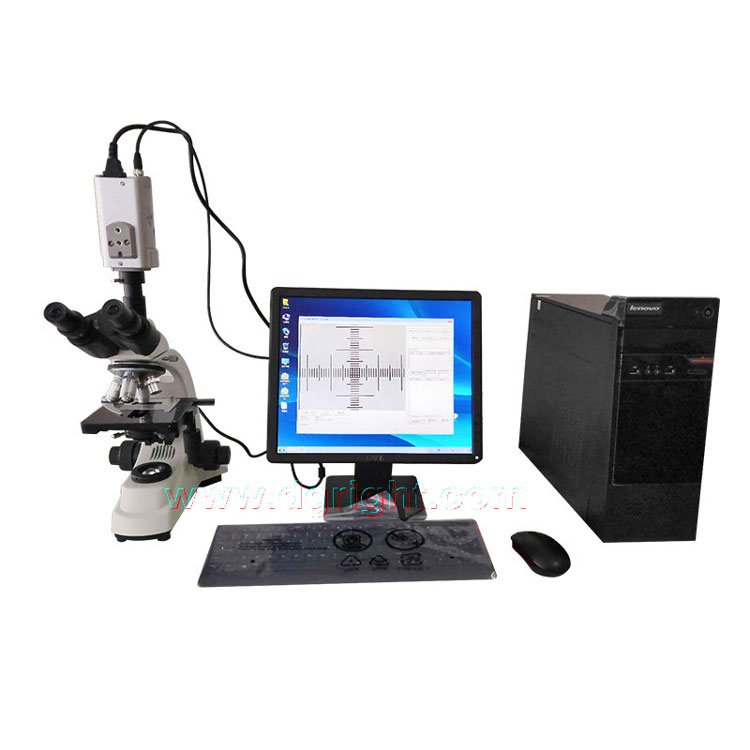

Fiber fineness analyzer is a new type of man-machine interactive fiber diameter measuring analyzer. The instrument by industrial camera with high resolution optical microscope is connected with the computer, relying on professional analysis software to complete the fiber diameter and cross-sectional area of the test, and measure the content of the fiber in the fiber.

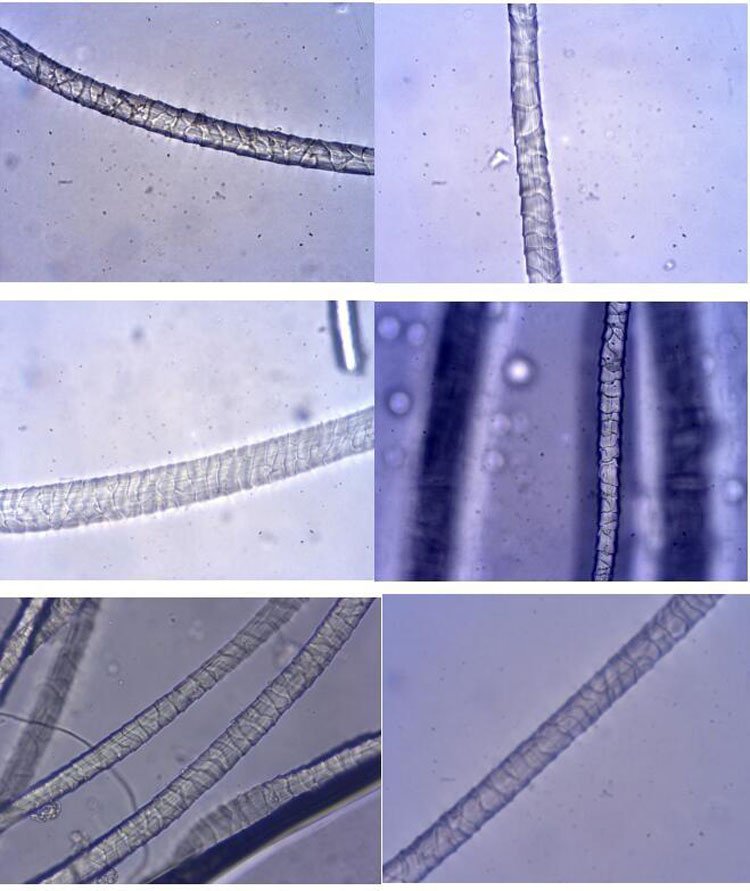

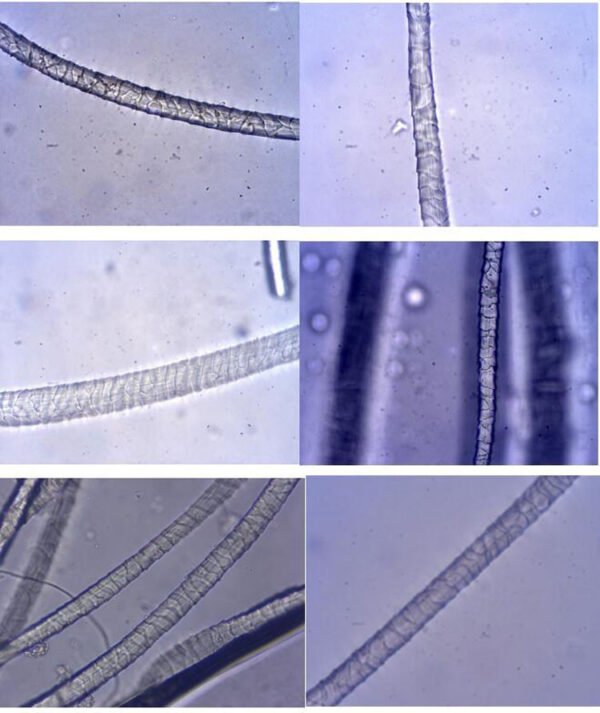

The diameter measurement conforms to the national standard GB/T 10685-1989 wool fiber diameter test method – projection microscope method;
The content measurement conforms to the national standard GB/T 116988-1997. Determination of the mixture of special animal fiber and wool;
Method of projection microscopy analysis standard FZ/T30003-2000 cotton blended products with cotton textile industry quantitative content measurement;
Quantitative analysis method of import / export linen / cotton blend products according to commodity inspection standard SN/T0756-1999 microscopic projection method;
Section measurement conforms to the provisions of AATCC 20A-1995 fiber quantitative analysis

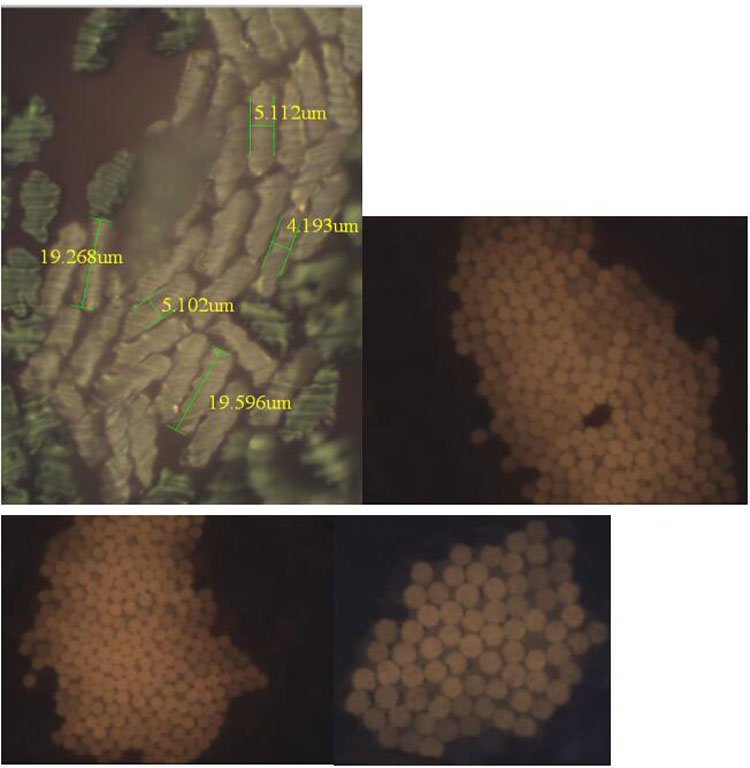

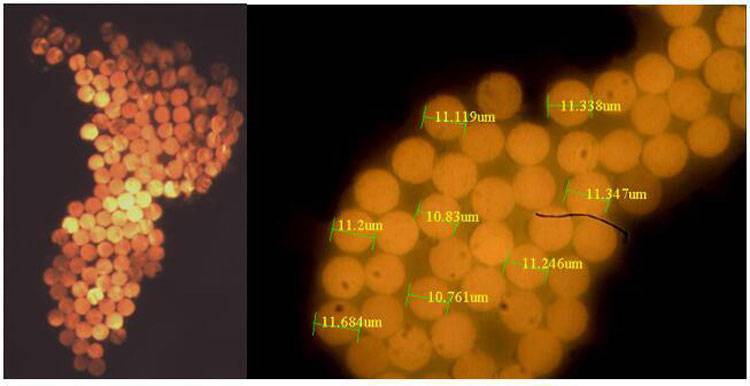

The cross section morphology observation for all kinds of chemical fiber, shaped fiber, hollow fiber and measuring the cross-sectional area;
The test of shaped fiber shaped degree;
Based on the blended products of single fiber cross morphological analysis and area measurement, can get the fiber content of various blended products;

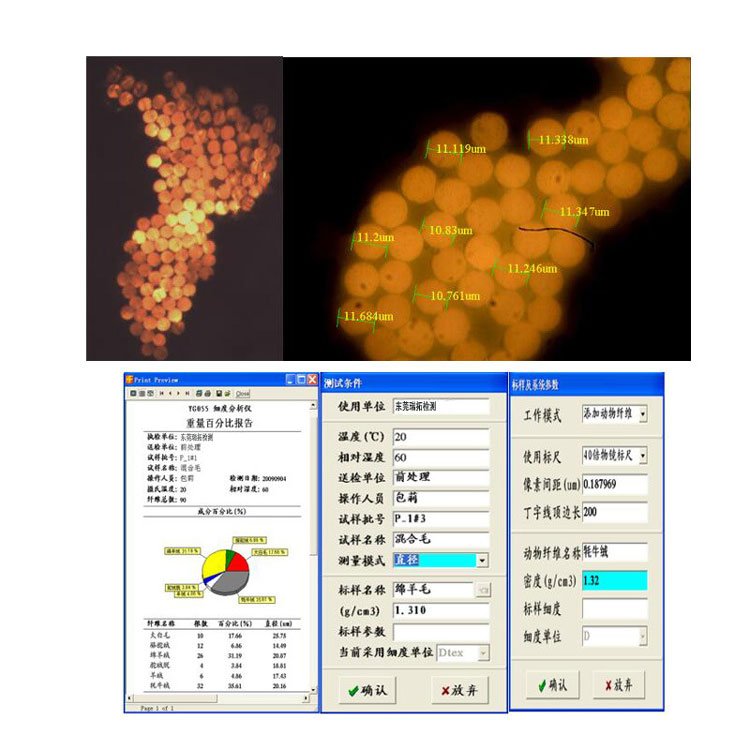

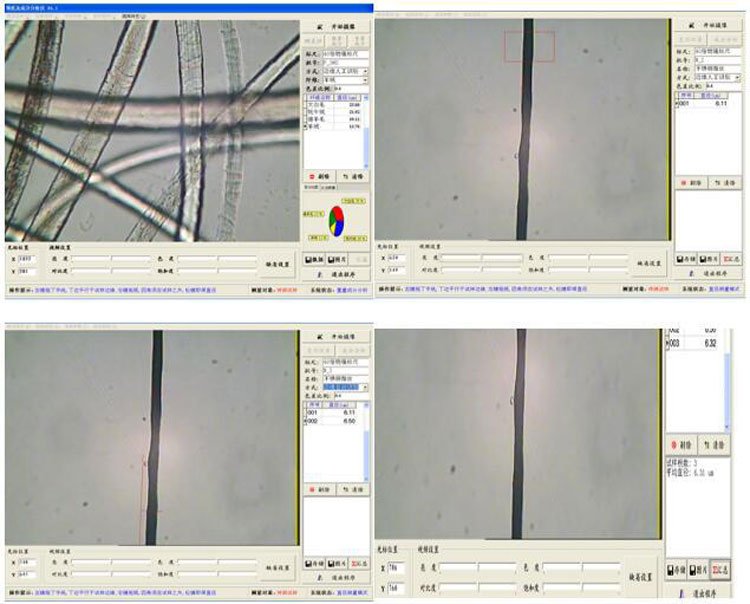

Adopts the professional analysis software, the data and report to EXCEL output, and provides standard reports.
Optical system: CFI optical system, infinite optical system
Working mode | manual measurement, automatic measurement, multi-point measurement; automatic statistical analysis, report printing, photo printing |

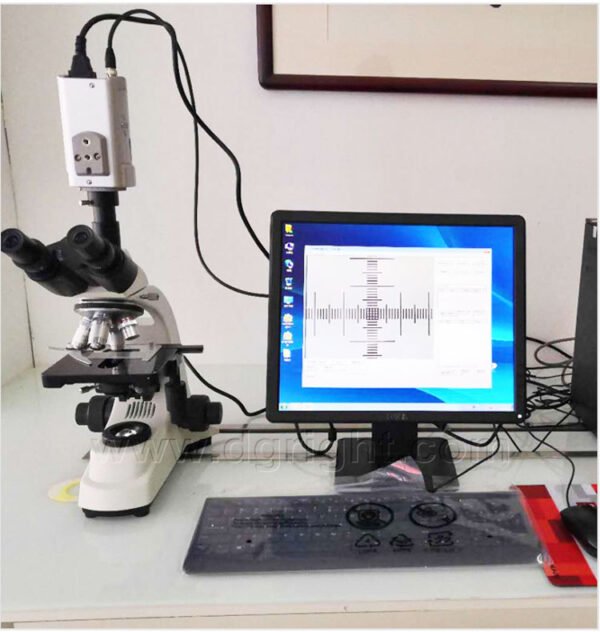

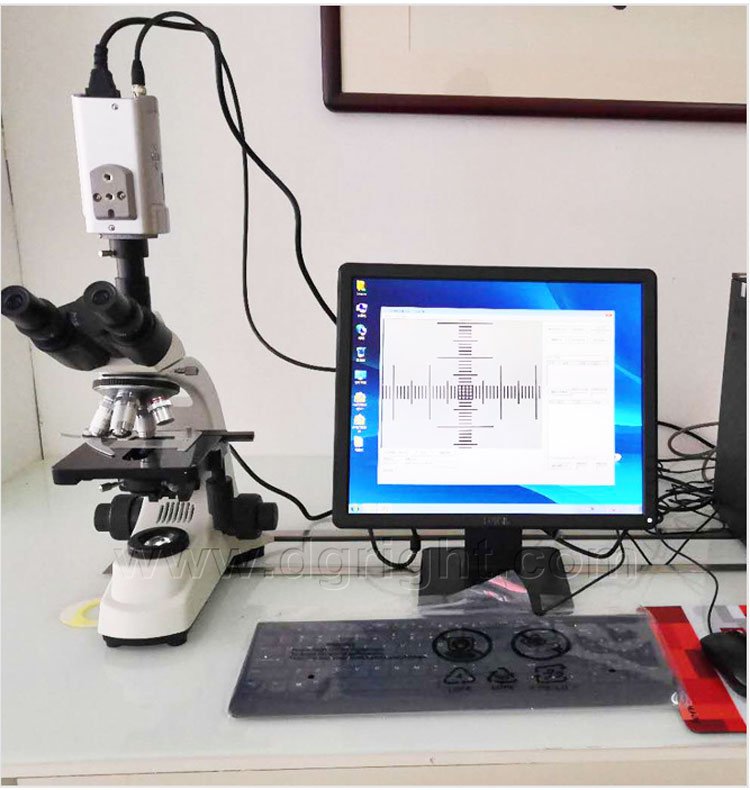

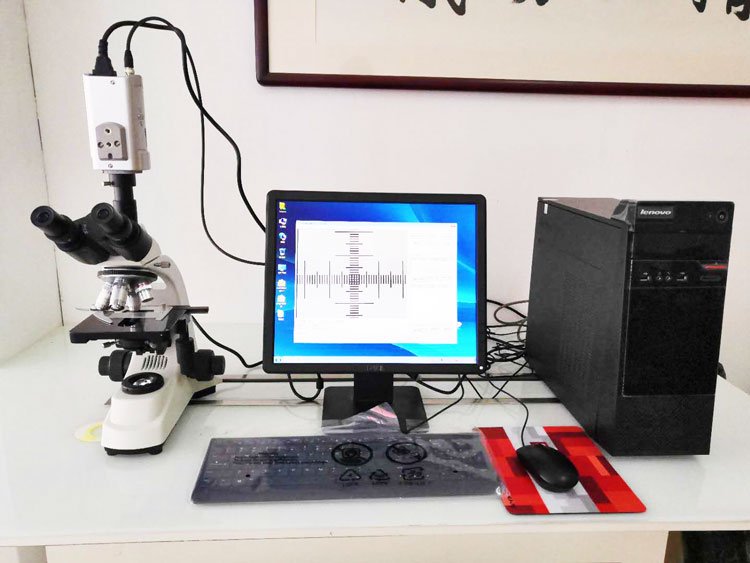

Instrument structure | computer, industrial camera, microscope, printer |
Measuring range | 1-200μm or 1-2000μm (according to user needs configuration) |
Objective | Flat field achromatic objective 4X\10X\40X\100X |
Measurement accuracy | 0.1μm |

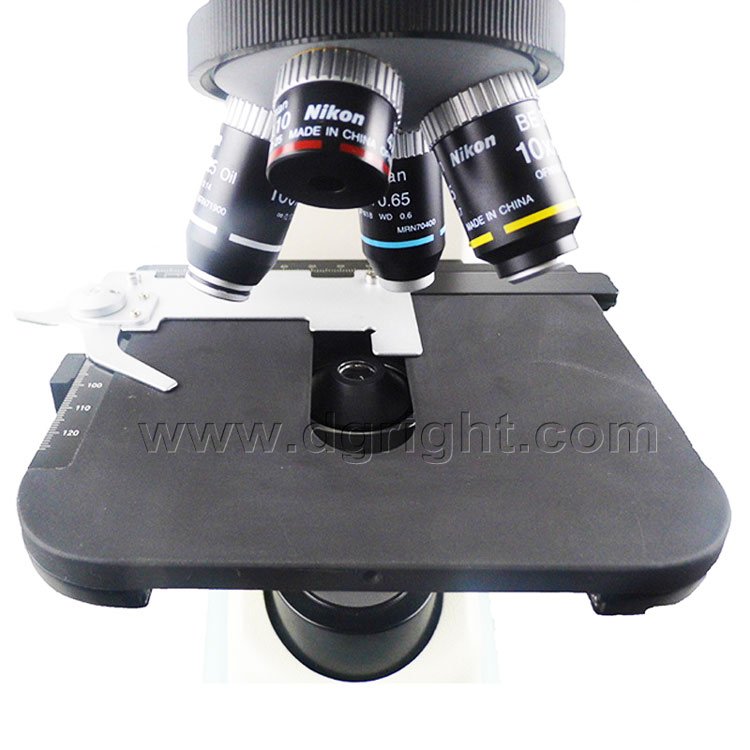

Mechanical loading table | double rectangular mechanical loading table, size: 155(W)×134(D)mm |
Concentrator bracket | Concentrator vertical movement adjustment range: 10mm |
Power source | AC220V 50Hz 100W |
Dimensions | 600×500×600mm |
Weight | 25kg |
①, fiber diameter, length, coefficient of variation, etc.
②, fiber number statistics, fineness measurement,
③, component analysis: quantitative component analysis, weight component analysis,
2. Average fiber diameter, standard deviation, coefficient of variation;
3. fiber diameter measurement of the number of roots;
4. test date, temperature and humidity conditions;
5. instrument number and the name or code of the test personnel.
