RT-819 Yarn Examining Machine With Blackboard

RT-819 Yarn Examining Machine With Blackboard - Image 5

Category 6. Textile Testing Machine

Additional information

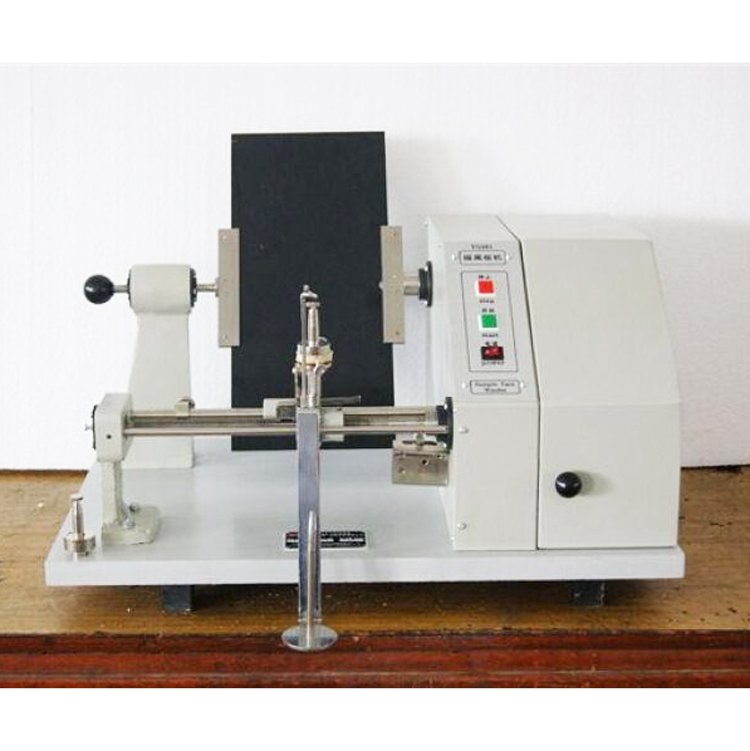

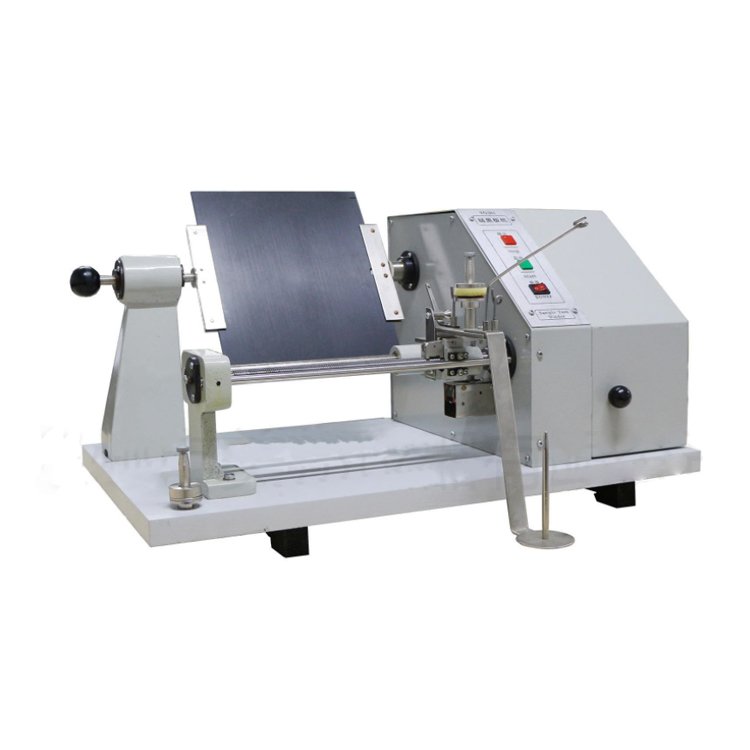

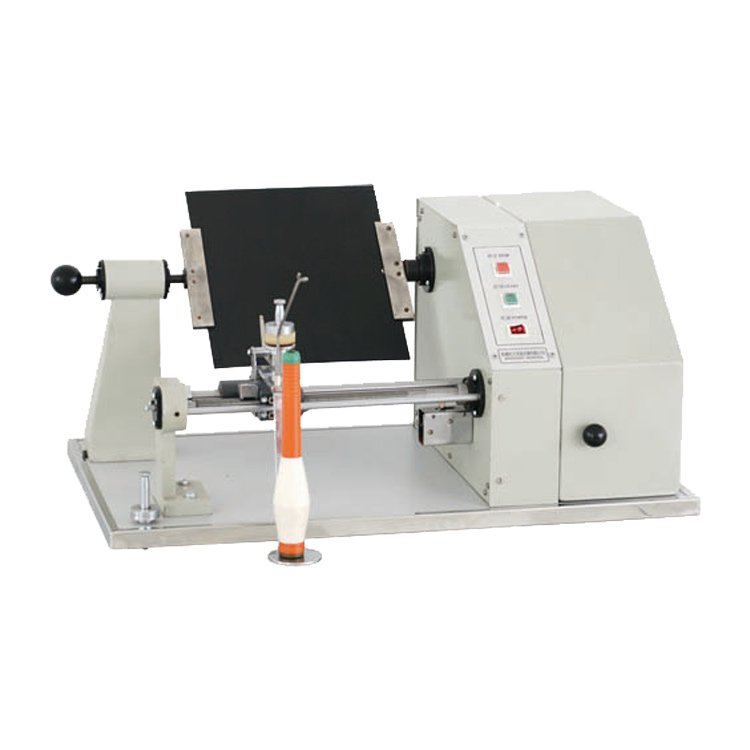

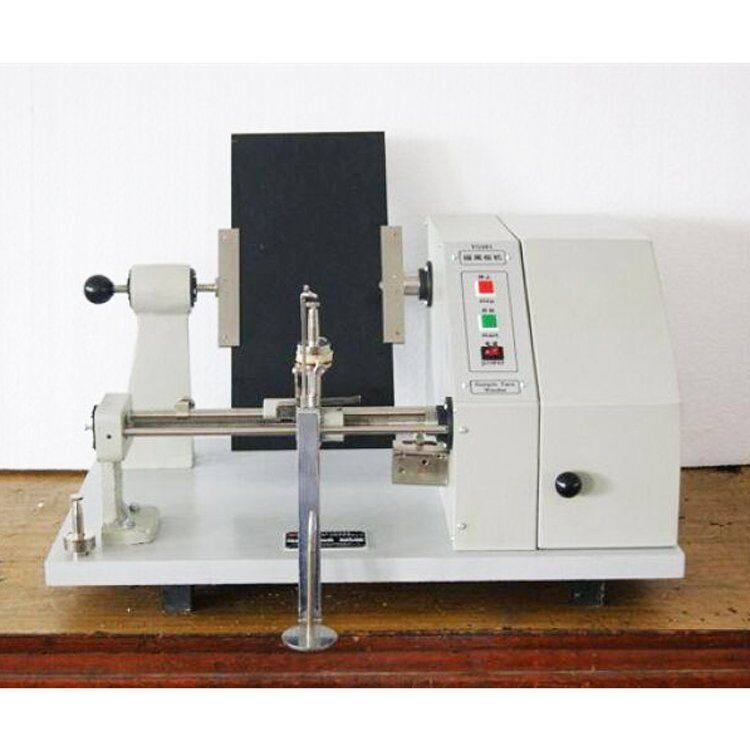

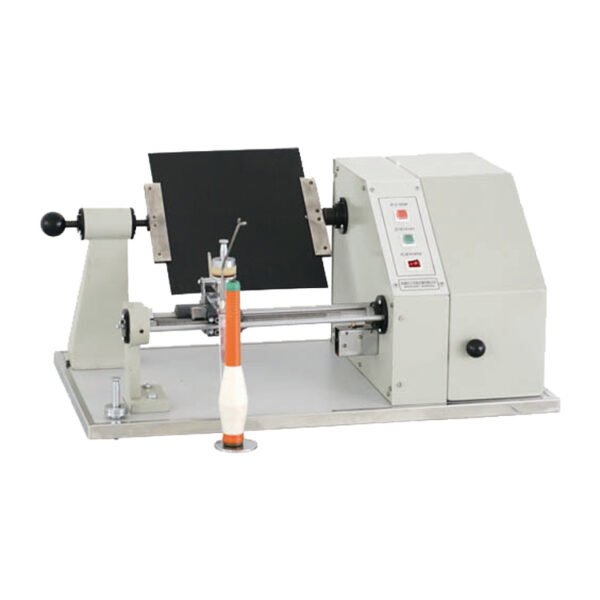

RT-819 Yarn Examining Machine

This machine is used to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black or white board.

Product Details：

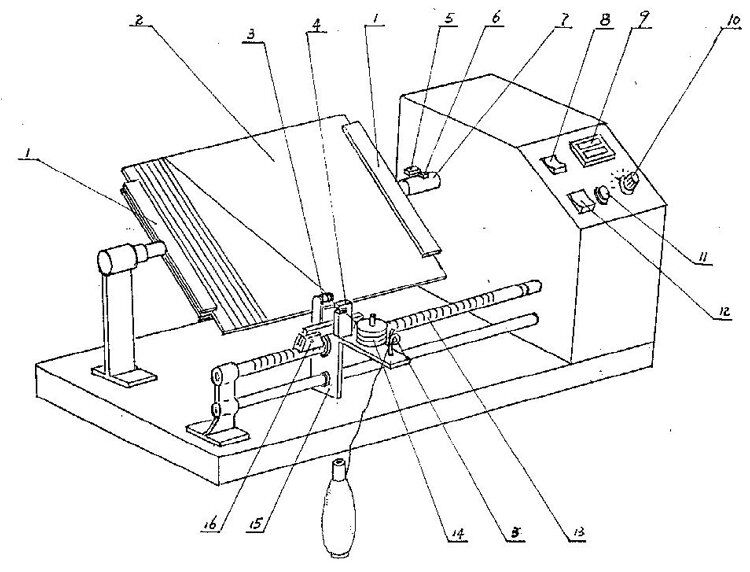

Equipment description:

Shake system for cotton, chemical fiber and various blended yarn in the standard blackboard, to inspection and assessment of the quality of yarn appearance grade.

To meet the standard:

GB9996-1988 of pure cotton and chemical fiber yarn appearance quality of board test

Technical parameter:

Model	RT-819 Yarn Examining Machine

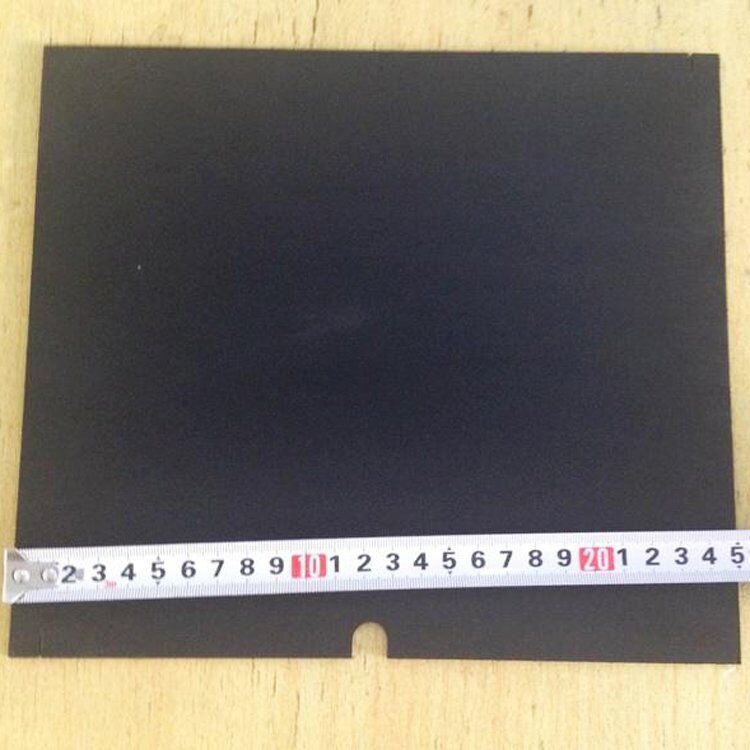

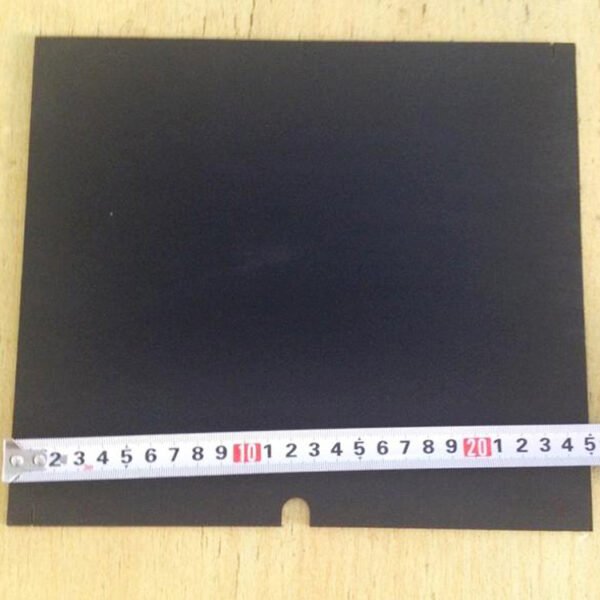

Specification	250×180×2mm,250×220×2mm
Reeling density	7、9、11、13、15、19 root/ cm
Pre-tension method+	Pressure re-classification method –clip pressure
Board speed	200～400r／min ( Adjustable)
Power	≤50W
Power	Ac220V,50Hz
Dimension	720mm×480mm×250mm (LWH)
Small grip dimension	1.58±0.1mm
Motor	Ac220V,60W,1400r/min
Dimension	540×290×510mm
Weight	≤30Kg
