RT-818 Electronic Yarn Wrap Reel, Textile Wrap Reel Machine, Yarn Length Measuring Device

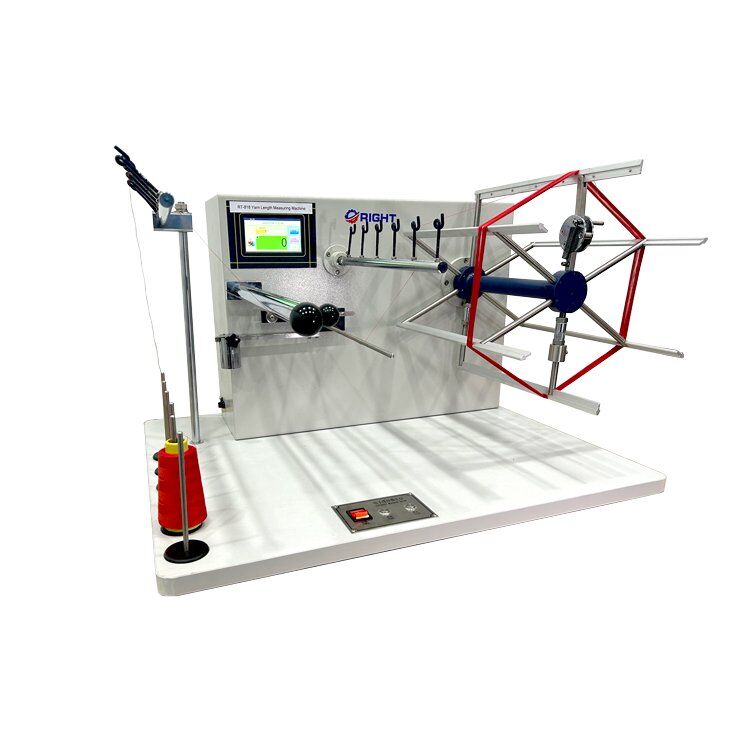

RT-818 Textile Measuring Wrap Reel Machine
This reel conforms to National Standard BG4743-84 “Measuring Method of Yarn Linear Density (or count) — Skein Method”
Product Details：
Application:
This Apparatus can wind the sample tarn into a lea with the reel, select or measure the reeling tension and is used for accurately determining the yarn length as to be intended for determining the yarn linear density or count and testing the lea strength.
Features:
| Number of cops to be testable | max.6 |
| Perimeter of reel | a. Model A: 1000+/-1mm |
| b. Model B: 54+/- 1/16in (for export) | |
| Speed of reel | Infinitely variable speeds within the range of 30~300rpm |
| Optional range of lea turns | 2~9999 |
| Traverse reciprocating width of reeling | 35mm |
| Range of single reeling tension | 0~100cN |
| Power supply | Voltage: 220V; Frequency: 50Hz |
| Overall dimension | a. Model A: 780*660*480mm |
| b. Model B: 820*660*550mm | |
| Net weight | 55kg |
