RT-811 Textile Fabric Washing Colour Fastness Tester

Category 6. Textile Testing Machine

Additional information

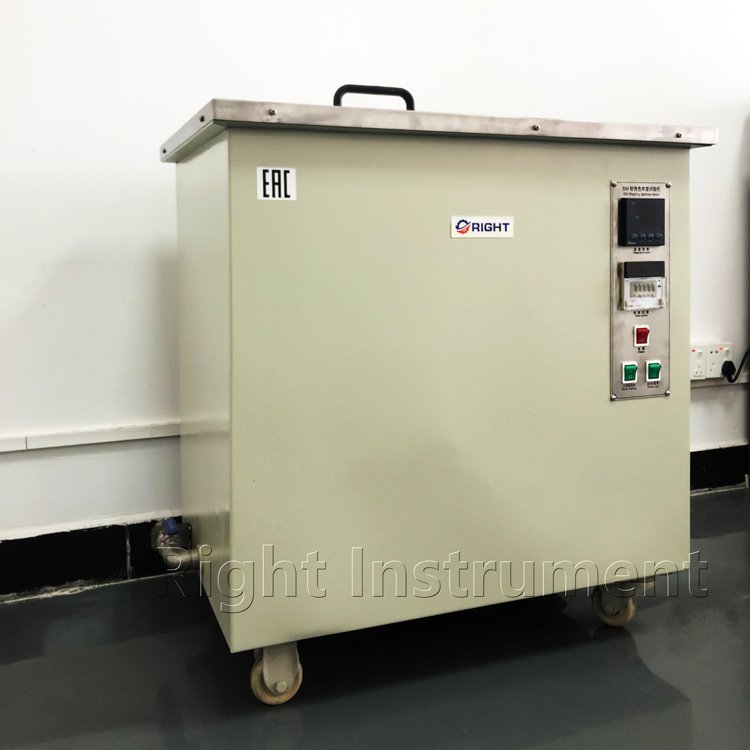

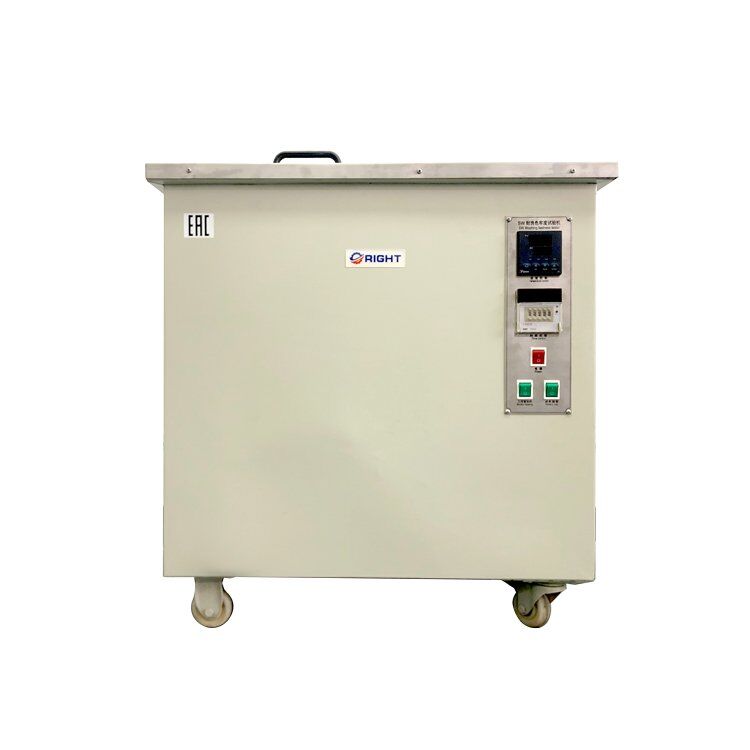

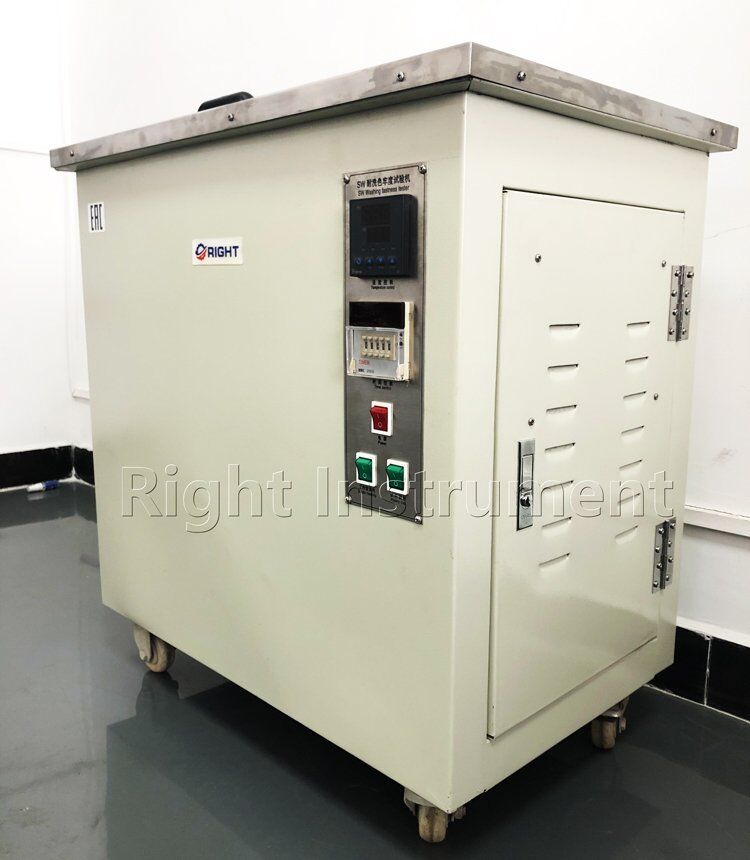

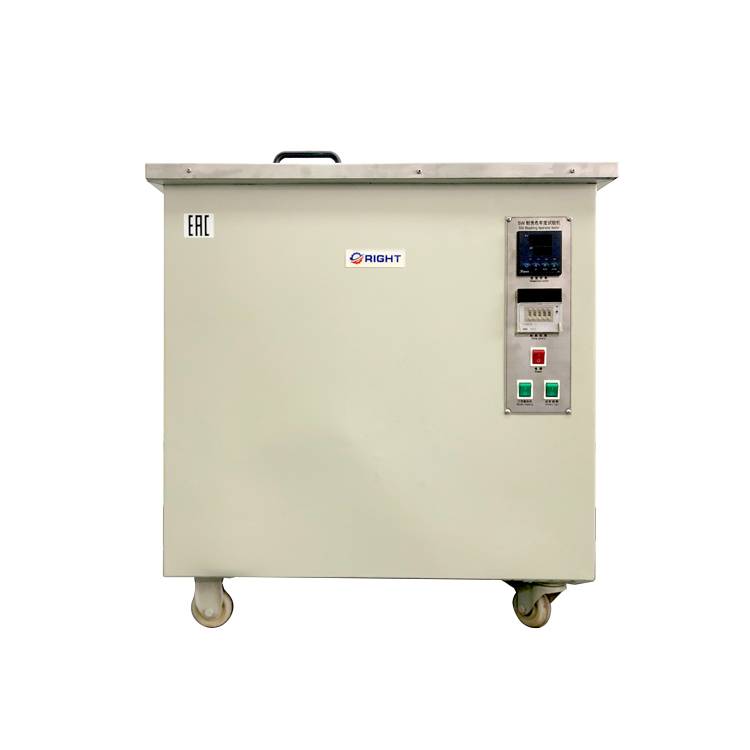

RT-811 Washing Fastness Tester

For fastness test of cotton, wool, silk, hemp, chemical fiber textile washing, dry cleaning-resistant, can also be used for washing fastness test of dye.

Product Details：

Main feature and function:

1, Solid state relays control the heating pipe, no mechanical contact, temperature stable, no noise, long life.

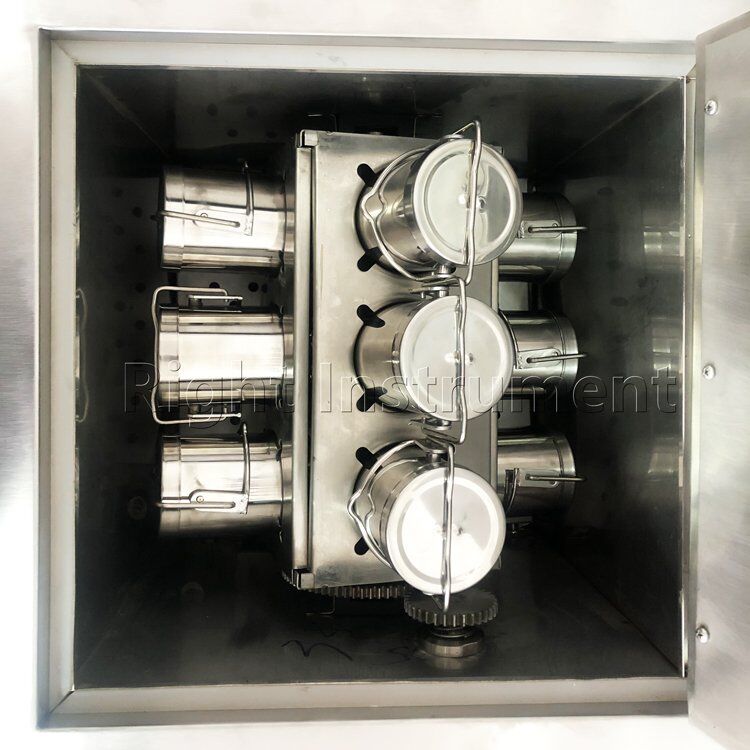

2, Adopt the gear transmission directly, a smooth and reliable test cup holder for convenience.

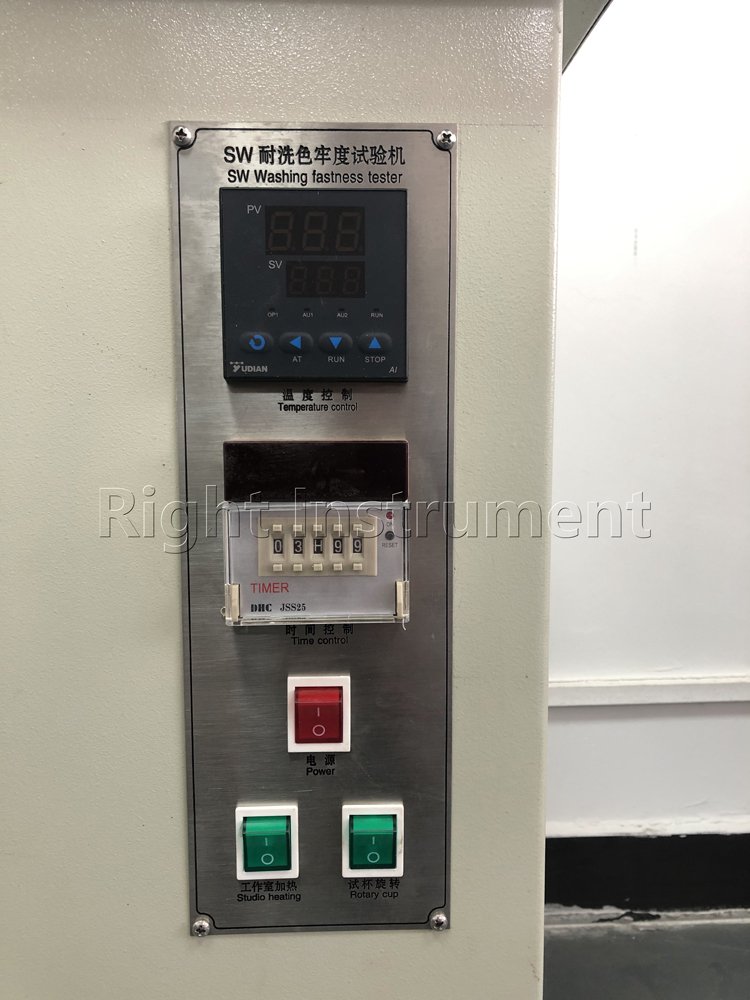

3, Electronic touch switch, no mechanical contacts, long life, reliability, waterproof membrane covering the panel, the water splashed on the panel will not have any impact on the circuit.
4, Computer process control temperature and time, with a proportional – integral (PID) adjustment function, an effective solution temperature “overshoot” phenomenon.

Meet standard:

1, GB/T3921.1 ~ 5-1997 textile fastness test washing fastness
2, ISO 105 C01-C06: 1994 Textile Testing – washing fastness test
3, GB / T 5711-1997 | textile fastness test dry cleaning resistance fastness
4, ISO 105-D01-1993 D01 textile fastness test parts D01: dry cleaning resistance fastness
5, AATCC 61-2003 domestic and commercial washing fastness test
6, AATCC 132 dry cleaning fastness dry cleaning resistance fastness detection test
7, JIS L0844-2005 Test method for washing fastness
8, JIS L0860-1996 Test method for dry cleaning resistance fastness

Technical parameter:

Model		RT-811-12A	RT-811-12M	RT-811-24A

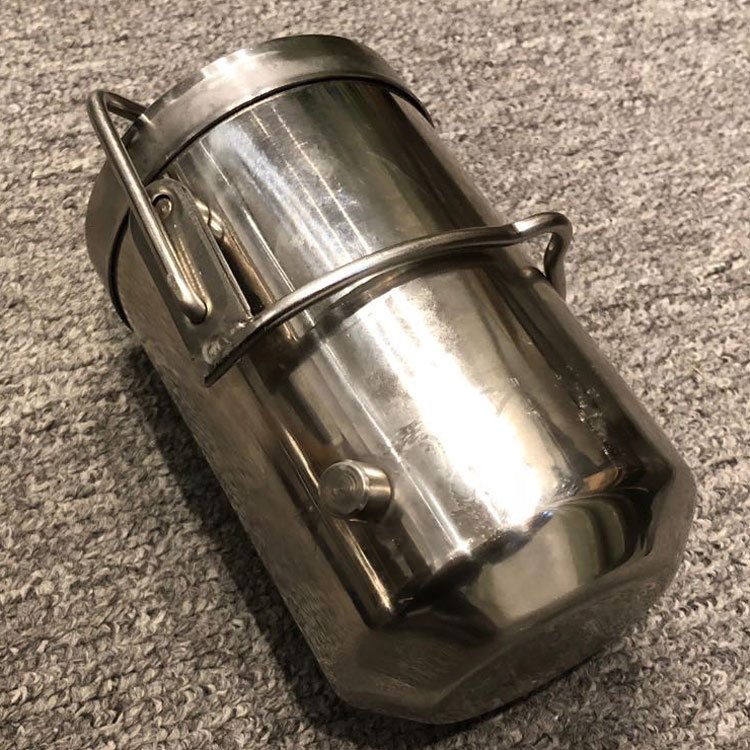

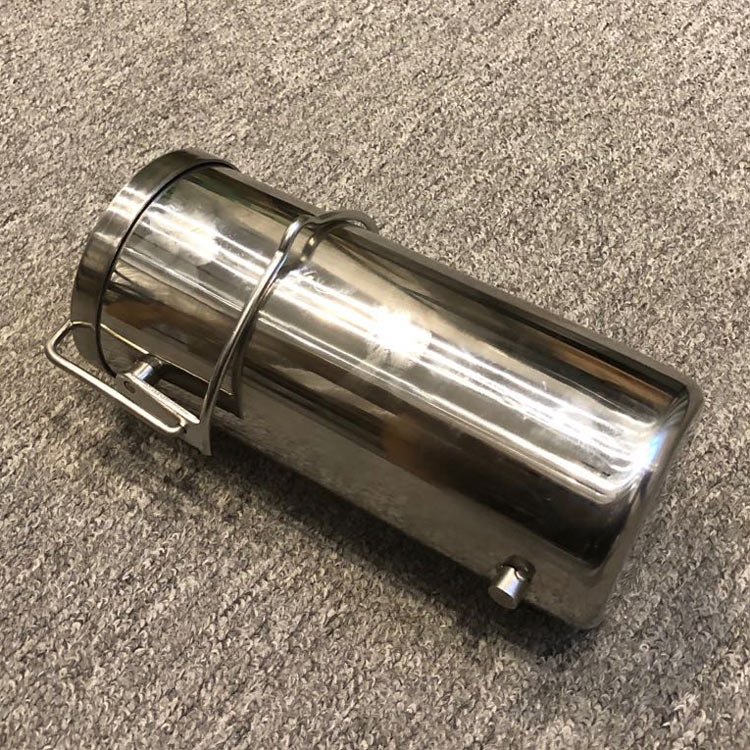

Test cup size		550mL(φ75mm*120mm)meet standard of GB(ISO、JIS)etc.
		1200mL(φ90mm*200mm)meet standard of AATCC etc.
Center distance of rotating frame		45mm
Rotation speed		40±2r/min
Time Control Range		99.9min
Time-control error		<±5s
Temperature control range		0～100°C
Temperature control error		<±2°C
Heating method		Heater
Stainless steel ball		φ6mm steel ball 300
Round stainless steel sheet specifications		φ30mm*3mm,20±2g(For dry cleaning resistance test)
Standard configuration	Applicable standards	GB、ISO、JIS	AATCC	GB、ISO、JIS
	The number of test cup	550mL 8cups,12cups,24cups	1200mL 8cups,12cups	550mL 24cups
	Work Room	one	one	two
	Pre-heat chamber	one	one	two
	Heating power	4.5KW、3KW per group	4.5KW、3KW per group	4.5Kw two groups
	Drive power	180W one group	180W two groups	180W two groups
	Stainless steel ball	300	600	900
	PU seals	24 pieces（φ75mm）	24 pieces（φ75mm） 14 pieces（φ90mm）	48 pieces（φ75mm）
Apparatus placed		Socket wheel
Dimensions		935690910mm(LWH)
Power		Ac380V,50Hz
Weight		170KG

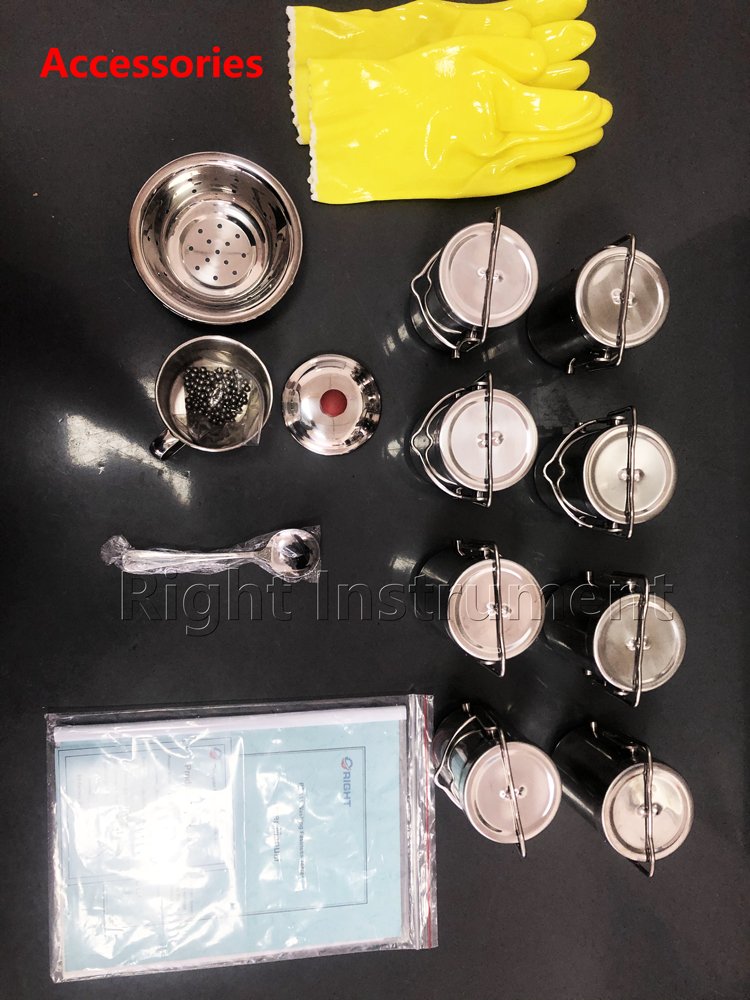

Related purchasing articles		Standard light boxes, GB, ISO, AATCC, JIS and other staining gray card, color card, round stainless steel sheet A variety of single-fiber cloth, multi-fiber Backing, standard soap flakes,
