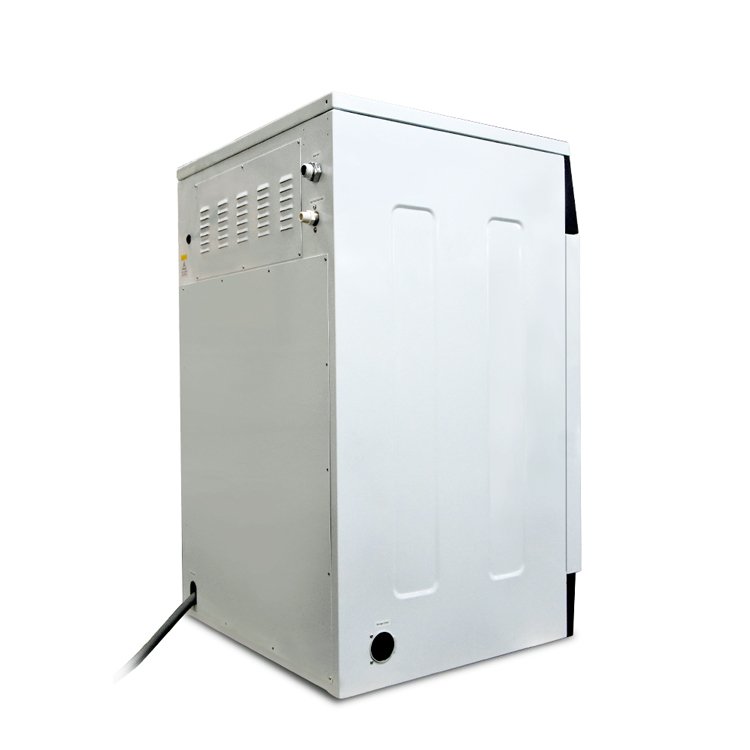

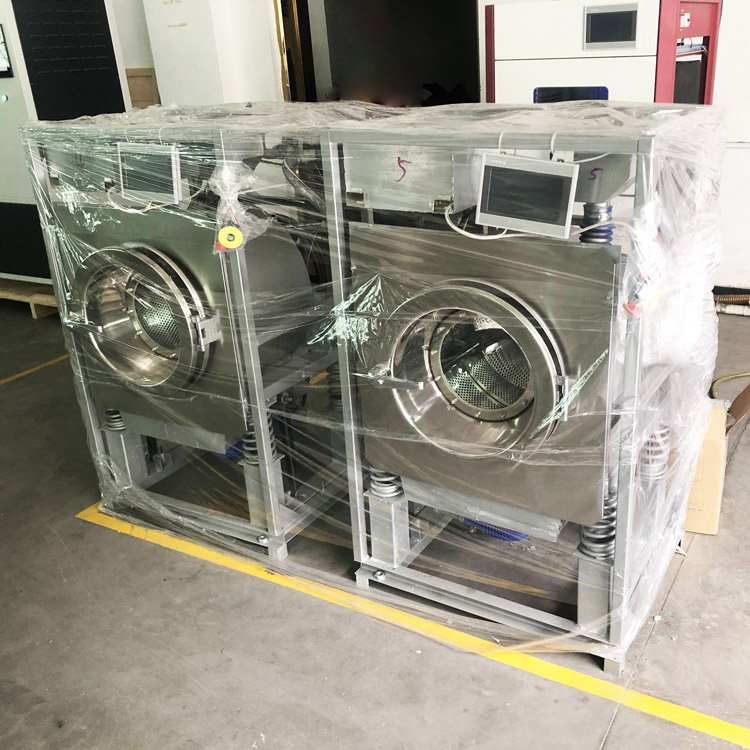

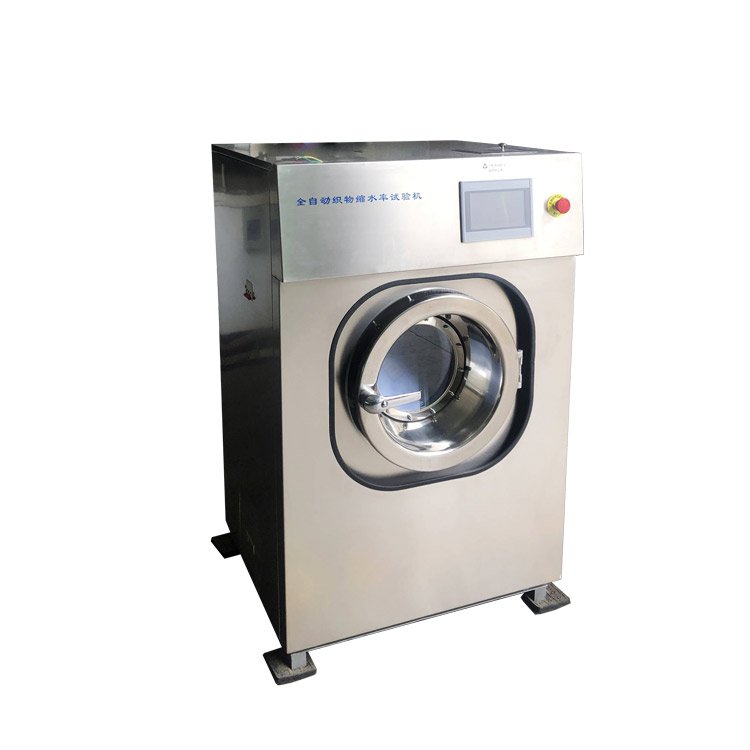

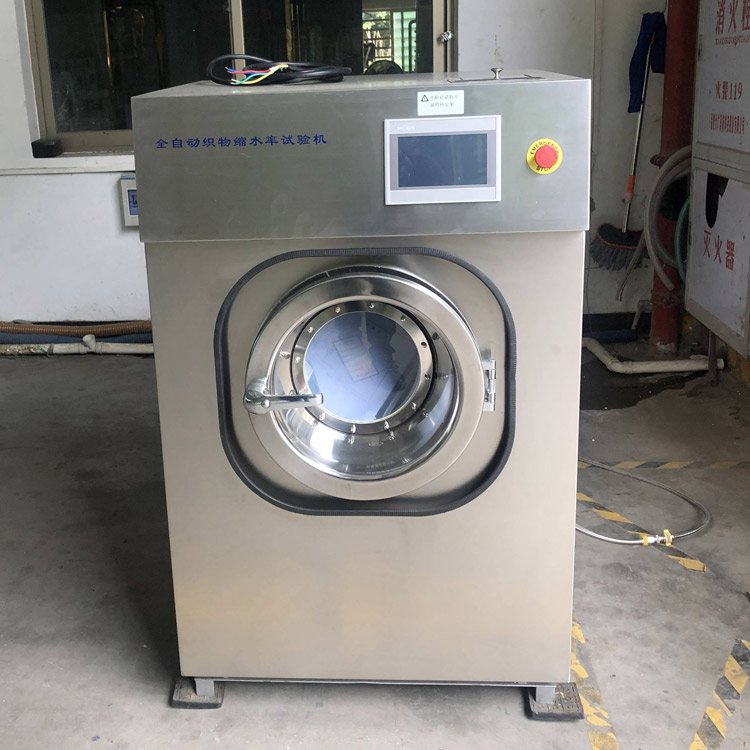

RT-808 Automatic Fabric Textile Shrinkage Testing Machine

Additional information

RT-808 Automatic Shrinkage Testing Machine

used for assessing fabric stability, colorfastness, finish durability, spirality, and pilling to washing.

Product Details:



Equipment description:

Fabric Shrinkage Tester. Accelerated washing apparatus for knitted and woven fabrics to assess shrinkage in accordance with international test methods.



Main feature:

  1. MCU program controller, build-in ten sets of washing programs that ISO required, and operator program capability.

2.No need to fix to the ground with foot screw, operating stably;

  1. The soft link between the rotating cage and rack, low vibration and noise;
  2. Variable frequency motor, switch smoothly between high speed and low speed, the low-temperature increment of the motor.
  3. Blue fluorescence LCD display, test state dynamic icon shows, easier to catch the eye and operation convenience.
  4. Non-touch capacitance water level meter to measure water level accuracy and reliability.







Corresponding standard:

GB/T8629—2001、FZ/T70009、ISO5077/6330、IWS TM31、BS 4923、EN25077/26330 JIS L1909、Marks and Spencers  and other testing standards.



Technical parameter:

Model RT-808

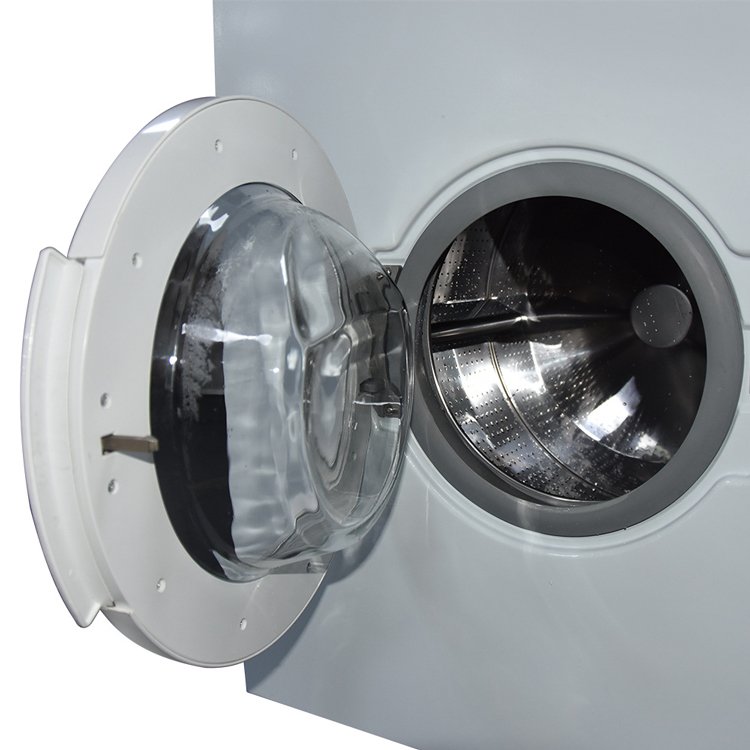

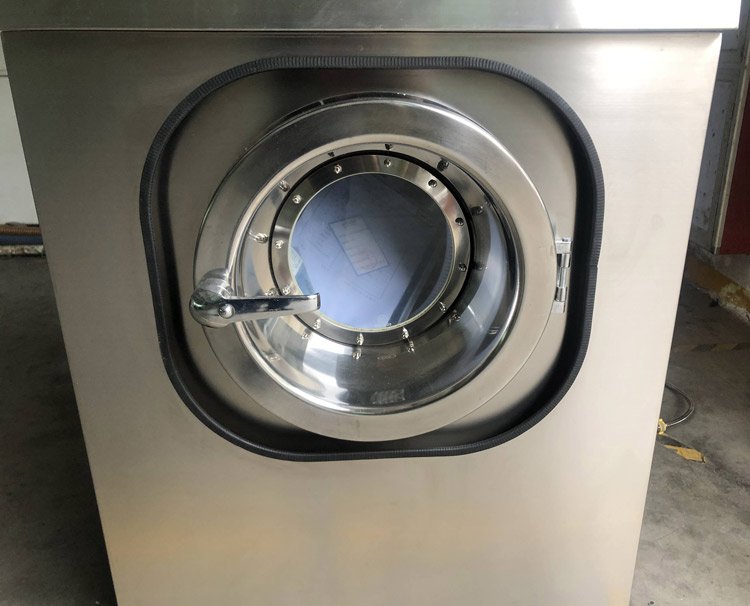

Washing Model front-loading, horizontal tumbling-box type
Diameter Oftumbling-Box 515±5mm
Depth Oftumbling-Box 335±5mm
Interval Between Inner And Outer tumbling-box 28±1mm
Number of Lifter 3
Height of Lifter 50±mm
Rotating Method Normal model:

Clockwise Rotating

Anticlockwise Rotating Soft model:

Clockwise Rotating

Anticlockwise Rotating

12±0.1s,       pause 3±0.1s,

12±0.1s,       pause 3±0.1s



3±0.1s,        pause 12±0.1s,

Rotation Speed Washing   52r/min

Spin      (500±20)r/min

Fill Water Time < 2min (water in high level 13cm)
Drainage Duration < 1min (water in high level 13cm)
Heating Power 5.4±2%KW
Load Weight 5kg
Power Supply AC 220V 50Hz 5400W
Instrument Size 990×980×1450mm(L×W×H)
Weight 280kg
