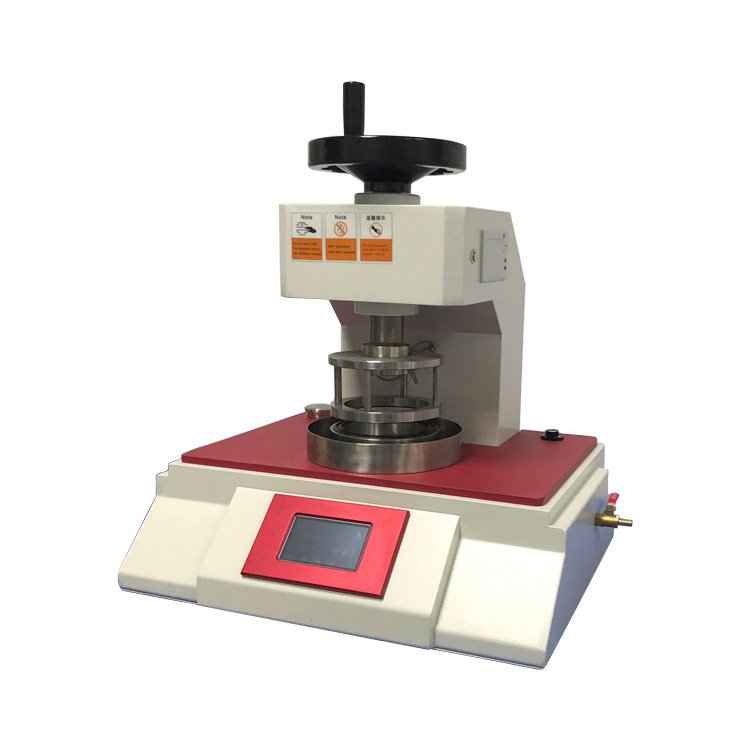

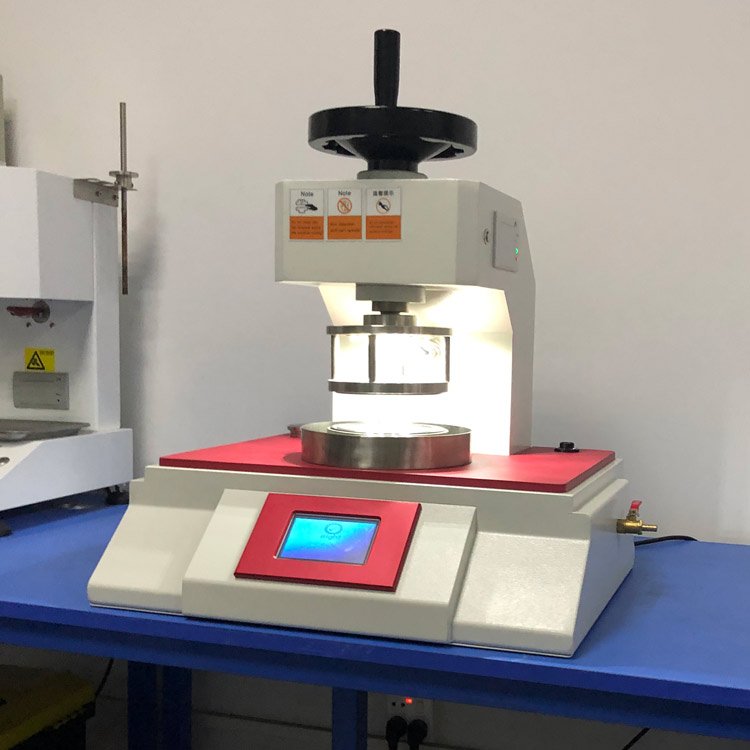

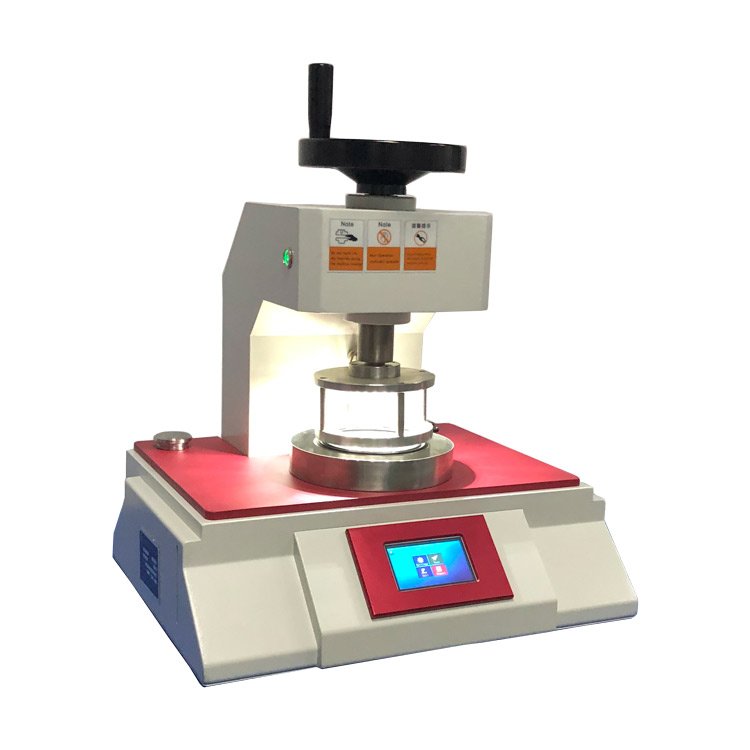

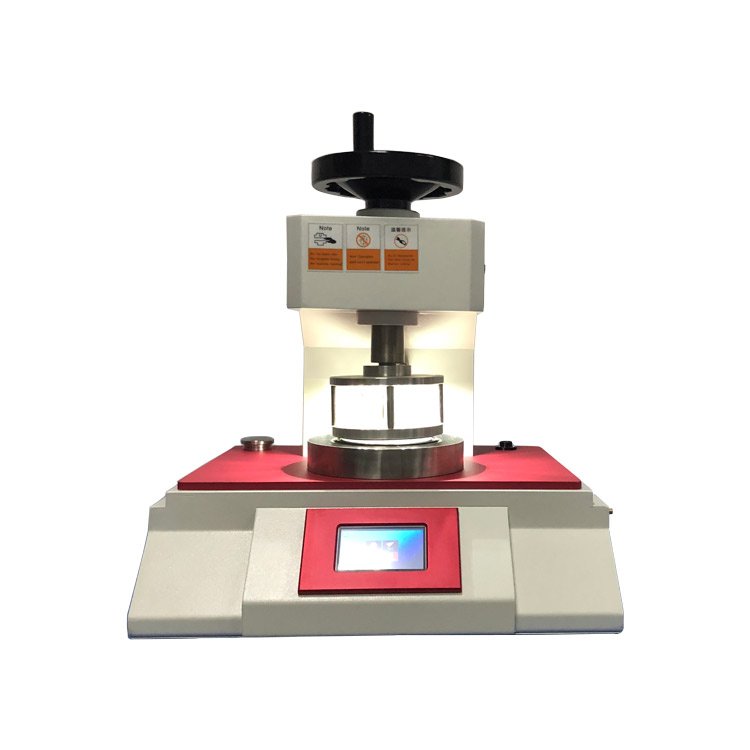

RT-801 Digital Fabric Water Permeability Tester

Category 6. Textile Testing Machine

Additional information

RT-801 Fabric Hydrostatic Pressure Tester

Used for canvas, tarps, tent cloth, sheet, non-woven fabric and waterproof fabrics, coated fabrics and other performance testing of water permeability.

Product Details：

Equipment Overview:

The instrument used to measure a variety of waterproof fabric resistance to water, such as canvas, tarps, tent cloth, sheet, rain clothing fabric and geotextile materials.

Main features:

1. This instrument computer control, with five test functions, Park arc nice shape.

2. using wide screen LCD display, full Chinese menu, simple operation.

3. selection of high precision pressure sensor, accurate and stable measurement node, and reproducible.

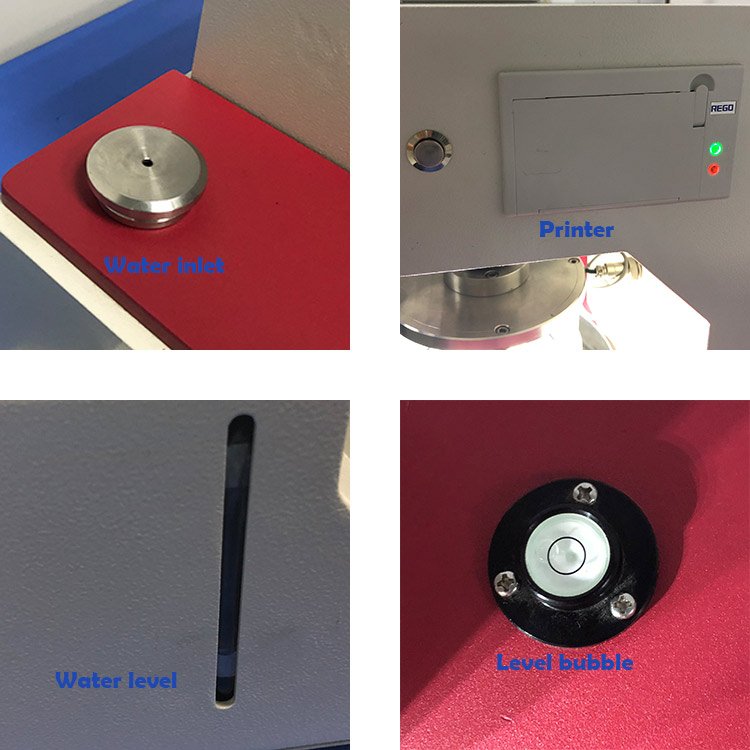

4. with built-in water tank, and a button prompt and effective, fault self-test functions.

Meet the criteria:

1. GB/T4744-1997 “Determination of resistance to water Textiles – Hydrostatic pressure test”
2. FZT01004-91 “coated fabrics Determination of resistance to water penetration – Hydrostatic pressure test”
3. ISO 811-1981 “Determination of Textiles hydrostatic testing water permeability”

Technical parameter:

Model	RT-801-5	RT-801-20	RT-801-50
Testing range	500pa-50kpa	500pa-200kpa	5kpa-500kpa
Hydraulic rising rate	1kpa-20kpa	1kpa-30kpa	1kpa-100kpa
Accuracy	≤±0.2%	≤±0.5%	≤±1%
Sample chuck area	100cm2 8cm2
Unit	Pa
Testing mode	Five (varieties)
Water tank capacity	1000ml
Dimension	560x410x500mm(L×W×H)
Weight	55kg
Power	AC220V, 50Hz
