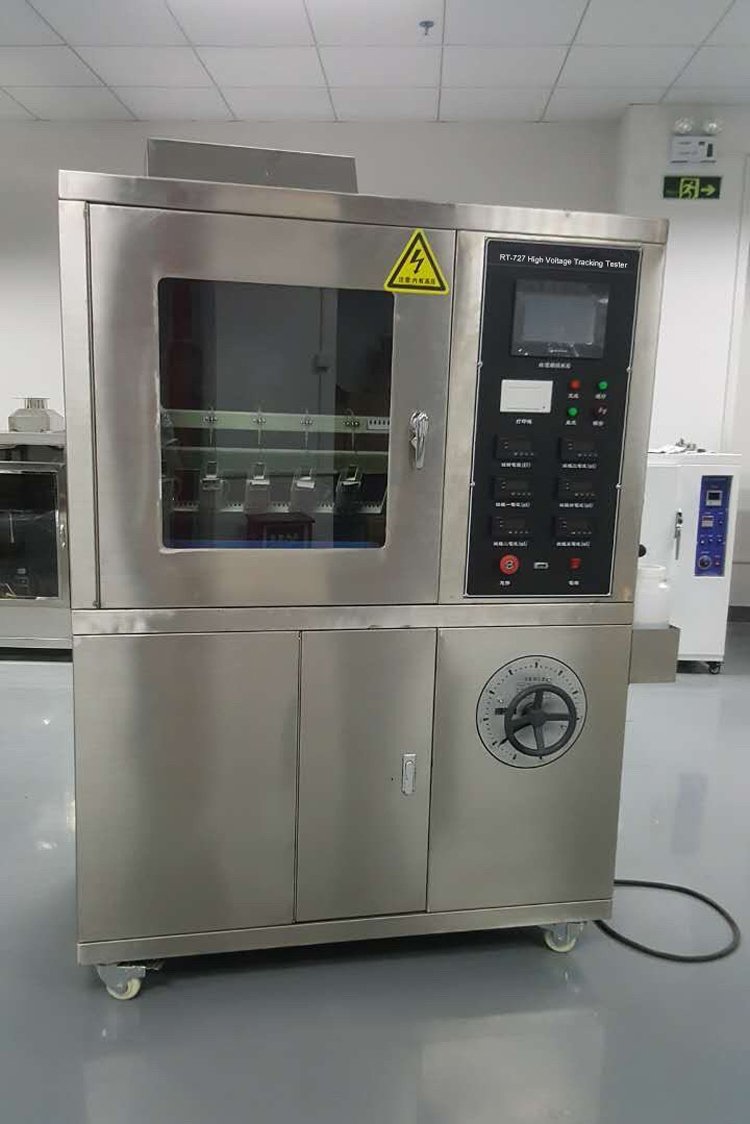

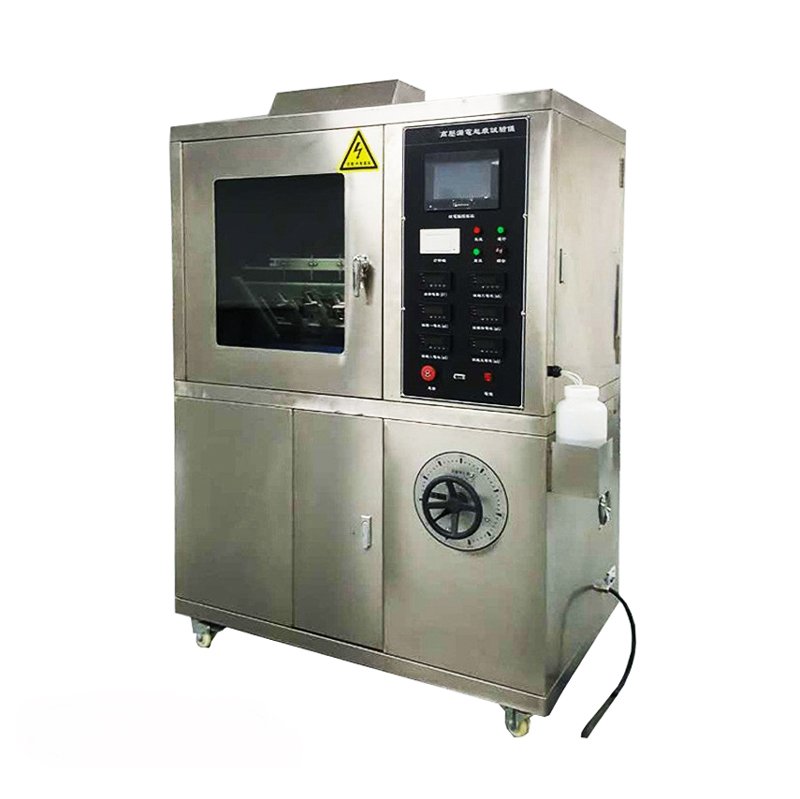

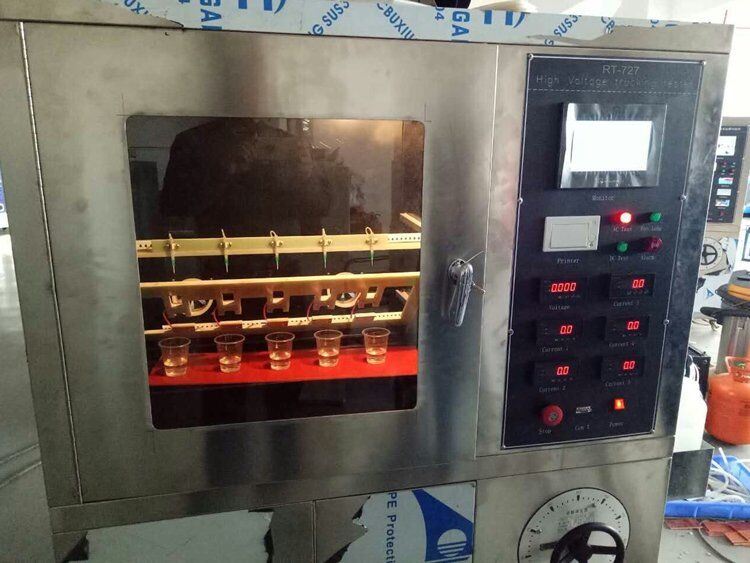

High Voltage tracking tester suit for electronic products, household appliances and other materials resistance to tracking and erosion test, simulate the frequency (48HZ-62HZ) or a corresponding DC Voltage, liquid contaminants and ramps samples by electrical resistance to tracking and erosion measurements assessed under severe environmental conditions of electrical insulating materials resistance to tracking and erosion levels.
Model | High Voltage tracking tester |
Tester size | 1250L*800W*1800H(mm) |
Working capacity | 800L*700W*850H(mm) |

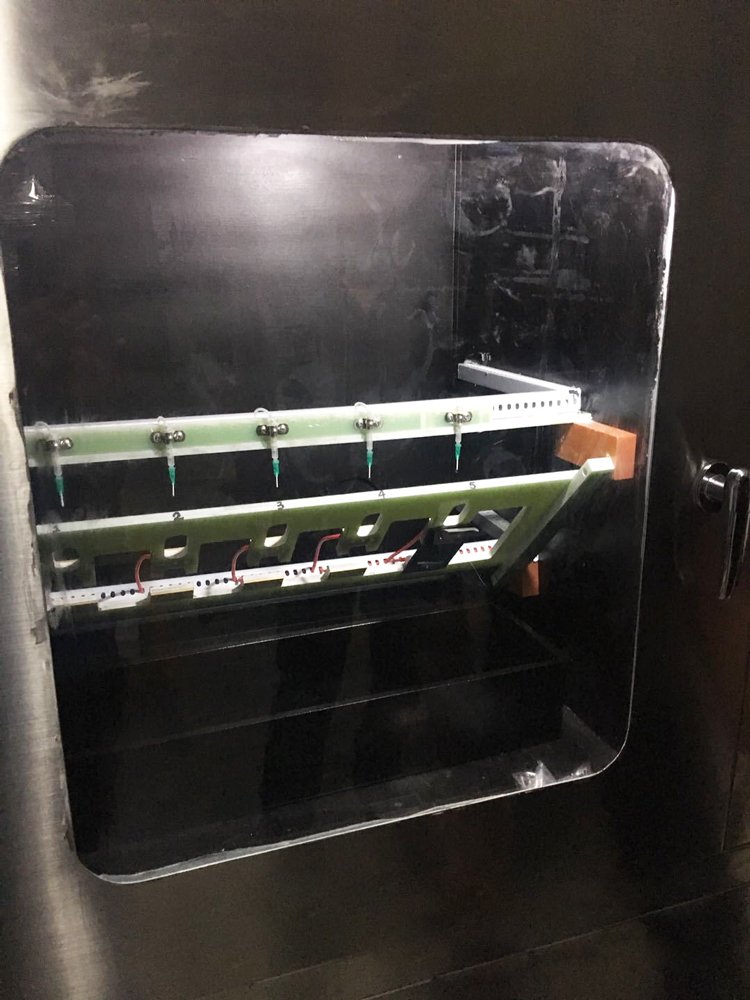

Electrode | 0.5mm thickness |
Material | Stainless steel |
Distance between up and down electrode | 50.0mm±0.1 |
Test Voltage | AC 0V-6000V Stepless adjustable |
Test voltage | DC 0V-8400V Stepless adjustable |
Test power | 6000W |
The liquid flow range | 016-1.5ml/min can be set |
Drop liquid accuracy | 0.5% |
Test hours | 0-10 hours, can be set |

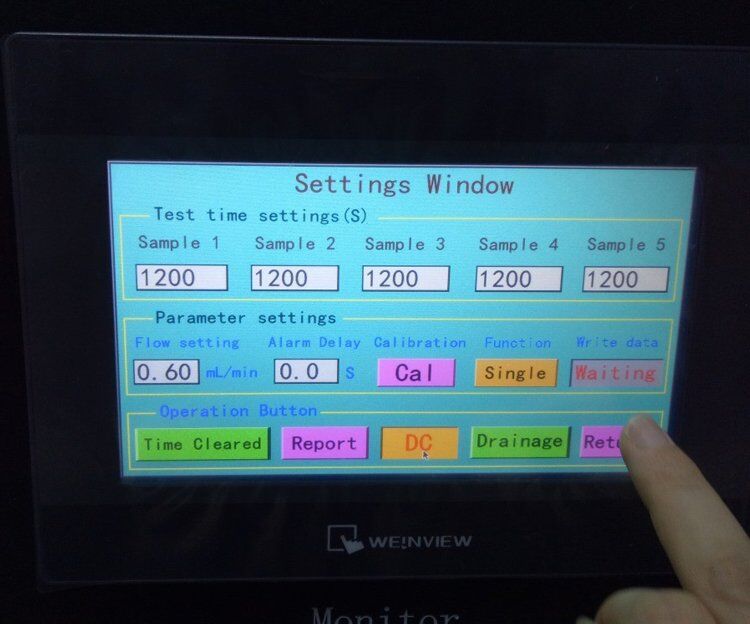

Controller | Use Germany’s Siemens PLC + Taiwan’s screen,
full touch sctreen control operation |
Weight | 240 kg |
Test voltage range(KV) | Tracking recommend voltage (KV) | Pollution liquid flow
rate (ml/min) |
Series resistance
|
1.0 ~ 1.75 | – | 0.075 | 1 |
2.0 ~ 2.75 | 2.5 | 0.15 | 10 |
3.0 ~ 3.75 | 3.5 | 0.30 | 22 |
4.0 ~ 4.75 | 4.5 | 0.60 | 33 |
5.0 ~ 6.0 | – | 0.90 | 33 |
According to GB/T6553-2014/IEC60587-1984 “Test methods for assessing electrical tracking and erosion resistance of electrical insulating materials used under severe environmental conditions” and DL/T810-2002 “±500kV DC rod suspension The test standard requirements for the technical conditions of composite insulators are designed for the AC and DC leakage tracking test of insulating materials.
