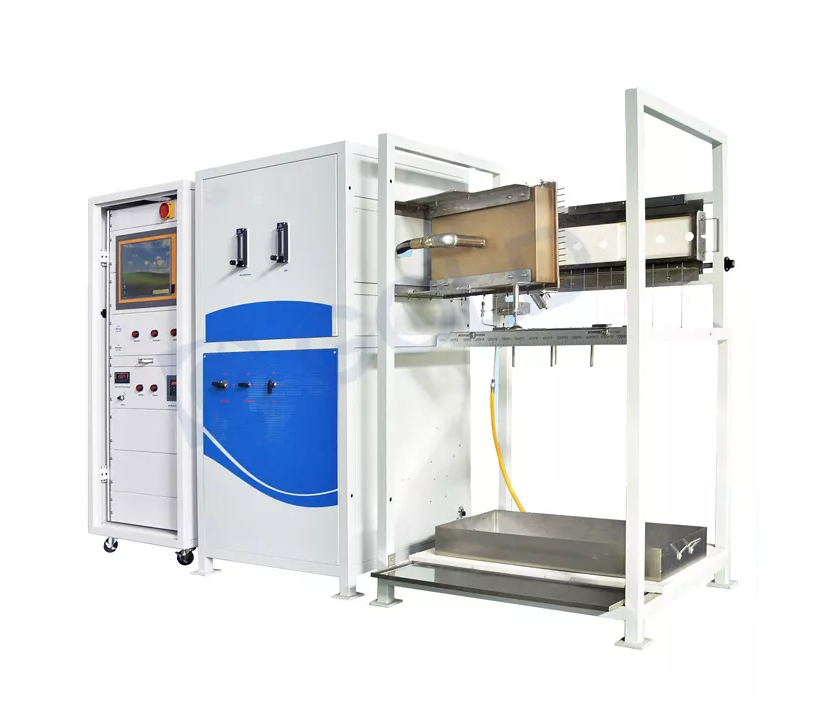

RT-724 Flame Spread Testing Machine

Additional information

RT-724 Flame Spread Testing Machine

Used for building materials, high-speed train materials, and the combustion characteristics of marine materials, measuring the spread speed of flame and ignition heat and total heat release according to distance and CEF (critical heat radiation flow).

Product Details:



Comply standard:



Corresponding to ISO 5658-2 “Fire response test for fire reaction Part 2: Degree of flame spread on side of building products in an upright layout”





Technical parameters:



1. Ignition source: radiant panel and propane torch.

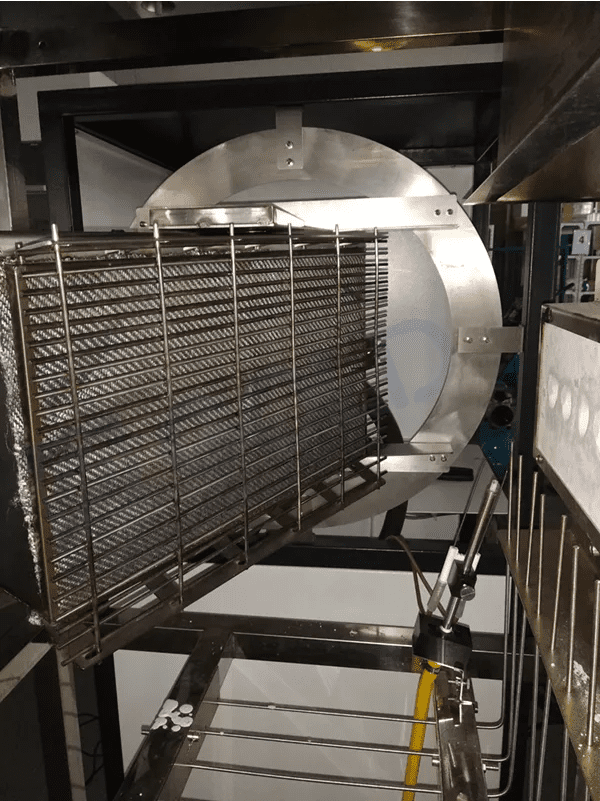

2. The size of the radiant panel is 450mm×300mm, the radiation intensity can reach about 62kw/m2, and the surface temperature can reach about 750°C. Radiation plate heat transfer measurement is convenient, the track spacing is 50mm.

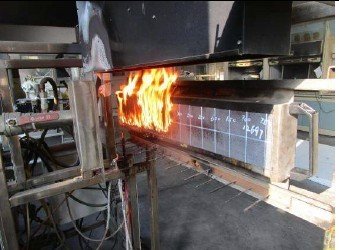

3. The propane torch has a flame length of 80 mm and is applied to the sample at a distance of 20 mm from the edge of the test piece closest to the radiant panel.

4. The heat flux applied to the test piece by the radiant panel falls along the long side of the test piece, with the initial position being 50 KW/m2 and the end being 1.5 kW/m2.

5. The IMO program facilitates the execution of all calibrations and tests, as well as the printing of standard results (IMO, ISO).

6. Radiation board temperature controller: Prevent the flame from turning to the rear side of the heat sink, check the internal temperature of the heat sink, and automatically cut off the gas solenoid valve in the case of reverse flame flow.

7. In the combustion of the heat sink, check valve and shut-off valve (solenoid valve), all control systems can choose the safety explosion-proof option to prevent backflow in the gas pipeline.

8. During the test, the camera can observe and save the measurement status in the program.
