RT-723A TH-9001 Carbon Black Content Tester

Category 2. Plastic Testing Machine

Additional information

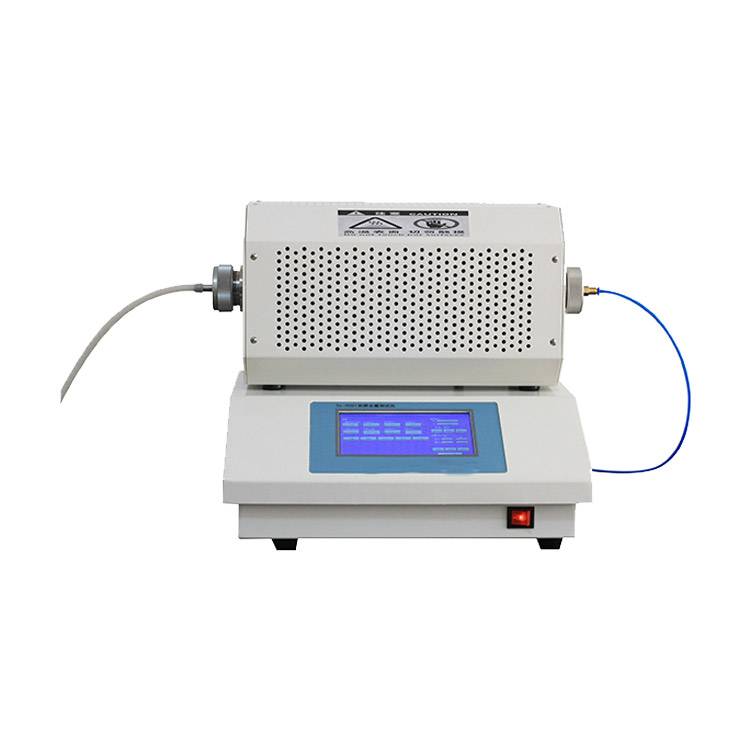

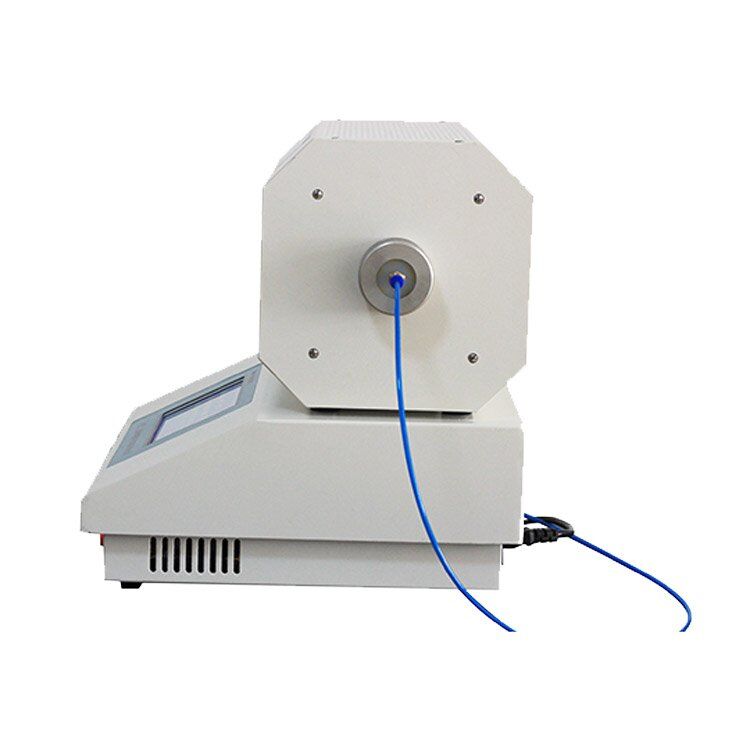

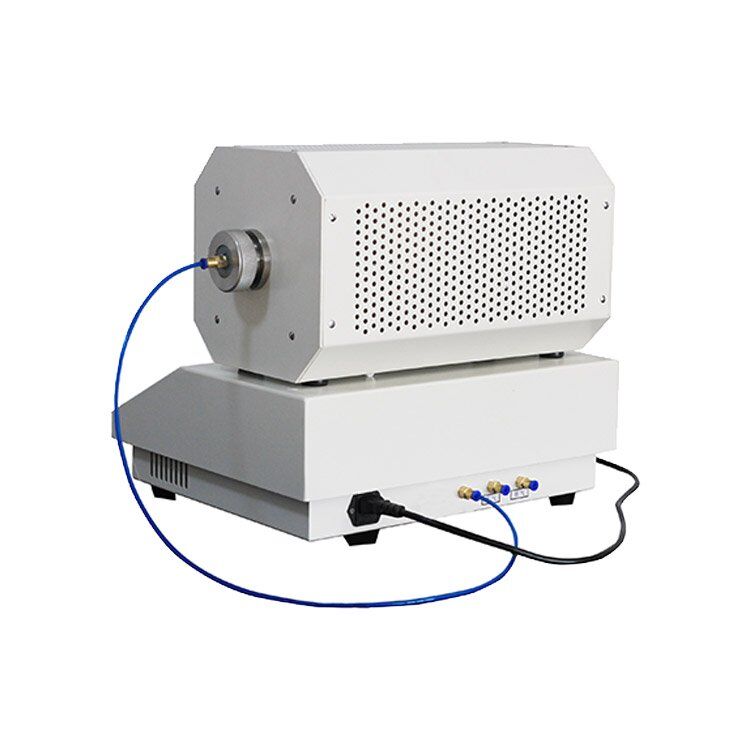

RT-723A TH-9001 Carbon Black Content Tester

TH-9001 carbon black content tester is suitable for the determination of the content of carbon black in polyethylene, polypropylene, polybutylene plastics, cable and cable insulation and sheathing materials, and rubber.

Product Details：

Meet the national standard:

GBT 3515-2005, GBT 13021-1991, GB ∕ T2951.41-2008, IEC60811-4-1:2004. A certain amount of sample was pyrolyzed at high temperature in a nitrogen stream, and the carbon black content was obtained by analyzing the weight of the pyrolyzed sample.

Technical features:

1, 220mm long heating area, can make three samples at the same time.

2, 7-inch industrial-grade microcomputer widescreen touch structure, display rich information, including the set temperature, sample temperature, oxygen flow, nitrogen flow, a variety of switch status.

3, equipped with advanced digital gas flowmeter, two-way gas automatically switch quickly, stable time is short.

4, Optimized design of heating furnace body, stable performance and reliable quality.

5, automatic memory memory function, users only need to start with a key.

6, the program automatically ventilates, warming, constant temperature, after the end of the buzzer alarm prompts, without personnel care.

7, can set up to 20 sections of temperature program, heating, constant temperature, cooling and other arbitrary settings.

8, the program can set the automatic mode and manual mode, the operation is flexible and convenient.

9, can pull out the quartz tube cooling, so that the test sample quickly cooling.

10, optional quick cooling device.

11, The instrument can communicate with the computer through USB to realize remote monitoring (optional).

Technical Parameters:

1, the temperature range: room temperature ~ 1100 °C

2, heating rate: 0.1 ~ 40 °C / min

3, temperature resolution: 0.01 °C

4, temperature fluctuations: ± 0.2 °C

5, temperature control mode: heating, constant temperature, cooling, circulation (full program automatic control)

Atmosphere Control: Digital Gas Flow Meter, Automatic Switching

7, gas flow: 0 ~ 300mL/min or 0 ~ 2000mL/min

8, gas pressure: 0.2MPa

9, display mode: 24bit color, 7-inch LCD touch screen display

10, quartz tube: length 440mm, internal diameter 32mm

11, heating area: length 220mm

12, quartz boat: length 50mm or 75mm
