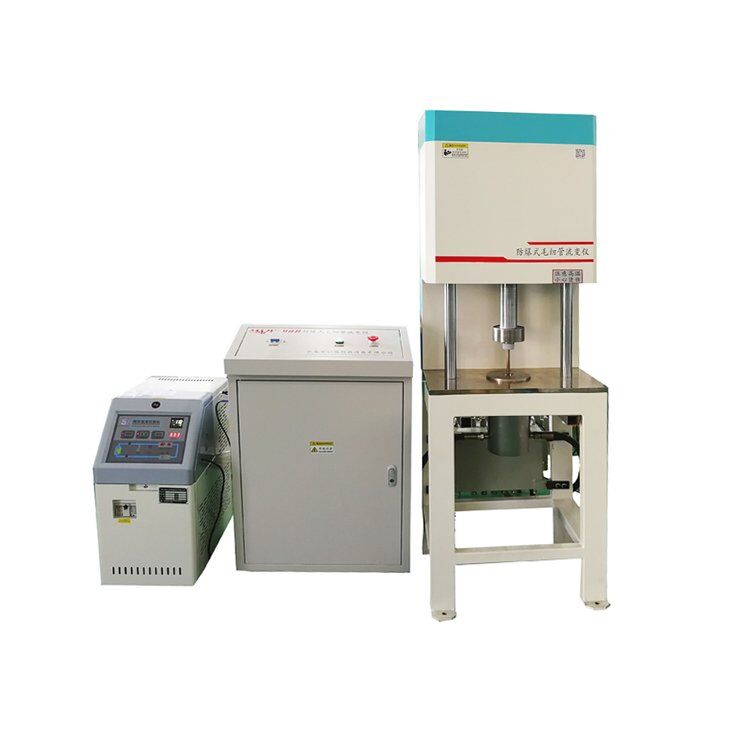

RT-722E Explosion-proof Capillary Rheometer

Additional information

This rheometer is a computer-controlled intelligent constant pressure capillary rheometer, through the computer to determine the role of various pressures of various specifications of the capillary tube at different heating rates, and different temperatures when the extrusion speed.
Due to the specificity of the specimen, the machine is heated by a water bath, and equipped with an explosion-proof design, man-machine operation is separated to increase the safety of the testers.
The machine is controlled by a computer to record the extrusion speed, pressure and heating temperature, automatically processed into the viscosity number, and draw curves and print the complete report form.

Product Details:

Capillary Rheometer

Temperature range: room temperature~90℃±1℃
Temperature rise rate: 0.5 ~ 6 ℃ / min, continuously adjustable, and can be rapid temperature rise
Temperature accuracy: computer display <±0.5℃, resolution: 0.1℃.

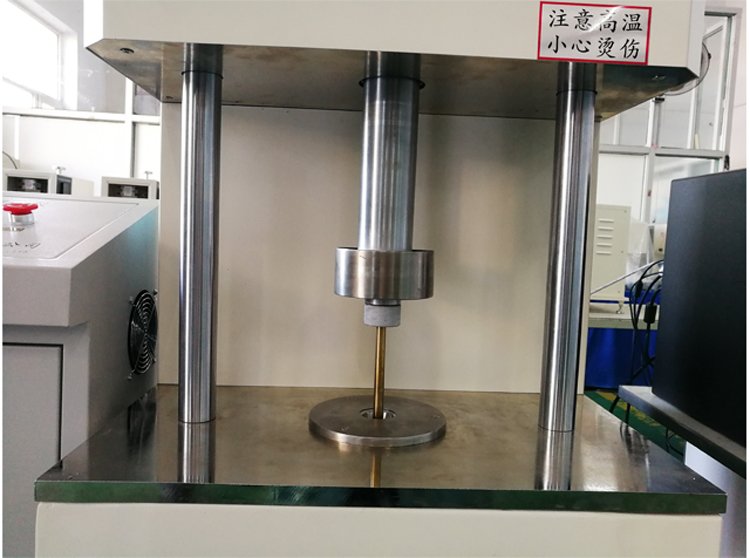

Plug diameter: designed according to user requirements, plug rod can be steel or copper, plug to be covered with a layer of polyethylene plastic to prevent hard contact.
Total weight of specimen: 15g
Special gravity of specimen: 1.34g/cm3
Area of plug head: 1cm2
Pressure range: 1-50MPa±1%
Discharge port (D*L):(mm×mm) ф1.5×5; ф1.5×10; ф1.5×20; ф1.5×40;

ф2.0×5; ф2.0×10; ф2.0×20; ф2.0×40;

ф3.0×5; ф3.0×10; ф3.0×20; ф3.0×40

Material of outlet: tungsten carbide
Rated load value of sensor: 500kg
Load measurement precision: ±1%
Load resolution: 20000 yards
Computer speed setting: 100mm/min – 0.001 mm/min
Displacement measurement accuracy: ± 0.5%
Power supply: 220V, 50Hz, power <400W



Capillary Rheometer

Product Features

1、One set of mainframe

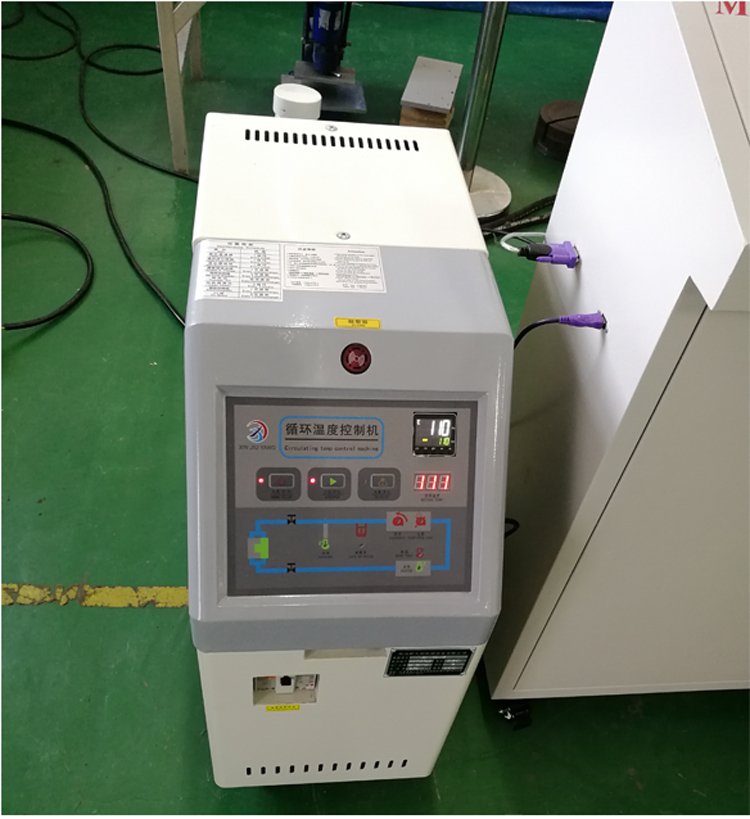

2, Japan’s high-precision temperature control table with heating rate 1 piece

3, Japan Fuji servo controller 1

4, Japan Fuji motor 1

5、High-precision digital display scale 1 piece

6、High precision sensor 1pc

7、12 pcs of discharge ports

8, plug rod with a random, another two additional.

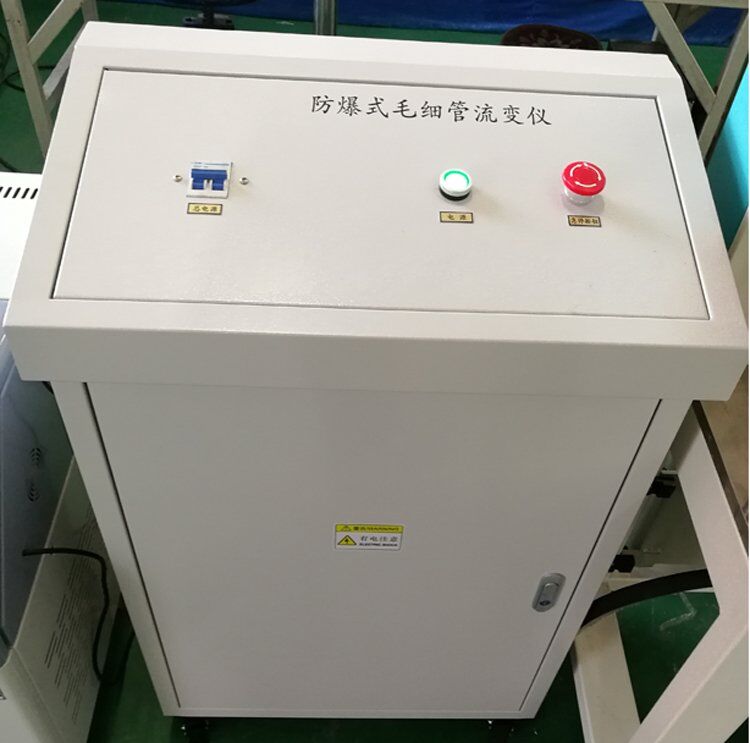

9、One control cabinet

10、Brand computer

11、Color inkjet printer

12, a set of special test software

Capillary Rheometer
