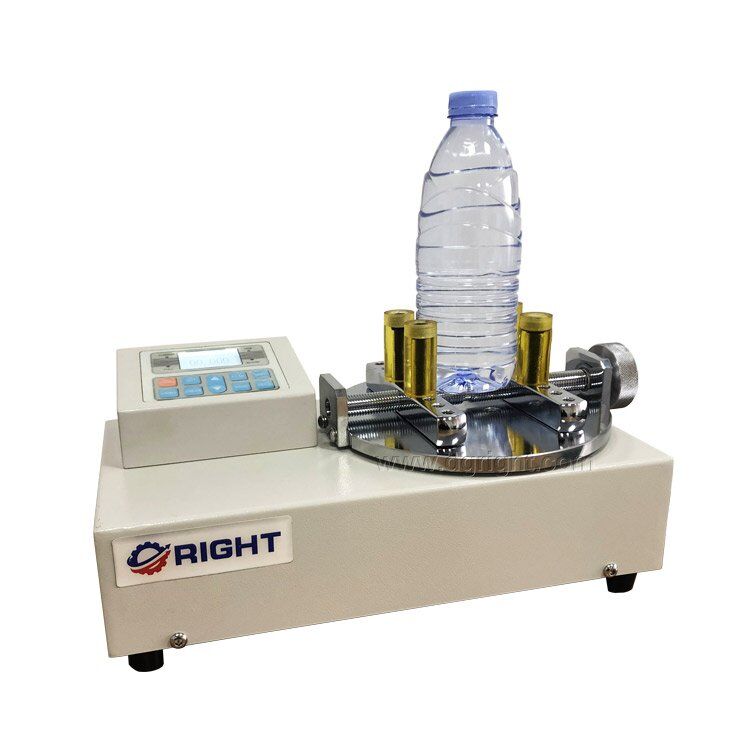

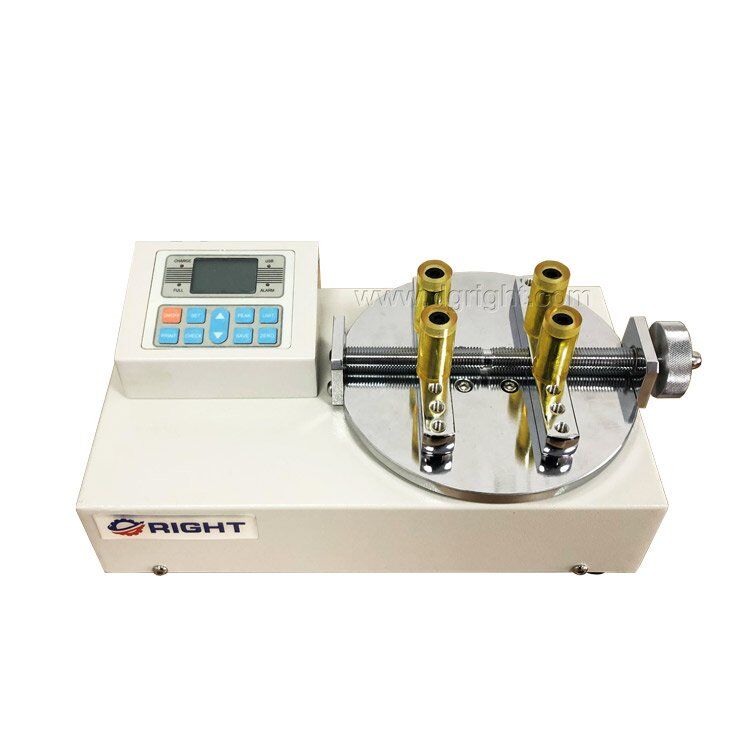

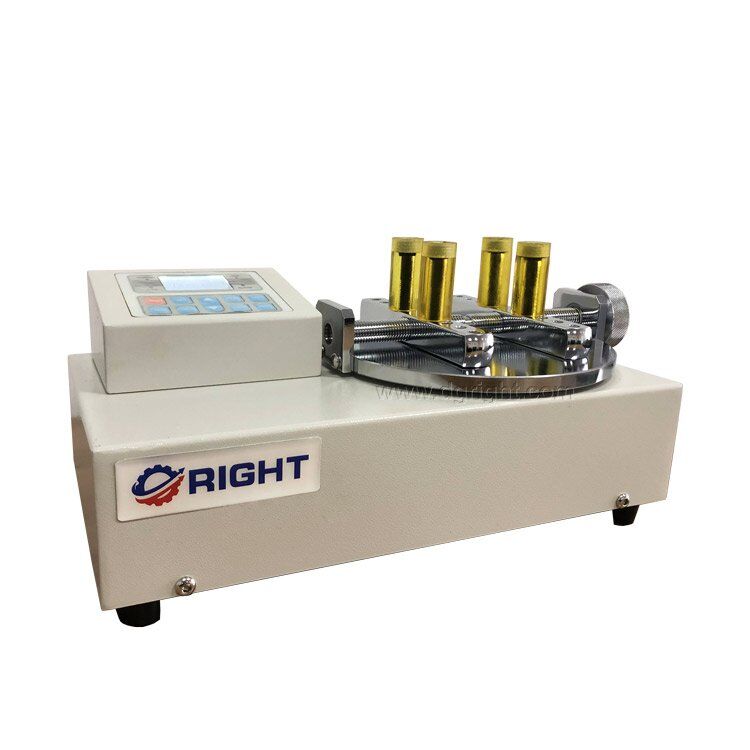

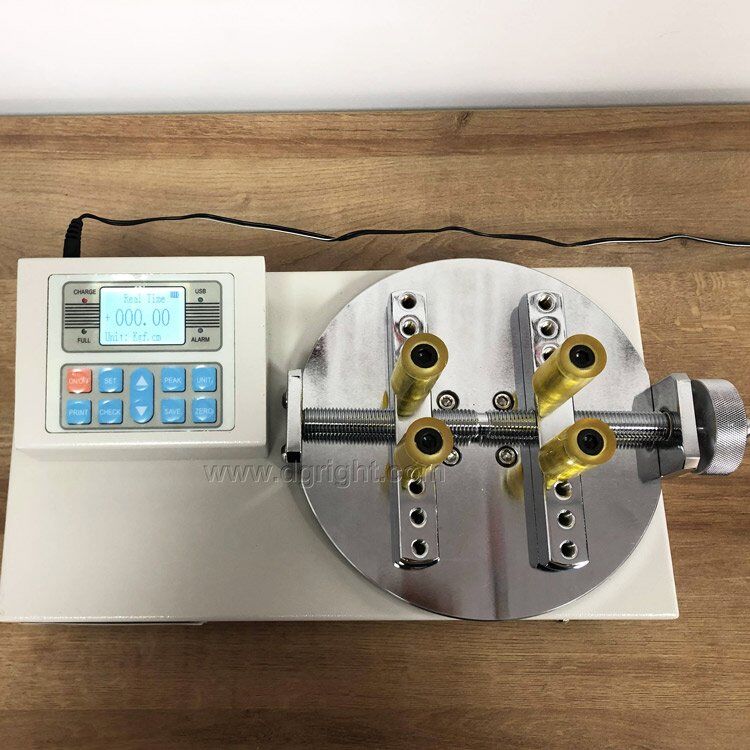

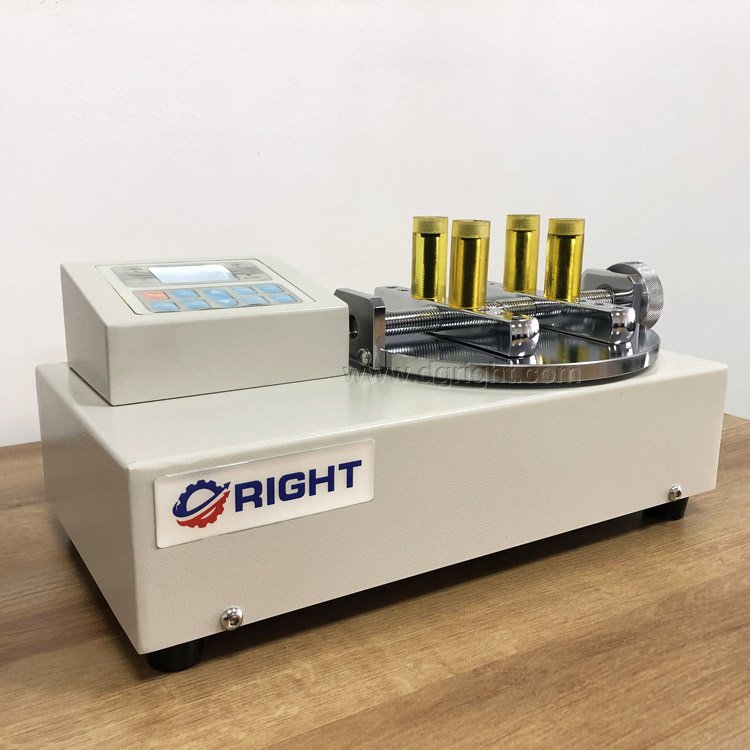

Cap torque measuring instrument is one of intelligent multi-function instruction equipment for testing or inspecting many kinds of caps with torque. It specially is used on testing the torque of cap or lamb cap. It is widely used on product control system, with the function of easy to operate, high accuracy and economy.
1. High precision, high resolution, quick sampling speed, full-screen display.
2. Adopting high precision torque sensor, with torque direction display.
3. Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.

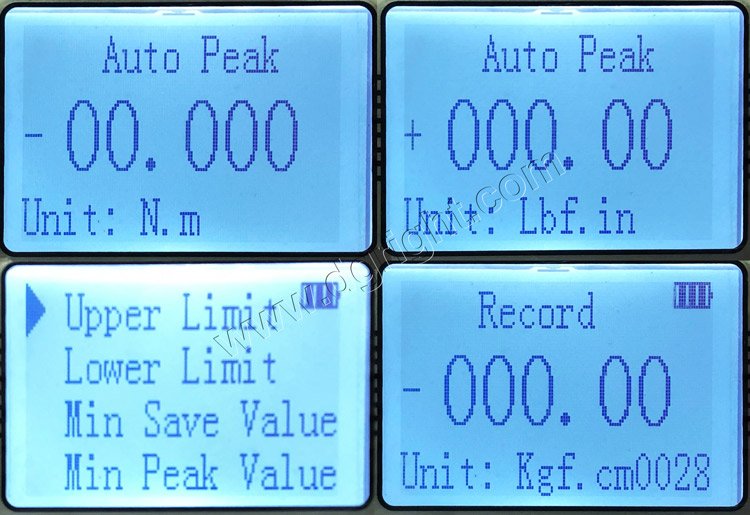

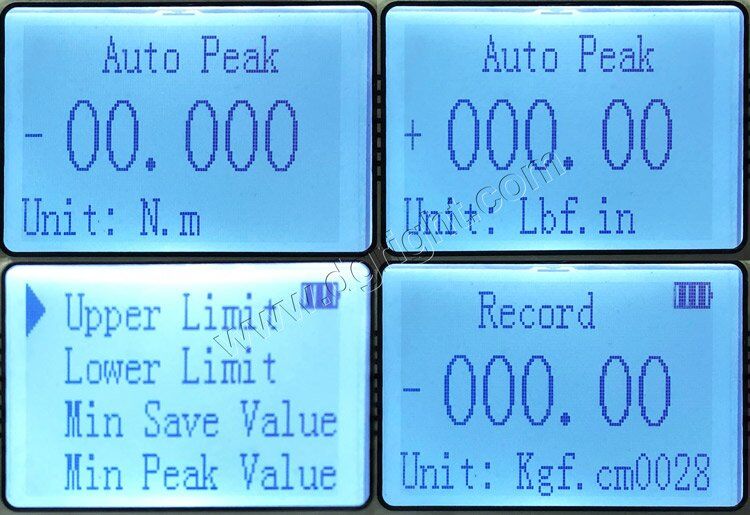

4. Three units can be switched each other (N·m,kgf·cm,Ib·in).
5. Real-time, peak, automatic peak three models of optional switch.
6. Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
7. Peak holding, remove automatically function, remove time to set freely.
8. Large storage, can save 99 groups of test data.
9. Without automatic shutdown function, time can be set freely.
Type Index | With printer | 719-1 | 719-2 | 719-3 | 719-5 | 719-10 | 719-20 | ||
No printer | 719-N1 | 719-N2 | 719-N3 | 719-N5 | 719-N10 | 719-N20 | |||
Measuring range / Division value | N·m | 1.0000/ 0.0001 | 2.0000/ 0.0001 | 3.0000/ 0.0001 | 5.0000/ 0.0001 | 10.000/ 0.001 | 20.000/ 0.001 | ||
Kg·cm | 10.200/ 0.001 | 20.400/ 0.001 | 30.600/ 0.001 | 51.000/ 0.001 | 102.00/ 0.01 | 204.00/ 0.01 | |||
Ib·in | 8.850/ 0.001 | 17.700/ 0.001 | 26.550/ 0.001 | 44.250/ 0.001 | 88.50/ 0.01 | 177.00/ 0.01 | |||
Precision | ±0.5% | ||||||||
Peak Value Sampling Frequency | 2000 HZ | ||||||||
Power | 8.4V 1.2VX7 Ni-MH Battery group | ||||||||
Charging Time | 4~6 Hours | ||||||||
Continuous using time of battery | About 10 Hours | ||||||||
Battery life | ≥300 times | ||||||||
Size | 400mm×200mm×200mm | ||||||||
Net Weight | 12KG | ||||||||
Power adapter | Input:AC 220V 50HZ Output:DC 10V 300mA |
