Glow wire testing is an electrical safety test designed to evaluate the flame resistant properties of plastic materials used in electrical devices. Its purpose is to protect against the risk of fire from overheated or electrically energised parts which may cause the plastic material to ignite.

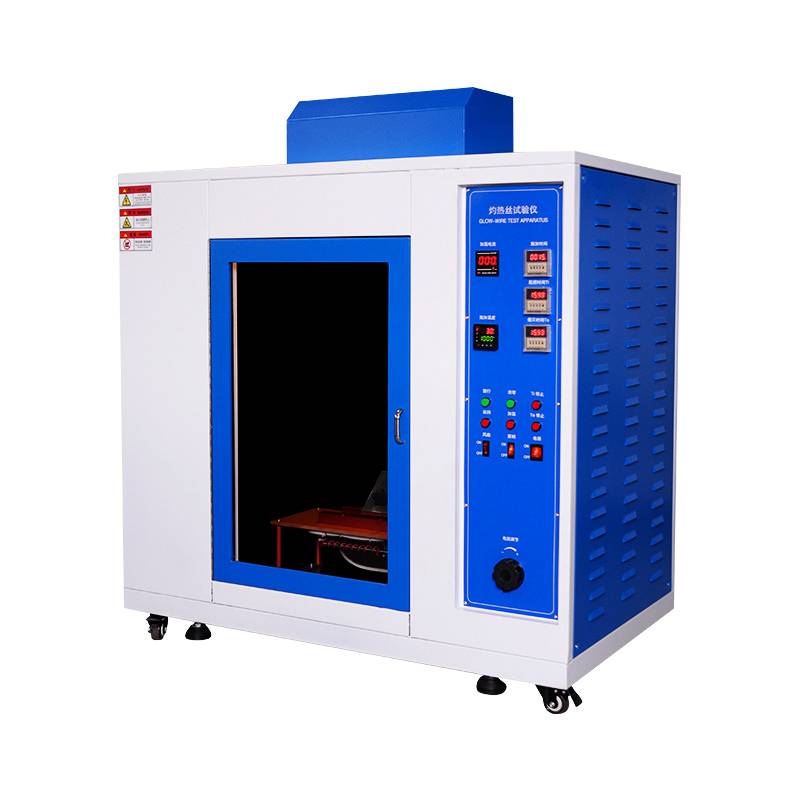

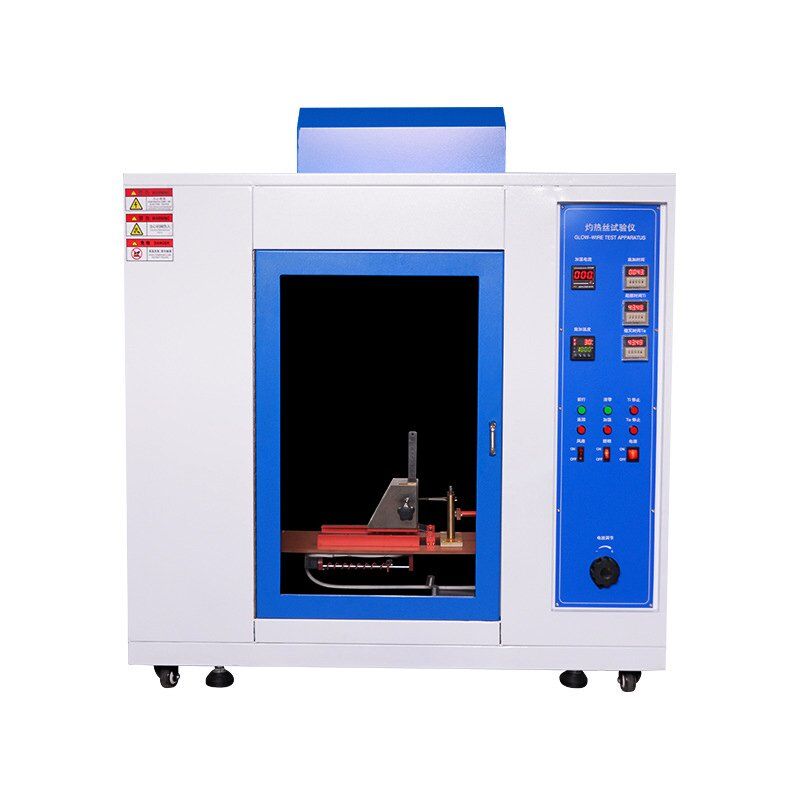

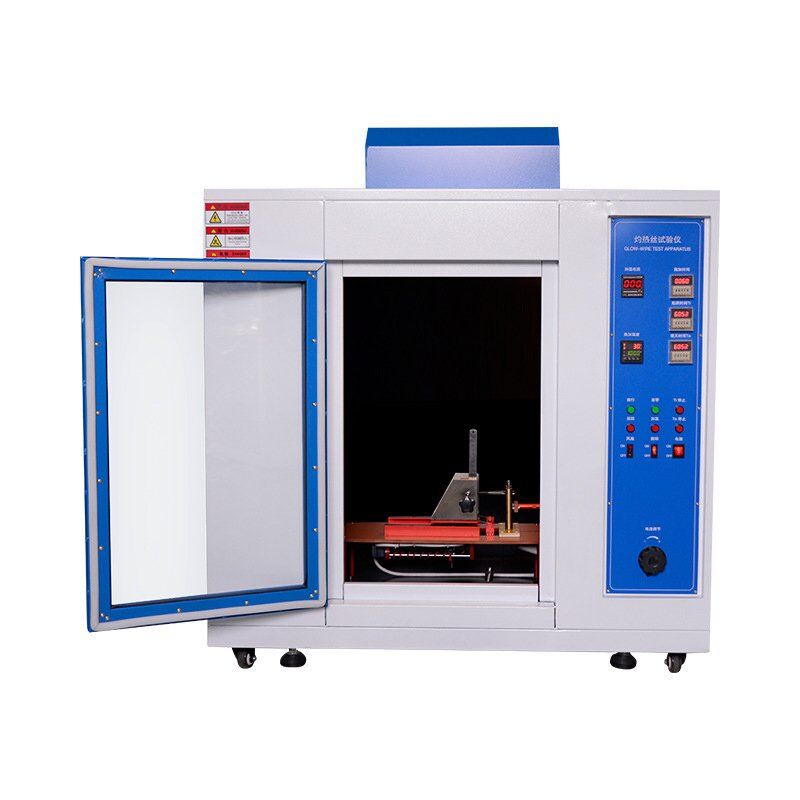

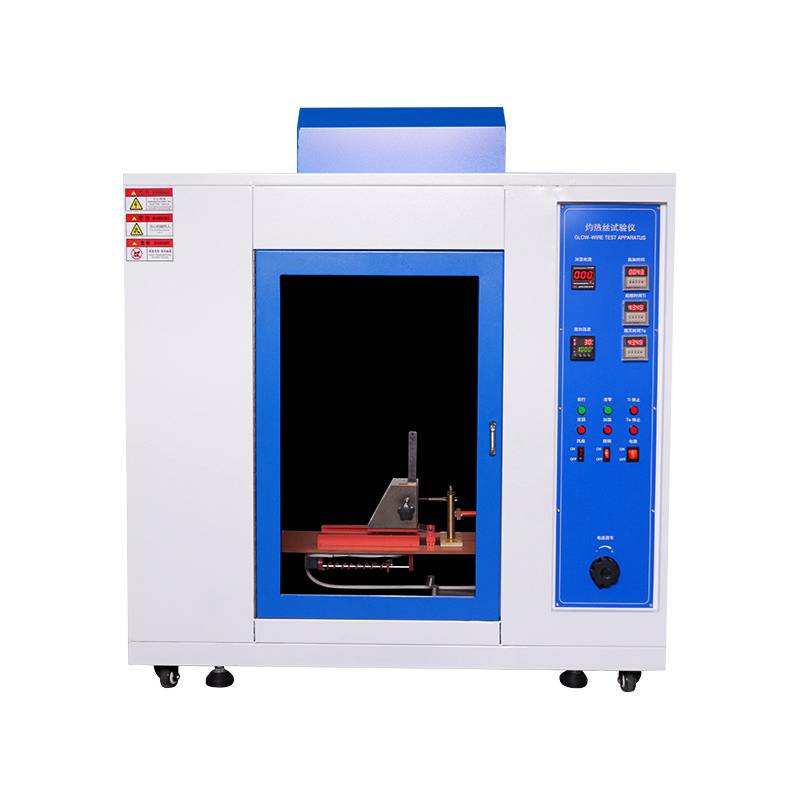

Plastics Glow Wire Flammability Tester simulates a thermal stress situation to assess the safety of plastic materials in electrical products.
IEC60695/UL 746A
Doing flammability test for electrical and electronic products, household appliances ,luminaires,solid insulating materials and other solid combustible materials to find the ignition temperature (GWIT), flammability and flammability index (GWFI) of the materials.
non-flame ignition;automation control systems;digital display.
Heating up the glow wire loop by large current to the testing temperature 550C ~ 960C for 1min, then to heat the sample with 1N force for 30sec. To evaluate the flame resistant properties of plastic materials used in electrical devices by observing whether the sample is ignited and how long the burning lasts.
Glow wire temperature | 500 ~ 1000 ℃ ± 2 ℃adjustable |
Heating time | 0-999.9s ± 0.1s,adjustable (normally choose to 30s) |
Ignition timer | 0-999.9s ± 0.1s, automatically records, manually suspended |
Thermocouple | 0.5mm sheathed K-type thermocouple. |
Flame extinguish time | 0-999.9s ± 0.1s, automatically records, manually suspended |
Glow wire | 4 mm nickel chromium wire. |
Hot depth | 7mm ± 0.5mm (to maintain the pressure of 1N ± 0.2N hot products into the test) |
Sample frame speed | about 14mm / s |
The pilot background | black background. |
The pilot process | automatic testing procedures, independent ventilation |
Reference | EC60695-2-10, UL746A |
Studio volume | 0.5 cubic |
Equipment size | 1000mm wide × 650mm deep × 1300mm high |
Power supply | AC220V ± 5%, 50Hz, 0.6KVA |
