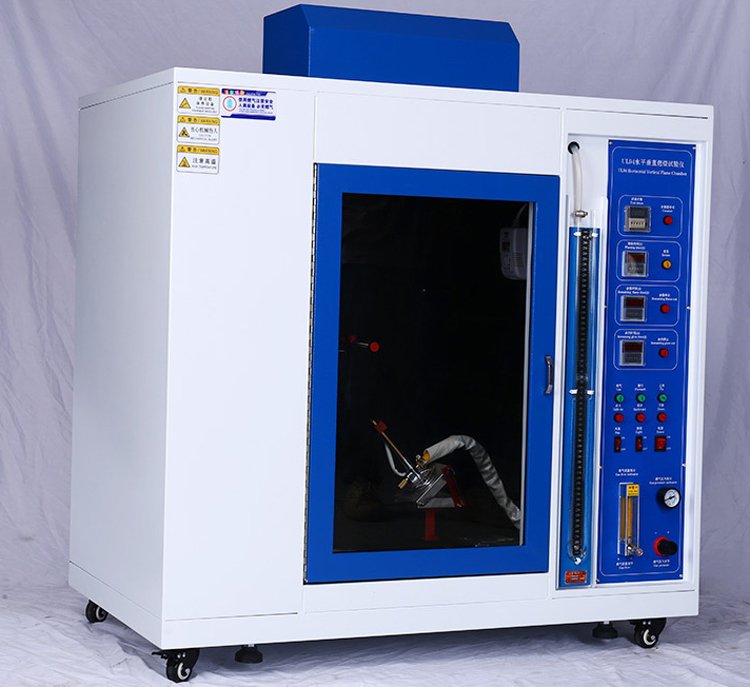

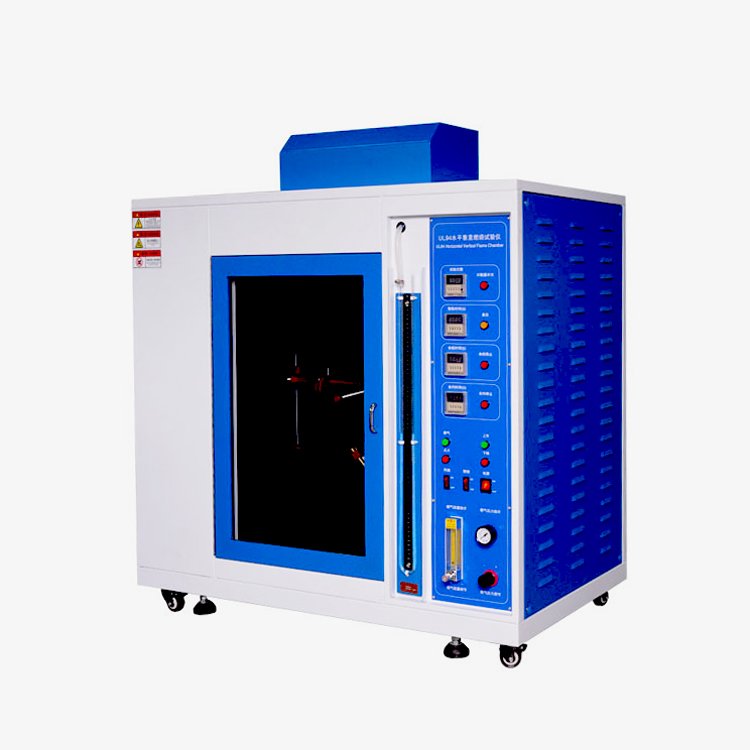

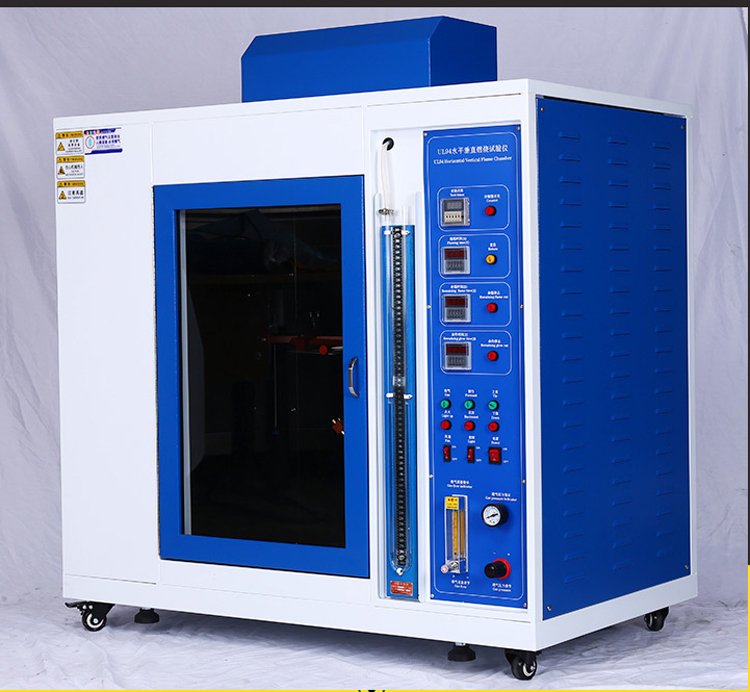

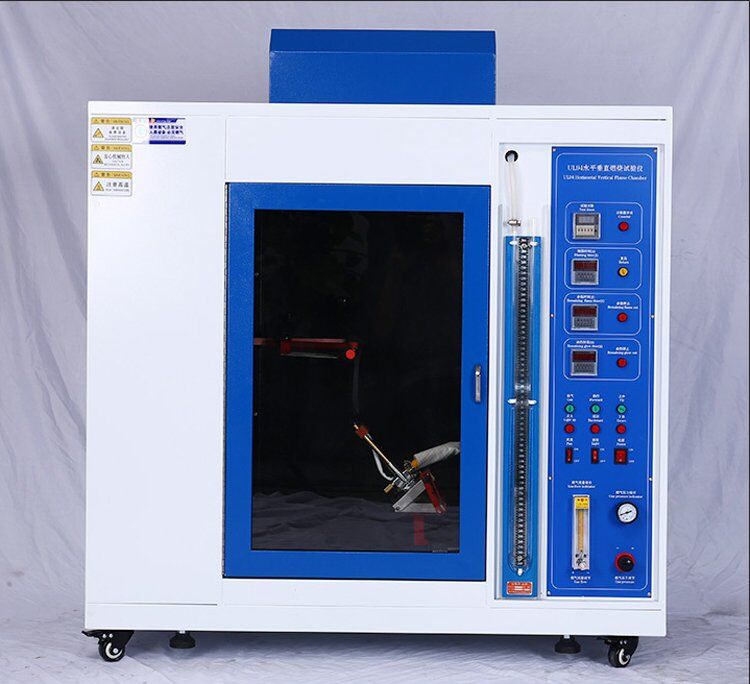

RT-710 UL94 Flammability Combustion Test Chamber For Plastic(Vertical and Horizontal flame)

RT-710 Flammability Combustion Test Chamber, Flame Retardant Test Equipment

This machine mainly used for plastic, rubber or film directly measured without burning combustion properties of plastics in the prescribed fire.



Product Details:

Product Description:

To determine the refractory fire rating. This test method is based on the GB / T 2408 standards

and UL standards, the Institute developed a flame retardant plastic, horizontal and vertical burning test machine

is mainly used for lighting, low voltage electrical appliances, household appliances, electrical, tools, instruments

and other equipment as well as research, production and quality control departments of electrical connectors

and other electrical and electronic plastic or rubber products and component parts, and also for insulation

materials, engineering plastics, fire blocking material type approval or other solid combustible materials industry

UL94 Plastic Flammability Combustion Test Chamber

Equipment Features:

1 burner electric control setting, automatic timing positioning and easy operation.

2, equipped with a high sensitivity combustible gas leak alarm, gas leakage automatic alarm;

3, the combustion burner can jog up or down to adjust the distance between the torch and the random sample;

4, with a special exhaust system, exhaust gas discharged automatically;

5, a total of two sets of horizontal and vertical test sample clip;

6, the horizontal and vertical test switch, easy to convert the horizontal and vertical test test operation

UL94 Plastic Flammability Combustion Test Chamber

To meet the standard:

UL94-2006,   IEC60695-11-4,    IEC60695-11-3, GB / T5169-2008, UL 94-2006, UL1581 \ UL13 \ UL444 \ UL1655 \ CAS ft-1, IEC 60695-11-4, IEC 60695-11-3, GB/ t5169-2008etc.



Technical parameter:

Special model

Model

RT-710A

RT-710B

Standard

UL94, IEC60695-11.-4/10

UL94,  IEC60695-11-3/20

Flame height

20±1mm

40±2mm

Gas flow

105±10ml/min

965±30ml/min

Normal datas

Inncer chamber size

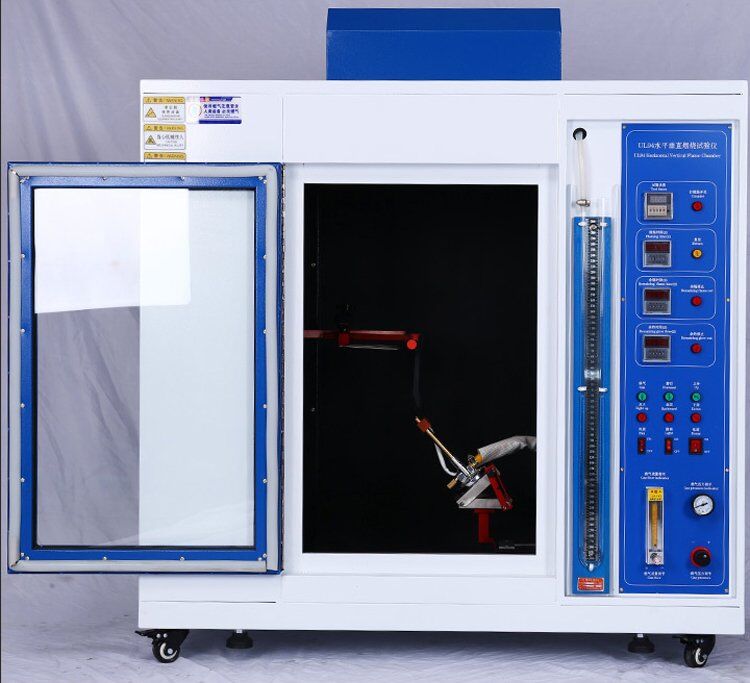

≥ 0.5m3, with glass observation door

Flame application time

0 ~ 999.9 seconds, can be set

Afterglow time

0 ~ 999.9 seconds, can be set

Remaining burning time

0 ~ 999.9 seconds, can be set

Burning angle:

20 °, 45 ° and 90 °(0°) adjustable

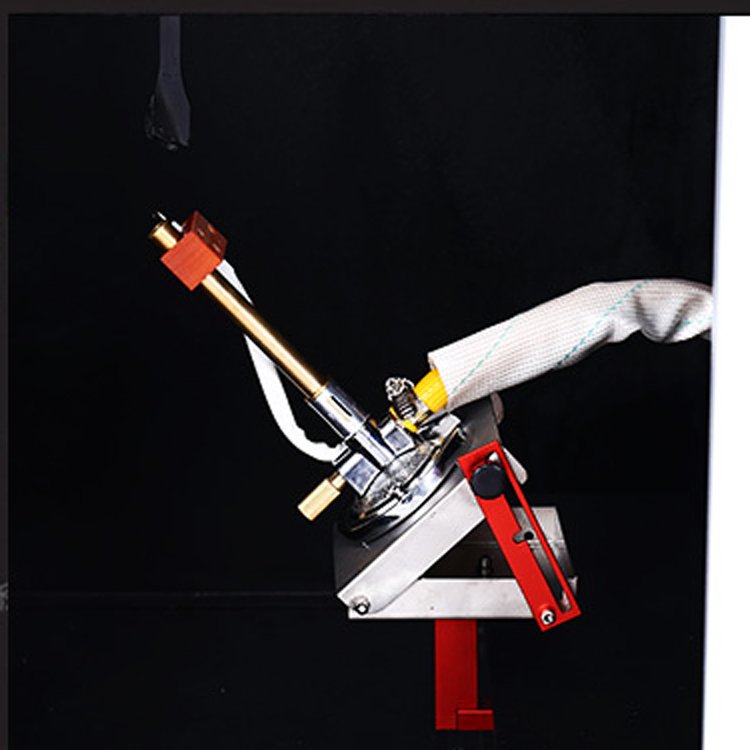

Burner size

inner diameter Ø 9.5mm,  effective length 100mm with air condition hole

Flame height

20mm~175mm adjustable based on test standards

Gas flow

Normally 105ml/min

Flow accuracy

±1%

Alignment method:

the motor drives the front and back to align the spline

Control system

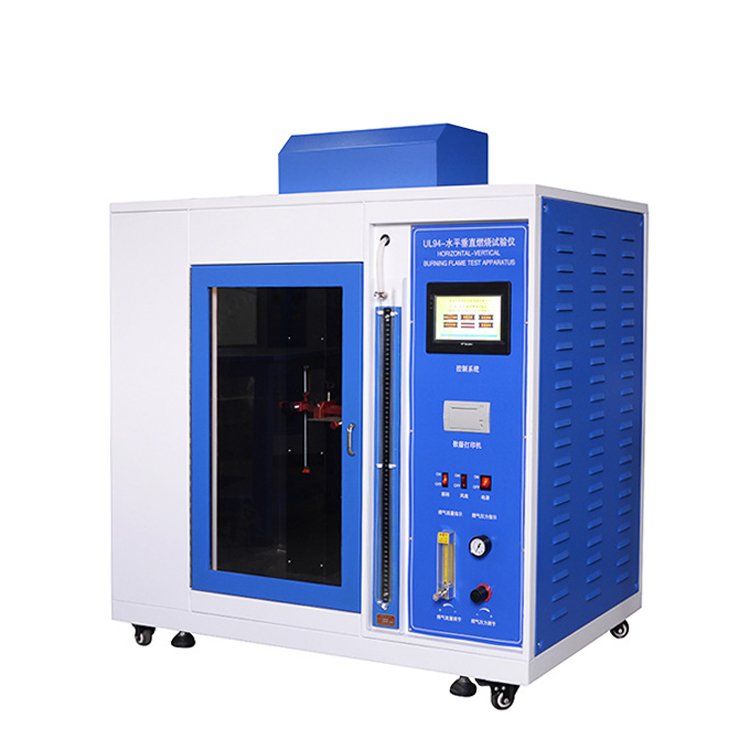

PLC + digital dispaly / touch screen + thermal printer (print test results)

Gas type

≥ 98% methane /37MJ/m3 natural gas or coal gal

Power supply

220V, 50HZ or customized





UL94 Plastic Flammability Combustion Test Chamber
