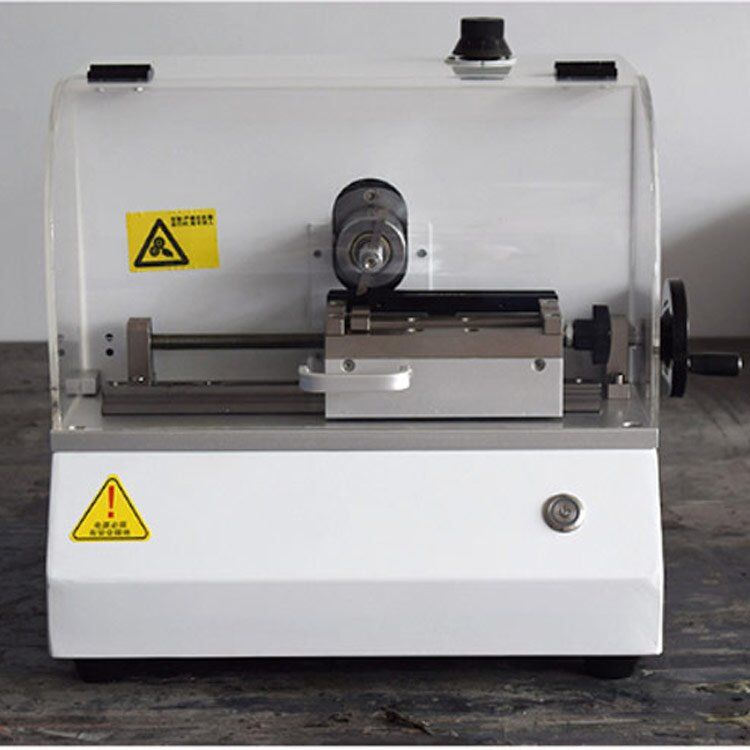

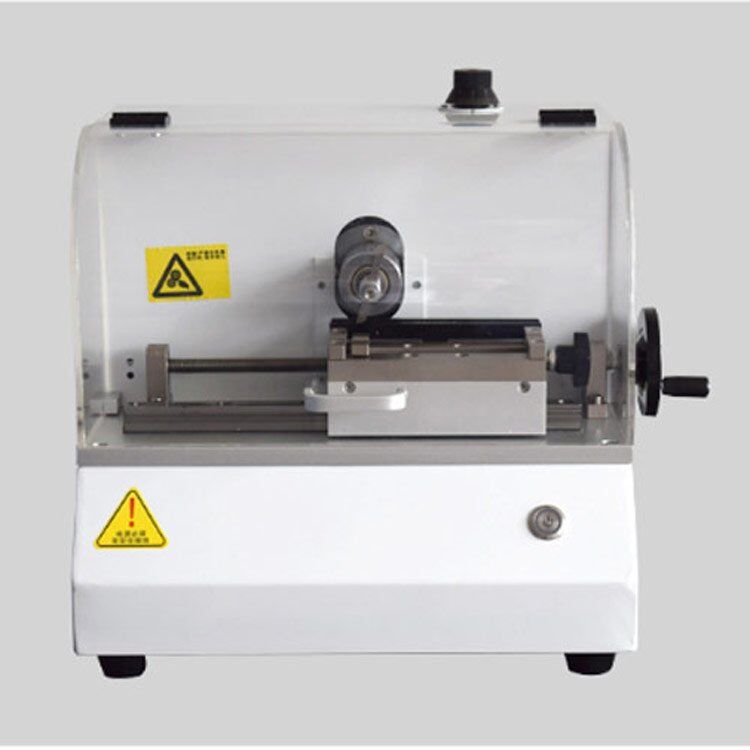

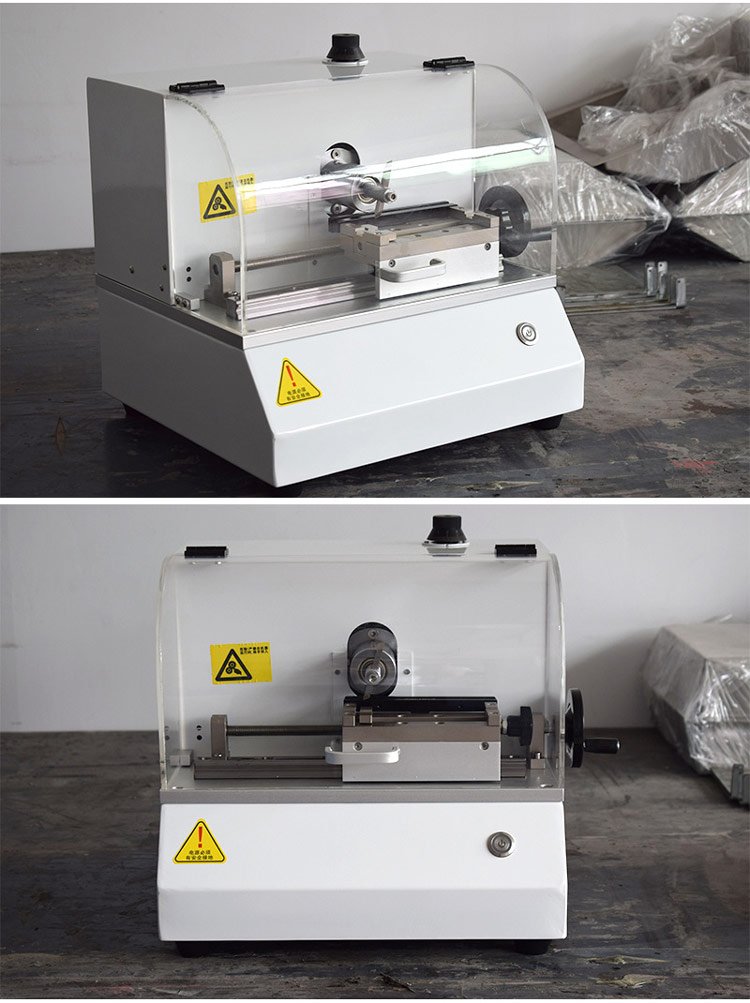

RT-709 Automatic Sample V Notch Cutting Cutter Machine for Plastic
RT-709 Automatic Sample V Notch Cutting Cutter Machine for Plastic

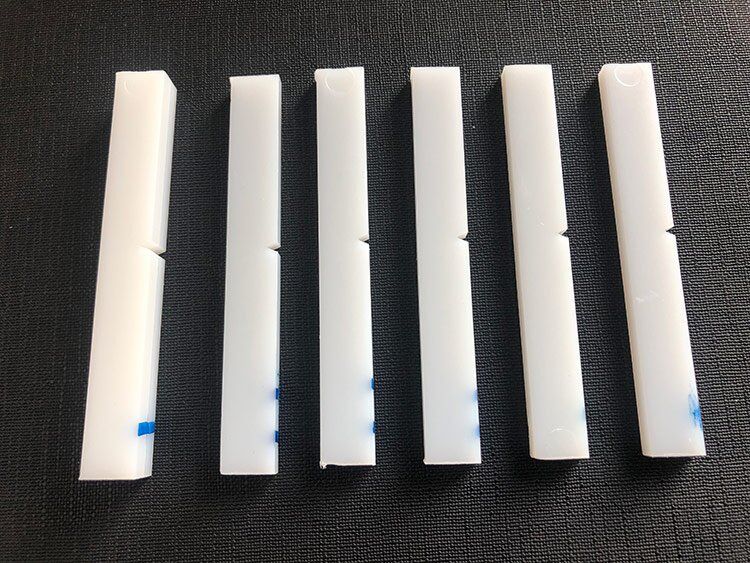

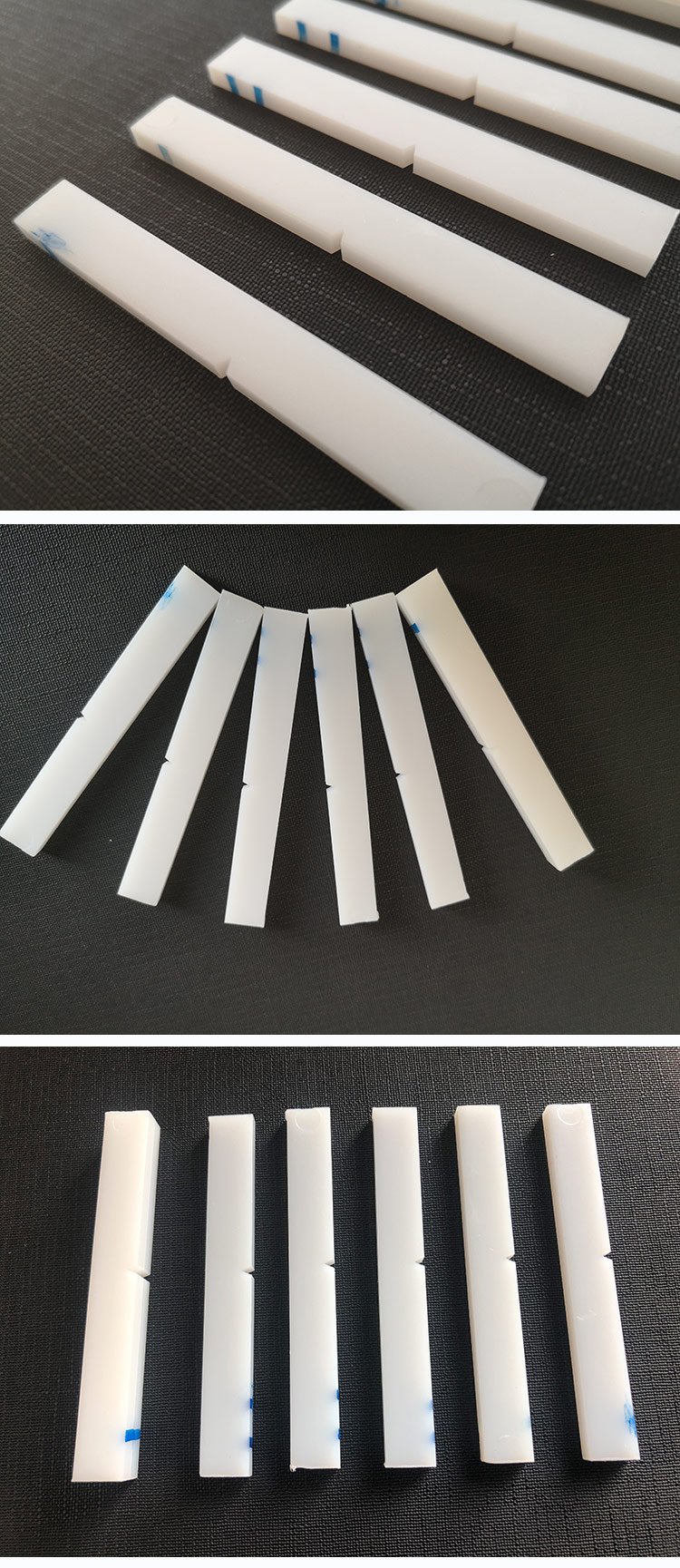

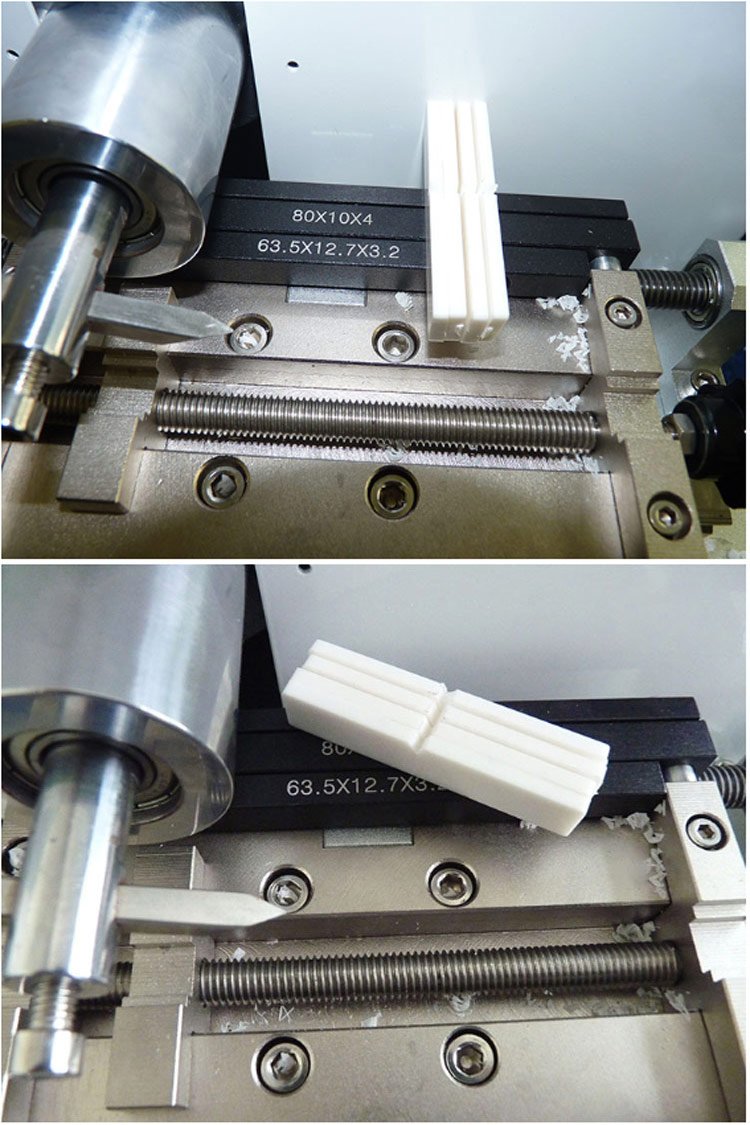

The machine is for Izod Charpy impact testing machine to prepare non-metallic material impact toughness tests of notched specimens used in sample preparation equipment. Easy operation, fast and accurate, can be a punching 20 samples one time.

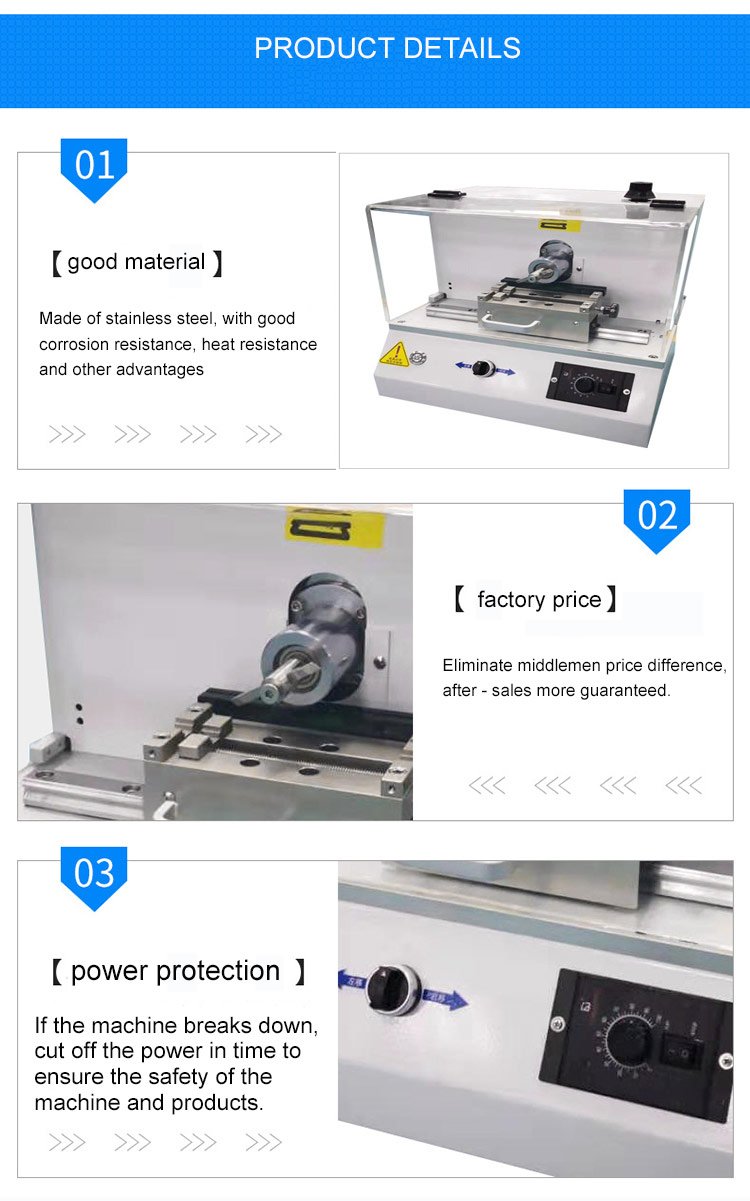

Product Details：

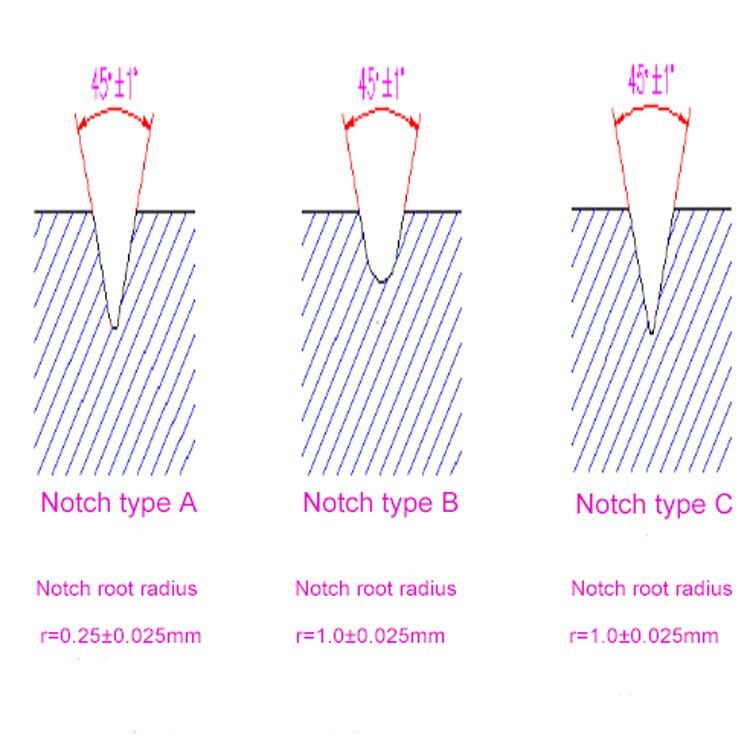

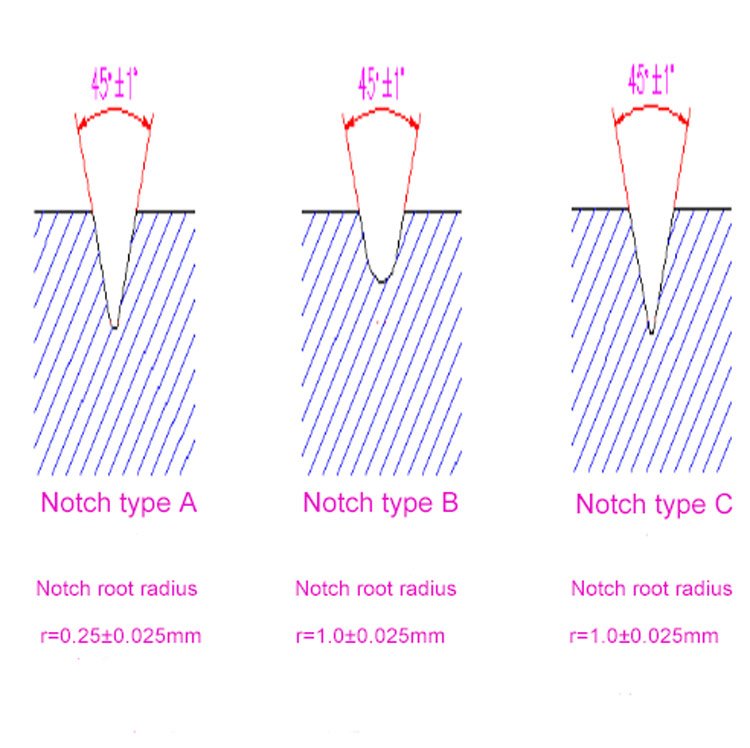

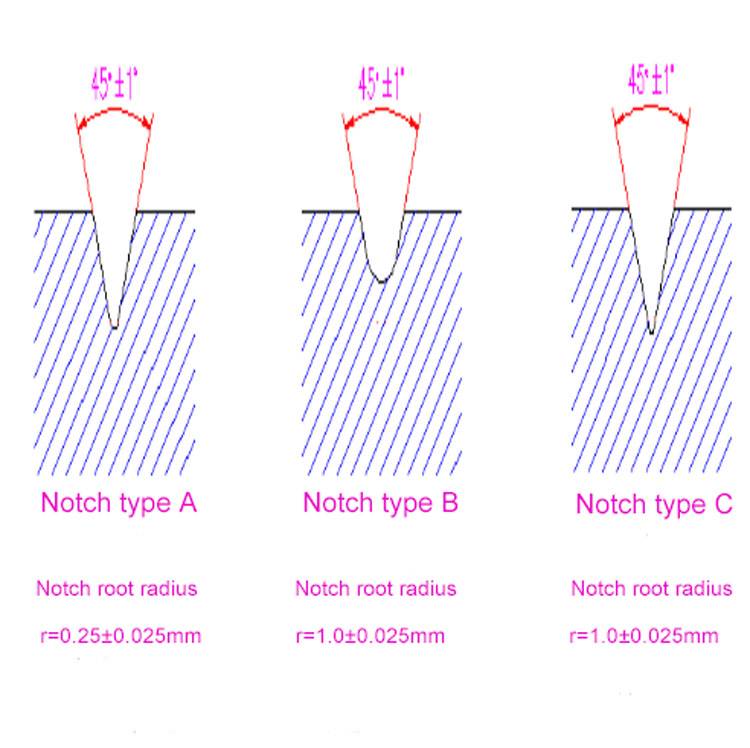

Manual plastic notch sampler tool parameters:
ØA type tool: 45±1 degree r=0.25±0.025
ØB type tool: 45±1 r=1.0±0.025
ØC1 type cutter: 45±1 r=0.1±0.02
ØC2 type cutter: thickness 1=2±0.1 r<=0.1
ØC3 type cutter: thickness 2=0.8±0.1 r=0.2±0.05
Technical parameter:

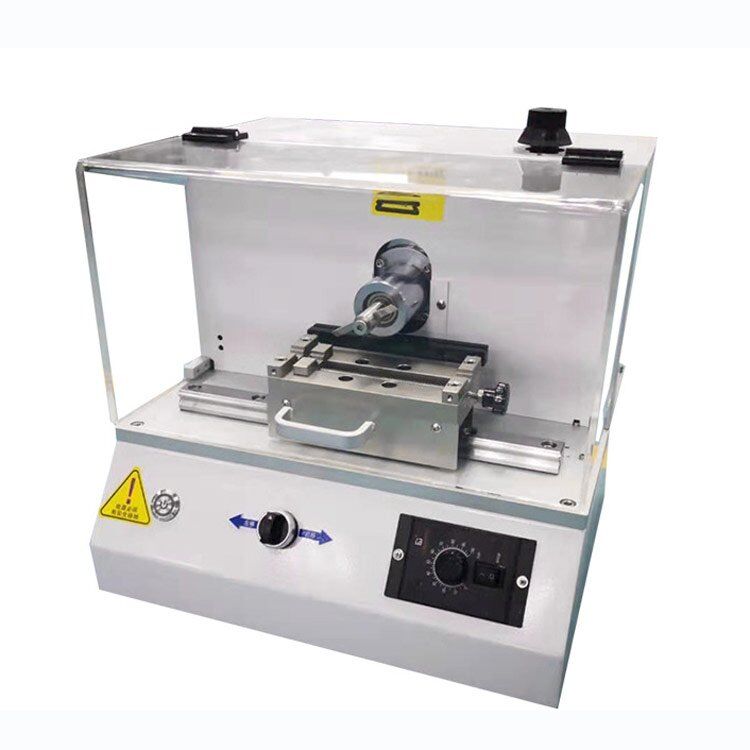

| Model | RT-709B Fully Auto Impact Gap sample cutting machine |
| Operation Travel | ≤90mm |
| Feed velocity | 30mm /Min |
| Capacity | 100pcs/10 Min |
| Feed rate | 0~2.5mm(optional) |
| Feed travel | 10mm |
| Notch type | v-notch (Izod or Charpy) |
| Outter size | 450x390x360mm(L*W*H) |
| Power supply | 220V, Single-phase three-wire |
Applicable industry:
For research institutes, universities, non-metallic materials, manufacturers and other laboratory produced using notched specimens.
To meet the standard:
Consistent with ISO179—1993,ISO180—1993and GB/T1043—93,GB/T1843—1996 standards.
