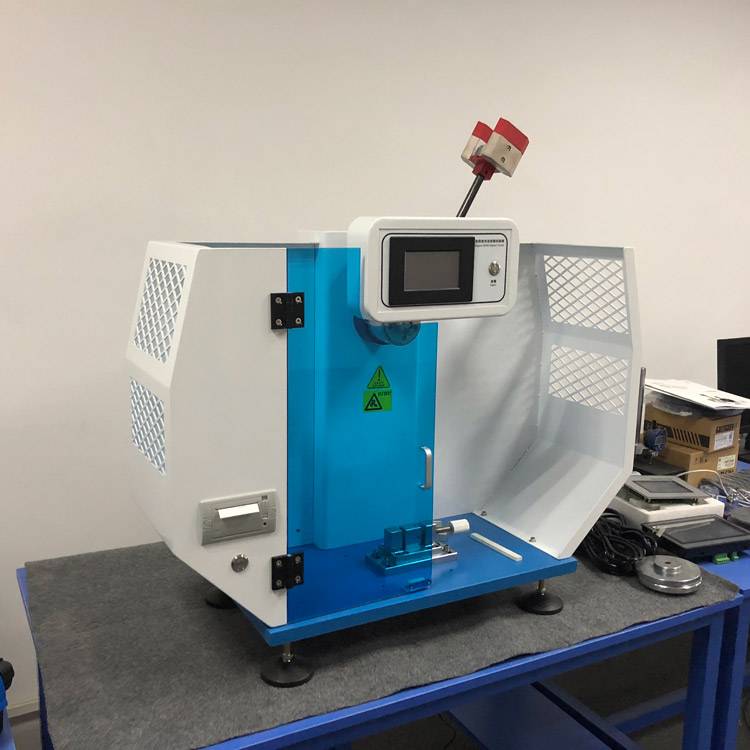

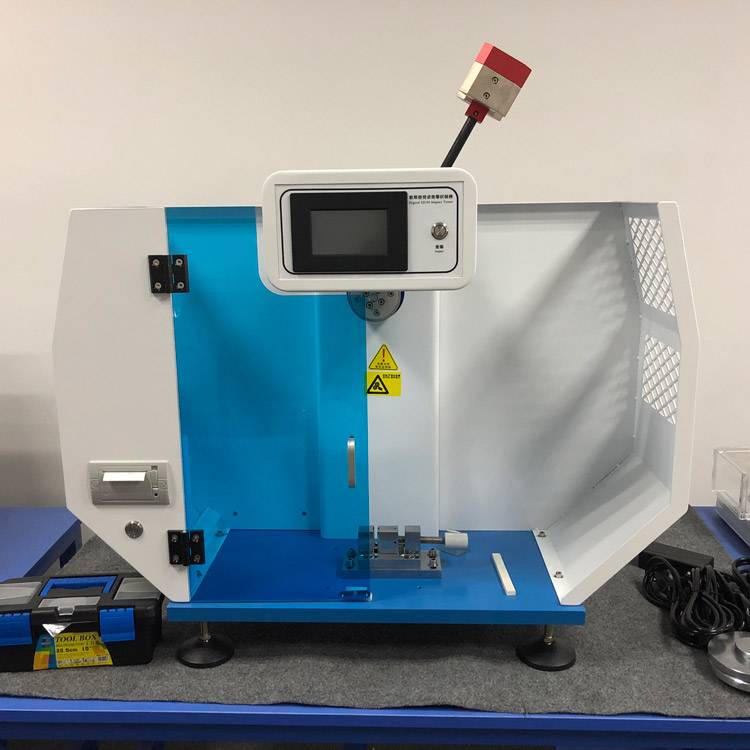

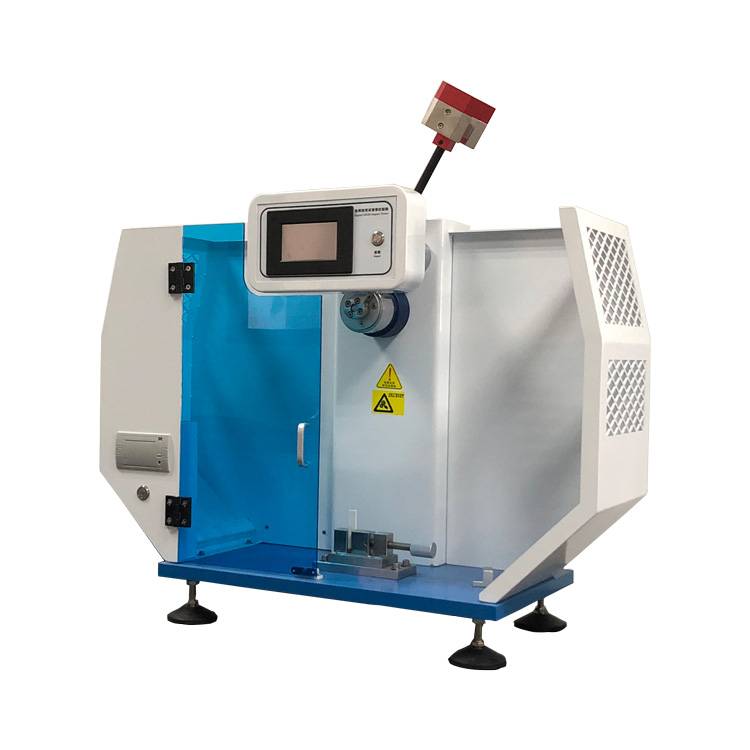

RT-702B Digital Izod Impact Tester
RT-702B Digital Izod Impact Tester
This impact testing machine is used to test the nonmetal materials’ impact toughness for the hard thermoplastic, thermosetting plastic, filling and fiber reinforced plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, electrical insulation materials, as well as these plastics’ plate, including laminated plates. This tester has a wide range of measurement, single dial which is clear, has simple structure, convenient for operation, beautiful outward appearance.
Product Details：
Corresponding standard:
JB/T8762、GB/T1843、ISO180,etc
Applicable industry:
It is the ideal laboratory test equipment for the he chemical industry, research institution, universities, quality inspection departments, professional manufacturers.
Technical parameter:
| Item | RT-702B-5.5 | RT-702B-22 |
| Impact velocity | 3.5 m／s | |
| Pendulum energy | 1J、2.75J、5.5J standard pendulum 1 pc | 11J、22J standard pendulum 1 pc |
| Pendulum angle | 150° | |
| Cutting edge radius | R=0.8±0.2mm | |
| Distance above the blade to jaw | 22±0.2mm | |
| Impact blade angle | 75°±l° | |
| Impact energy loss | 2.75J、5.5J：1% | 0.5% |
| Pendulum center to center distance of the sample | 322 mm | |
