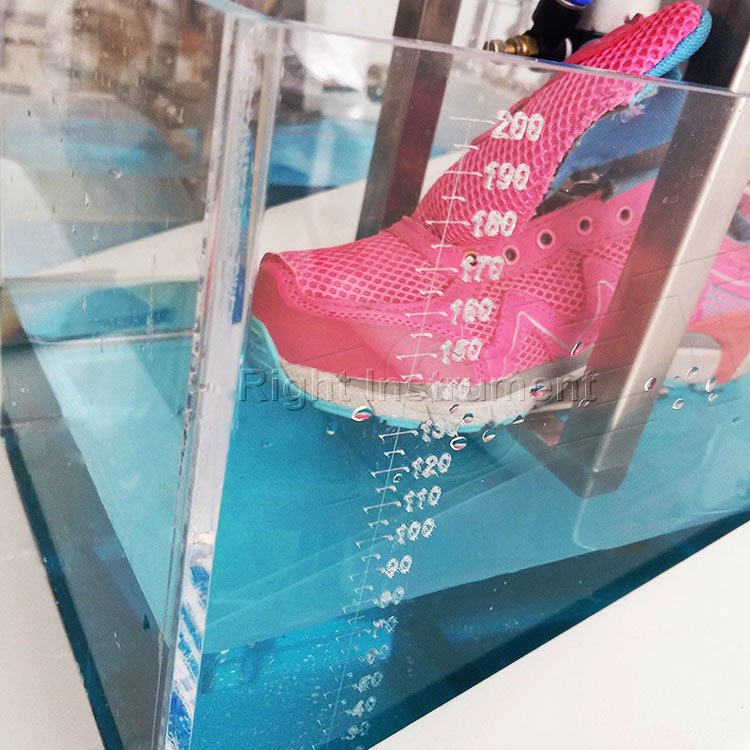

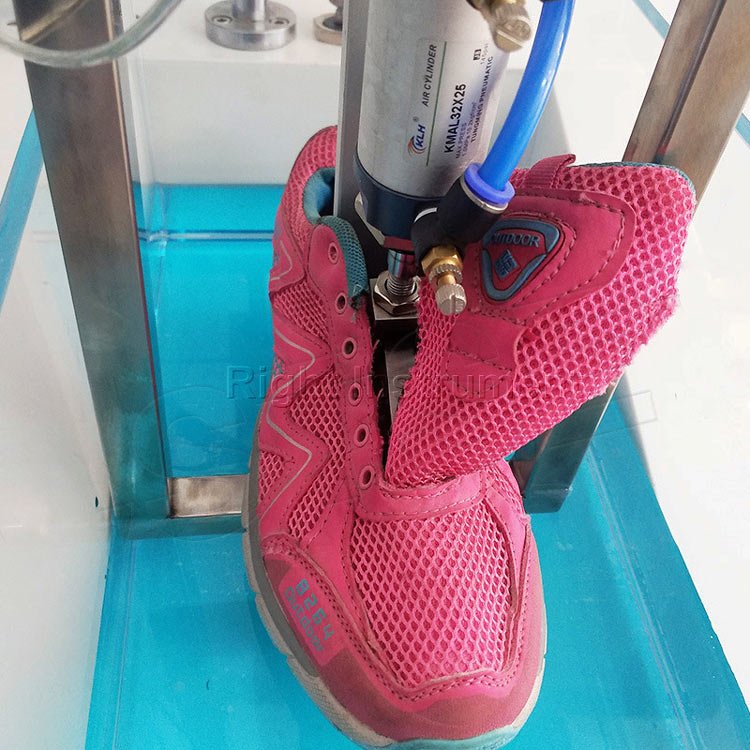

It is suit for all types of dynamic water test shoes, A certain amount of load in the box of colored water, and then the sample is mounted on the test machine test fixture, bent at an angle and speed of the toe portion of the shoe to test the analogy of people foot shoes walking state to determine the waterproof shoes.

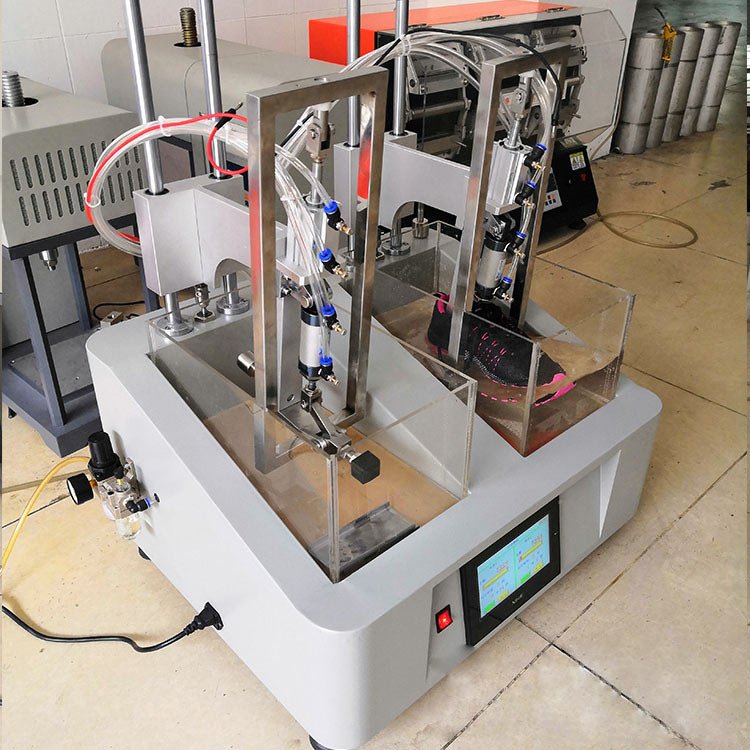

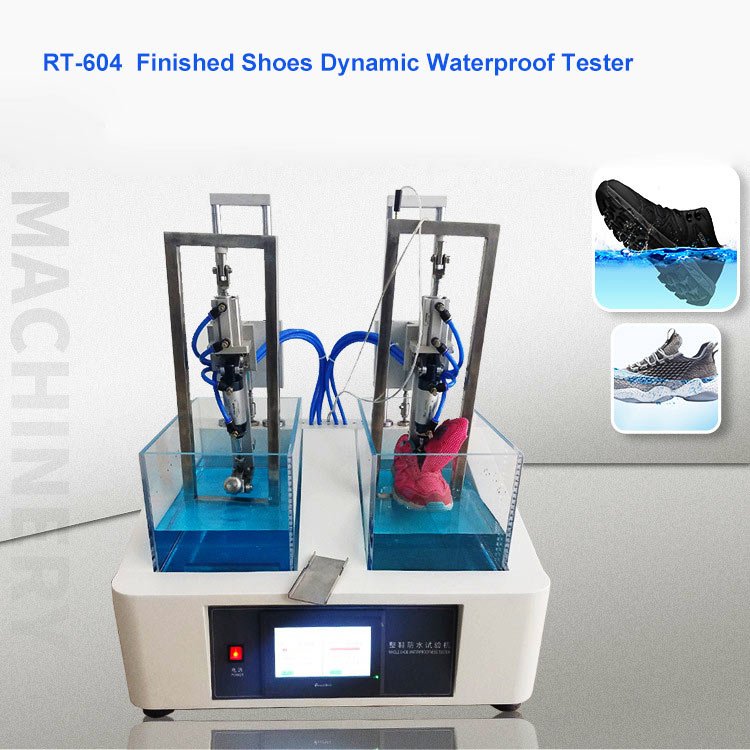

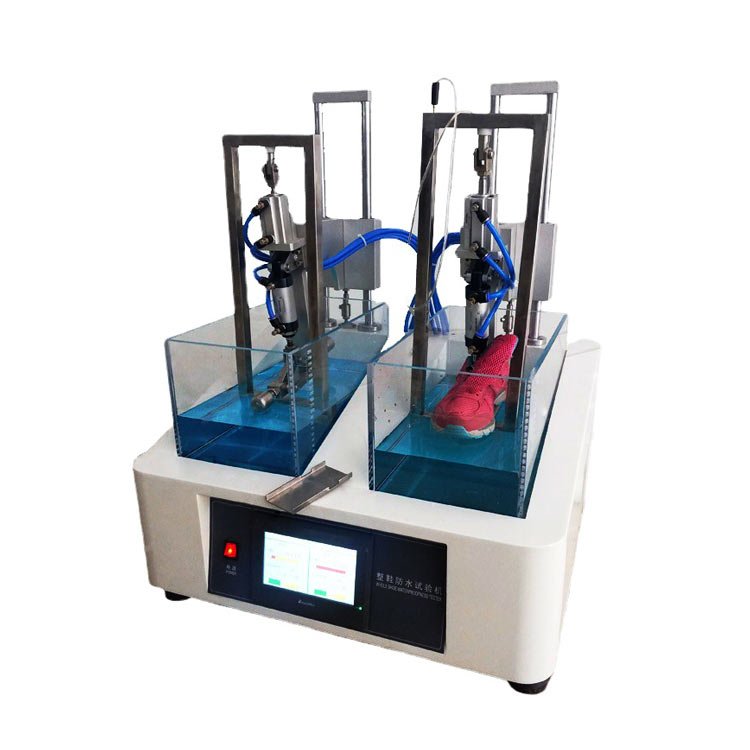

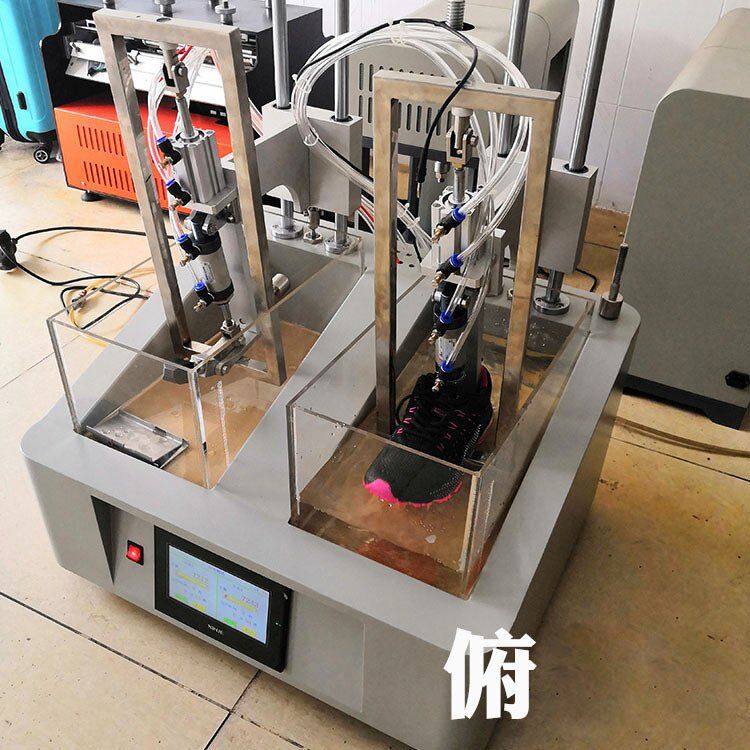

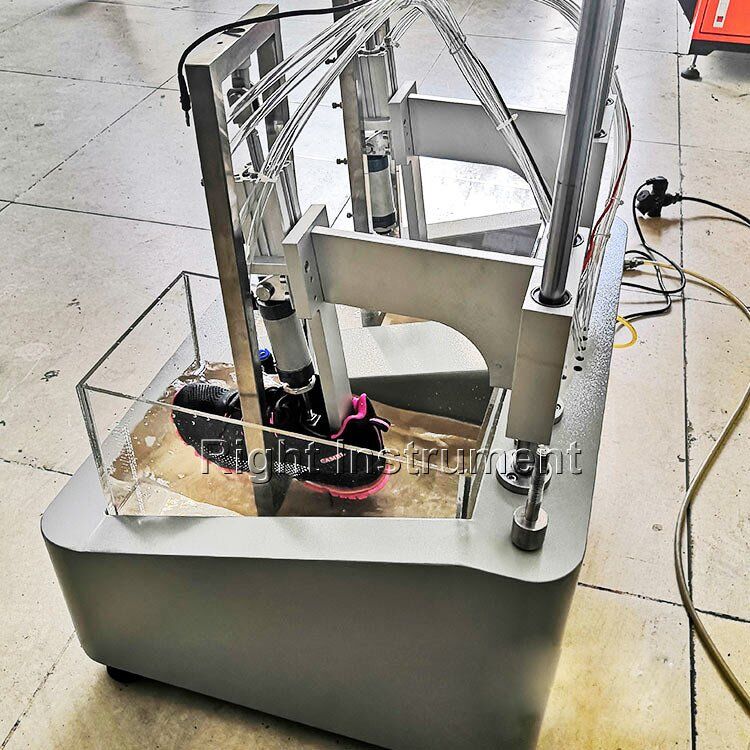

Simulate the environment that the shoes is bended by people walking with water, From that to test water-resistance of finished-shoes when the shoes is bending. the finished shoes installed on the testing machine and make it bend. the counter on the panel will immediately stop counting when the water to seep inside of shoe,, and shows that the number of bend. Testing methods are divided into regularly flooded bending or bending in water. Namely is a static test or dynamic test, static test is the impregnation, the dynamic test simulate the exercise of walking or running to test its waterproof function, it can automatically shut down as sensing shoes inside flooding , or reach the set number. There are two kinds methods. one is certain time in the water ,the other is bending in the water. In the water’s time and bending time can set. after get the times ,it will stop automaticly. it is used advance sensor ,if there is some water into the shoes,the machine will indicate you.and also record the test time. so its very convient and safety.
FIA.NO.1209,SATRA TM77
Capacity:
|
2 sets
|
Bending speed:
|
0-60 times/min
|
Bending angle:
|
25±2 degree (The upward slope of the forefoot)
|
Counter:
|
Two test station counters count separately, LCD 0-999 999
|
Controller:
|
PLC
|
Machine size:
|
800*600*880mm
|
The volume of tank:
|
400*200*200mm
|
Net weight:
|
59kg
|
Gross weight:
|
95kg
|
Power:
|
AC220V 50HZ 0.4KW
|
♦ The mechanical parts are made of non-corrosive aluminum and stainless steel;
♦ Body surface treatment: DuPont powder, electrostatic painting process, after 200℃ high temperature curing to ensure a long time do not fade
♦ Yardek automatic cylinder control, uniform force;
♦ Color LCD touch screen control and display, man-machine interaction interface, simple operation, convenient maintenance, stable and reliable;
♦ One button test, one button fixed, easy to operate;
♦ Thickened acrylic sink, transparent visual effect;
♦ Oil-water separation pneumatic valve, automatic drainage, long service life;
♦ Automatic induction, independent research and development, water alarm system;
♦ High frequency guide solenoid valve, not stuck, durable, noise-canceling;
