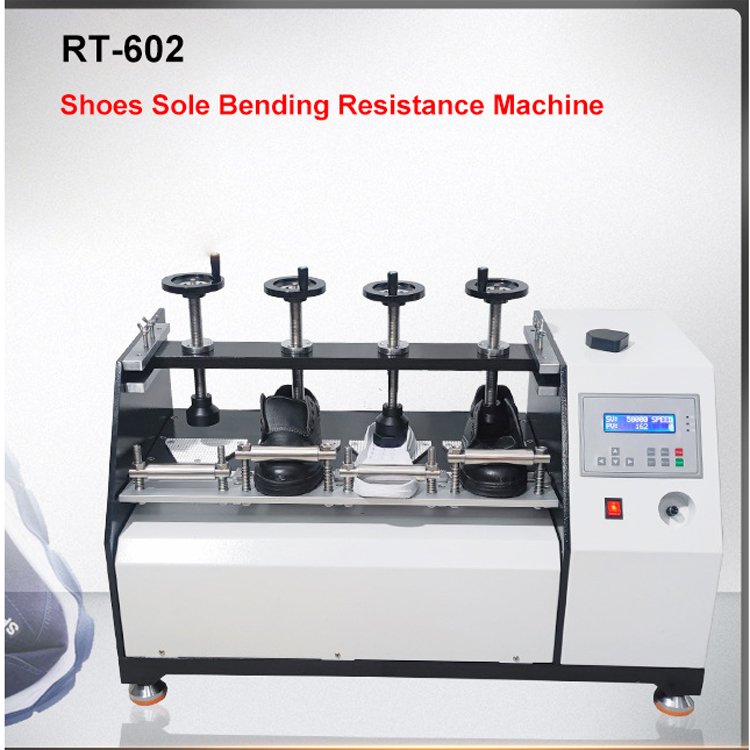

The shoes / Sole bending resist Testing Machine is suitable for testing the soles and finished shoes to the resistance to bend nature or checking the location and extent of cracking in order to improve product quality.

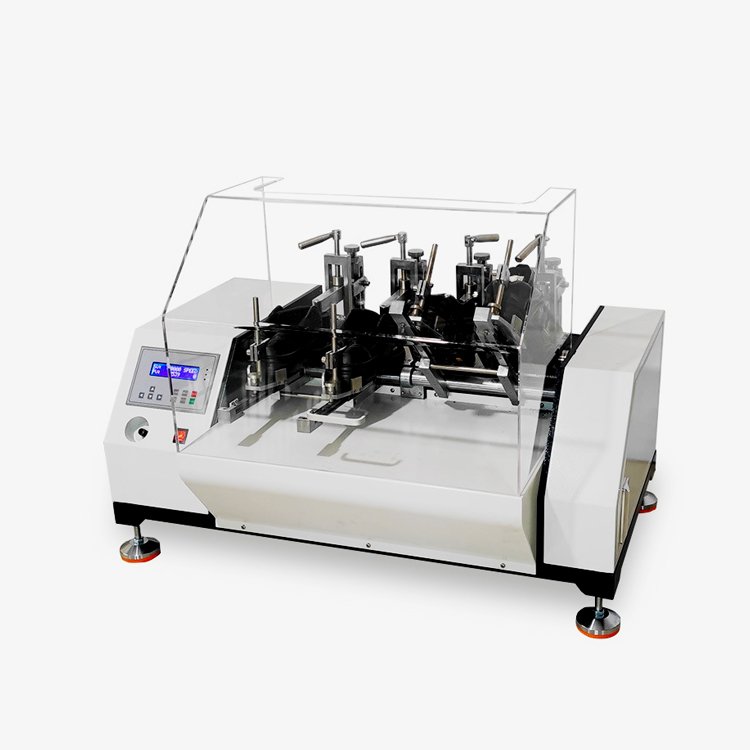

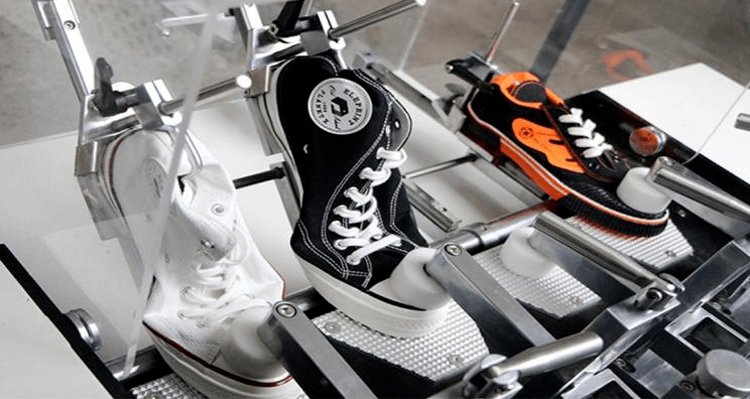

The finished shoes are installed on the RT-602A Digital Finished Shoe Flexing Tester to test the bending parts of the finished shoes. The bending parts of the finished shoes are repeatedly bending according to the bending Angle matched by the shoe type and the fixed rate of the bending machine. The damage of the bending parts of the finished shoes is observed after reaching the set time or completing the prescribed bending times. The bending resistance of the finished shoes was evaluated by the number of complete bending times without damage or the severity of damage in the bending parts of the finished shoes after completing the prescribed bending times.
Corresponding standard: SATRA-TM92
Product Name
|
Finished Shoes Shoe Flexing Tester
|
Model
|
RT-602A
|
speed
|
5~150cpm(adjustable)
|
Bending angle
|
5 ~ 90 degree(adjustable)
|
Timer
|
6 digital
|
size
|
105×83×78cm
|
Number of shoes
|
4 pcs
|
Motor
|
Frequency conversion motor
|
Weight
|
210 kg
|
Power
|
AC220V, 10 a
|

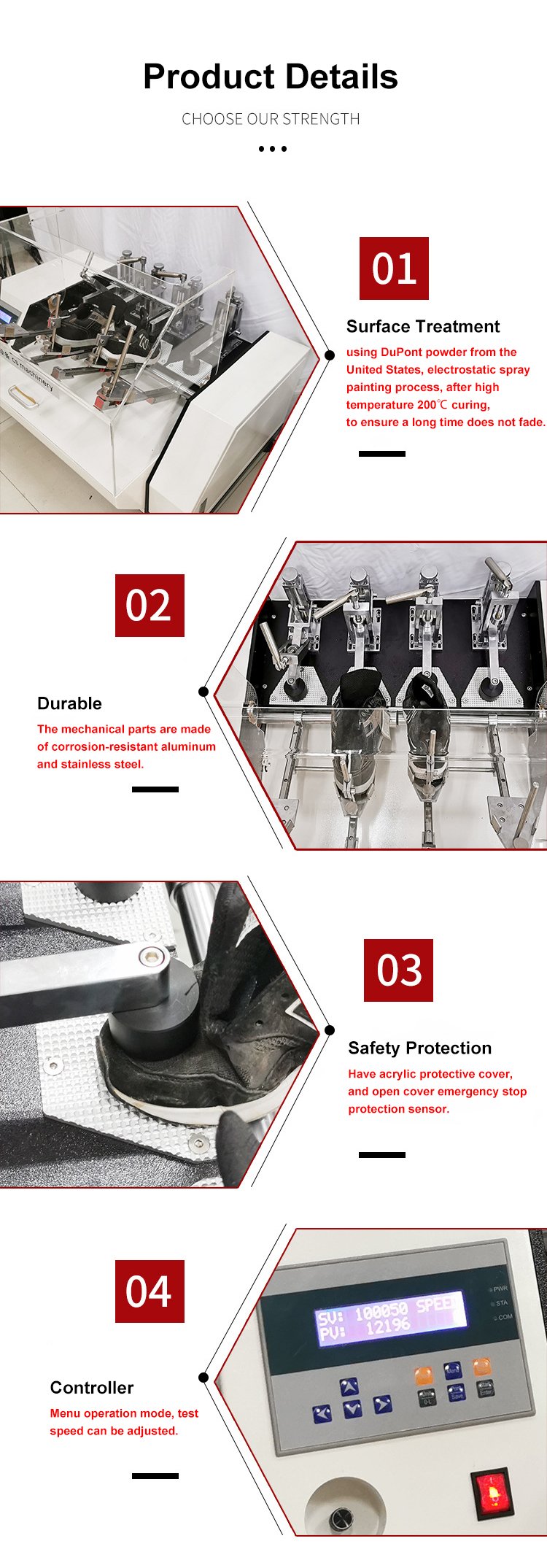

♦ Body surface treatment: the United States DuPont powder, electrostatic painting process, after high temperature 200℃ curing to ensure long unfading.
♦ Mechanical parts are composed of non-corrosive structure aluminum and stainless steel materials;
♦LED-SLD806 integrated display control box, menu mode of operation;
♦ Precision frequency conversion drive motor, stable operation, low noise;
♦ One-key automatic test, simple and convenient operation;
♦ Open and close protective transparent cover can protect the hands of the operator and has the function of protection induction when the cover is opened;
♦ High precision selection of bearings, stable rotation, long activity life;
♦4 station structure design, stable bending, high efficiency;

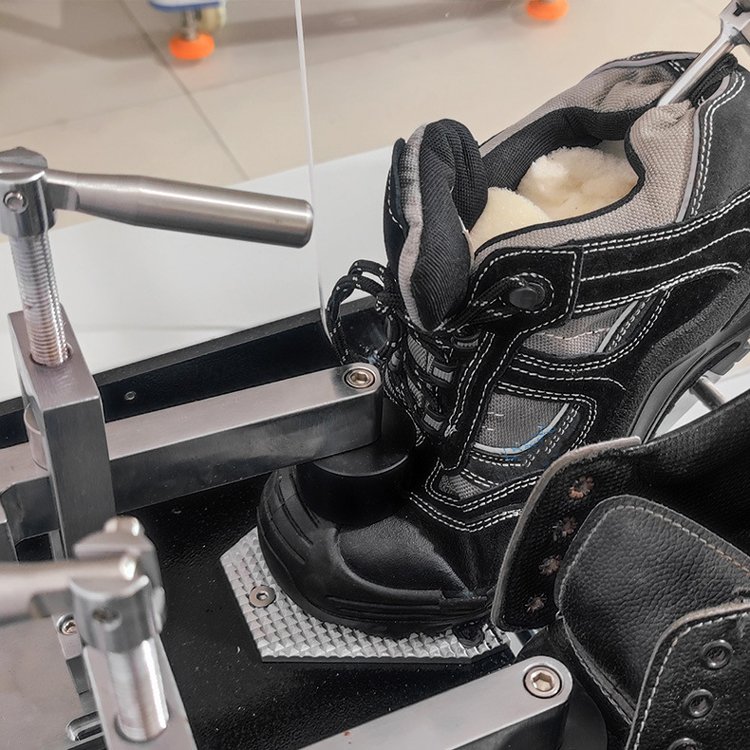

♦ Before and after the fixed fixture can be adjusted, screw tight fixed, tight fixed;

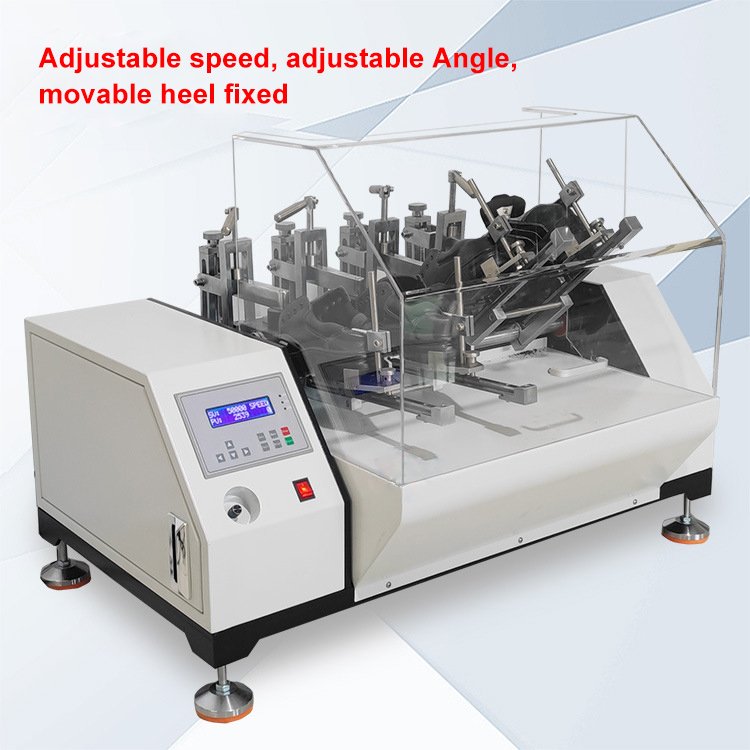

♦ Adjustable speed, adjustable Angle, movable heel fixed, adjustable size;
