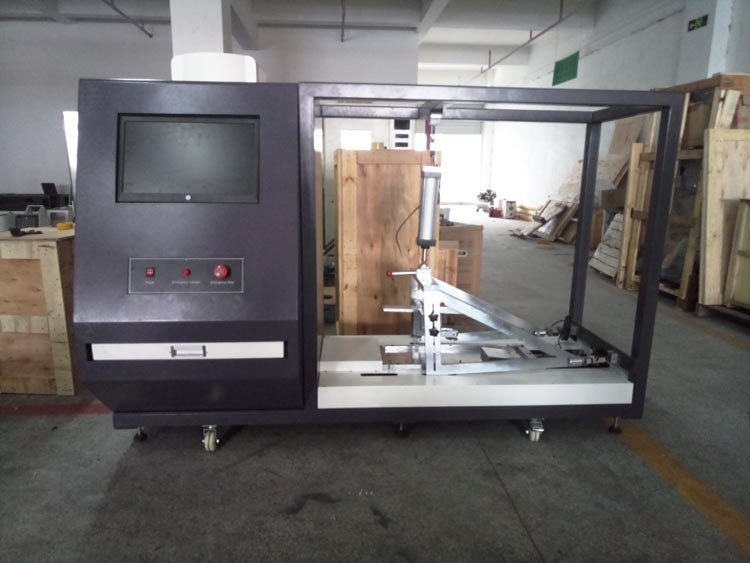

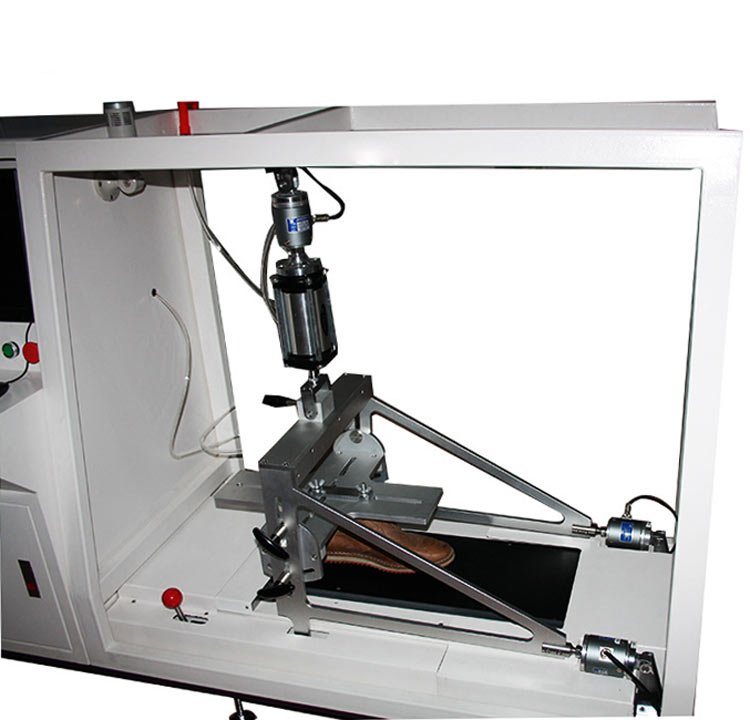

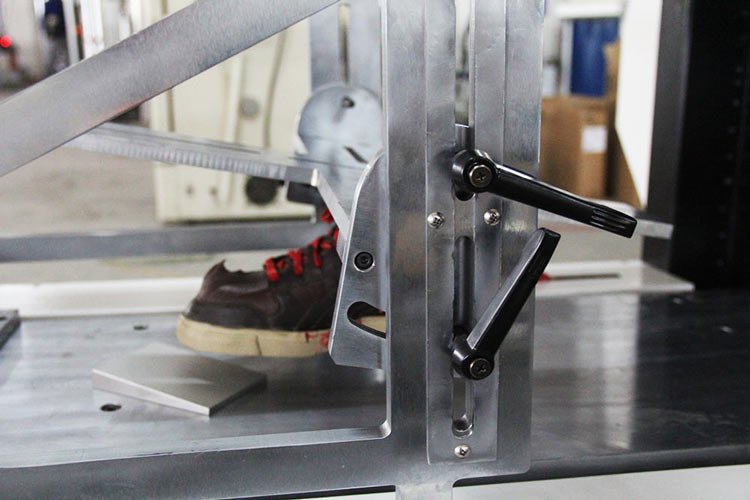

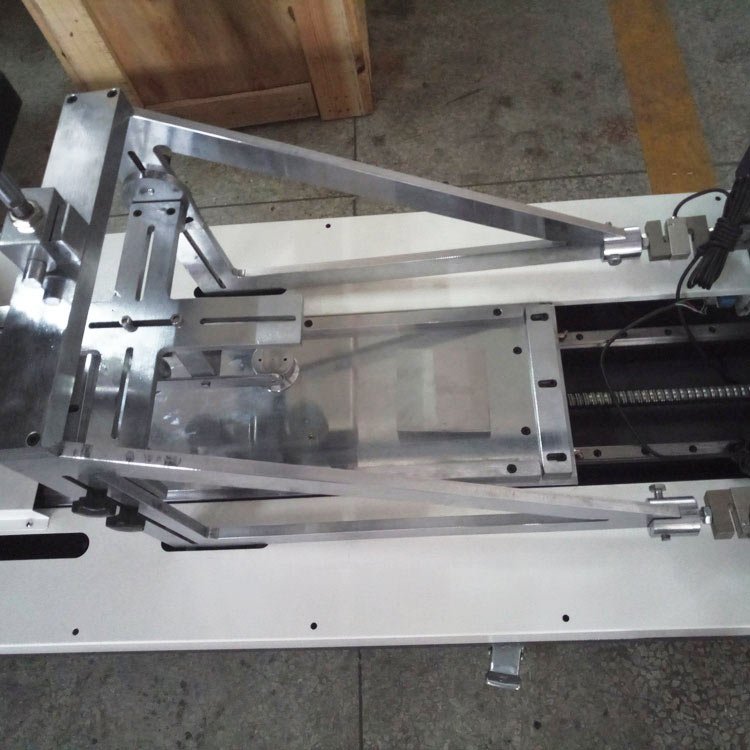

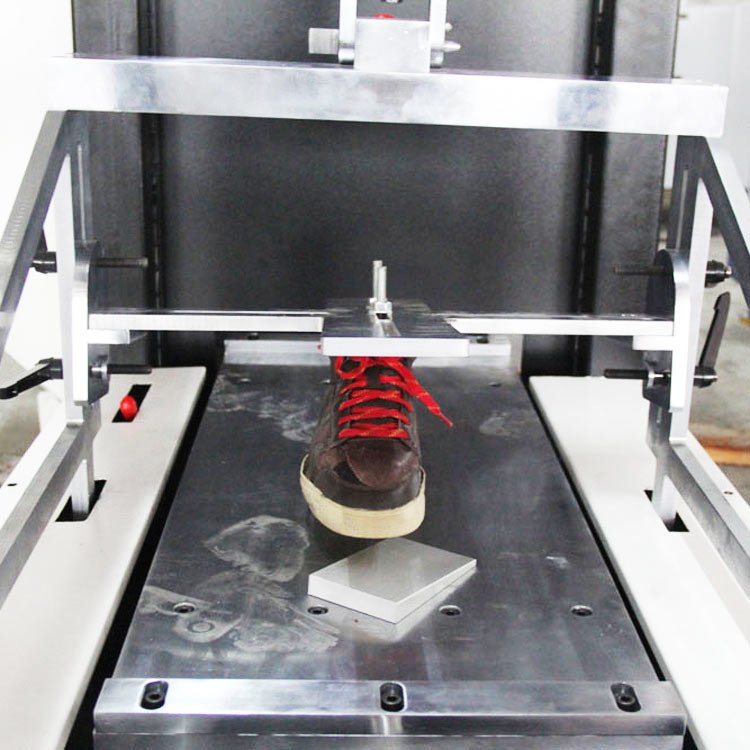

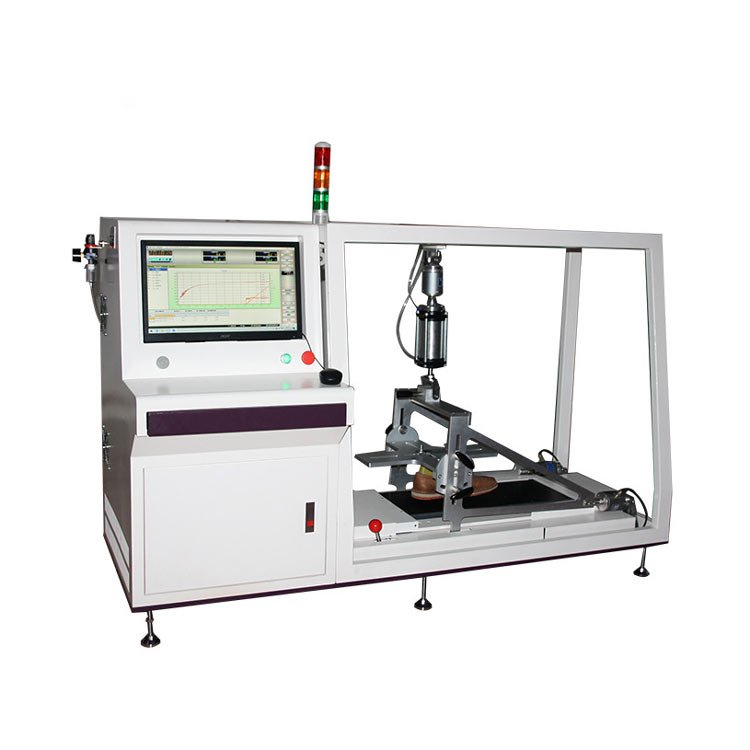

RT-601 Footwear Static Anti-slip Testing Machine

RT-601 Footwear Static Anti-slip Testing Machine - Image 4

RT-601 Footwear Static Anti-slip Testing Machine - Image 6

Category 9. Shoes Testing Machine

Additional information

RT-601 Footwear static anti-slip testing machine

It used to each test machine testing standards, instrument calibration, and the floor test interface. Other test interface also applies to this instrument, as long as the size suitable for installation in the instrument, almost all types of test interfaces can be used footwear static anti-slip testing machine for testing. Its unique design makes this instrument can be used to measure shoes and standard floor interface between the non-slip coefficient can also be used to measure anti-slip coefficient between a variety of floor interface with standard substrate.

Product Details：

Equipment summary:

RT-601 Footwear static anti-slip testing machine developed based on extensive biomechanical research, it

represents the conditions encountered during walking may occur slipping. This non-slip machine consists of a

specially designed control instrument and data collection systems, for provide users with the coefficient of

friction for each test sample. This is obtained through close control of the force involved in testing, including the

variable speed motor provides velocity. The controller on the instrument and its unique circuitry designed to

ensure that the testing process can maintain the proper force and velocity.

Technical Parameter:

Maximum vertical pressure:	1000N
Maximum horizontal pressure:	1000N
Slip speed:	(1.3 ± 0.03) m / s
Static contact time:	0-5s
Vertical sensor:	1.25KN
Horizontal sensor:	0.8KN * 2
Operating system:	Win 10
Display:	17 inch
Test plate:	compressed tile floor, stainless steel plate, carpet
Volume:	101 * 67 * 190cm
Weight:	300kg
Power:	AC220V50HZ

Applicable industry:

Footwear with outer soles, the end of shoe heel or outside the test of the static non-slip performance.

Meet the standards:

SATRA TM144 / EN ISO 13287 /ASTM F2913
