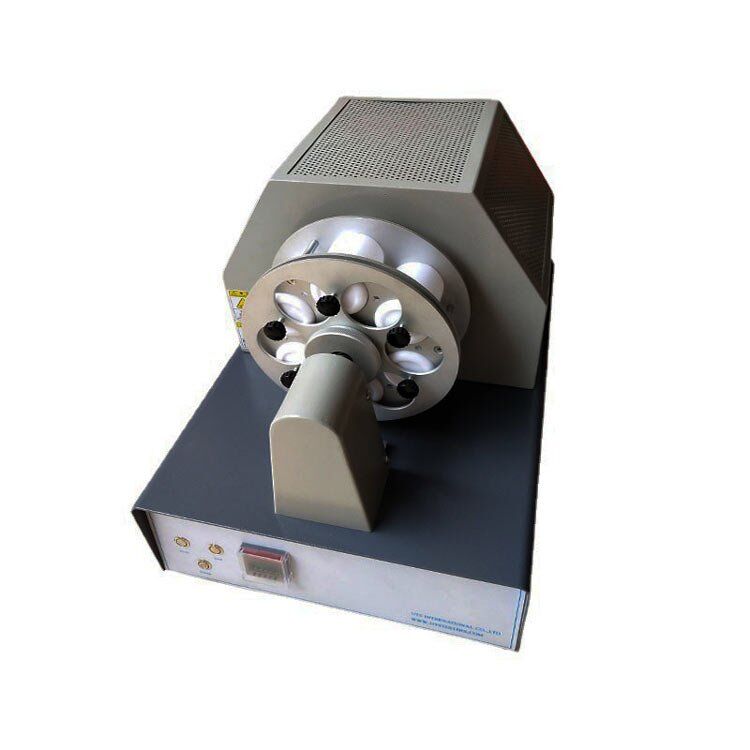

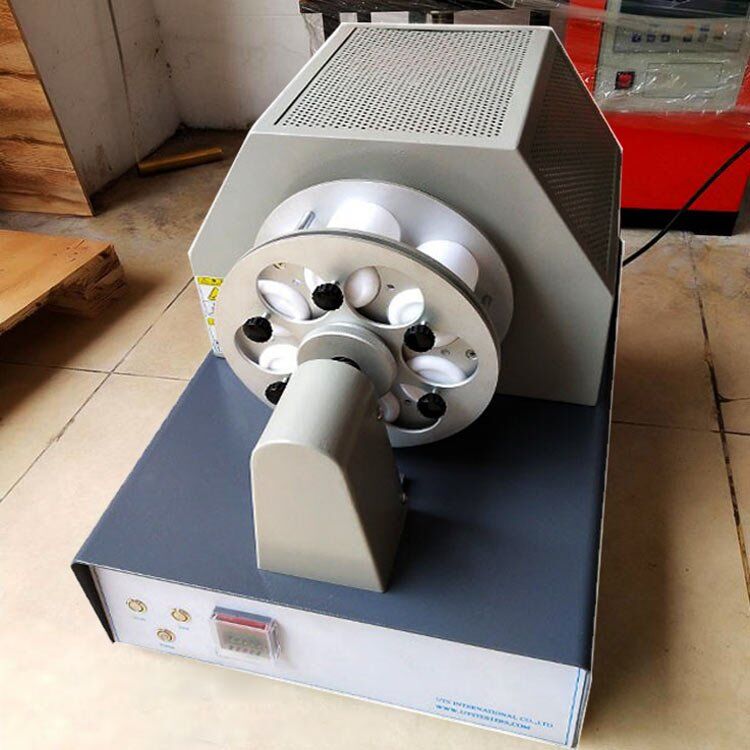

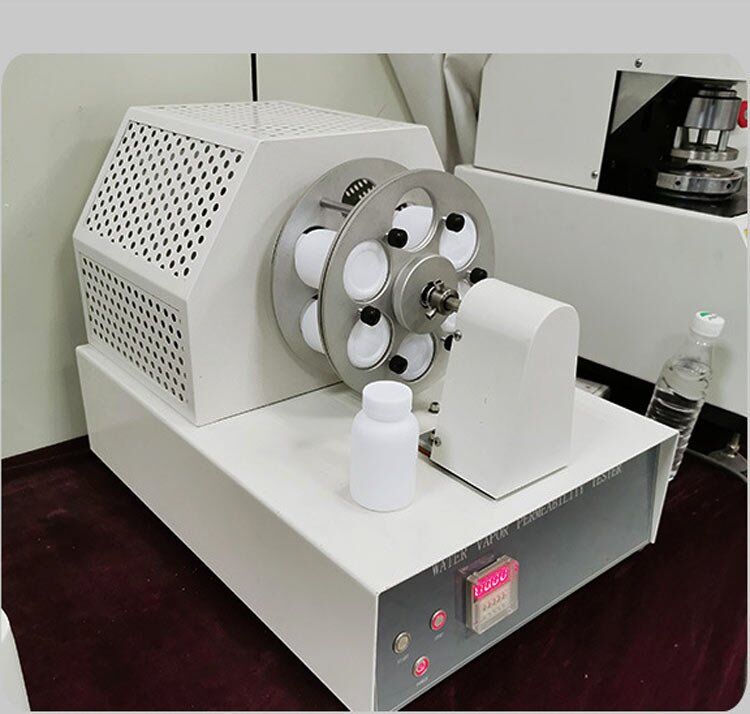

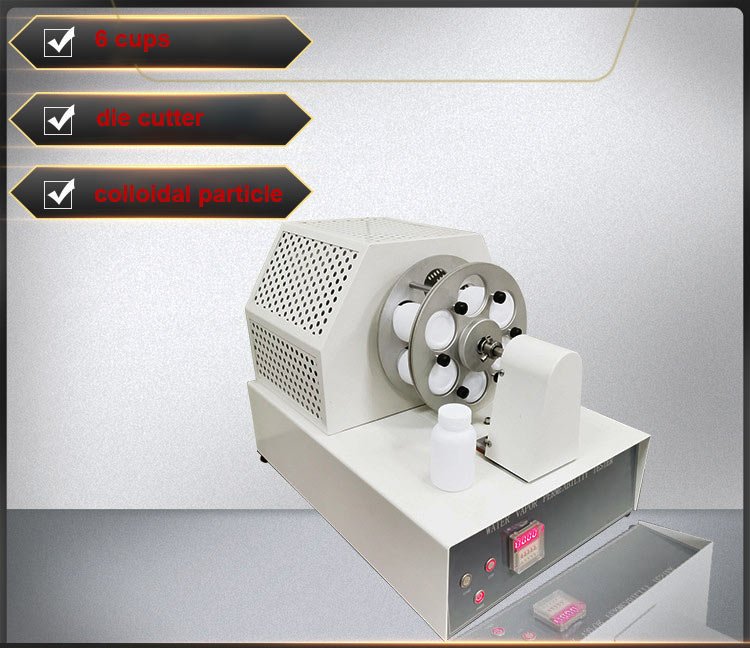

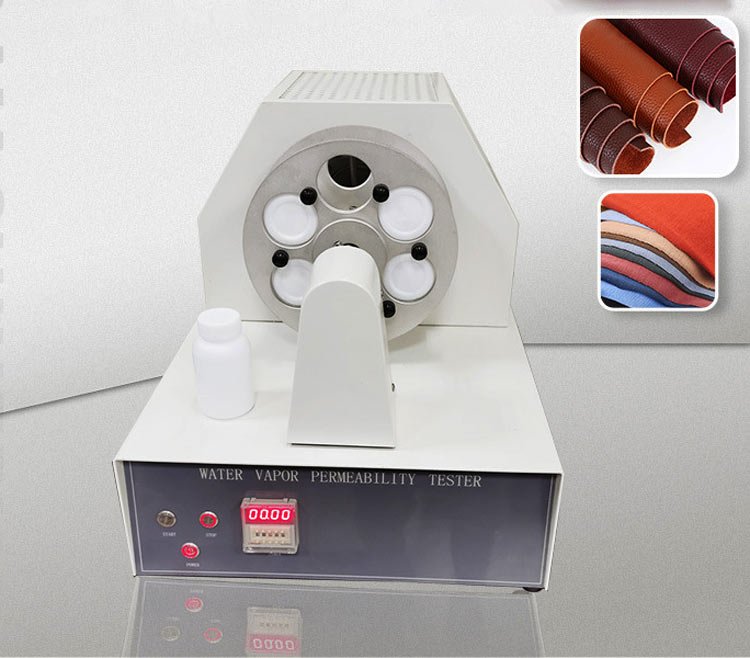

RT-515 Leather Vapor Permeability Tester
RT-515 Leather Water Vapour Permeability Tester

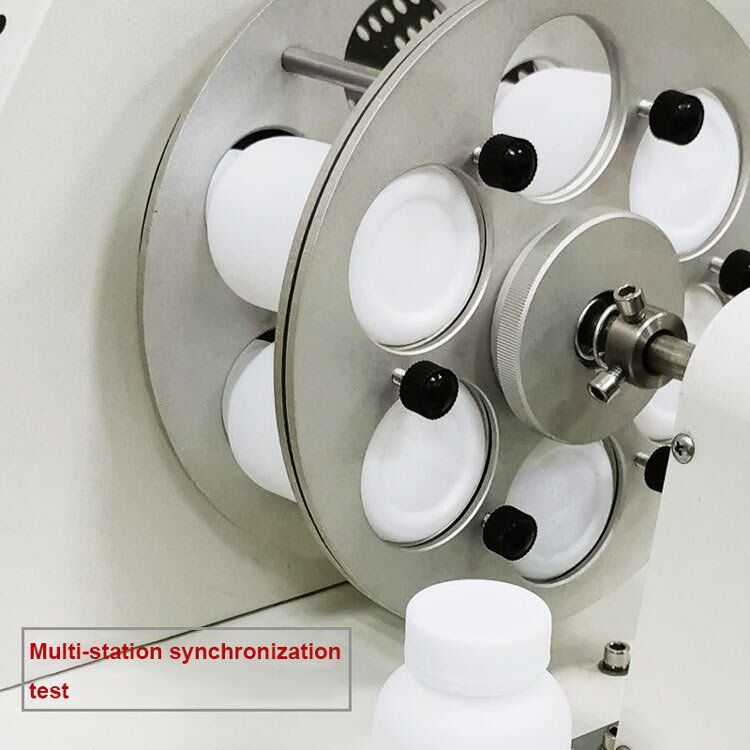

Leather Air Permeability Tester fix the circular test piece on the opening of a test bottle containing a certain amount of solid desiccant of the water vapor penetration testing machine, so as to use the test piece to separate the desiccant in the bottle from the air outside the bottle, and then turn on the water The vapor penetration tester rotates the test bottle and the fan that makes the air turbulence rotate. The continuously moving desiccant continuously absorbs the water vapor passing through the test piece. Within a certain period of time, the mass of the water vapor absorbed by the test bottle desiccant is weighed. To evaluate the water vapor permeability of the test material.
Product Details：
Product Description:
Leather Vapor Permeability Tester fix the circular test piece on the opening of a test bottle containing a certain amount of solid desiccant of the water vapor penetration testing machine, so as to use the test piece to separate the desiccant in the bottle from the air outside the bottle, and then turn on the water The vapor penetration tester rotates the test bottle and the fan that makes the air turbulence rotate. The continuously moving desiccant continuously absorbs the water vapor passing through the test piece. Within a certain period of time, the mass of the water vapor absorbed by the test bottle desiccant is weighed. To evaluate the water vapor permeability of the test material.
Standard:
SATRA TM172, EN ISO20344, BS3144
Technical Specifications:
| Fan speed | (1400±100) r/min |
| Bottle diameter | (30±1) mm |
| Bottle speed | (75±5) r/min |
| Distance from bottle mouth to fan | (10±5) mm |
| Power supply | AC220V, 10W |
| Volume | 40*56*43cm |
| Weight | 50kg |
