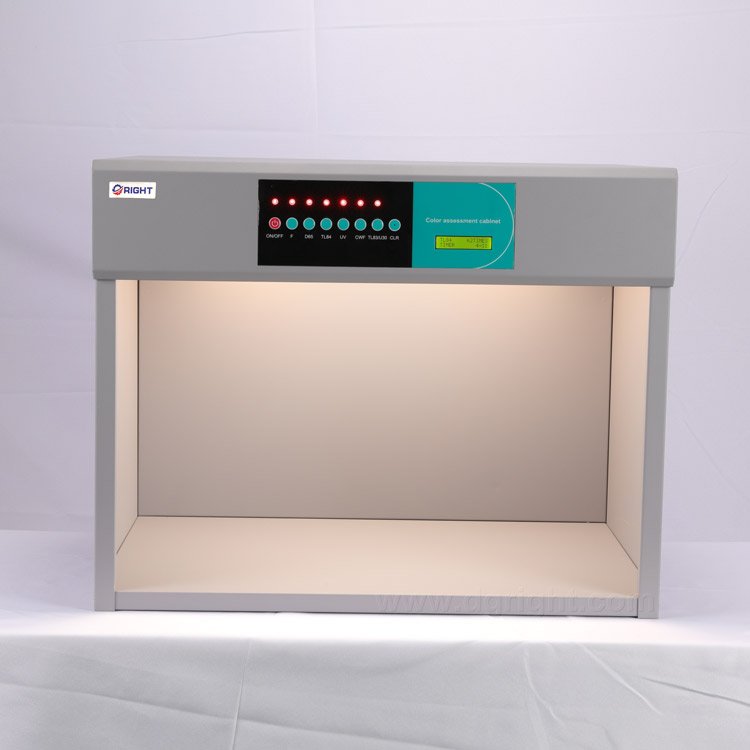

RT-512 Lab Color Matching Light Box for Color Matching

RT-512 Lab Color Matching Light Box for Color Matching - Image 3

RT-512 Lab Color Matching Light Box for Color Matching - Image 4

RT-512 Lab Color Matching Light Box for Color Matching - Image 5

RT-512 Lab Color Matching Light Box for Color Matching - Image 6

RT-512 Lab Color Matching Light Box for Color Matching - Image 7

Category 8. Leather Testing Machine

Additional information

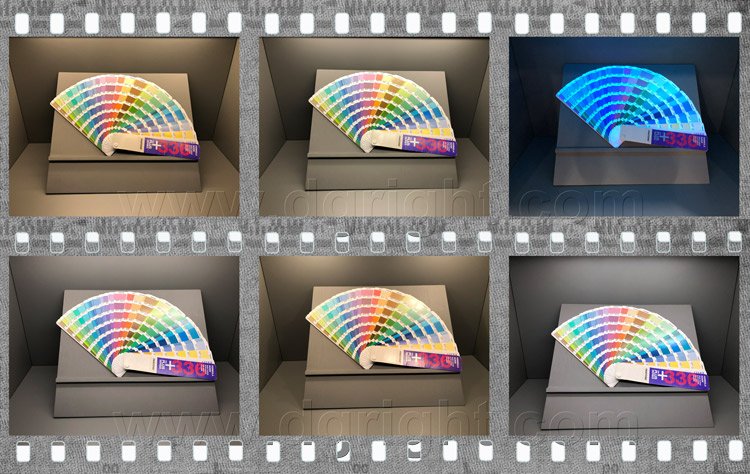

D65 TL84 U30 CWF UV F 6 Light Source Color Matching Box

The product is widely used in textiles, plastics, paint, ink, printing and dyeing, printing, paints, packaging, ceramics, leather, cosmetics and other industries for color management.

Product Details：

Equipment Summary:

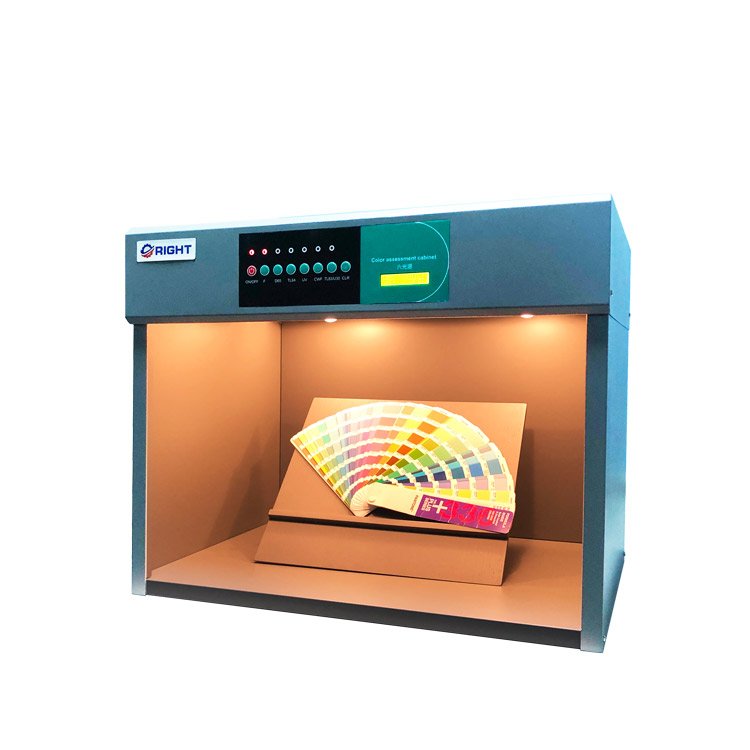

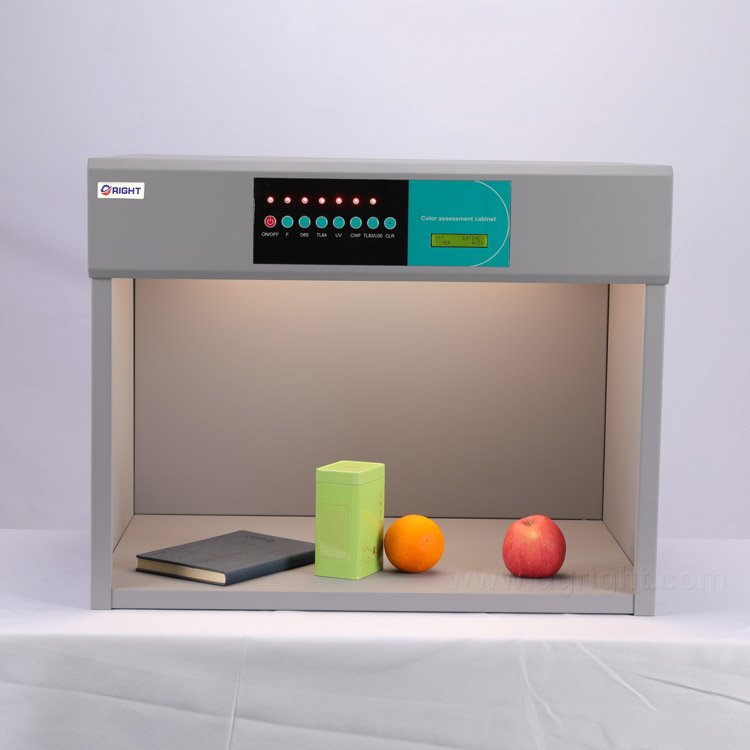

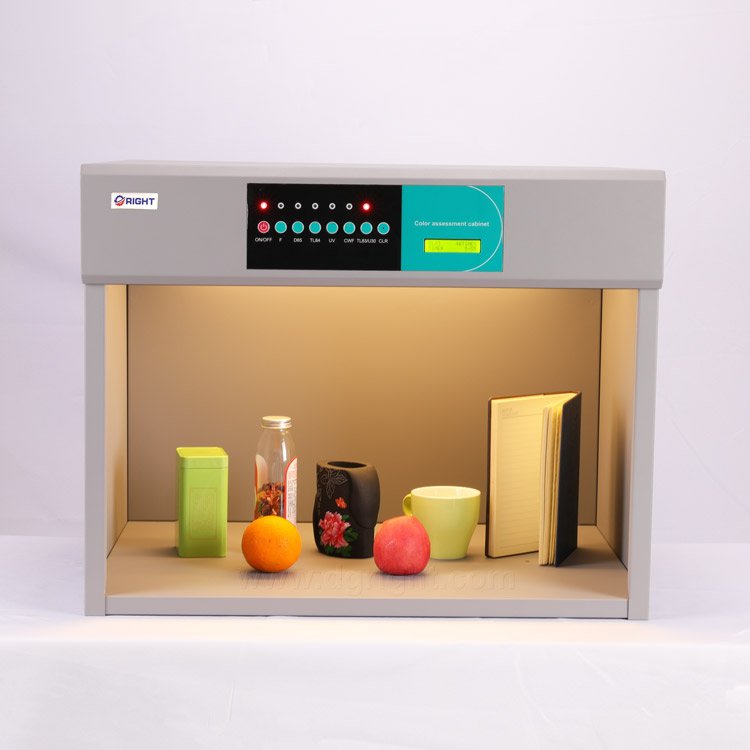

This standard lamp box is equipped with six different types of lamps, which used to assess the color of material in textile, printing and dyeing, such as fastness of color, color proofing and color identification, so that you can inspect the samples, production, quality control and acceptance under the same standard light sources, especially in cloudy days and darkness using the standard light box to check color of goods is particularly important. From that to ensure the quality of goods and enhance product quality and market competitiveness.

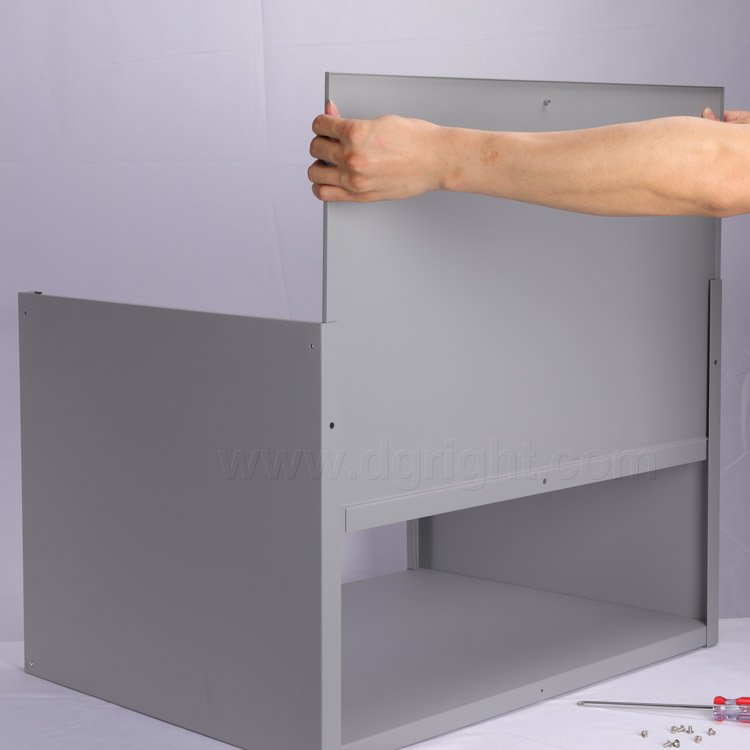

This product with simple operation, low temperature, non-flash frequency is controlled by integrated, folding structure, easy to carry, beautiful shape, reliable, the user’s preferred standard light box.

Operative Standard:

JIS-Z8724,CIE-30

Specification:

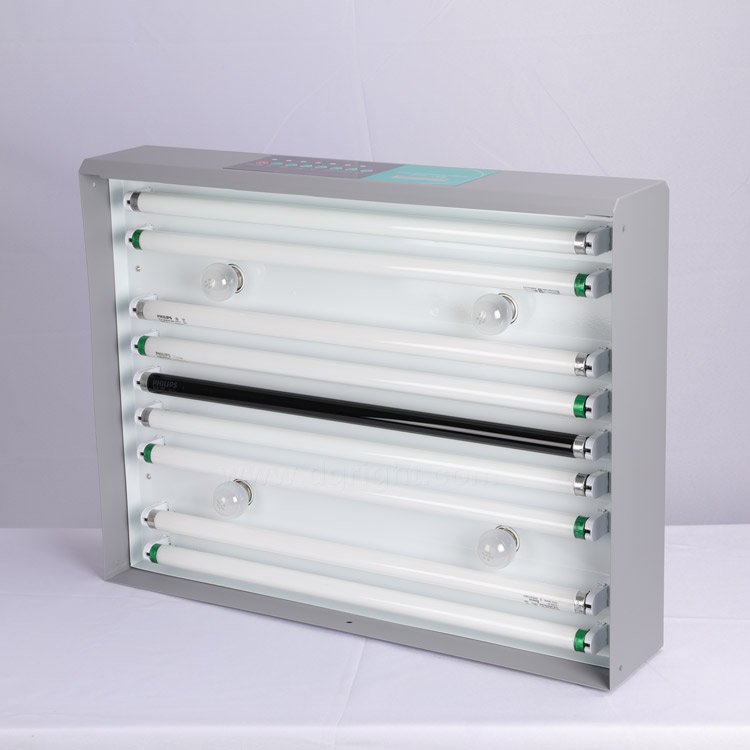

Model	Lamp name	Configuration	Power	Color temperature
RT-512A 6 lamps	D65 International standard artificial daylight lamp	2 pcs	20W/ pcs	6500K
	TL84 lamp from Europe,Japan	2 pcs	18W/ pcs	4000K
	UV ultraviolet lamp	1 pcs	20W/ pcs	——-
	F yellow,colorimetric lamp from United States	4 pcs	40W/ pcs	2700K
	CWF lamp from United States	2 pcs	20W/ pcs	4200K
	U30 another lamp from United States	2 pcs	18W/ pcs	3000K

Technical parameter:

1.Machine Dimension : 710×540×625 mm (length × width × height)

2.Machine Weight : 35kg

3.Voltage: 110V/ 220V

4.Optional accessories: lamp, diffuser and 45-degree standard stand that customer-specified.
