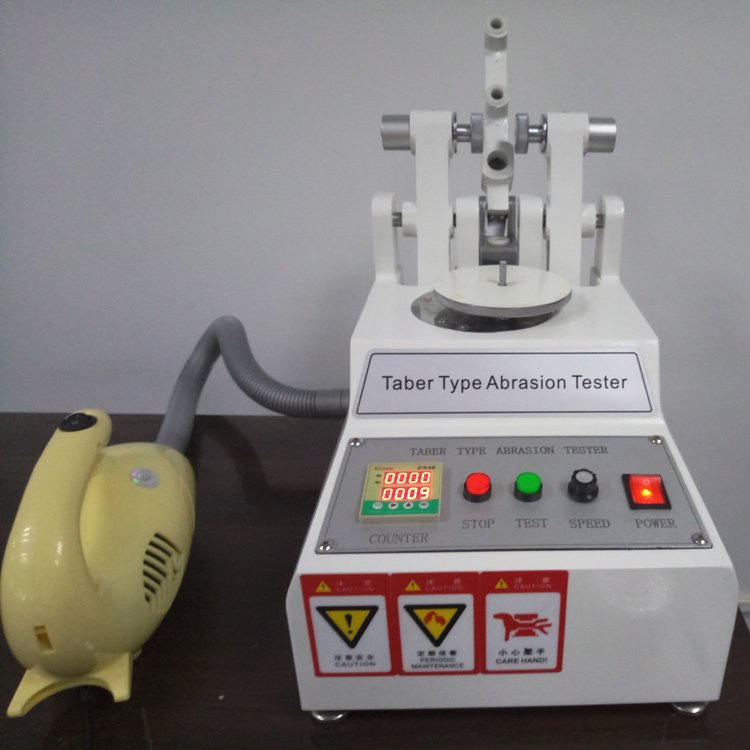

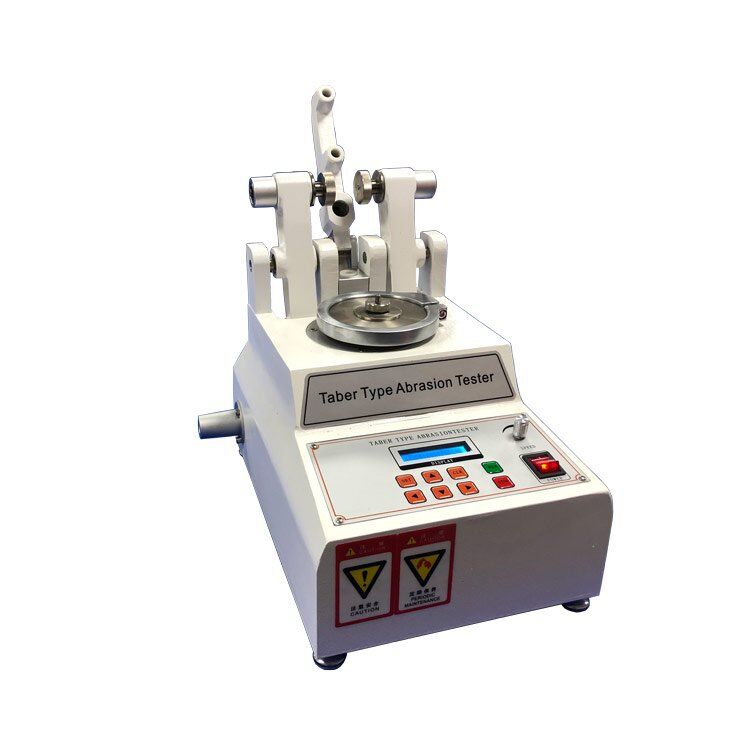

RT-501 Digital Taber Rotation Abrasion Tester
RT-501 Taber Abrasion Resistance Tester

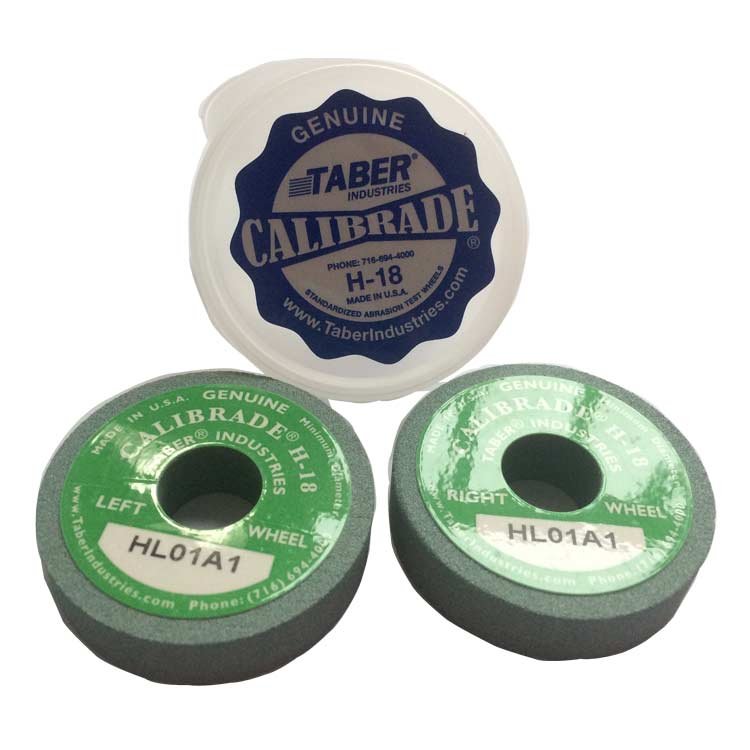

It is applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abraded, Specimen to be removed after rotation to reach a certain number, observe the condition of the specimen or compare the weight with the previous materials, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.
Product Details：
Applicable industry
It used in testing the performance of leather products, such as suitcases, carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research laboratories; commodity inspection, arbitration, and technical supervision department.
Product Paramenters
|
Specimen
|
120 × 6.5 × 3mm
|
|
Load
|
250g, 500g, 1000g
|
|
Counter
|

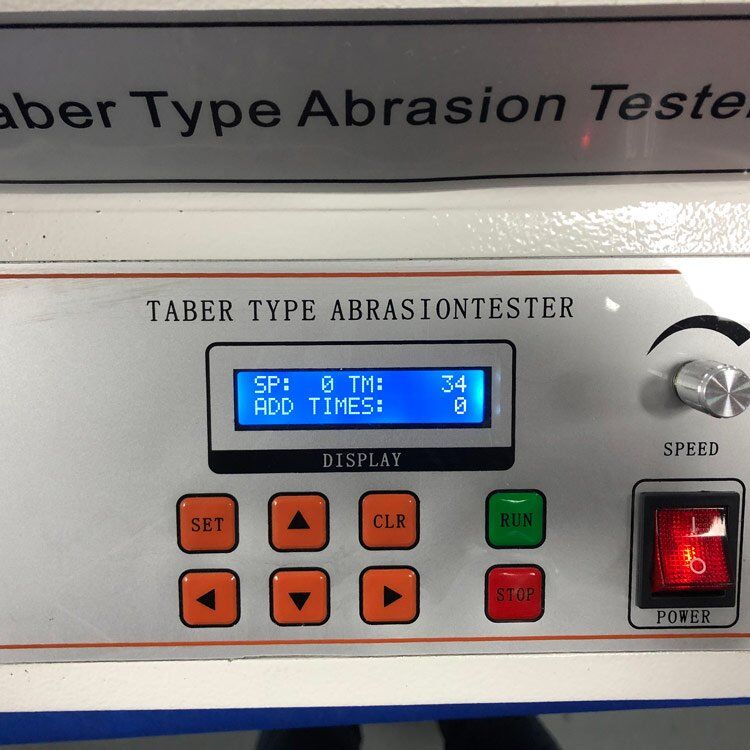

6 digit electronic display, automatic shut down
|
|
Testing Disk Speed
|
0-70 Adjustable
|
|
Machine Dimensions
|
30 × 43 × 30cm
|
|
Machine Weight
|
30kg
|
|
Attachment
|

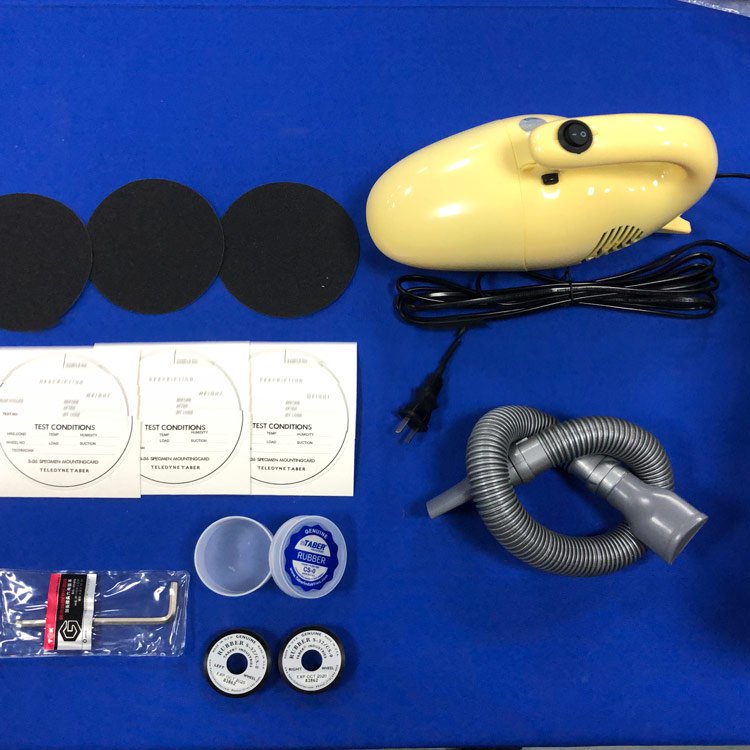

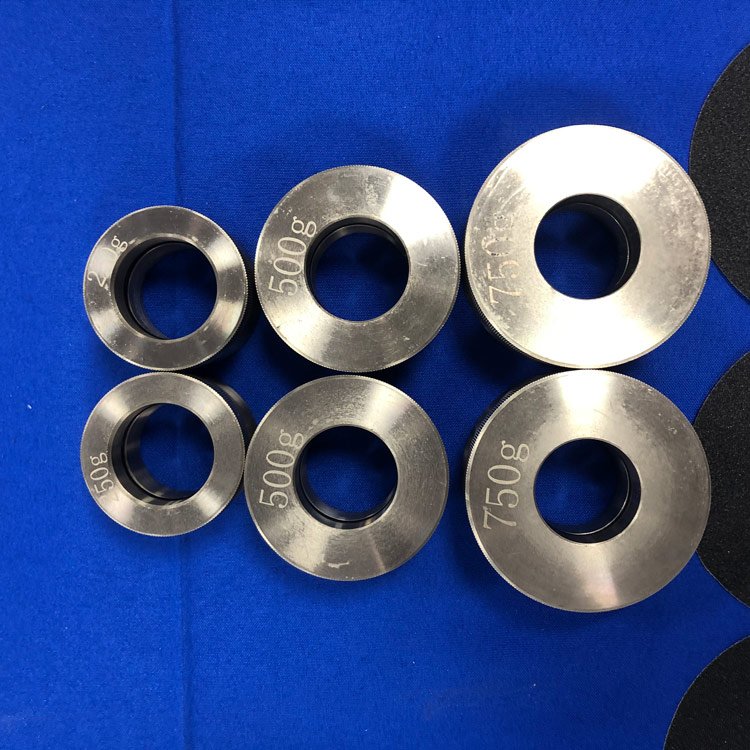

a wrench, a group of grinding wheel, Fama (250g, 500g, 750g) each 2 pcs.

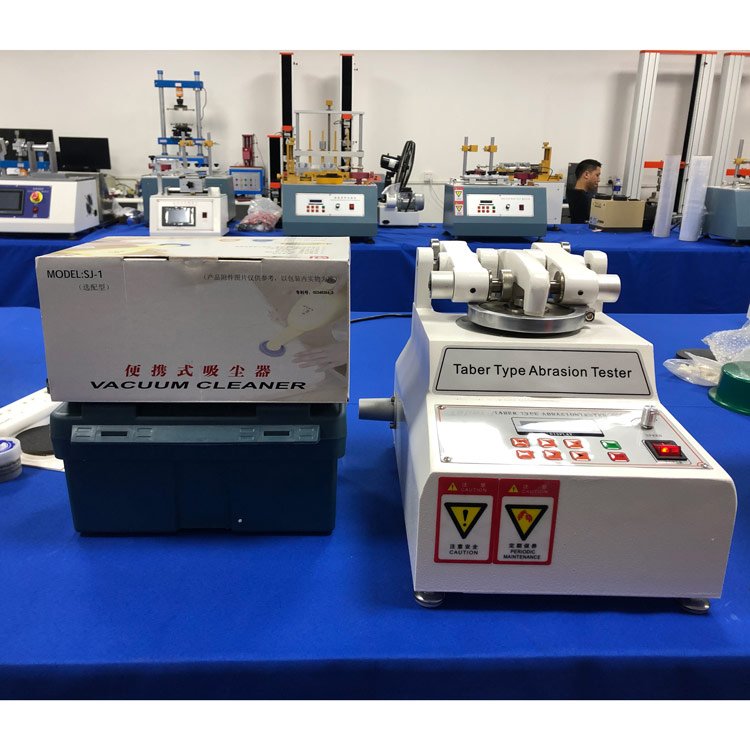

Vacuum cleaner 1. |
|
Power
|
AC220V / 50HZ
|
Corresponding Standard:
Testing Reference:
|
paint
|
brick
|
plywood
|
plastic
|
|
CS10
CS17
|
CS17
|
S32
S33
|
CS17
H18H22
|
Computational formula:
Abrasion index computational formula=Abrasion loss weight /Test turnover number ×100
