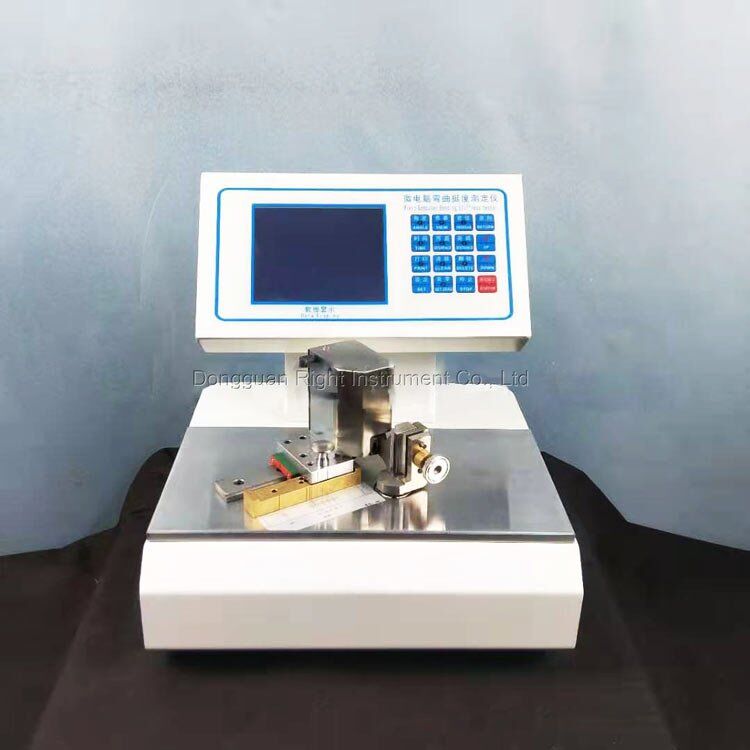

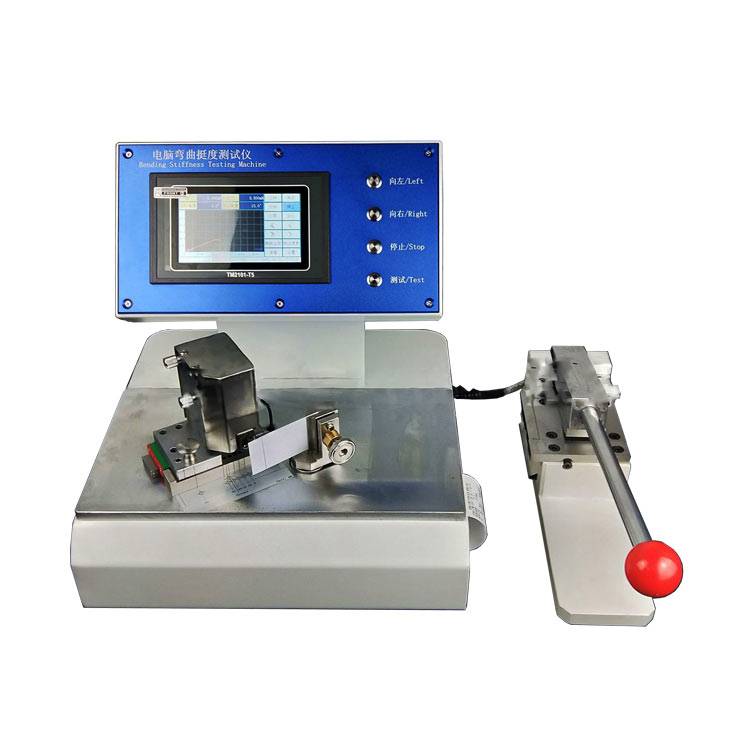

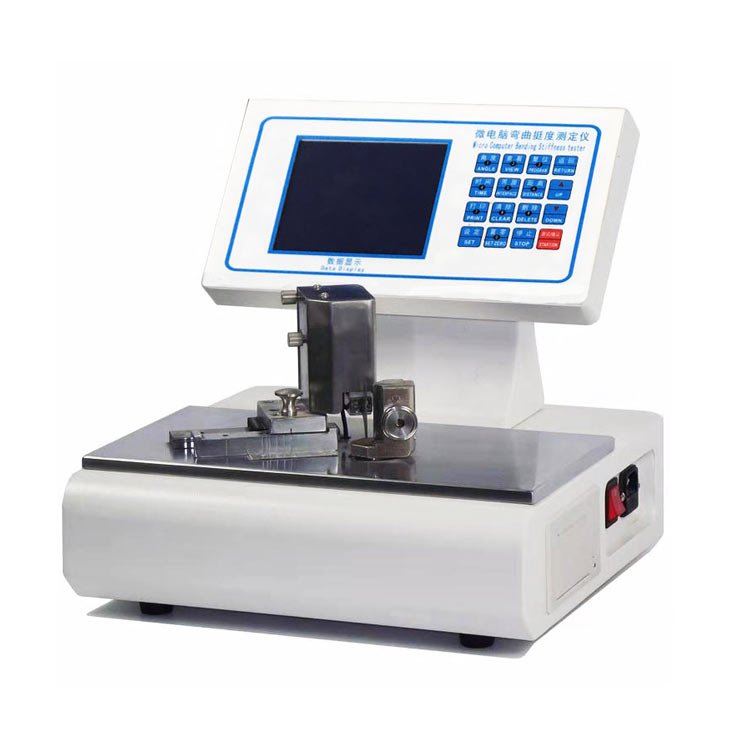

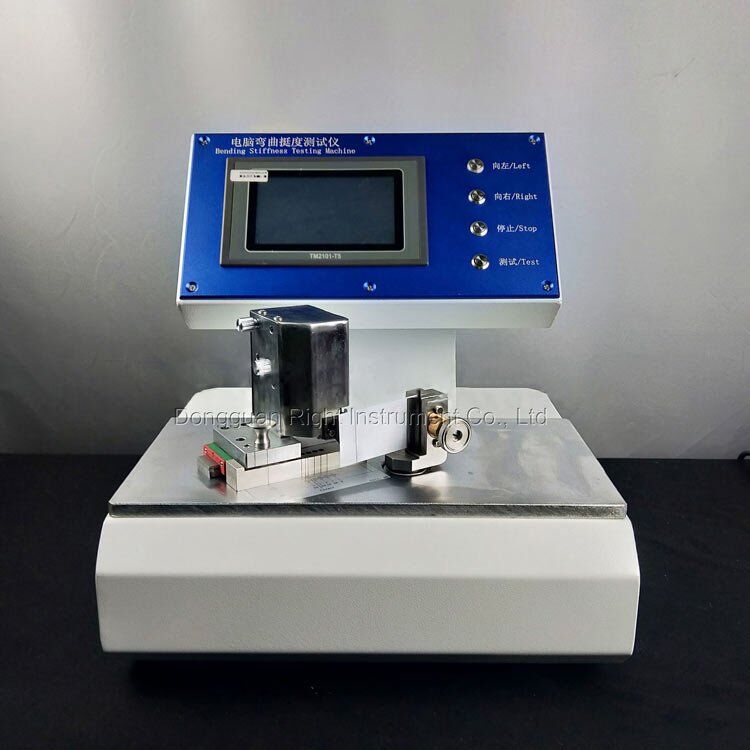

Products Description:

The instrument test angle can be arbitrarily set between (1 and 90) °, and the test time is arbitrarily set within the specified range (3 s to 30 s). With automatic zero test function, it is the first automatic stiffness tester in China that uses color screen as human-machine interface. It displays the stiffness and time curve in real time. The touch screen is simple and convenient to operate. The instrument has the functions of test, display, memory, statistics and printing of various parameters included in the standard, and provides scientific data analysis for the detection of bending stiffness of cardboard.

Product Feature:

1. 7.5° and 15° stiffness test (arbitrary setting between (1 ~ 90) °);

2. The test time can be set anywhere between (3 ~ 30) s;

3. The test angle change is fully controlled by the motor, which improves the measurement efficiency and reduces the human influence;

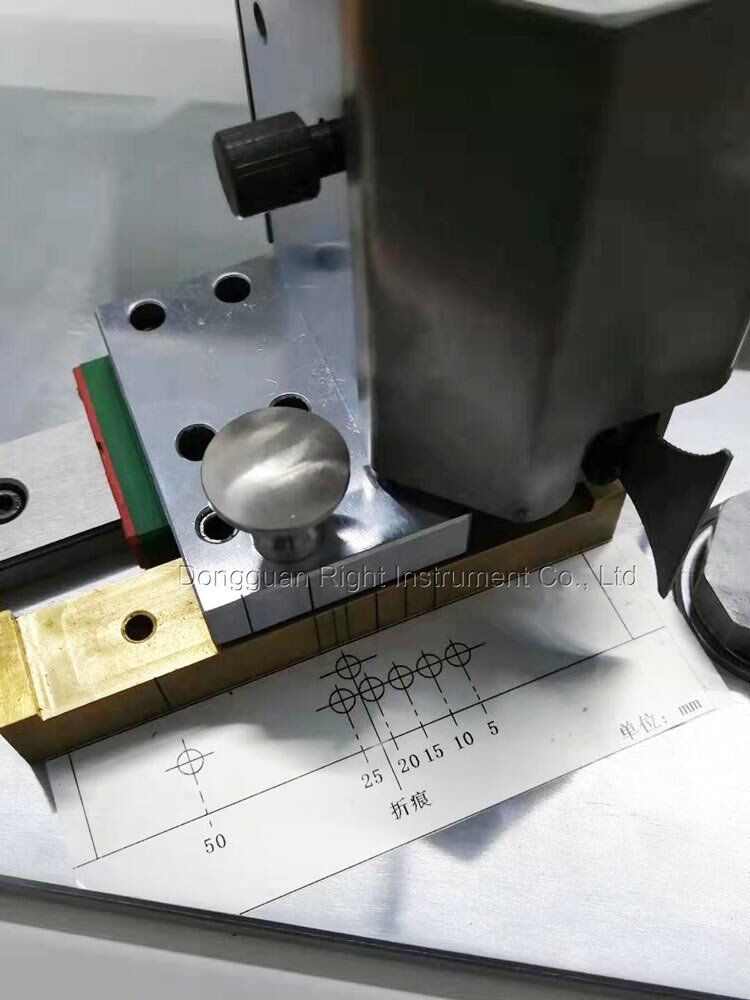

4. Can test 6 bending lengths: 50mm, 25mm, 20mm, 15mm, 10mm, 5mm;

5. With automatic zero adjustment function, no need to manually check the sample before testing;

6. With measurement statistics, printing and other functions, measurement time can be set; 1. High-tech digital motor and streamlined and practical transmission structure.

7. The measurement and control system uses a single-chip microcomputer as the central processing unit.

8. With the corresponding application software to control the whole machine, data acquisition and data processing.

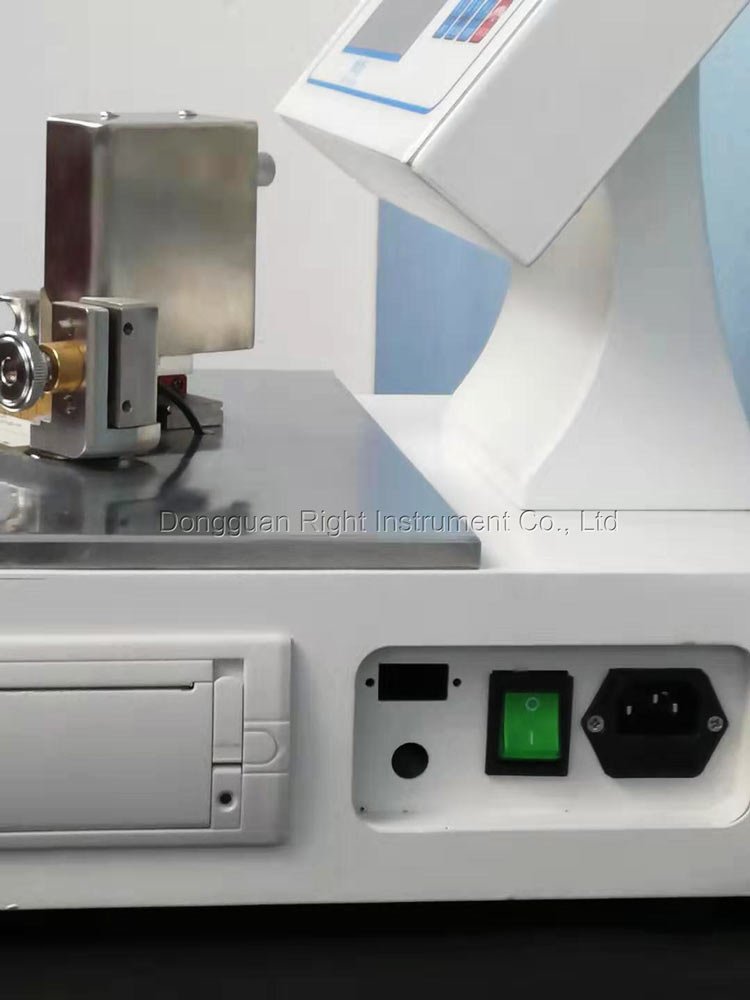

9. The test data is displayed by the liquid crystal display window, and the test report is printed by the printer.

10. The structure of the whole machine is simple and simple, and the operation is complete, and the operation is particularly convenient.

Product Paramenters:

Accessories:

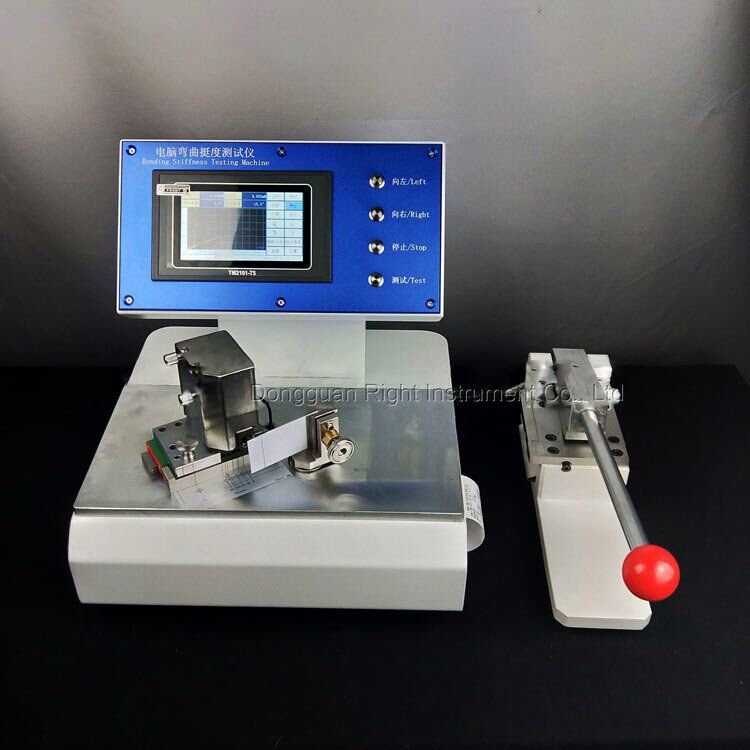

To perform the 15° stiffness test and the 90° crease stiffness test, you also need to configure: cardboard stiffness sampler

Sampling size: 70 × 38 ± 0.1 mm mm (stiffness sample)

Sampling size: 38 × 36 mm (crease stiffness test)

Sampling thickness: <1mm
