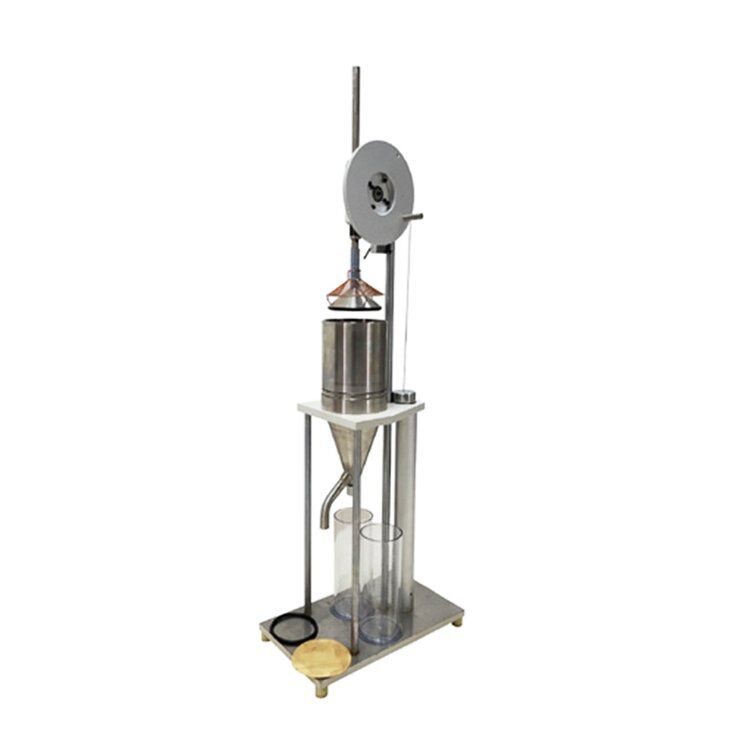

RT-423 Paper Beating Degree of Pulp Tester (Schopper-Riegler method)
RT-423 Paper Beating Degree of Pulp Tester (Schopper-Riegler method)
(as called Deduction instrument, decontamination tester, beating degree meter, pulp pulping degree tester)
The pulp freeness tester is a special instrument used to measure the rate of suspended pulp suspension water. Designed according to the internationally accepted principle of Schopper.
Product Details：
Description:
The instrument uses a manual compression seal cone to adjust the rate of ascent through a weight. Therefore the operation of the instrument is very simple. The instrument adopts a spring pre-tightening mechanism, so that the rubber sealing ring of the sealing hammer body is tightly combined with the bottom of the water filter cylinder, thereby increasing the sealing property of the sealing hammer body.
Implementation standards:
ISO 5267-1: Determination of pulp-filtering performance – Part 1: Schopper-Rigler method
GB/T 3332 “Determination of pulp beating degree (Shawol-Rigler method)”
Technical Parameters :
| Measuring range(SR) | 1~100SR |
| Spill discharge time | (149 ± 1) s |
| Remaining volume | (7.5~8) ml |

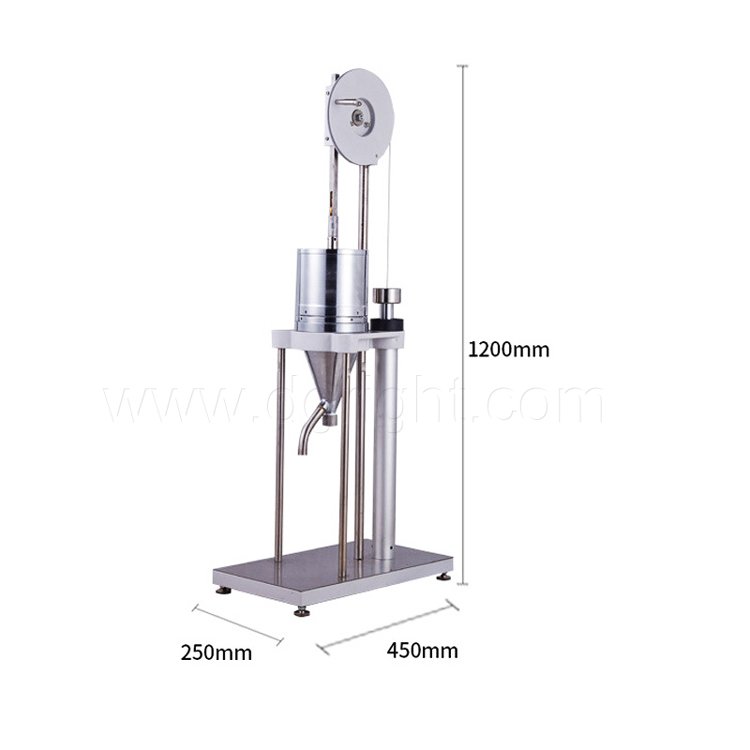

| Dimensions (L * W *H) | 260 * 430 8 1250mm |
Features:
1 The instrument is assembled and assembled according to the traditional structure design. It is universal, easy to use and easy to understand.

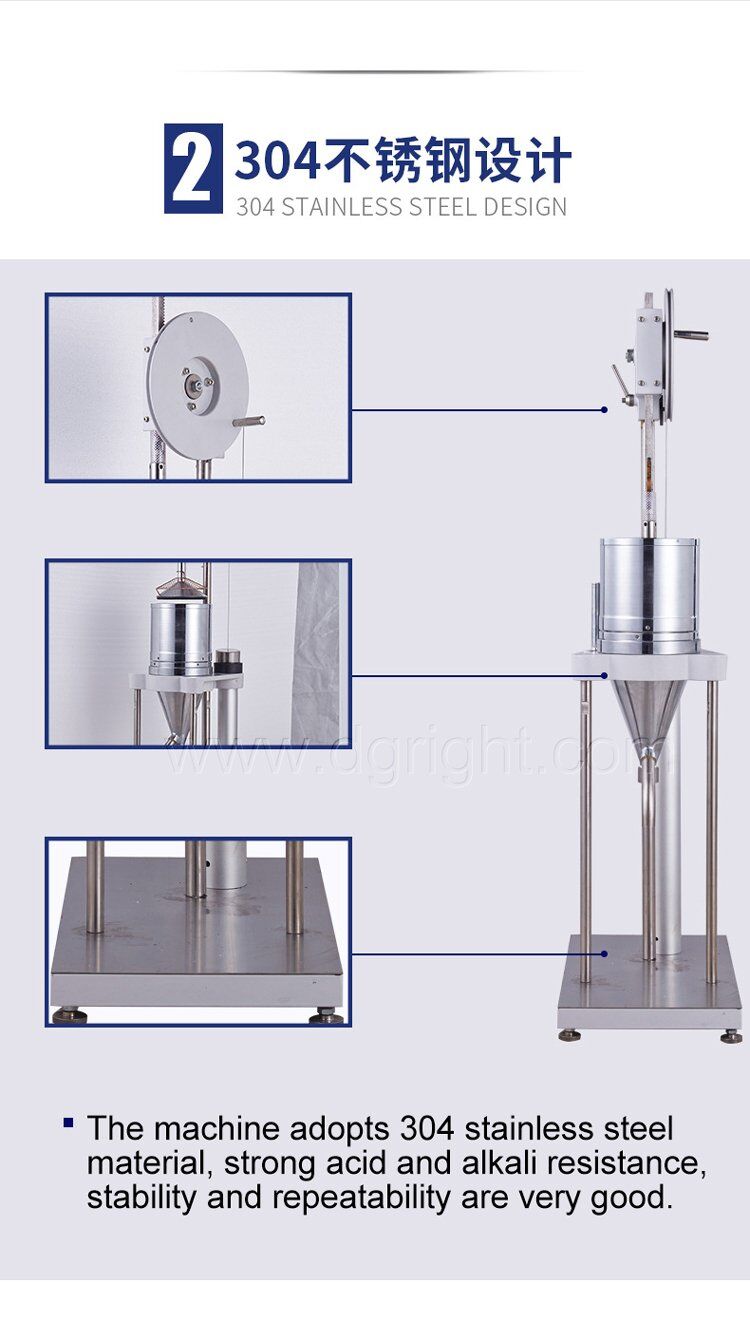

2 The main components of the instrument (such as water filters, cones, etc.) are finished with brass or stainless steel to ensure the durability and high performance of the instrument.

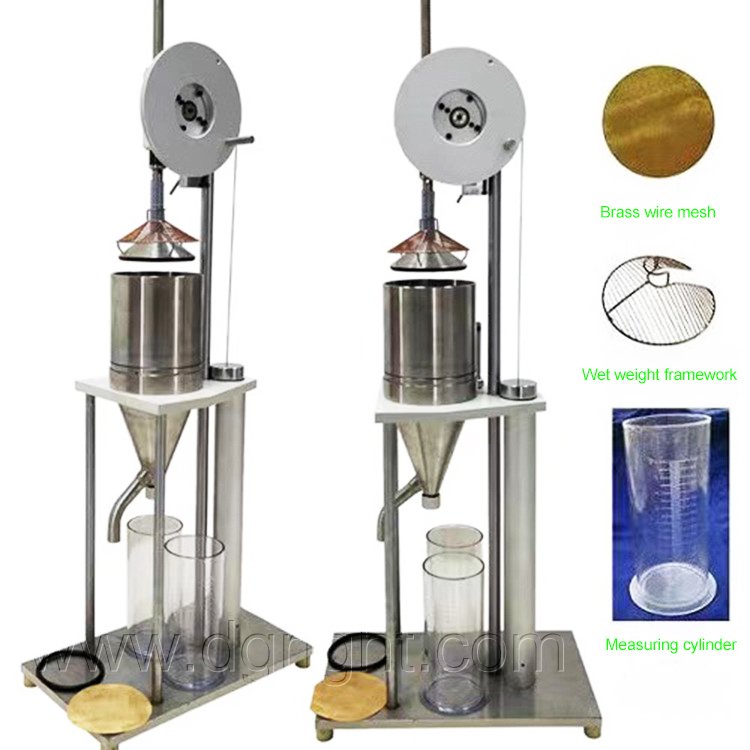

Common accessories:

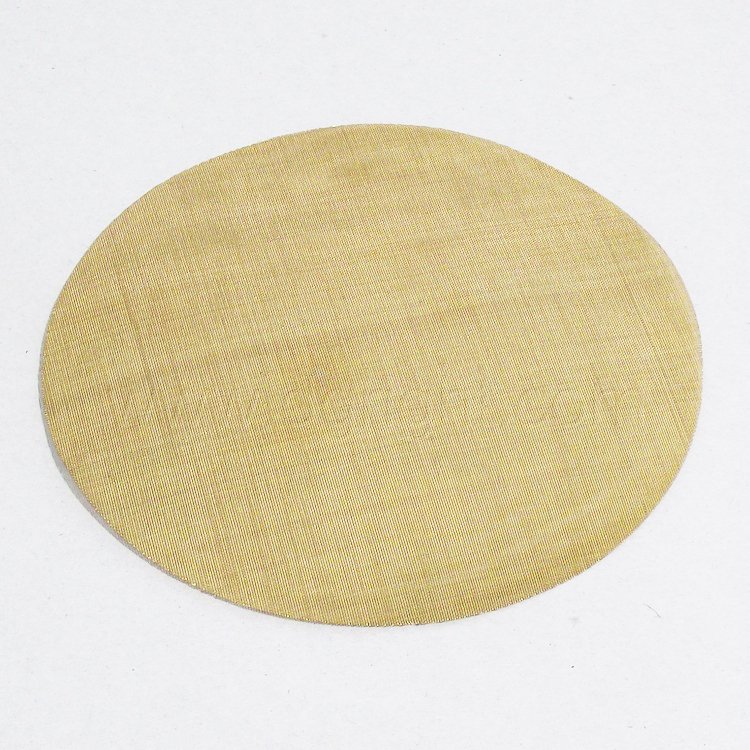

Special measuring cylinder for beating degree Wet weight frame Special copper net
