RT-417 Paperboard Layer Bonding Strength Tester, Cardboard Internal Ply Bond Tester, Scott Paper Plybond Tester

RT-417 Paperboard Layer Bonding Strength Tester, Cardboard Internal Ply Bond Tester, Scott Paper Plybond Tester

Do internal ply strength test of corrugated board–testing the Internal Bonding Strength of paperboard Internal Ply bond Tester is designed according to TAPPI-UM403.

It is applicable for testing the Internal Bonding Strength of various paper boards.



Product Details:

Paperboard Layer Bonding Strength Tester

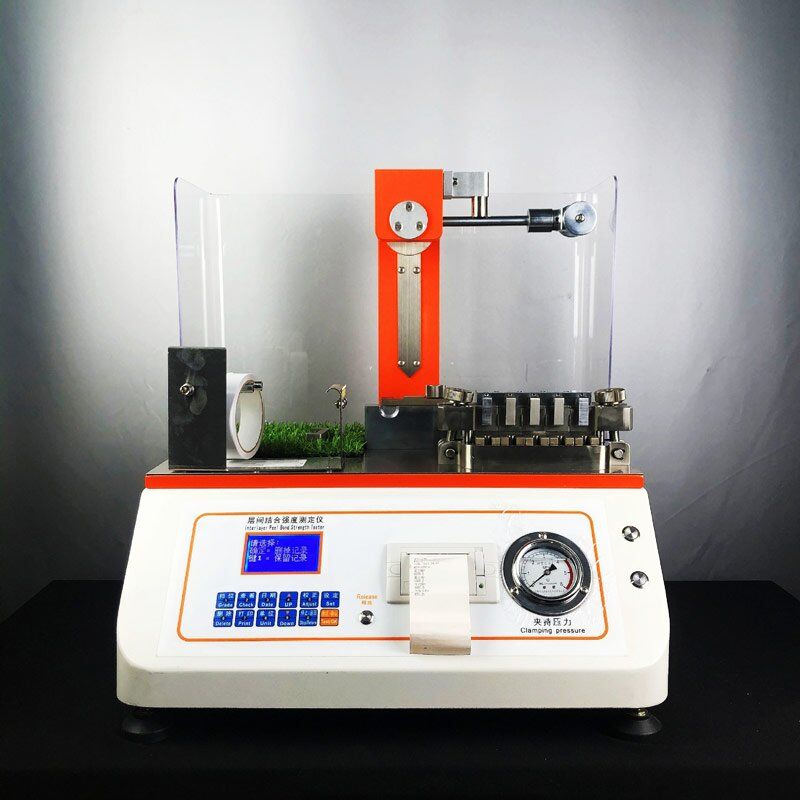

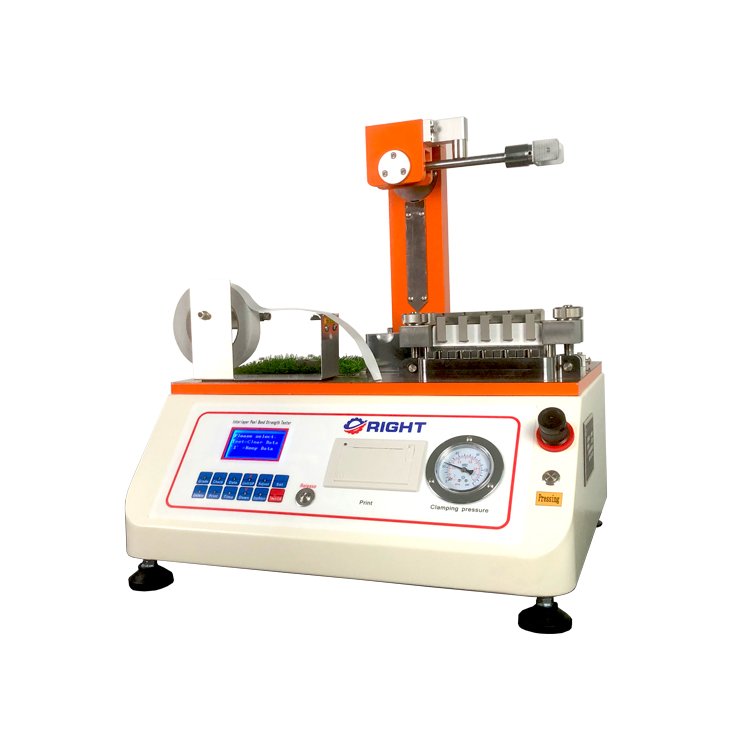

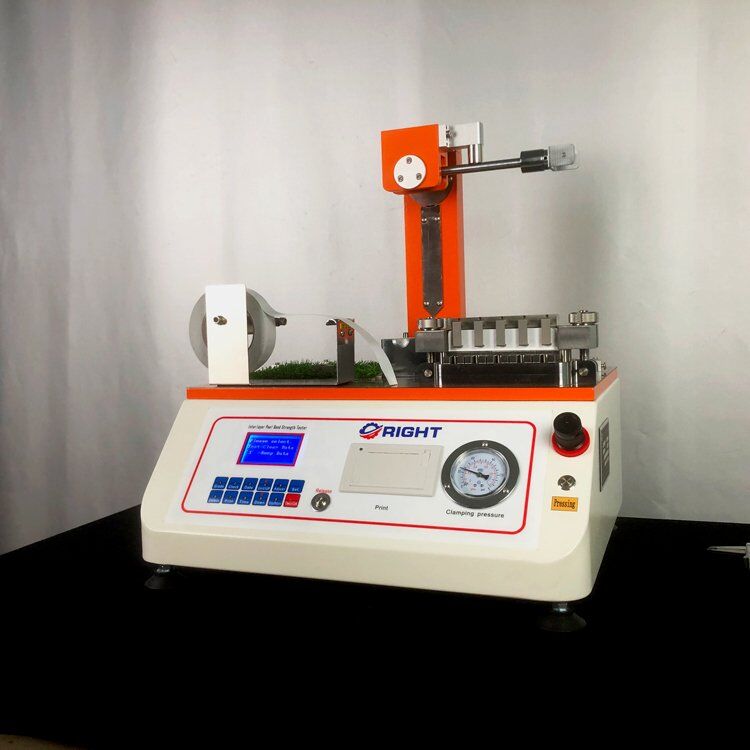

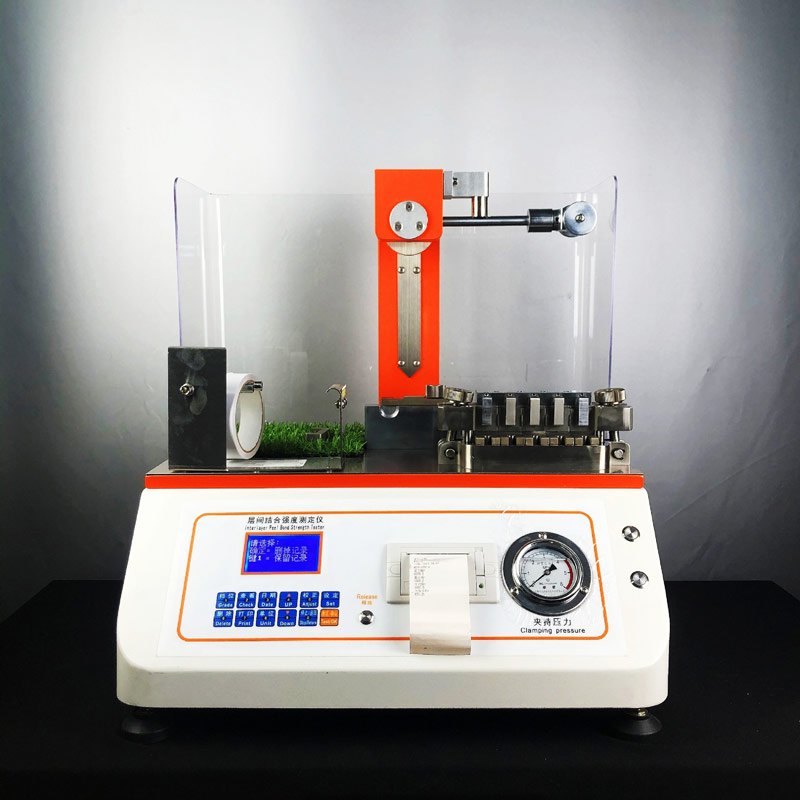

RT-417A Button Type Layer Bonding Strength Tester

Paperboard Layer Bonding Strength Tester

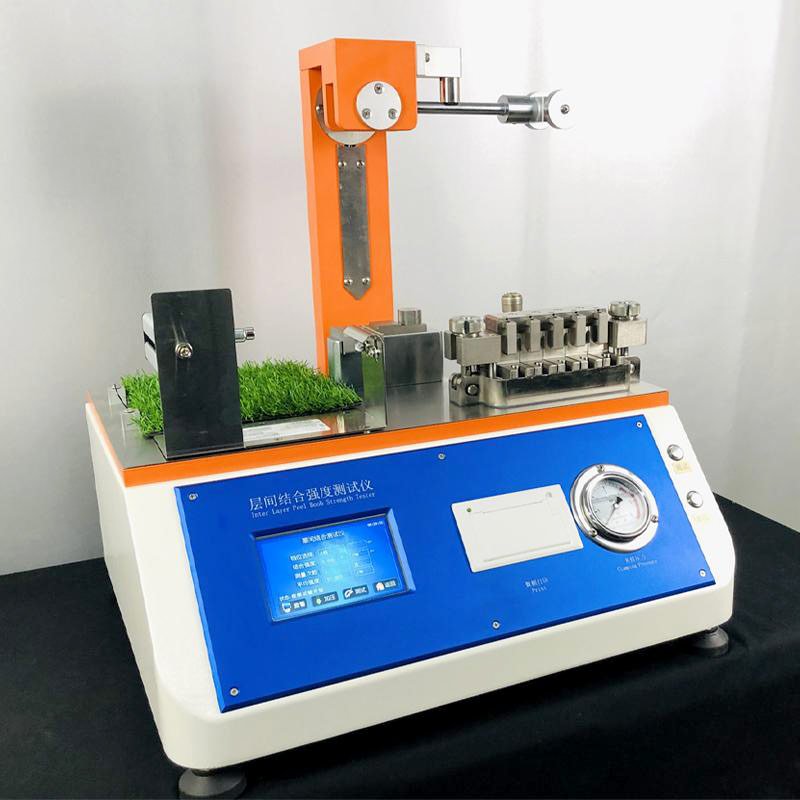

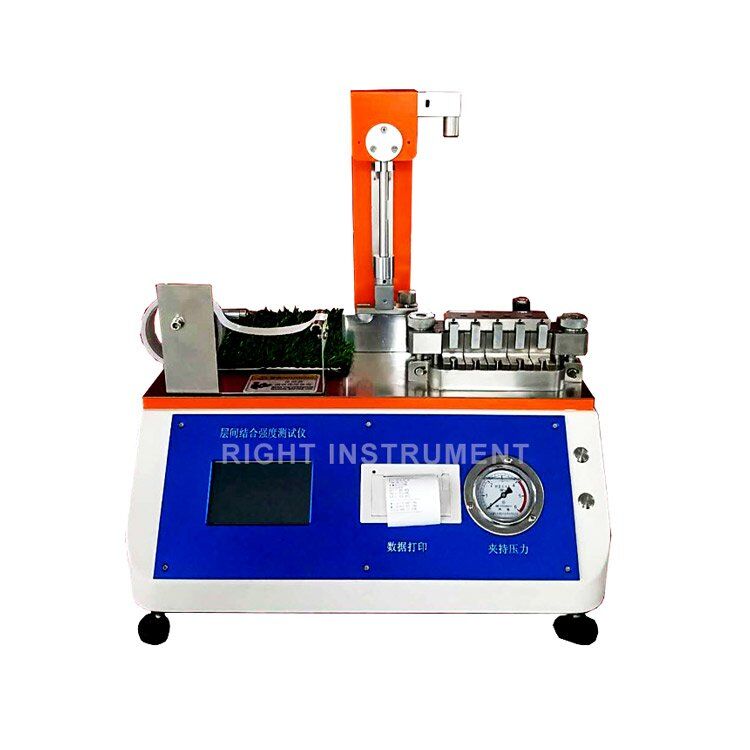

RT-417B Touchscreen Layer Bonding Strength Tester

Paperboard Layer Bonding Strength Tester Paperboard Layer Bonding Strength Tester

Test principle:

the paperboard sample is impact in aertain angle and weight, the energy it has absorbed indicates the internal bonding strength. It could test five samples at a time. The test unit is optional among kg/cm, N/m, J.



Correspond standard:

GB/T 26203-2010 《Paper and board internal ply bond test》(Scott style)
TAPPI T569pm-00 《Internal bond strength (Scott type)》
TAPPI T833pm-94





The main technical parameters:

Sample size 25.4×25.4mm

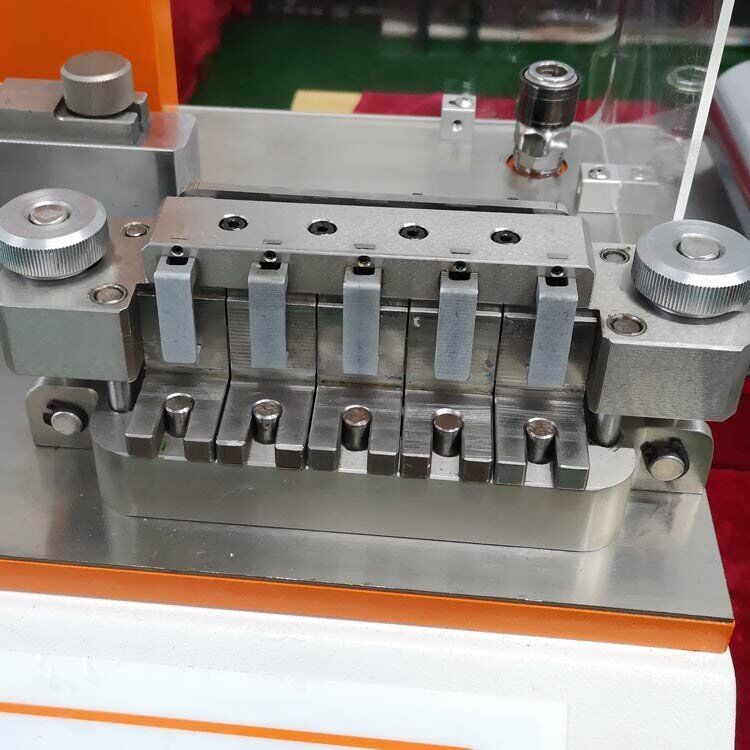

Sample amount 5 pcs
Sample parallelism Less than 0.1mm
Maximum sample thickness 1.5mm
Sample pressure (690+/-21)kpa or (1034+/-34)kpa, or can customized with sample thickness
Sample hold force 0~400N(adjustment)
Impact angle 90°
Dimension 70 × 34 × 60 cm
Weight 91 kg
