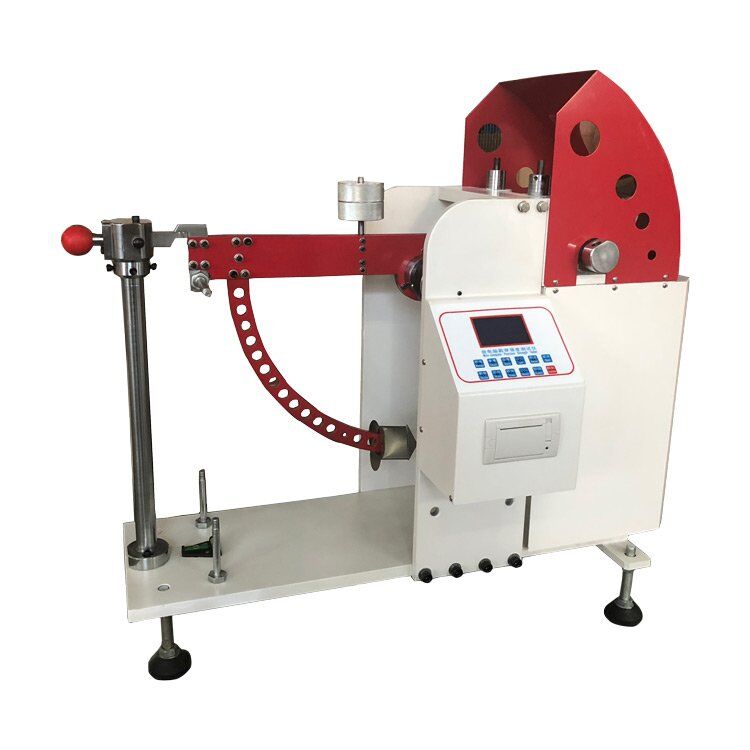

RT-416 Cardboard Puncture Strength Tester
RT-416 Cardboard Puncture Strength Tester
This machine is a corrugated board corrugated board anti-expose performance (both expose strength) determination of special instruments. Fast compaction, operating handle automatically reset and reliable security features.
Product Details：
Main features:
1. How it works: cardboard expose the intensity refers to a certain angle cone shape, the required power through the cardboard. That is, including starting puncture and tear cardboard bent into a hole so that the required power. In Joules (J) said.
2. Structure:
(1) The base and the bracket

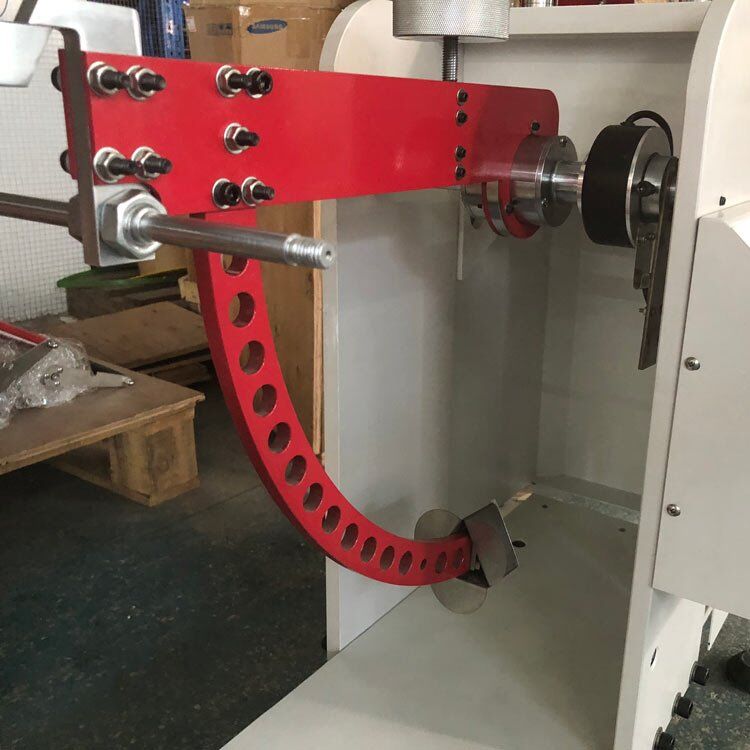

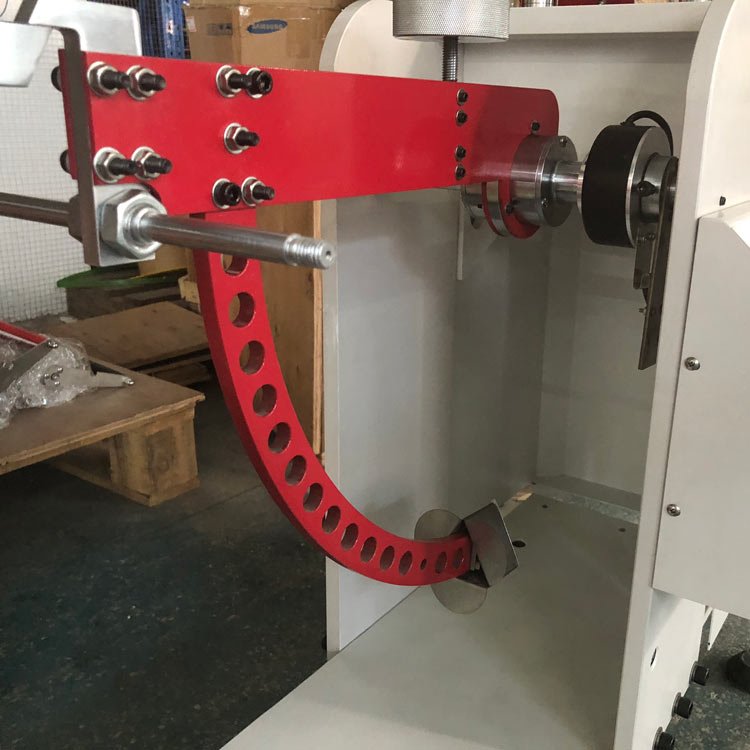

(2) The pendulum devices: from the pendulum body, pendulum shaft, head and re-expose the mound so on.
(3) Testing in part by the pointer, the pointer shaft and dial component.
(4) The specimen holding device: from the upper and lower platen and the clamping springs.
(5) The release of bodies from the body of the handle and release of the composition of the pillars.
To meet the criteria:
Product reference to ISO3036 (cardboard – Determination of strength expose “and GB2679 • 7” cardboard expose Determination of strength “in the relevant provisions of the design.
Applications Industry:
Wide application and is cardboard, carton manufacturing, research and inspection of enterprises and sectors such as the indispensable instrument used.
Technical Parameter:
| Model | RT-416 | |
| Measurement range | (1~48)J | |
| Testing error
| A.Scale＜6J, ±0.05J | Upper limit of measurement with in 20% to 80% |
| B.Scale＜12J, ±0.1J | ||
| C.Scale＜24J, ±0.2J | ||
| D.Scale＜48J, ±0.5J | ||
| Pointer friction | <0.25J | |
| Pendulum shaft friction and air resistance | >120Times (in order to measure the number of arm swing) | |
| Pyramid size | Length60mm×60mm×60mm,Hight(25±0.7)mm, Edge radius(1.5±0.1)mm | |
| Room temperature | 20Degress /temperature±100 Degrees /temperature | |
| Power | 220V±22V,power supply should be reliable, grounded | |
| Working environment | Keep clean,stable and no vibration | |
