RT-414 Paper Edge Compression Test, Paper Ring Crush Sample Cutter

Category 5. Paper and Carton Box Testing Machine

Additional information

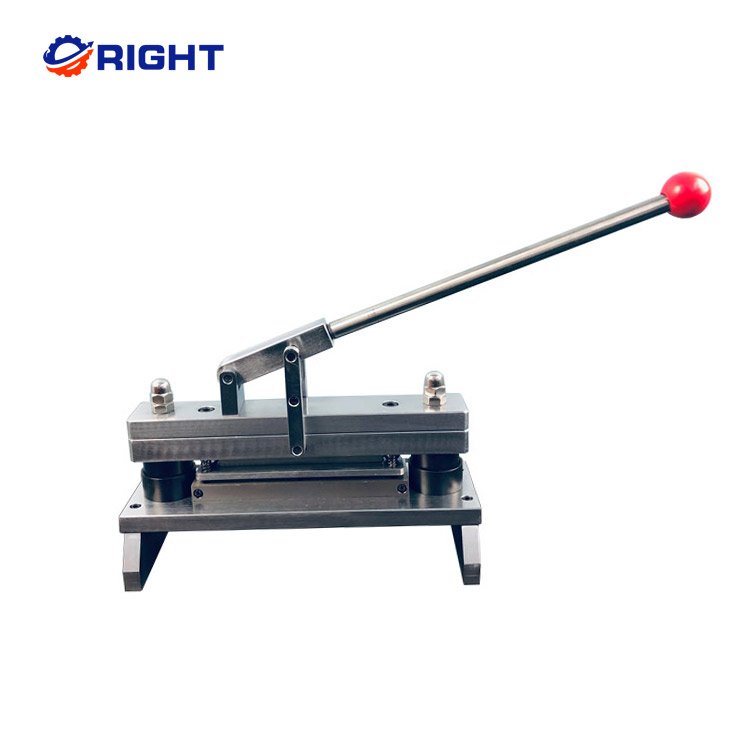

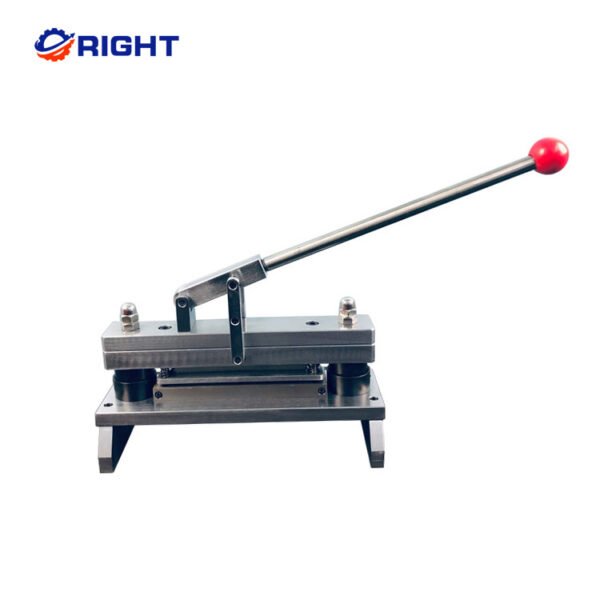

RT-414 Paper Edge Compression Test, Paper Ring Crush Sample Cutter

RT-414 cutter is a ring ring compressive strength test (cardboard corrugated paper RCT) and core strength test pressure (CMT) necessary for sampling. For ring pressure or other test with the sample. The sampling size precision instruments have sampling, simple operation, and the advantages of blade precision, make sample combination can be smooth edges.

Product Details：

Meet standards:

According to T409, TAPPI – P8113 standard JIS – design

Application:

It is the ideal test auxiliary appliance for the paper, packaging, scientific research, quality and other industries.

Technical Parameter:

Model	RT-414 packaging ring crush cutter
Cut specimens -A	152*12.7mm
Cut specimens -B	200 to 250×15mm
Adaptto-A	Ring pressure
Adaptto -B	Stretching
Two long edge parallel degree	<0.015mm
Sample thickness	(0.1~1.0)mm
Outside dimension	670×450×470mm(LWH)
Sampler Weight	About 35kg
